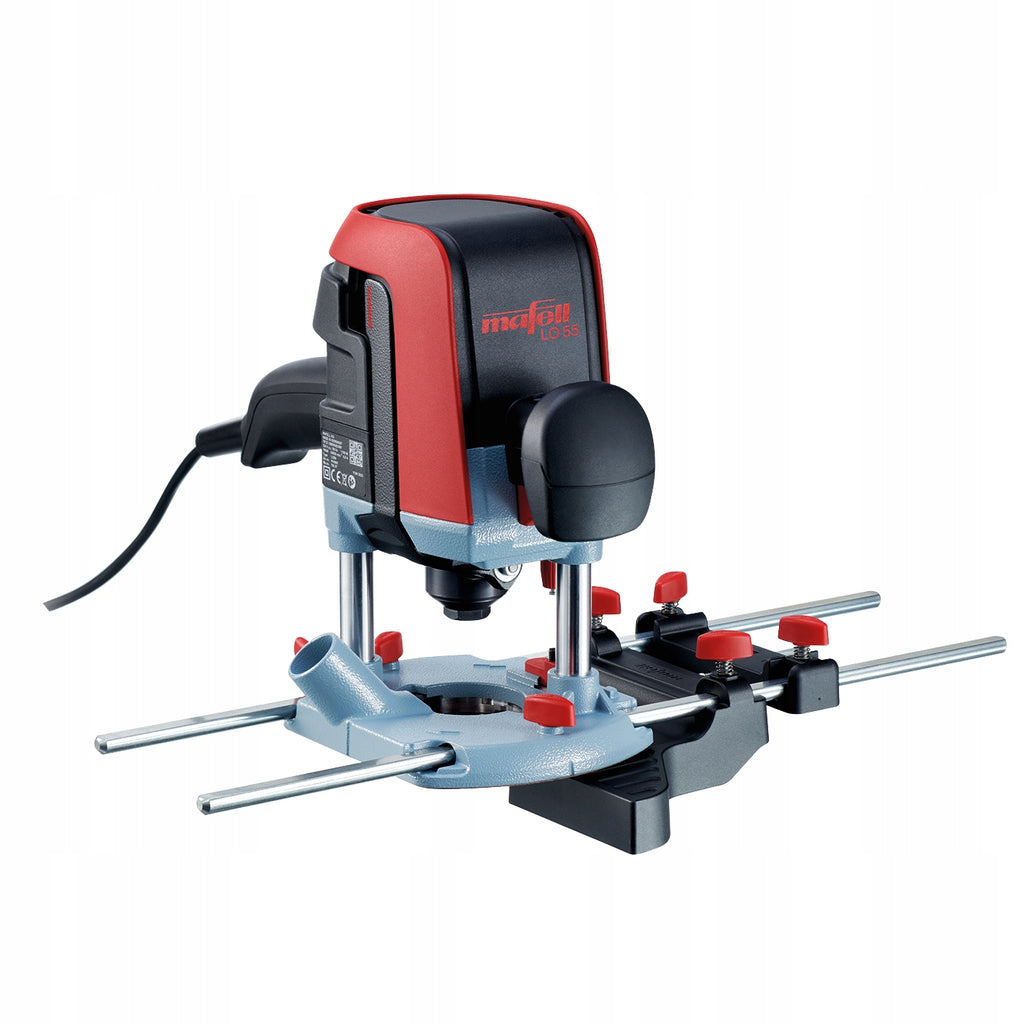

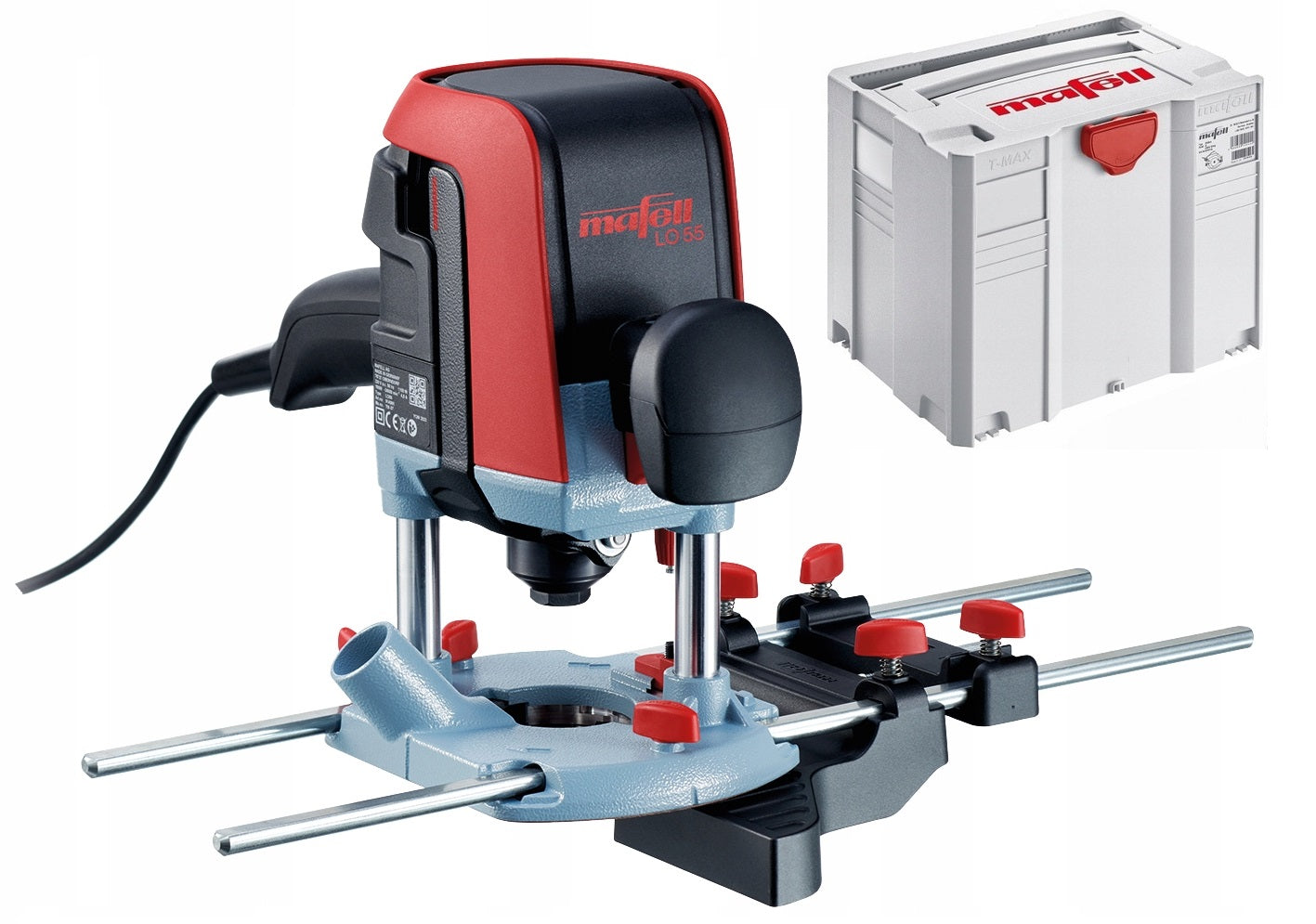

Frezavimo staklės LO 55 MAFELL Systainer dėkle

Trumpai apie prekę

Prekė: Frezavimo staklės LO 55 MAFELL Systainer dėkle. Kategorija: Frezavimo staklės.

• Gamintojas: Mafell
• Modelis: 91A901

Technical data:

• Milling depth: 0 - 55 mm
• Tool holder Ø: 8 mm
• Rotary speed: 10000 - 24000 1/min
• Power consumption: 1100 W
• Short chip extraction diameter Ø: 29 mm
• Weight: 3,1 kg
• Universal motor: 230 V / 50 Hz

Application

• Milling machines for punches with parallel stop
• Milling
• chamfering
• Rows of holes
• Milling of outlets
• For processing solid wood and wood panels

Product Description

• Do you want to experience versatility in a whole new dimension? Then check out the LO 55. With its exemplary handling, it is perfect for any workshop or assembly job. Convince yourself of the numerous possibilities of application and let your creativity run wild.
• In our Ergo Balance concept, everything is user-centered. For example, the LO 55 can be optimally balanced. There is no vibration or vibration transmission in it.
• Degree limiter with height clamp for repeated working depths. In the case of inserts in the shape of a swallow tail, the milling depth can be additionally tightened.
• In combination with the LO-FA spindle milling machine and the F-LR guide rail, rows of holes can be drilled safely and precisely. For quick work progress, simply deactivate the Permafix clamp.

Benefits

• Couldn't be easier and faster: To replace the cutter, simply release the attachment lever, change the knife, and reassemble the lever.
• The dust extraction unit is integrated into the base plate. Thanks to this, all chips are optimally collected.
• The milling depth is fixed permanently. With the push of a button, the clamp is released and the milling depth can be conveniently set.
• Wide LED lighting provides optimal illumination of the milling area in all lighting conditions.
• With both butterfly screws, the base plate attaches a parallel limit and inserts.

Completely new and only from Mafell: Thanks to the innovative cutter replacement, you are ready to work in a few seconds. Loosen the mounting lever, replace the cutter, put on the lever- ready. All without tools!

The Deboost function for speed reduction ensures fast and clean progress in working with cross milling.

Mafell IPC is a newly developed digital electronics. With control technology for reboot protection, overload protection and constant speed under load. Colorful LEDs inform about functions and operating states.

• High-spindle milling machine Mafell LO 55
• Parallel guide with precise adjustment
• Chip deflector
• Copy ring 20 mm
• Copy ring 30 mm
• Copy ring 40 mm
• Adapter copy ring
• Extraction connection adapter
• Extraction connection adapter for guide rail F
• Power cable 4 m
• In the MAX3 system

Specifications
