Frezavimo staklės DEDRA 18V DED7163, bešepetėlis

Trumpai apie prekę

Prekė: Frezavimo staklės DEDRA 18V DED7163, bešepetėlis. Kategorija: Frezavimo staklės.

• Gamintojas: Dedra
• Modelis: DED7163
• Įtampa: 18 V

(without charger and battery)

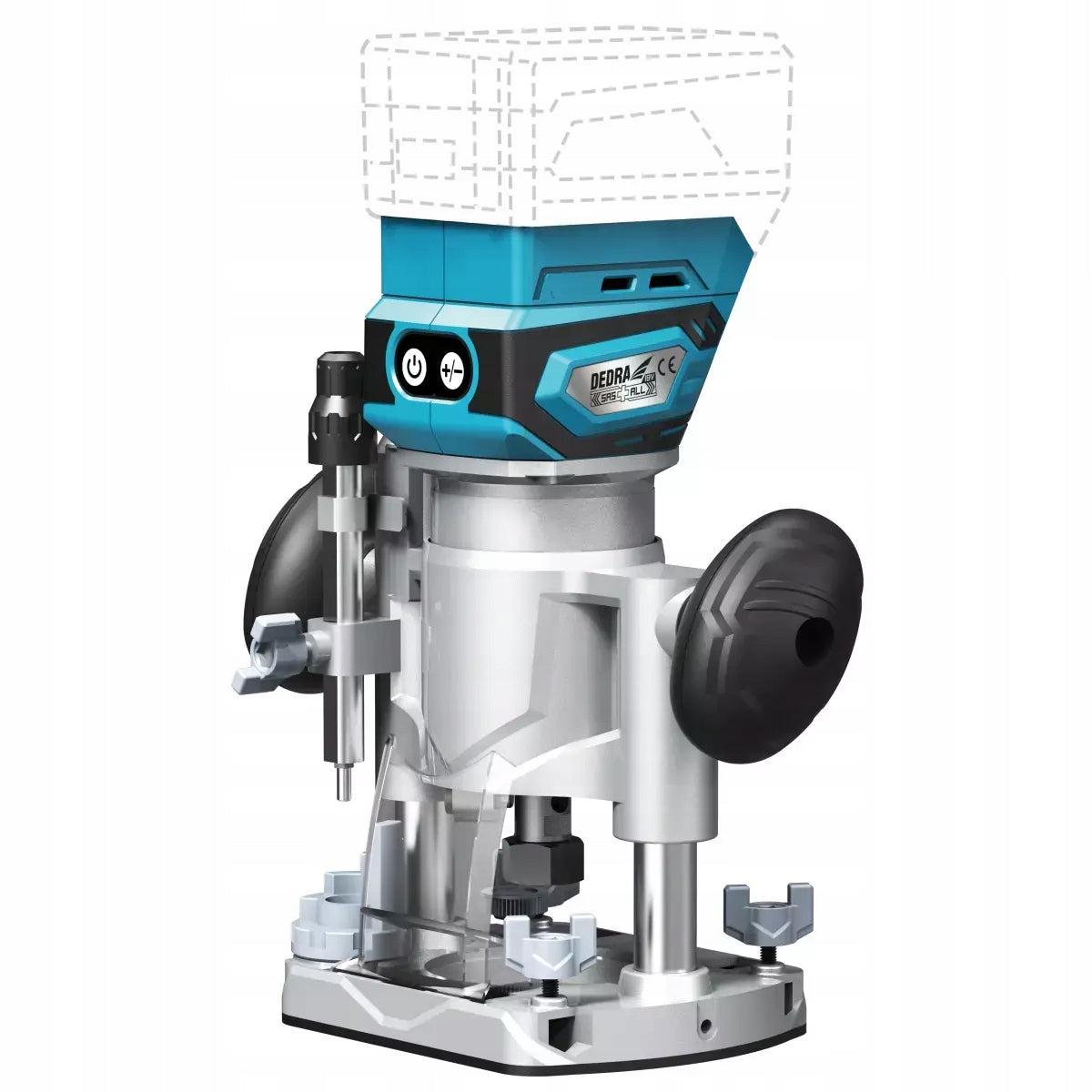

Brushless spindle milling machine DEDRA SAS+ALL is a device designed for processing wood and wood-based elements.

Depending on the type of cutter used, we can mill straight surfaces, make quarters, holes, inlets or recesses.

The milling machine is equipped with a high-performance brushless motor that delivers powerful and smooth performance. Thanks to the battery power supply, it is also extremely mobile, which allows you to work in different places without restrictions. Additionally, the adjustment of the working depth and rotational speed allow the user to adjust the device to the specific needs and type of work performed.

The milling depth is adjusted in two stages, allowing precise adjustment to the required machining depth. The maximum milling depth is 33 mm. Additionally, the milling machine is equipped with two clamping sleeves with diameters of 6 mm and 8 mm, which allows flexible use of different cutters.

Thanks to the solid aluminum base, smooth movement of the device on the surface of the processed material is easy and convenient.

• Brushless motor - high efficiency;
• Battery power supply - high mobility of work;
• Adjustment of working depth and rotational speed - use according to. specific needs;
• Spindle lock - allows you to safely and conveniently change tools in the device.

• Voltage: 18V;
• Speed control range: 12000-28000RPM;
• Milling depth adjustment: yes, two-stage;
• Maximum milling depth: 33mm;
• Two collets: 6 and 8mm.

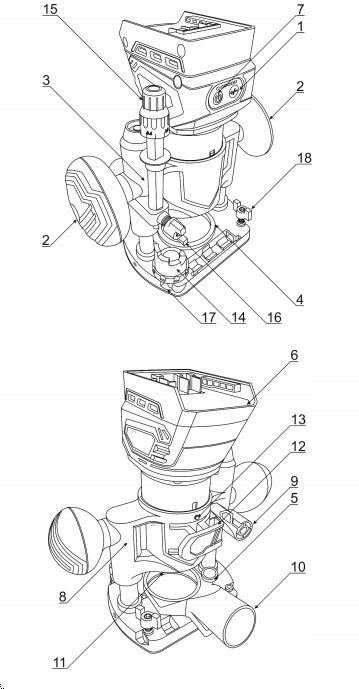

1. Speed controller;
2. Handle;
3. Depth limiter;
4. Front cover;
5. Screw for mounting a cover with a stub;
6. Battery socket;
7. switch;
8. Case;
9. Locking lever;
10. Extraction connector;
11. Spindle lock button;
12. Body locking lever;
13. Body lock;
14. Step bumper;
15. Depth regulator with knob;
16. Milling depth limiter lock knob;
17. Guide grooves;
18. Parallel guide clamp.

Included in the set:

• Brushless high-spindle milling machine;
• Terminal bushings [6 and 8mm];
• Parallel guide (1 pc);
• Dust extraction adapter (1 pc);
• Template copy board (1 pc);
• Wrench (2 pcs).

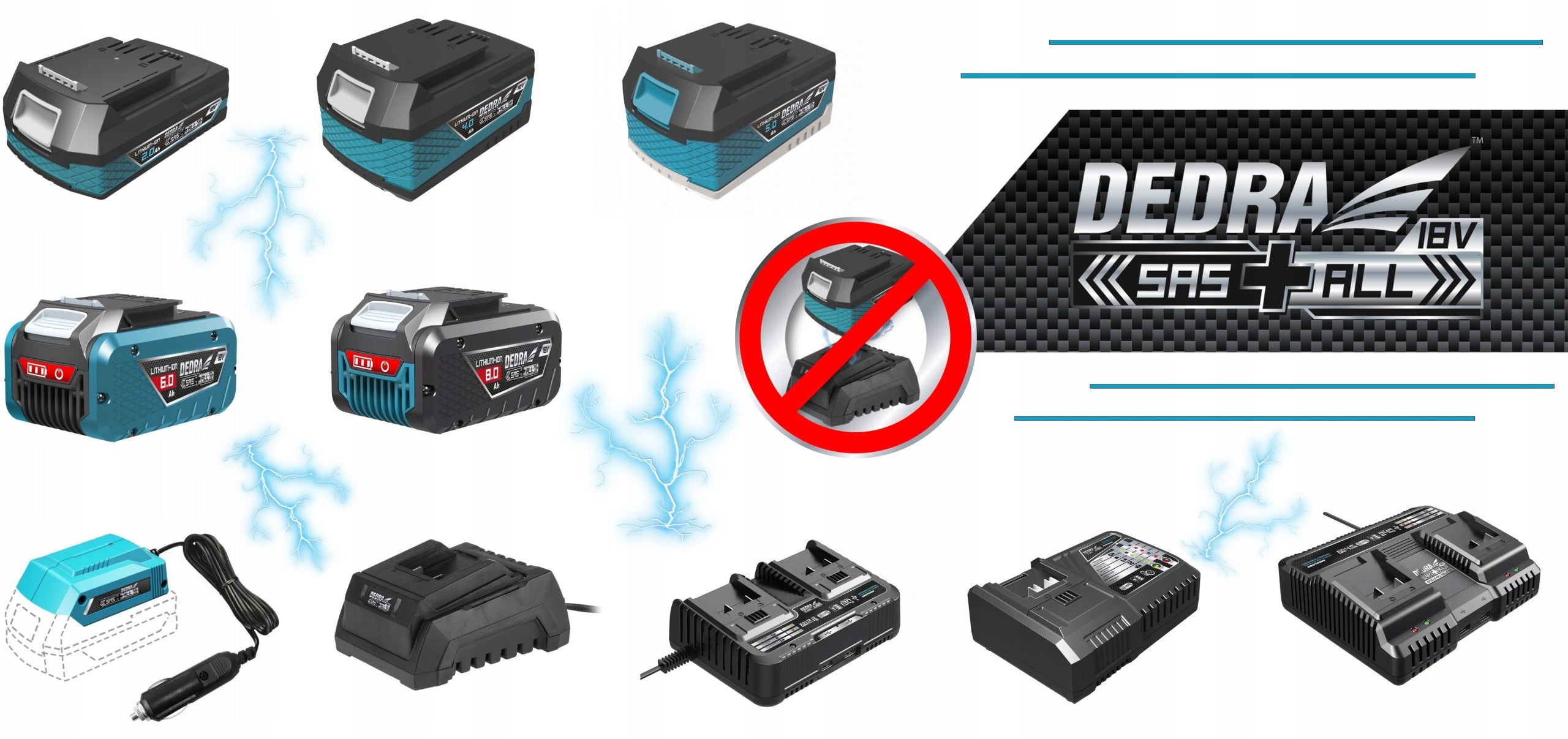

The DED7163 spindle milling machine is part of the SAS+ALL line, thanks to which you can complete different devices, powered by the same battery.

To use the device , you must complete a set consisting of the device , battery (DED7032 2Ah, DED7034 4Ah, DED7035 5Ah, DED6936 6Ah or DED6937 8Ah ) and charger ( regular DED7038, double DED7038V fast DED7039 or double fast DED7039V).

A DED7038A car charger is also available.

Specifications
