Trumpai apie prekę
Prekė: FPV dronas GEPRC DarkStar22 WTFPV 2.2 Cinewhoop be VTX, ELRS. Kategorija: Dronai ir multikopteriai.
- Gamintojas: Avifly
- Modelis: DarkStar22

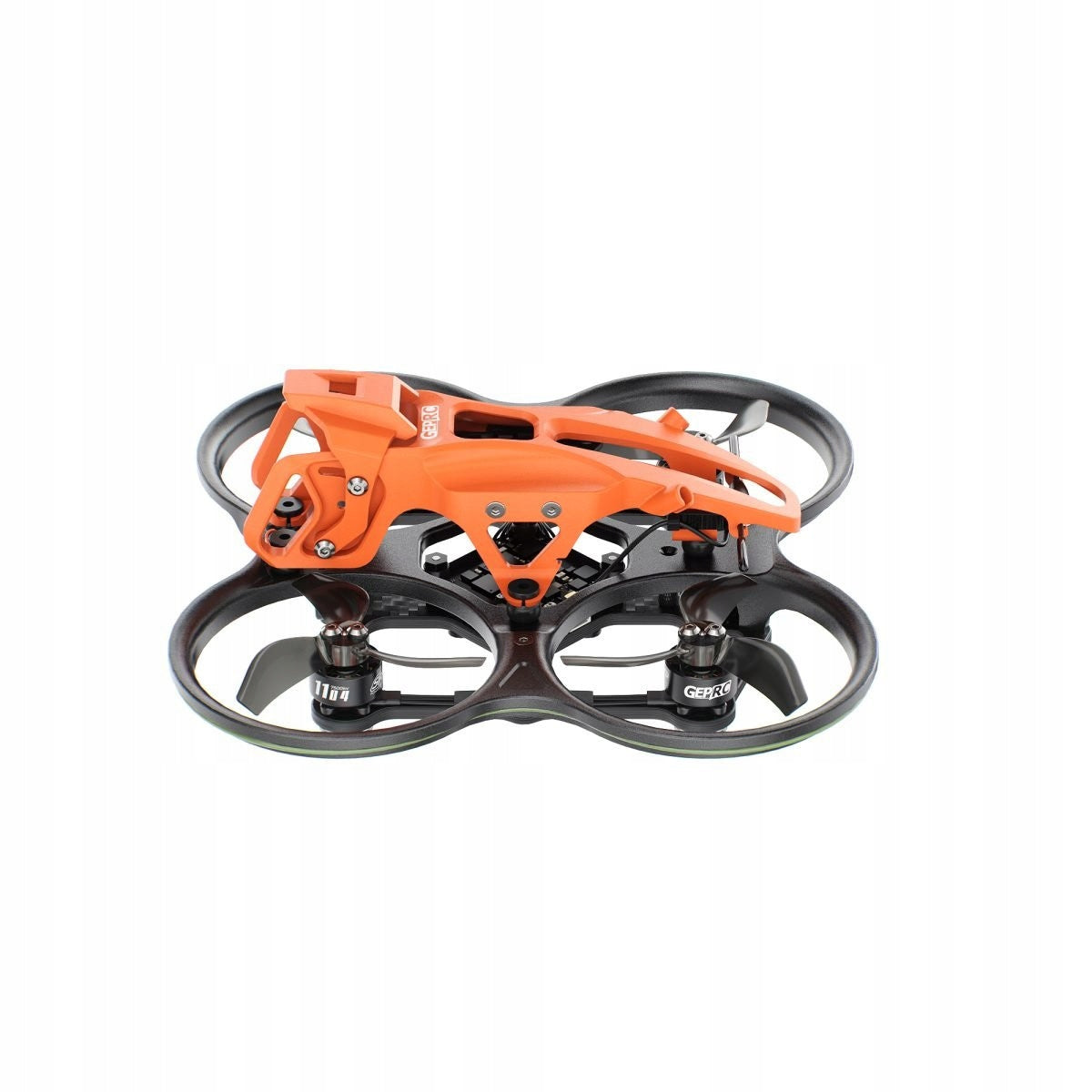

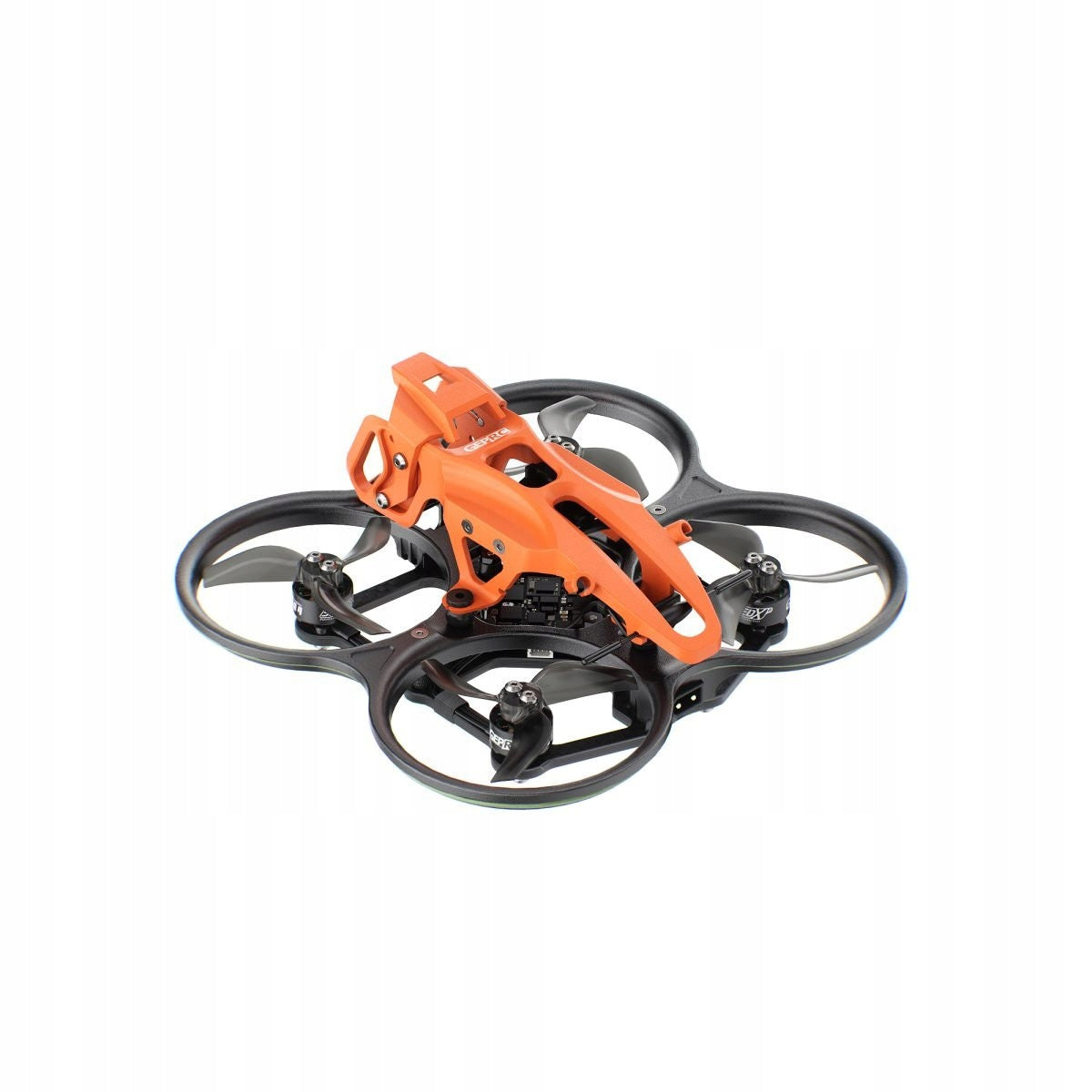

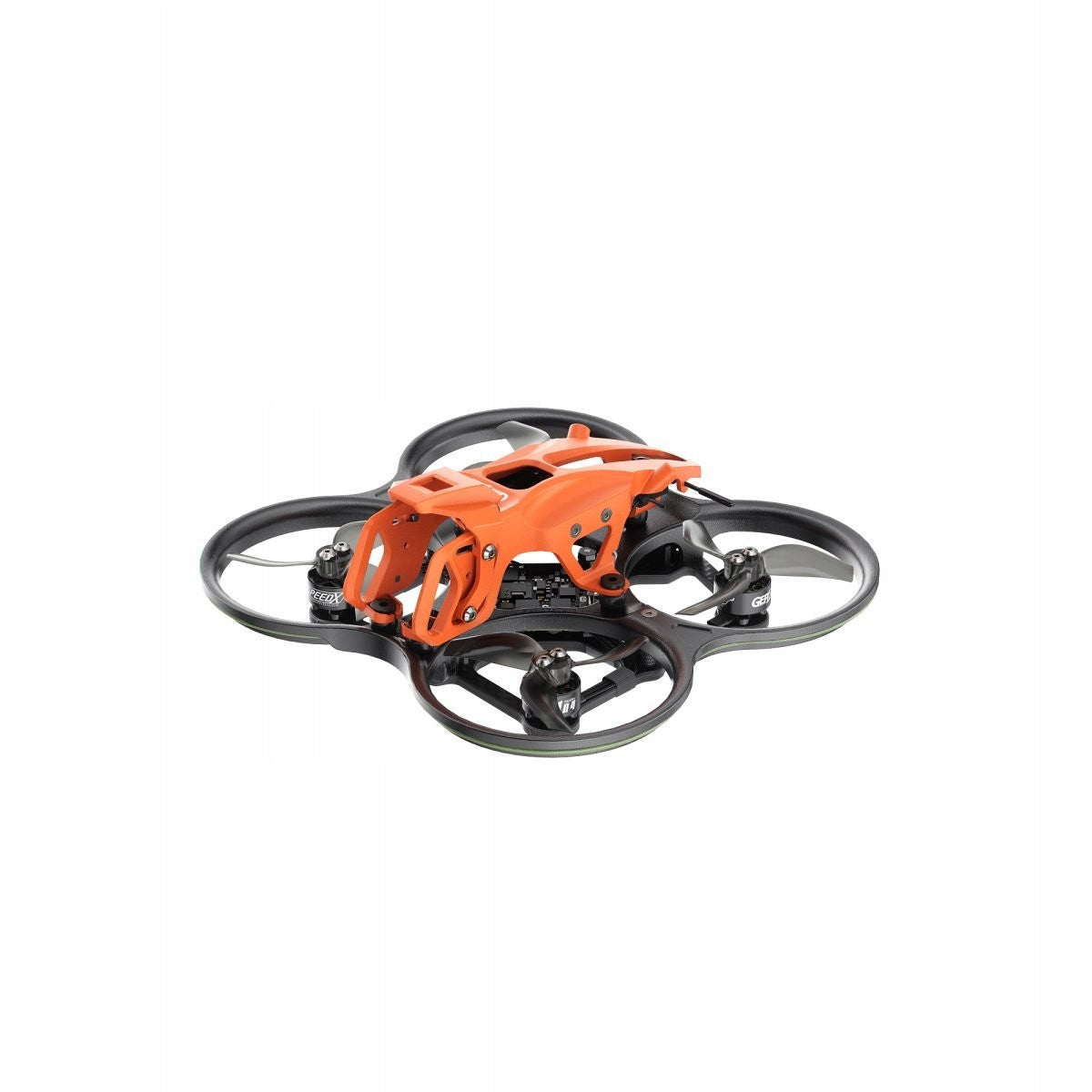

GEPRC DarkStar22 WTFPV - compact cinewhoop 2.2 inch
GEPRC DarkStar22 WTFPV is a small cinewhoop FPV drone with 100 mm wheelbase, GEP-DS22 frame and drive based on SPEEDX2 1104 7500KV engines.
This is the WTFPV version, i.e. a configuration without a factory-installed camera, VTX transmitter and antenna. It is designed for pilots who want to choose their own FPV video system.
The most important features
- Cinewhoop 2.2 inch: compact design with propeller guards for flying in limited space.
- Axle spacing 100 mm: small format makes it easy to maneuver close to obstacles.
- GEP-DS22 frame: structural base with 2.5 mm carbon plate.
- FC TAKER F405 20A ELRS2.4 2-4S AIO: flight controller, ESC and ELRS 2.4G receiver in one board.
- SPEEDX2 1104 7500KV engines: drive matched to a lightweight 2.2 inch platform.
- GEPRC x GEMFAN GP2219-3: three-blade propellers designed for this class of cinewhoop.
- XT30U-M connector: popular power standard in small FPV drones.
- Weight of ELRS version 2.4G: 98.0 g according to manufacturer data.
WTFPV version - without camera, VTX and antenna
This variant is not a complete drone with a factory video system. The manufacturer provides for this version: Camera: None, VTX: None, Antenna: None.
Thanks to this, DarkStar22 WTFPV will work as a ready base for your own FPV system. You can choose the camera, video transmitter and antenna according to your own apparatus, goggles and flying style.
This is a good solution for people who do not want to be limited by the factory configuration and prefer to assemble the video track themselves.
Technical specification
- Brand: GEPRC
- Model: DarkStar22 WTFPV
- Type: cinewhoop FPV drone
- Size: 2.2 inch
- Frame: GEP-DS22
- Axle spacing: 100 mm
- Main carbon plate thickness: 2.5 mm
- FC System: TAKER F405 20A ELRS2.4 2-4S AIO
- MCU: STM32F405
- Gyro: ICM42688-P
- Firmware FC: GEPRC_TAKER_F405 AIO
- Flash: 16 MB
- ESC: 8Bit 20A
- Engines: SPEEDX2 1104 7500KV
- Propellers: GEPRC x GEMFAN GP2219-3
- Power connector: XT30U-M
- VTX: none
- Camera: none
- Antenna: none
- Receiver: PNP or ELRS 2.4G depending on the variant
- Weight: 98.0 g for ELRS 2.4G
- Recommended battery: GEPRC Storm LiHV 3S 720 mAh
Contents of the set
- 1 x DarkStar22 drone
- 1 x Prop Guard Propeller Guard
- 1 x canopy
- 1 x Camera Cover
- 1 x Battery Pad
- 2 x Pair of Propellers
- 1 x 10 x 120 mm battery strap
- 1 x Allen wrench L 1.5 mm
- 1 x Anti-slip mat for battery
- 1 x Damping Ball Punch Tool
- 1 x Binding Pin
- 1 x USB Adapter Board
- 1 x 5P Terminal Cable
- Set of spare screws and damping balls
Frequently Asked Questions
Does GEPRC DarkStar22 WTFPV have a camera?
No. According to the manufacturer, the WTFPV version does not have a factory-installed camera, VTX or antenna.
Is this a drone ready to fly?
Not in the full sense. It's a cinewhoop base without an FPV video system. For flight, you also need compatible goggles, apparatus, battery, charger and a selected video system.
What battery fits DarkStar22 WTFPV?
The manufacturer recommends GEPRC Storm LiHV 3S 720 mAh. The TAKER F405 20A AIO supports 2-4S power, but in a small cinewhoop, the packet weight has a big impact on flight behavior.
Does the drone support ELRS 2.4G?
Yes, the ELRS 2.4G uses the TAKER F405 20A ELRS2.4 2-4S AIO with integrated ELRS receiver.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Avifly |
| Parametry | Model | DarkStar22 |
| Parametry | EAN (GTIN) | 5908080505352 |
| Parametry | Manufacturer code | GP107985 |
| Parametry | Batteries included | no |
