FPV dronas GEPRC Cinebot25 V2 WTFPV 2.5", ELRS 2.4G

Trumpai apie prekę

Prekė: FPV dronas GEPRC Cinebot25 V2 WTFPV 2.5", ELRS 2.4G. Kategorija: Dronai ir multikopteriai.

• Gamintojas: Avifly
• Modelis: Cinebot25 V2 O4

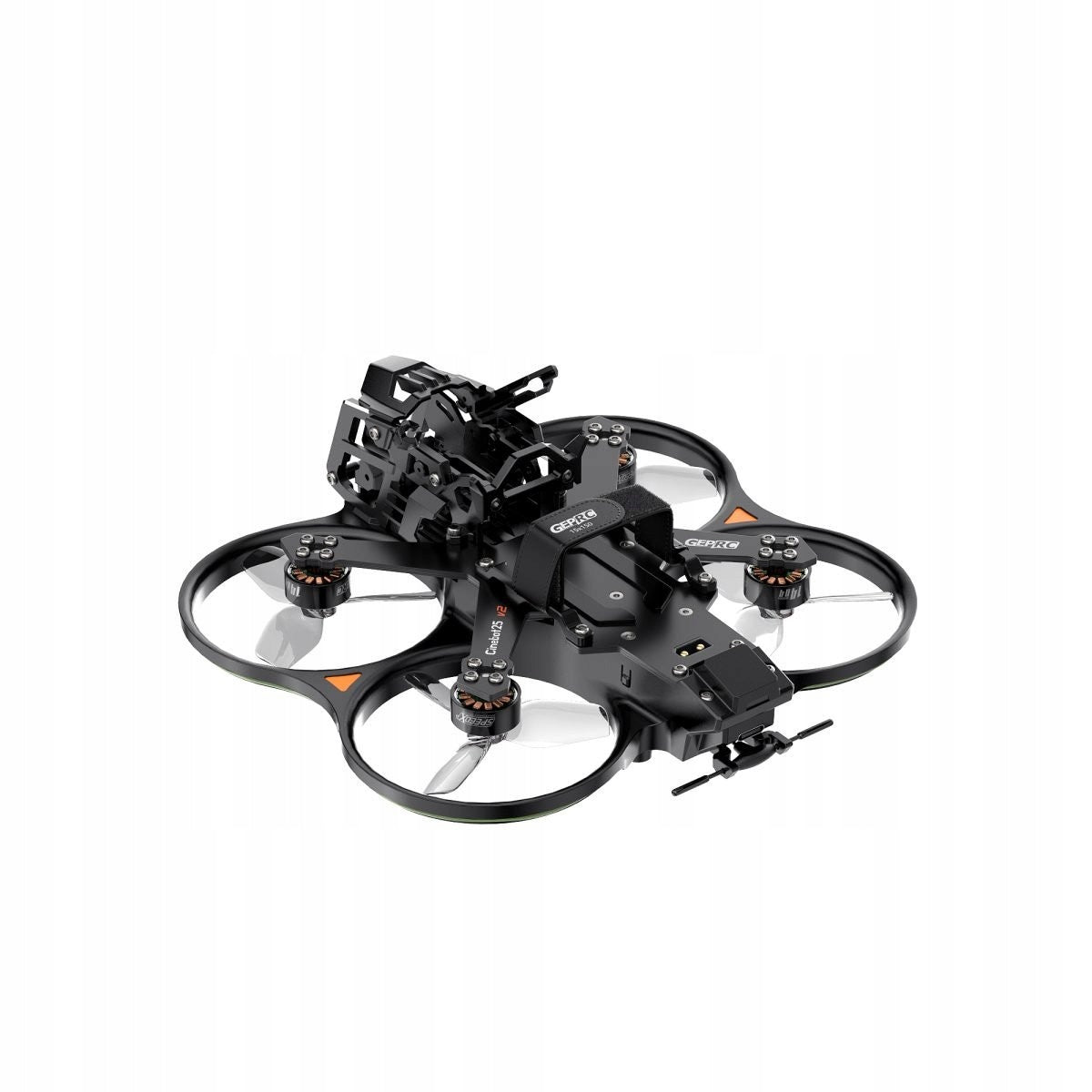

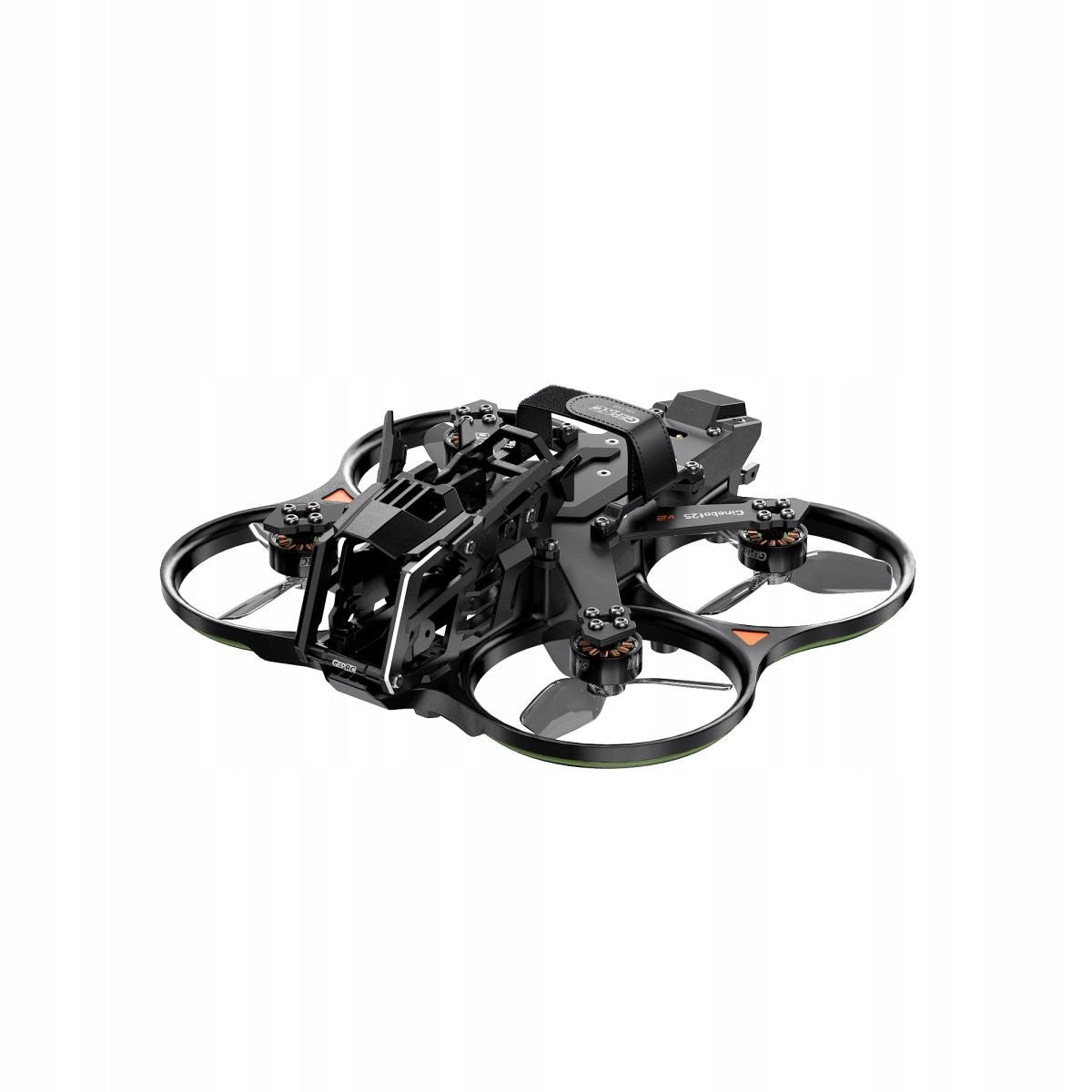

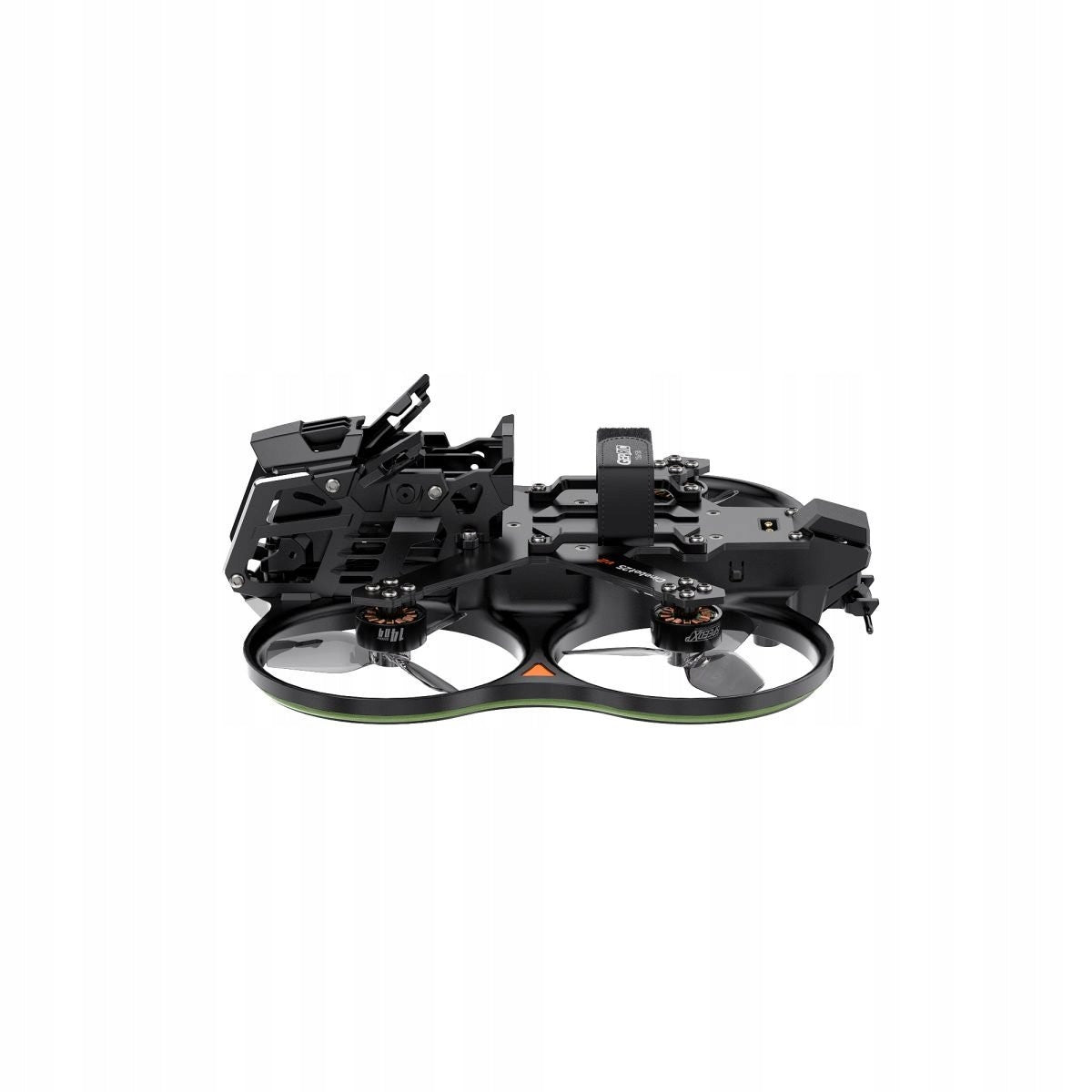

GEPRC Cinebot25 V2 WTFPV – compact cinewhoop 2.5" platform

GEPRC Cinebot25 V2 WTFPV is a 2.5-inch cinewhoop FPV with a wheelbase of 123 mm, prepared as a base for its own FPV system. The WTFPV version means configuration without a pre-installed video transmission system, camera and antenna, which gives the user more freedom in the selection of components.

The model is based on the GEP-CT25 V2 frame and the TAKER F722 35A 32Bit AIO chip, which connects the flight controller with a 35-amp ESC controller. The STM32F722RET6 processor, ICM42688-P gyroscope and GEPRC_F722_AIO firmware were used. This configuration ensures stable operation of electronics and a good base for dynamic, precise FPV flight.

Modular design and space for your own FPV system

The Cinebot25 V2 is designed with modularity in mind. The manufacturer used a design with a cushioned, quickly disassembled camera module / VTX and a reinforced electronics section. The WTFPV version allows you to mount your own video system, which is especially useful for people who already have a compatible VTX, camera or are planning an individual configuration.

It is worth noting that in this version of VTX, the camera and antenna are not included. This is a deliberate configuration for users who do not want to pay for the factory FPV system and prefer to choose it themselves.

SPEEDX2 1404 engines and HQProp DT63mmx3 propellers

The drone is equipped with SPEEDX2 1404 4600KV engines, cooperating with HQProp DT63mmx3 V2 propellers. It is a set selected for a 2.5-inch cinewhoop, providing the right balance between control, stability and power reserve.

4S power supply and flight time up to 5 to 8 minutes

GEPRC recommends using LiHV 4S 750 – 1100 mAh batteries. According to the manufacturer’s data, the approximate flight time is 5 to 8 minutes with a quiet cruising flight. Actual flight time depends on flying style, weight of FPV configuration, battery used and external conditions.

Who is GEPRC Cinebot25 V2 WTFPV for?

This model will be a good choice for FPV pilots who are looking for a compact 2.5" cinewhoop and want to decide for themselves which video system to mount. It will work as a platform for flights in tight spaces, cinematic recordings and configurations to your own hardware preferences.

Contents of the set

• 1 × GEPRC Cinebot25 V2 Quadcopter
• 2 × HQProp DT63mmx3 V2 – pairs of propellers
• 1 × battery strap 15 × 150 mm
• 1 × Allen key L-shape 1.5 mm
• 1 × set of spare screws
• 1 × anti-slip pad for battery
• 1 × binding pin
• 4 × rear landing pads
• 2 × front lower landing pads
• 1 × front top cover
• 2 × O4 antenna mounts
• 2 × acrylic tiles
• 3 × damping balls
• 1 × female receiver connector cable – for PNP version

Note: The WTFPV version does not include a video transmission system, camera or antenna. For full FPV operation, it is required to mount a compatible video system and the appropriate apparatus / receiver, depending on the selected version.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Avifly
Parametry	Model	Cinebot25 V2 O4
Parametry	EAN (GTIN)	5908080505284
Parametry	Manufacturer code	GP108159
Parametry	Batteries included	yes
