FPV dronas BETAFPV Pavo Pico II, bešepetis whoop quadcopteris, PNP ELRS 2.4G

Trumpai apie prekę

Prekė: FPV dronas BETAFPV Pavo Pico II, bešepetis whoop quadcopteris, PNP ELRS 2.4G. Kategorija: Dronai ir multikopteriai.

• Gamintojas: BetaFPV
• Modelis: Pavo Pico II

FPV drone BETAFPV Pavo Pico II Brushless Whoop Quadcopter PNP ELRS 2.4G

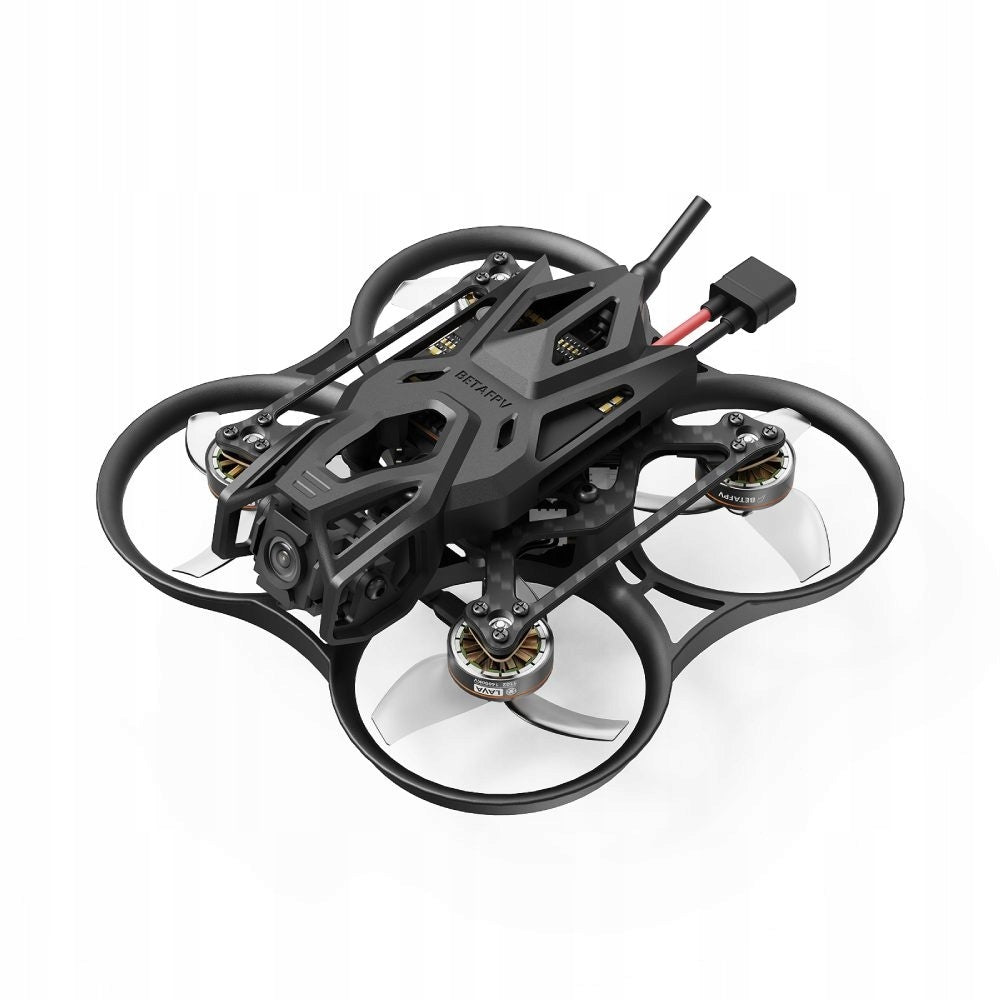

BETAFPV PAVO PICO II BRUSHLESS WHOOP QUADCOPTER – PNP VERSION

BETAFPV Pavo Pico II Brushless Whoop Quadcopter PNP is an ultra-light cinewhoop FPV drone in PNP (Plug & Play) version, designed for users who want to choose a video system themselves. It is a compact yet highly efficient platform, ideal for both cinematic and dynamic freestyle flights.

PNP VERSION – FULL FREEDOM OF CONFIGURATION

The model does not include a video unit (camera + VTX), so you can:

• choose the FPV system yourself (e.g. DJI O4 or O4 Pro)

• optimize the weight and balance of the drone

• adjust the configuration to your needs

The drone has a dedicated O4 Bracket II mount, which significantly facilitates the installation of modern digital systems.

ULTRA-LIGHT DESIGN – ONLY ~39 G

Pavo Pico II is a real pocket cinewhoop:

• weight: approx. 39.1 g (without video system)

• wheelbase: 80 mm

• compact design with propeller guards

The lightweight design ensures high agility and safety when flying in tight spaces.

NEW DRIVE SYSTEM – 10% INCREASE IN POWER

The drone is equipped with an improved propulsion system:

• LAVA 1102 14000KV engines

• Gemfan 45 mm (3-blade) propellers

The new configuration provides approx. 10% more power and better efficiency, which translates into dynamic, responsive flight.

ADVANCED FLIGHT CONTROLLER F4 20A AIO

On board is a modern flight controller:

F4 2–3S 20A AIO (FC + ESC)

• dual BEC power supply:

- 9V/2A (for HD systems)

- 5V/3A (for accessories)

• readiness for digital systems

This ensures stable operation and high flight culture even with demanding configurations.

NEW GENERATION OF FRAME – RIGIDITY AND DURABILITY

The design used offers:

• guided mounting points (easier installation)

• 4-bolt design for increased rigidity

• Carbon plate compatible with O4 and O4 Pro

The result is greater impact resistance and a more stable flight.

UP TO ~6,5 MIN FLIGHT (AFTER RETROFITTING)

Recommended power supply:

• 2S 450 – 680 mAh batteries (XT30)

Depending on the configuration, it is possible to achieve up to about 6,5 minutes of flight time.

IDEAL BASE FOR YOUR OWN BUILD FPV

The PNP version is a great choice for people who:

• want to build their own FPV setup

• looking for an ultra-light cinewhoop platform

• expect high performance in a small size

It is a flexible base for advanced FPV configurations – both for recording and freestyle.

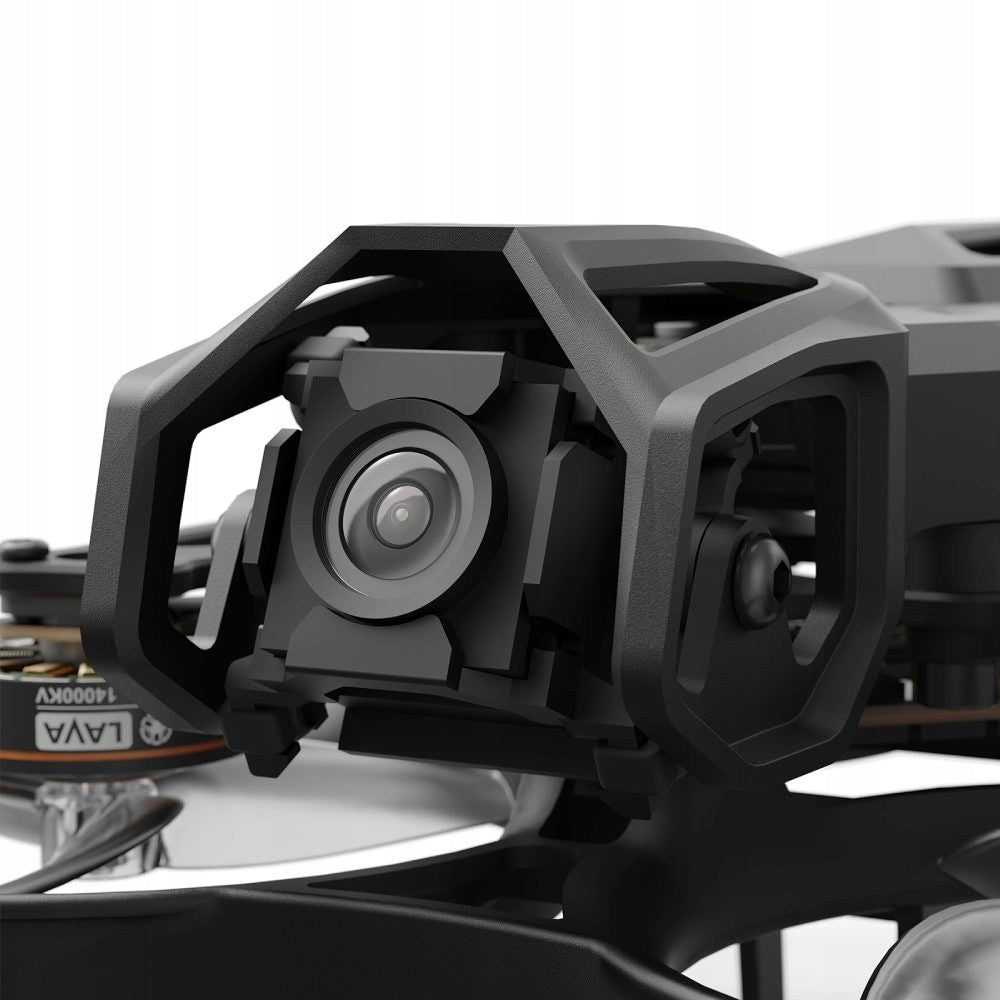

CAMERA

• Camera Compatibility: DJI O4 Air Unit Pro (FOV 155°) and DJI O4 Air Unit (FOV 117.6°) - NOT INCLUDED
• Video transmission quality: 1080p at 100 fps
• Camera angle adjustment: 5° to 35°

POWER SUPPLY

• Recommended battery: LAVA II 2S 580 mAh / 680 mAh or LAVA 2S 450 mAh / 550 mAh
• Battery Connector: XT30

FLIGHT CONTROLLER

• Flight Controller: F4 2–3S 20A AIO FC V1
• MCU: STM32F405RGT6 @168 MHz
• Gyroscope: ICM42688P @8 KHz
• ESC: 20A continuous, 25A peak
• BEC: 5V 3A and 9V 2A
• Blackbox Memory: 16M
• Receiver Protocol: Serial ELRS 2.4G

DRIVE

• Engines: LAVA 1102 | 14000KV
• Motor Connector: JST1.25-3Pin
• Propellers: GF 45 mm, 3-blade
• String-to-weight ratio: 6.35:1 (O4) / 4.88:1 (O4 Pro)

CONSTRUCTION

• Wheelbase: 80 mm
• Weight (without battery): 39.1 g

TECHNICAL DATA OF THE FLIGHT

• Flight time:
• about 6 minutes 30 seconds (O4/2S 550 mAh)
• about 5 minutes 40 seconds (O4 Pro / 2S 550 mAh)

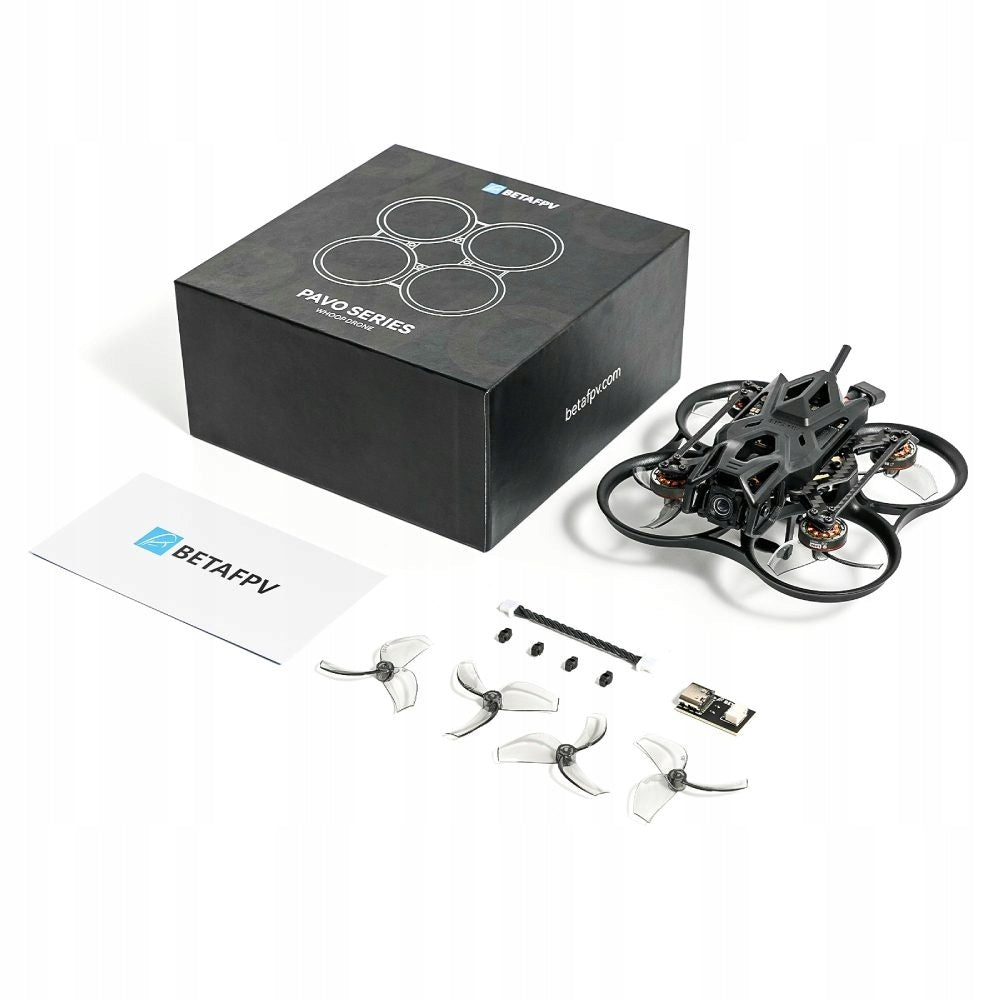

CONTENTS OF THE SET

• 1 × Pavo Pico II Brushless Whoop Quadcopter (PNP Version)
• 1 × top plate for O4 Air Unit Bracket II
• 1 × bottom plate for O4 Air Unit Bracket II
• 1 × O4 Air Unit Pro Holder
• 4 × GF 45 mm 3-blade propellers
• 1 × Type-C to SH1.0 adapter
• 1 × SH1.0-4Pin adapter cable
• 6 × vibration dampening balls for O4 Air Unit Pro (6.6 mm)
• 6 × vibration dampening balls for O4 Air Unit Bracket II (8.8 mm)
• 6 × vibration dampening pads for O4 Air Unit Bracket II (1.5 mm)
• 6 × M2×10 screws with cylindrical socket
• 6 × M2×4 countersunk screws
• 6 × M2×4 self-tapping screws
• 8 × M1.4×6 flat head Phillips screws
• 2 × VTX 5.8G antenna
• 1 × VTX 5.8G antenna holder
• 1 × Phillips screwdriver
• 1 × Hexagonal screwdriver H1.5

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	BetaFPV
Parametry	Model	Pavo Pico II
Parametry	EAN (GTIN)	738170353229
Parametry	Manufacturer code	01010047_1
Parametry	Batteries included	yes
Parametry	Certificates of conformity	CE
