FPV analoginė kamera Pilotix C3 Starlight 1200TVL naktiniam skrydžiui ir lenktynėms

Trumpai apie prekę

Prekė: FPV analoginė kamera Pilotix C3 Starlight 1200TVL naktiniam skrydžiui ir lenktynėms. Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: Pilotix C3 Starlight

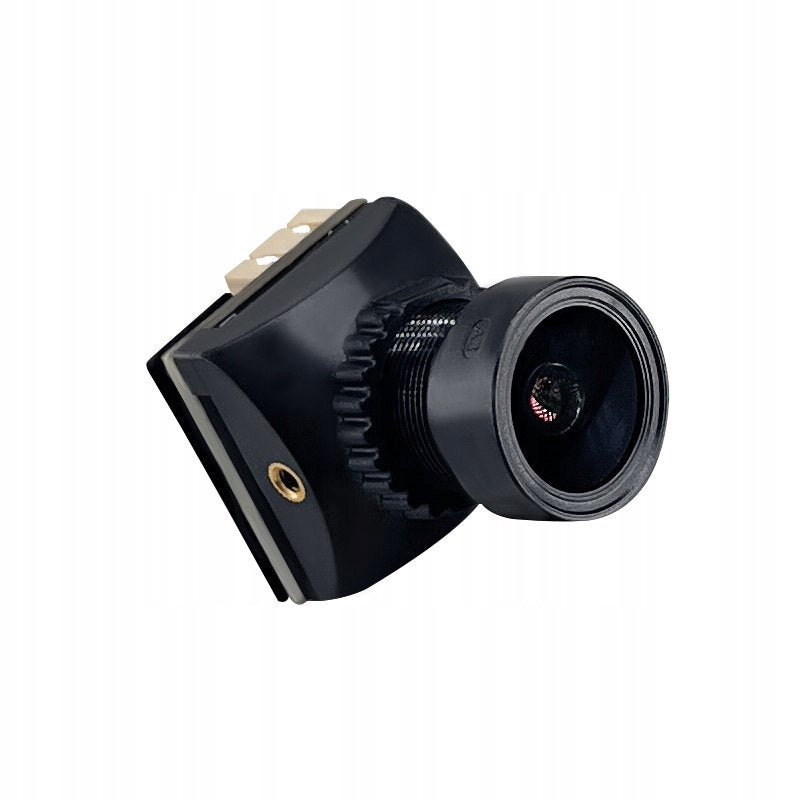

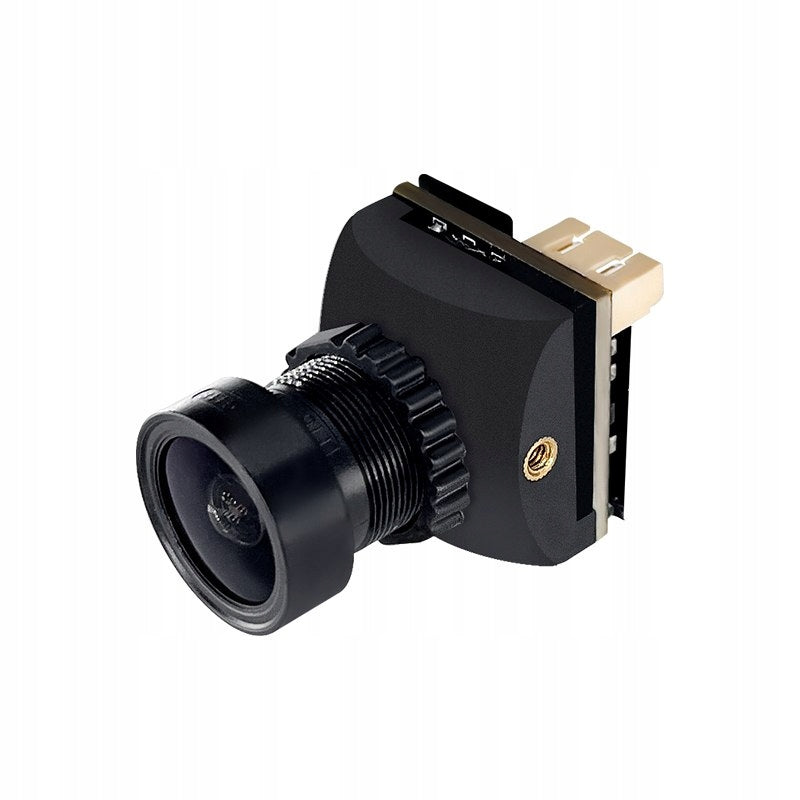

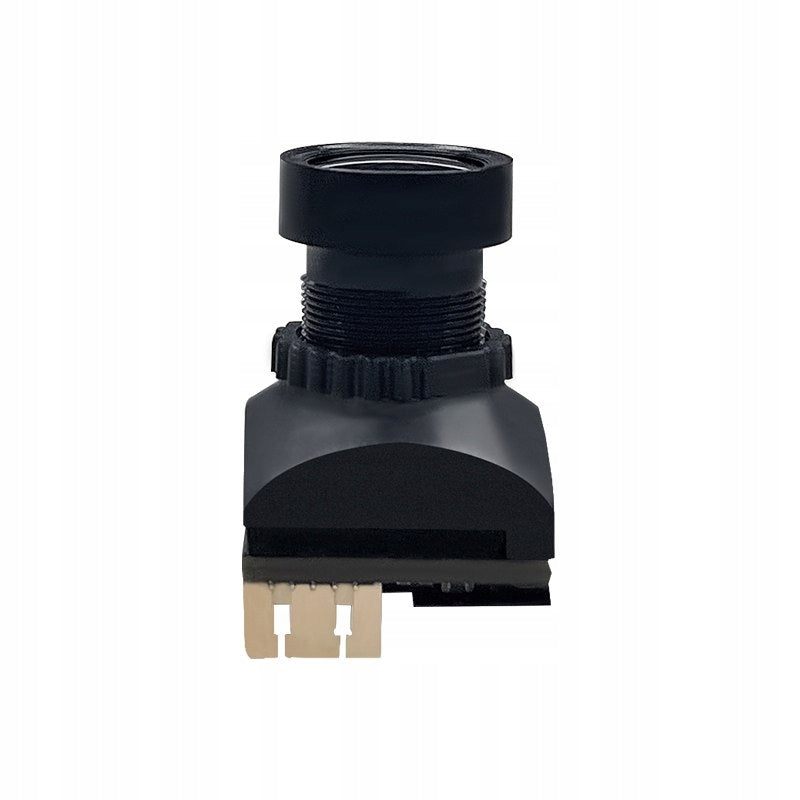

Pilotix C3 Starlight 1200TVL FPV Camera - Reliable at Night for Drones

5261

Introduction

The Pilotix C3 Starlight 1200TVL FPV camera is the latest offering for demanding FPV drone pilots. It is designed to provide the highest image quality, even in the most challenging lighting conditions. With Starlight technology and an impressive 1200TVL resolution, it delivers exceptional image clarity and detail, resulting in safer and more satisfying flights. It's the perfect choice for racing, freestyle, and those who want to explore the space at night.

Key advantages

• Unparalleled image quality at night: Starlight technology and a minimum backlight of 0.00001Lux allow you to fly in near-total darkness.
• High resolution 1200TVL: Provides sharp and detailed images, crucial for dynamic flights.
• Wide field of view (FOV): Up to 125° (Diagonal at 4:3) guarantees excellent orientation in space.
• Switchable TV Systems: Choose between PAL (default) and NTSC for maximum compatibility.
• Wide supply voltage range: From 5V to 36V, making it easy to integrate into various drone configurations.
• Advanced image functions: 3DNR, WDR 100dB and DAY/NIGHT mode (EXT/Auto/Color/B&W) for image optimization in all conditions.
• Compact and lightweight design: Dimensions 19x19mm and weight only 12. 2g makes it ideal for any FPV drone.
• Multilingual OSD menu: Easily configure camera settings in your preferred language.

Technical specifications

• Spectral range: 400nm-650nm
• Sensor type: Sony 1/3" CMOS Sensor
• Image Scale: 4:3 (Default)/16:9 Switchable
• Resolution: 1200TVL
• TV System: PAL (Default)/NTSC Switchable
• Lens: M12 2.1mm F1.2 Aperture
• Video output: CVBS Analog signal
• Field of view (FOV):
• Minimum backlight: 0.00001Lux
• Snapshot opening time:
• White Balance: Auto
• Noise reduction (DNR): 3DNR
• Day/Night Mode: EXT/Auto/Color/B&W
• Wide Dynamic Range (WDR): 100dB
• Input voltage: 5-36V
• DSO menu language: ENGLISH/中文/PYCCKNN/ESPANOL/ITALIANO/FRANCAIS/POLISH/PORTUGUES/日本语/ΕΛΛΗΝΙΚΑ
• Working temperature: -10°C to 50°C
• Working humidity: 20%~80%
• Power consumption: 95mA ± 15% @ DC12V
• Dimensions: 19x19mm
• Weight: 12. 2g (without cable)
• Storage temperature: -20°C to 70°C

Applications

The Pilotix C3 Starlight 1200TVL is ideal for a variety of FPV applications, including drone racing (FPV Racing), aerobatic flights (Freestyle FPV), observation and inspection, as well as night flights thanks to its exceptional light sensitivity. It is a universal solution for pilots looking for reliable and efficient equipment.

Compatibility

With a wide input voltage range (5-36V) and standard CVBS video output, the camera is compatible with most flight controllers and FPV systems. The standard 19x19mm mounting ensures easy fitting into multiple drone frames.

• Power supply voltage: 6V
• Resolution: 1200TVL
• Application: FPV
• Detector: CMOS
• Lens: M12
• Power consumption: 5mA
• Video output: CVBS
• Video standard: PAL/NTSC
