Trumpai apie prekę
Prekė: Fisheye kamera ArduCAM 5MP su OV5647 jutikliu. Kategorija: Priedai.
- Gamintojas: ArduCam
- Modelis: B0404
ArduCAM 5MP OV5647 Fisheye Camera - camera with 5MP sensor OV5647 for Raspberry Pi
Description

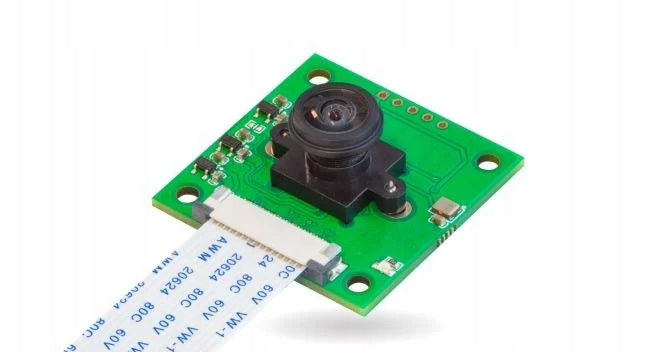

The ArduCAM OV5647 5MP Fisheye camera module with M8 lens has been specially designed as an extension for Raspberry Pi minicomputers. The camera connects to the Raspberry Pi via the CSI (Camera Serial Interface) , which provides very high data transmission bandwidth and has been optimized for lag-free image transmission.
The compact size of the plate and the ability to replace the lens make it an excellent choice for mobile applications, drones, robotics, as well as vision systems requiring a wide viewing angle. Thanks to the Fisheye lens, the camera captures images with a field of view up to 210° (diagonal) , ideally suited for monitoring, panoramic shots or VR applications. The camera supports both 2592 × 1944 photos and video recording in 1080p30 , 720p60 and 640×480p60/90 modes. Compatible with the latest Raspberry Pi OS, supported by libcamera and other applications.
Properties
- Image sensor: OmniVision OV5647 (5MP)
- Optical Size: 1/4''
- Shutter Type: Rolling Shutter
- Focus Type: Manual (Manual Focus)
- Maximum image resolution: 2592 × 1944 pixels
- Video Modes: 1080p30, 720p60, 640×480p60/90
- Supported platforms: Raspberry Pi 5, 4B, 3B+, 3B, 2, Model A/B/B+, Zero, Zero W, Zero 2W
- Output formats: JPEG, JPEG + DNG, BMP, PNG, YUV420, RGB888
- M8 Fisheye Lens with Viewing Angle:
- Diagonal: 210°
- Horizontal: 154°
- Vertical: 111°
- Focal length (EFL): 4.15 mm
- Back Focal Length (BFL): 2.87 ± 0.1 mm
- Built-in IR-cut filter 650nm (visible light only)
- Lens holder: M8 x P0.35
- Lens dimensions: 12.8 x 13.01 mm
- Weight: 3g
Comes with
- ArduCAM 5MP OV5647 camera module with Fisheye lens
- FPC tape 15-pin to 15-pin 15 cm
- FPC 15-pin to 22-pin 15 cm tape
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | B0404 |
| Parametry | Manufacturer | ArduCam |
| Parametry | Kind | Camera |
| Parametry | EAN (GTIN) | 5902186307902 |
