Ethernet tinklo jungiklis PoE, 8+2 prievadai, 1x GbE/SFP

Trumpai apie prekę

Prekė: Ethernet tinklo jungiklis PoE, 8+2 prievadai, 1x GbE/SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Value
• Modelis: 21.99.1193

Product number: 21.99.1193

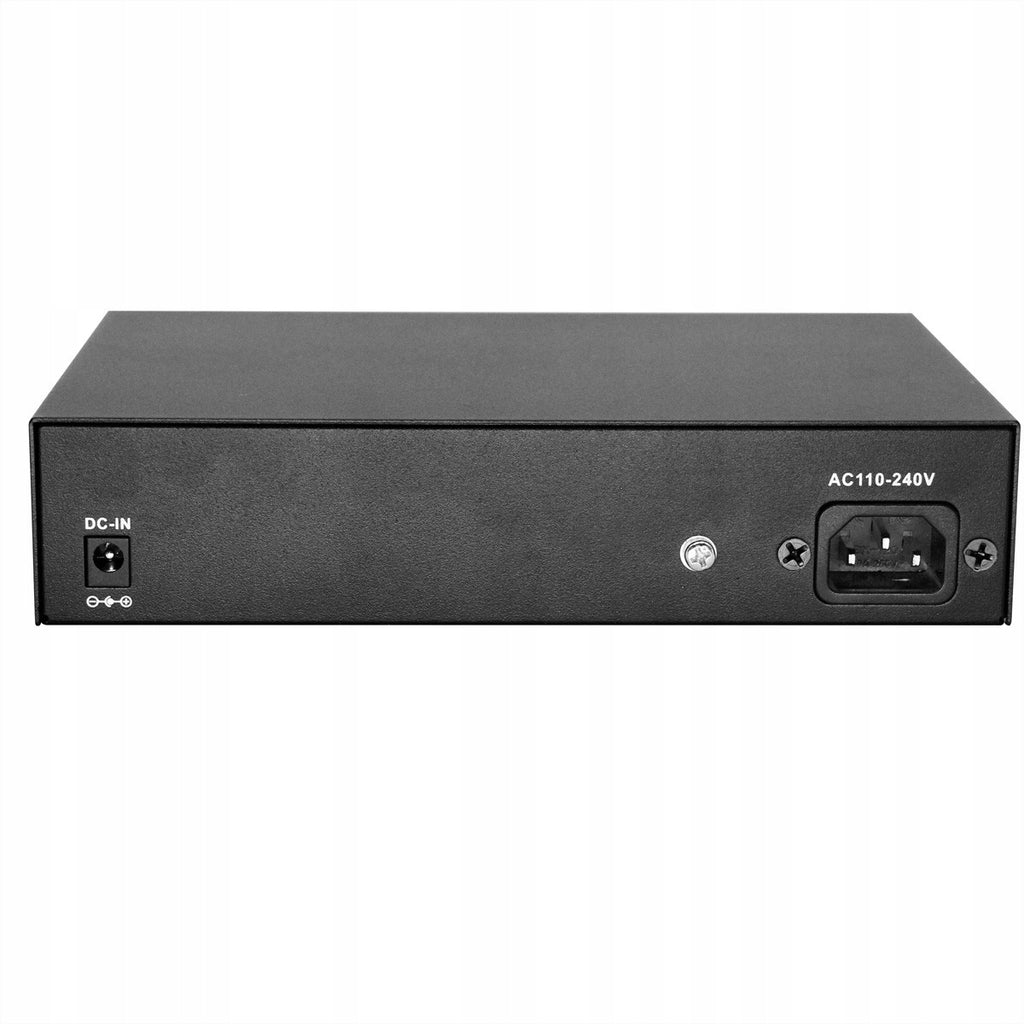

Gigabit Ethernet PoE Switch with 8+2 ports for small to medium-sized network environments.

This Gigabit Ethernet PoE switch is designed for small to medium-sized network environments to strengthen their network connection. Converts standard 100~240V/AC power to low-voltage DC that runs through an existing LAN cable to power Power over Ethernet (PoE) compatible network accessories such as e.g. workgroup switches, network cameras, access points, IP phones.

• 8x 10/100/1000 Mbit/s PoE ports with auto-negotiation with 1 Gigabit Uplink or 1x SFP Port
• IEEE802.3af/at compliant (IEEE802.3, 802.3u, 802.3af, 802.3x)
• IEEE802.3x flow control for Full-Duplex mode and back-pressure for Half-Duplex mode
• Bandwidth 18Gbps
• Detect your PoE devices according to PoE standard
• Supports automatic detect functionality to protect the system when the system power is overloaded or there is non-POE device
• LED indicators for monitoring power, link, activity and speed
• Switching method: Store-and-forward
• Metal housing
• Contents: Switch, power cable, user manual

PoE/PoE+ resource management: The switch supports PoE/PoE+ connections up to 30W per port. The total consumption of the switch is limited to 150W to prevent excessive heat dissipation. For Power over Ethernet, ports have a numerical priority (1-2-3-...) and are switched off from back to front at full load.

-- description_3 -->.

• Manufacturer: VALUE
• Current catalogue edition: C23-01.06
• Color: Black
• Product Type: PoE Gigabit Switch
• Width: 210 mm
• Height: 45 mm
• Weight: 1.2 kg
• Depth: 140 mm
• Product group: Network switches
• Packaging height (single piece): 70 mm
• Package width (single piece): 220 mm
• Packaging depth (single piece): 260 mm
• Power over Ethernet (PoE): PoE
• Number of PoE ports: 8
• Max PoE output power (total): 150 W
• LAN (Mbps): 10/100/1000
• Number of ports: 10
• Network standard: Gigabit Ethernet
• Power supply (internal/external): External
• RJ-45 Gigabit Ethernet Ports: 9
• Package weight (single piece): 1.2 kg
• Max. PoE output power per port: 30 W
• Dimensions (HxWxD): 45 x 210 x 140 mm
• Network connection: Connection of cold device
• Gigabit Ethernet Fiber Ports: 1

Specifications
