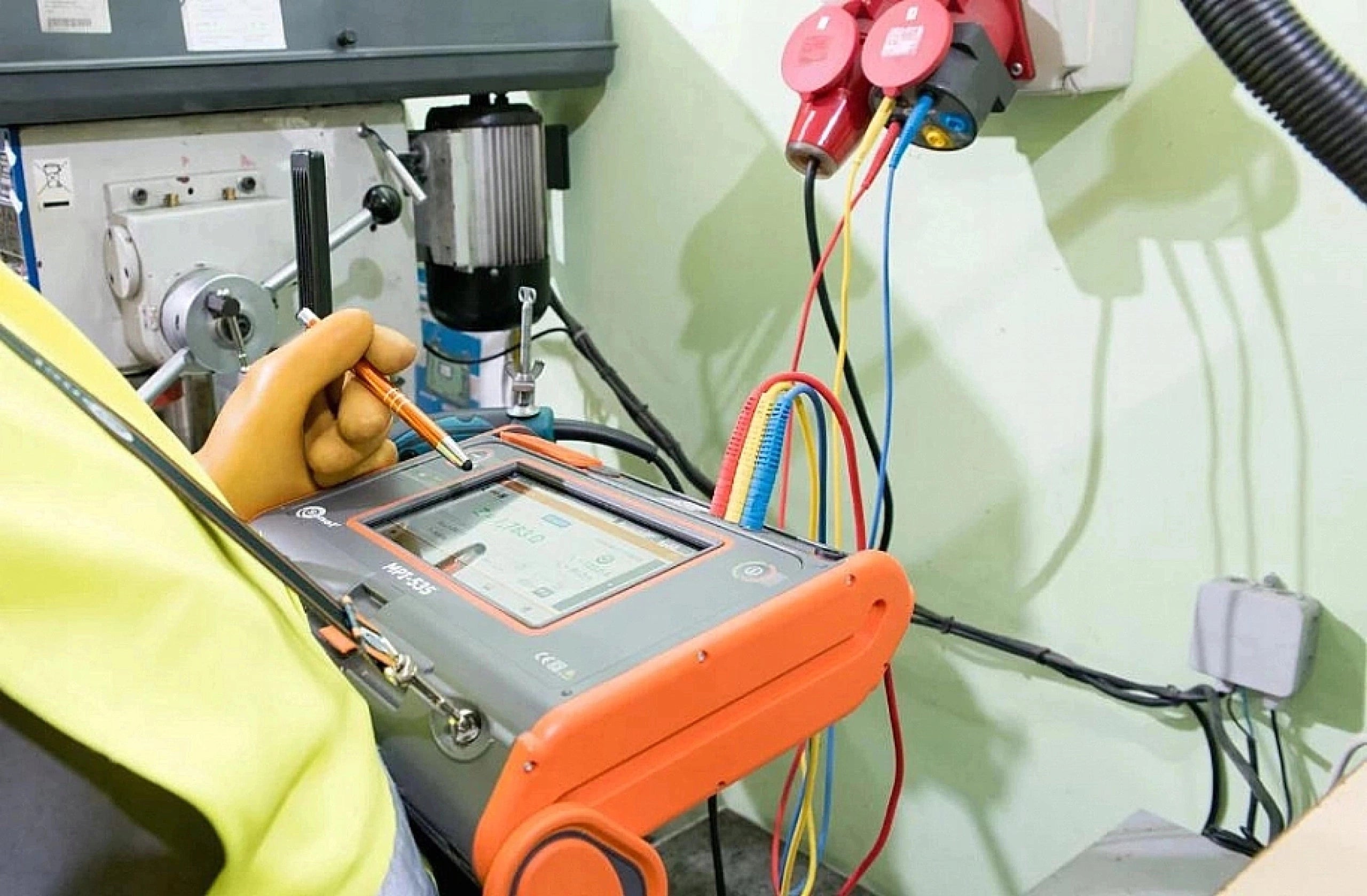

Elektros instaliacijos matuoklis SONEL MPI-535 su PE6 programa

Trumpai apie prekę

Prekė: Elektros instaliacijos matuoklis SONEL MPI-535 su PE6 programa. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMPI535SPE6

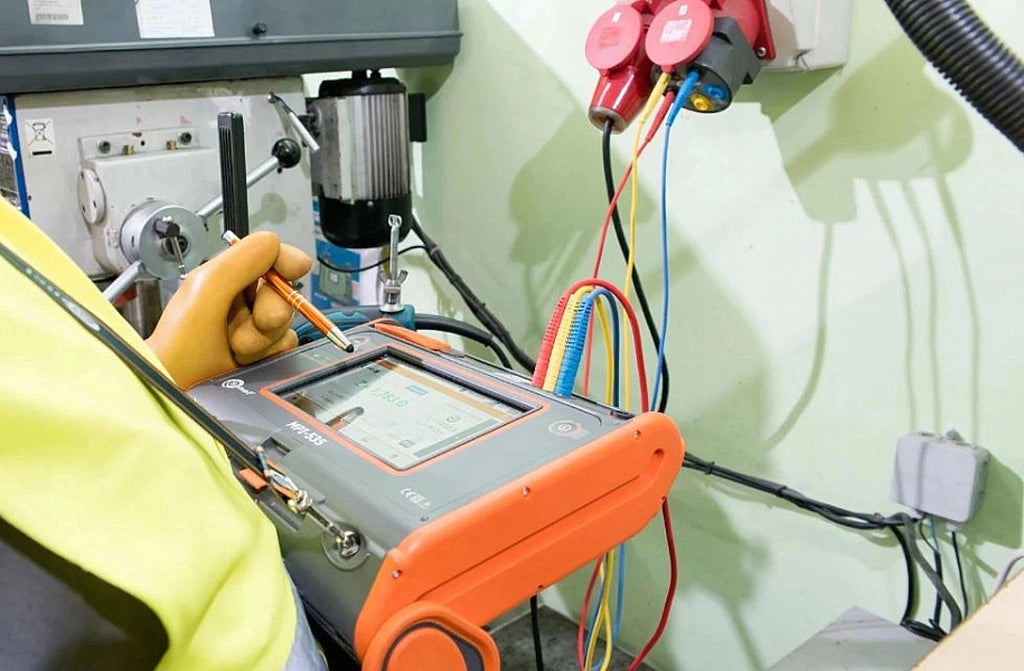

Electrical system parameter meter MPI-535 with PE6 program

SONEL WMPLMPI535SPE6

✔ The largest touch panel on the market (7”) – extraordinary ergonomics and ease of use

✔ Removable microSD card – easily increase memory capacity

✔ Li-Ion battery – longer operation of the meter

✔ Measurement of all parameters of shock protection – one instrument instead of several

✔ Quick short-circuit loop measurement with RCD switch without triggering (up to a few seconds) – time saving

✔ Self-tests – possibility of automatic measurements in sequence – simplification of measurements

✔ The latest version of the popular program for creating protocols from electrical measurements. PE6 simplifies the process of documentation execution.

✔ Automatic calculation of required values

✔ Automatic evaluation of measured results

✔ Schedule of measurements

The set consists of:

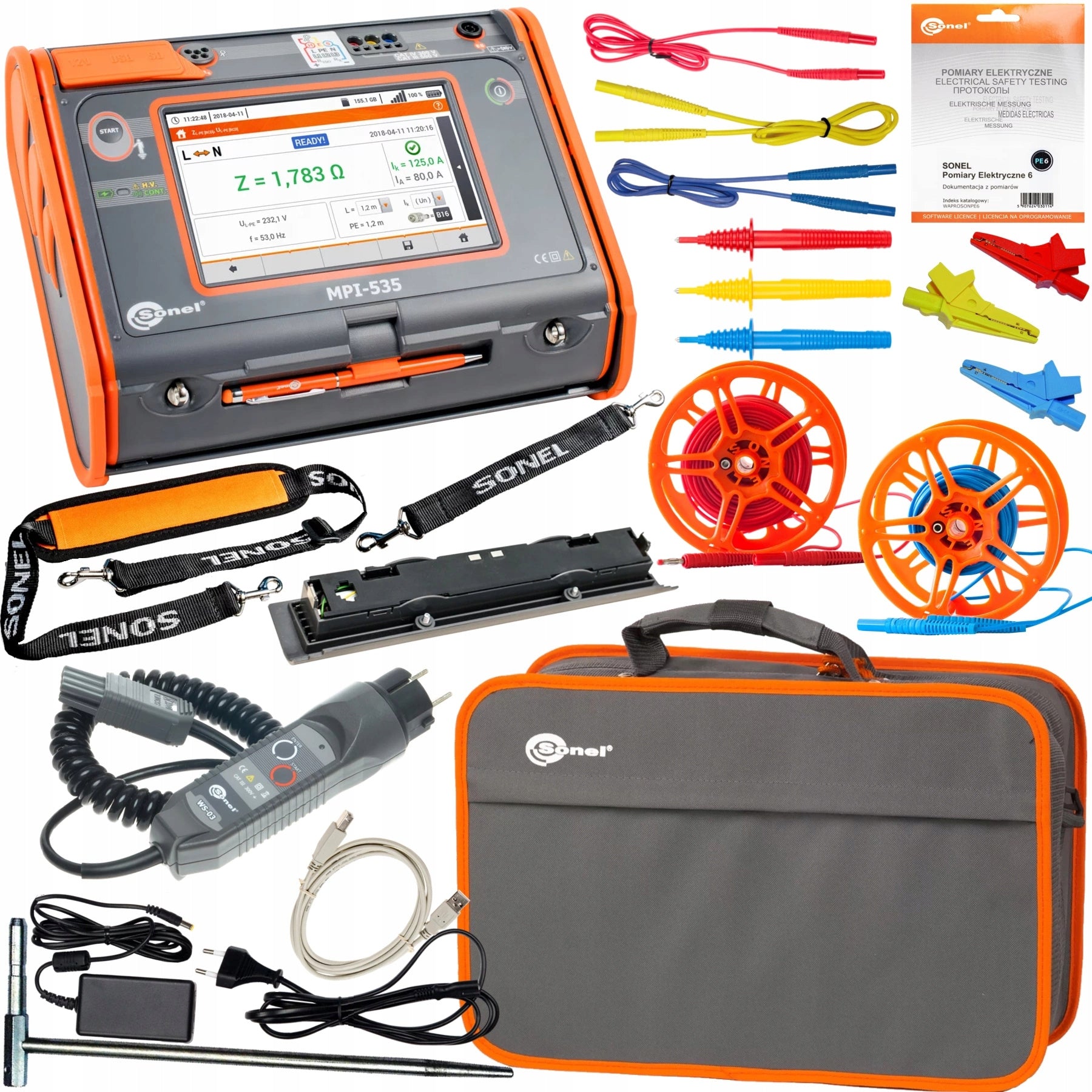

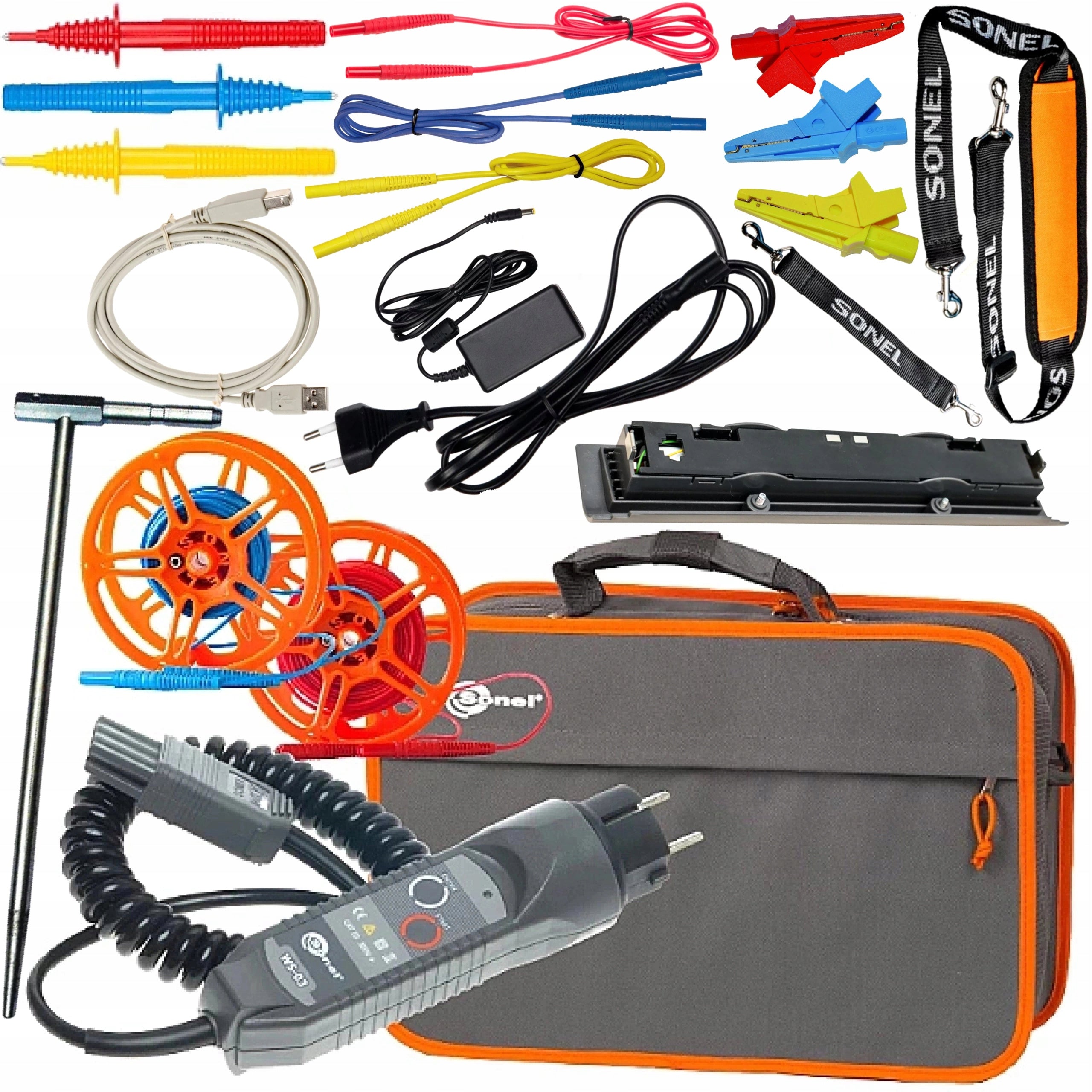

• 1 pc. Multifunctional meter of electrical installation parameters MPI-535
• 1 pc. Free program to download data from meters Sonel Reader
• 1 pc. Measurement trigger adapter (UNI-Schuko plug) WS-03
• 1 pc. Cable 1,2 m red 1 kV (banana plugs) WAPRZ1X2REBB
• 1 pc. Cable 1,2 m blue 1 kV (banana plugs) WAPRZ1X2BUBB
• 1 pc. Cable 1,2 m yellow 1 kV (banana plugs) WAPRZ1X2YEBB
• 1 pc. Cable 15 m blue for measuring grounding on spool (banana plugs) WAPRZ015BUBBSZ
• 1 pc. Cable 30 m red for measuring grounding on spool (banana plugs) WAPRZ030REBBSZ
• 2 pcs. Probe ground 30 cm WASONG30
• 1 pc. Probe blade red 1 kV (banana socket) WASONREOGB1
• 1 pc. Probe blade blue 1 kV (banana socket) WASONBUOGB1
• 1 pc. Probe blade yellow 1 kV (banana socket) WASONYEOGB1
• 1 pc. Crocodile red 1 kV 20 A K-02
• 1 pc. Crocodile blue 1 kV 20 A K-02
• 1 pc. Crocodile yellow 1 kV 20 A K-02
• 1 pc. Battery Li-ion 11,1 V 3,4 Ah AKU-15
• 1 pc. Power supply for charging batteries Z-7
• 1 pc. Cable for power supply 230 V (IEC C7 plug) WAPRZLAD230
• 1 pc. Szelki for meter set WAPOZSZEKPL
• 1 pc. L-2 case
• 1 pcs. Cable USB WAPRZUSB
• 1 pc. Pendrive Sonel WAPOZUSBSTICK
• 1 pc. Long description for touch screens
• 1 pc. Certificate of calibration WADOKCK
• 1 pc. Program for creating protocols from installation safety tests Sonel PE6

Calibration certificate is a document issued free of charge in the production process of the meter.

Confirms giving metrological properties (calibration) and maintaining measurement consistency.

In the calibration certificate under the date of issue of the document there is a dotted field: “Date of commissioning”. This is the field left for the user in which the date of purchase must be entered.

The entered date of purchase can be used to determine the next calibration date based on the manufacturer’s recommendation below:

Another calibration is recommended to be carried out up to 12 months from the date of purchase, but not later than 24 months from the date of manufacture or checking.

Another metrological inspection is carried out by the Research and Calibration Laboratory of Sonel S.A. companies, and the issued document is called - Certificate of Calibration.

Features:

✅ short-circuit loop impedance (also in circuits with RCD circuit breakers),

✅ parameters of RCD circuit breakers,

✅ resistance of insulation,

✅ resistance ground (4 measurement methods + ground resistivity measurement),

✅ continuity of protective connections and compensatory connections,

✅ lighting intensity,

✅ phase order test,

✅ Engine direction test.

Installation security check

✅ Thanks to the device, you can control home and industrial electrical installations in terms of safety. Measurements can be easily automated by:

• testing of residual current circuit breakers in Auto mode,
• self-tests – i.e. freely configurable measurement sequences,
• Use of AutoISO-1000C adapter to test insulation resistance of 3-, 4- and 5-wire wires.

ADVANTAGES OF SONEL PE-6

✔ Insert photos and drawings into protocols

✔ Printing of measuring controls and descriptive labels of boards

✔ Calculation of measurements taken

✔ Printing invoices

✔ Automatic completing protocols with a series of data

✔ Automatic evaluation of measured results

✔ Schedule of measurements

In addition, the program supports the creation of documentation in the field of:

✔ Auto-off efficiency (TN-S, TN-C, TN-C-S, TT, IT)

✔ Parameters of RCD circuit breakers

✔ Circuit isolation status (TN-S, TN-C, TN-C-S, TT, IT)

✔ Electrical cable insulation

✔ State of lightning and grounding installation

✔ Continuity of wires

✔ Insulation resistance of compact and obtuse engines

✔ Resistance of contactors

✔ Circuit Breaker Resistance

✔ Transformer devicesc

FIRST REGISTRATION

After installation, starts in demo. To unlock all functions of the program, you must register.

1. The person conducting registrations should have administrator rights

2. We download the current version of the program from our website (

3. Run the right mouse button as an administrator

4. We register program

Hardware requirements

✔ Operating System: Windows 10

✔ Minimum resolution: 1024x768

✔ Recommended resolution: 1920x1080

Safety and conditions of use

• Measuring category according to PN-EN 61010 IV 300 V, III 500 V
• Degree of protection IP51
• Type of insulation according to PN-EN 61010-1 and IEC 61557 double
• Dimensions 288 x 223 x 75 mm
• Weight of the meter ok. 2,5 kg
• Working temperature 0...+45°C
• Storage temperature -20...+60°C
• Humidity 20...90% Nominal temperature 23 ± 2°C
• Reference humidity 40%...60%

Memory and communication

• Measurement results memory unlimited
• Results transmission USB 2.0

Other information

• Quality standard – development, design and production of ISO 9001
• The product meets the requirements of EMC (emission for the industrial environment) according to PN-EN 61326-1 PN-EN 61326-2-2

Construction of the Meter

1. Re socket for grounding measurement
2. Measuring socket
3. ES socket for measuring ground resistance and ground resistivity
4. Turn the meter on and off
5. Ear to fasten suspenders
6. Touch screen
7. Indication of measurement and battery status
8. Touch electrode
9. Starting the measurement procedure
10. 12V charger socket
11. USB socket (PC communication)
12. USB socket (pendrive)
13. microSD card slot

Technical Specifications

• A- Measurement functions
• B- Measuring range
• C- Display Range
• D- Resolution
• E- Accuracy
• 1- Fault loop impedance
• 1.1- Short circuit loop ZL-PE, ZL-N, ZL-L
• 1.2- ZL-PE short circuit loop in RCD mode
• 2- Measurements of RCD parameters
• 2.1- RCD tripping test and measurement of tripping time tA measuring current 0.5 In, 1 In, 2 In, 5 In
• 2.2- RCD of general type and short-time delay
• 2.3- Selective RCD
• 3- Measurement of RCD tripping current IA measuring current 0.2 In…2.0 In
• 3.1- for sinusoidal differential current (AC type)
• 3.2- for 1-way differential current and 1-way with 6 mA DC bias (type A)
• 3.3- for direct differential current (type B)
• 4- Ground resistance
• 4.1- 3- and 4-wire method
• 4.2- 3-wire method + clamps
• 4.3- 2-clamp method
• 5- Soil resistivity

Technical specification

• A- Measurement functions
• B- Measuring range
• C- Display range
• D- Resolution
• E- Accuracy
• 1.1- Insulation resistance/ Measuring voltage 50 V
• 1.2- Measuring voltage 100 V
• 1.3- Measuring voltage 250 V
• 1.4- Measuring voltage 500 V
• 1.5- Measuring voltage 1000 V
• 2- Resistance of protective and compensating conductors
• 2.1- Measurement of continuity of protective and compensatory connections with current 200 mA
• 2.2- Small current resistance measurement
• 3- Lighting intensity
• 3.1- Measurement in lux (lx)
• 3.2- Measurement in stopocandels (fc)
• 4- Indications of phase order

Specifications
