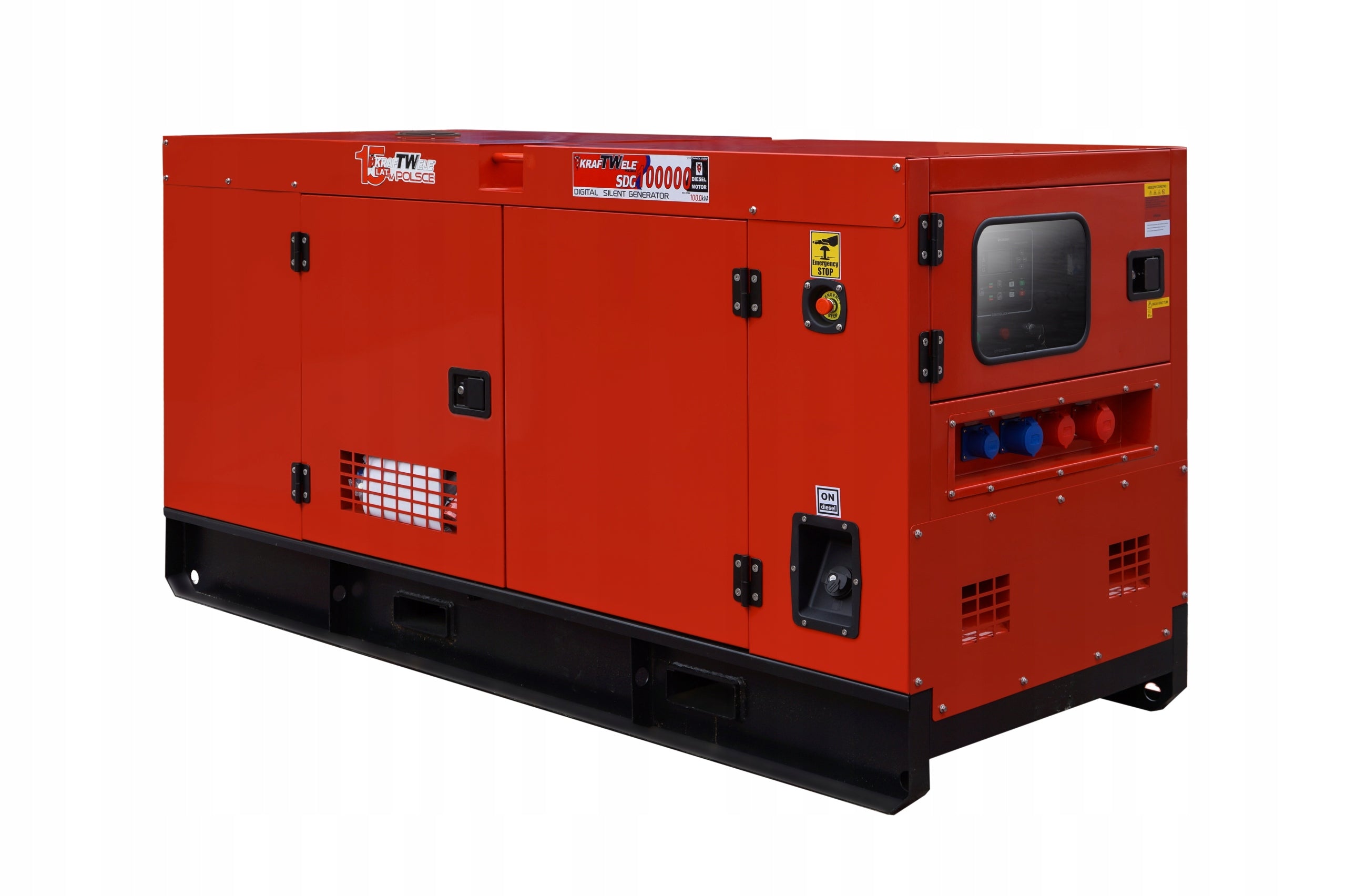

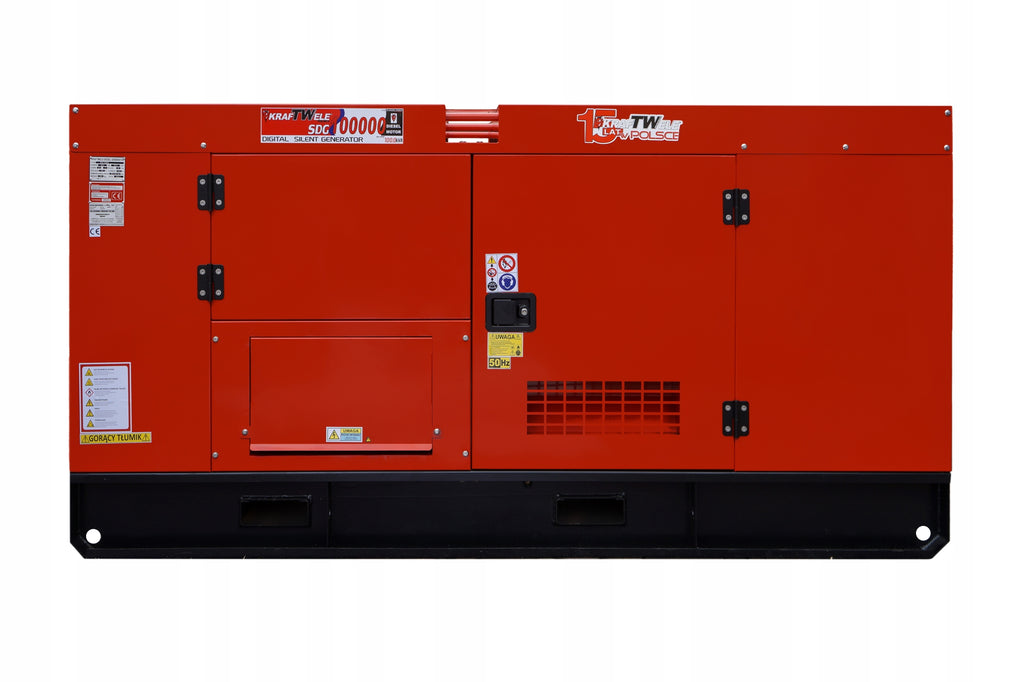

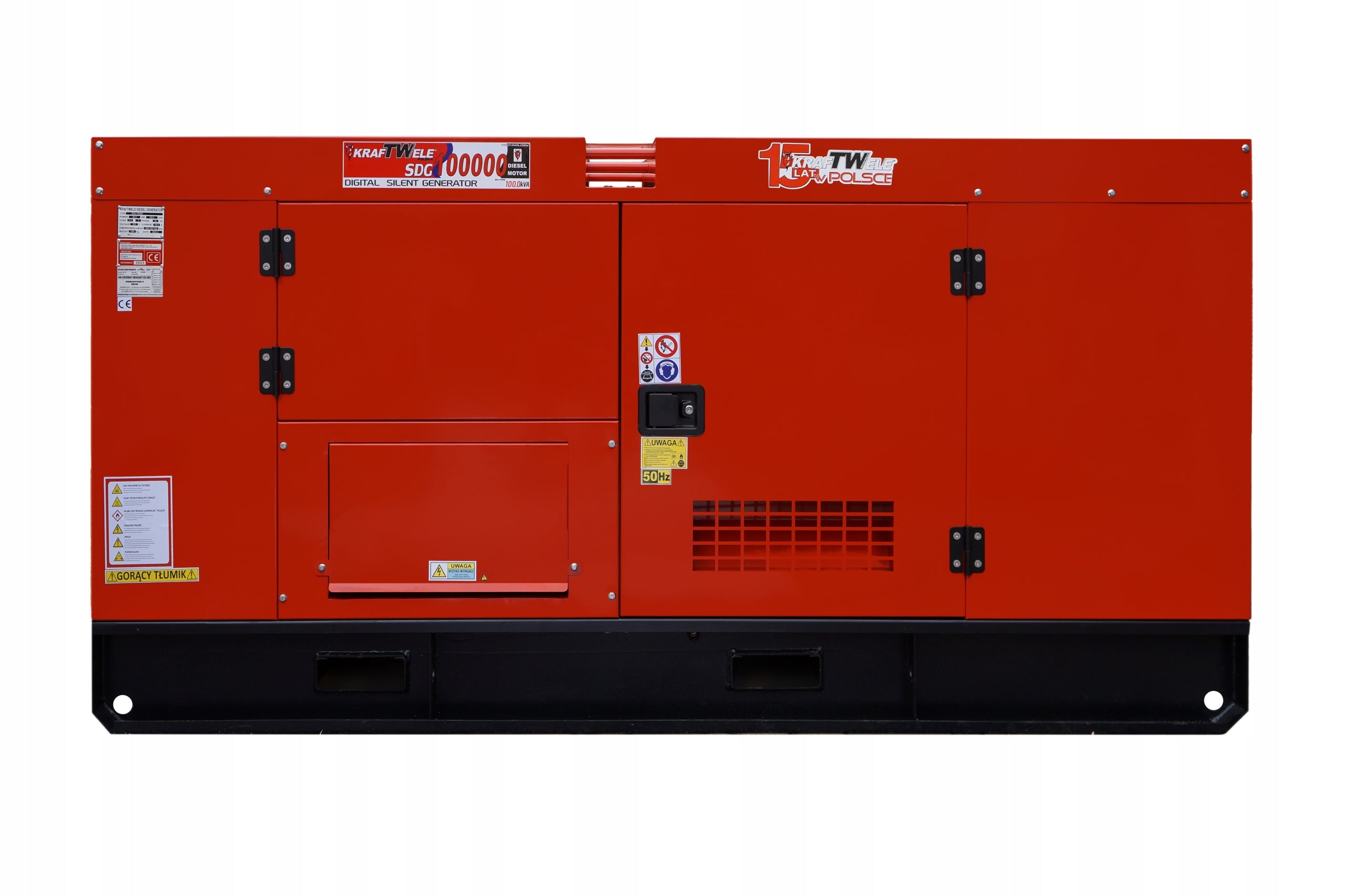

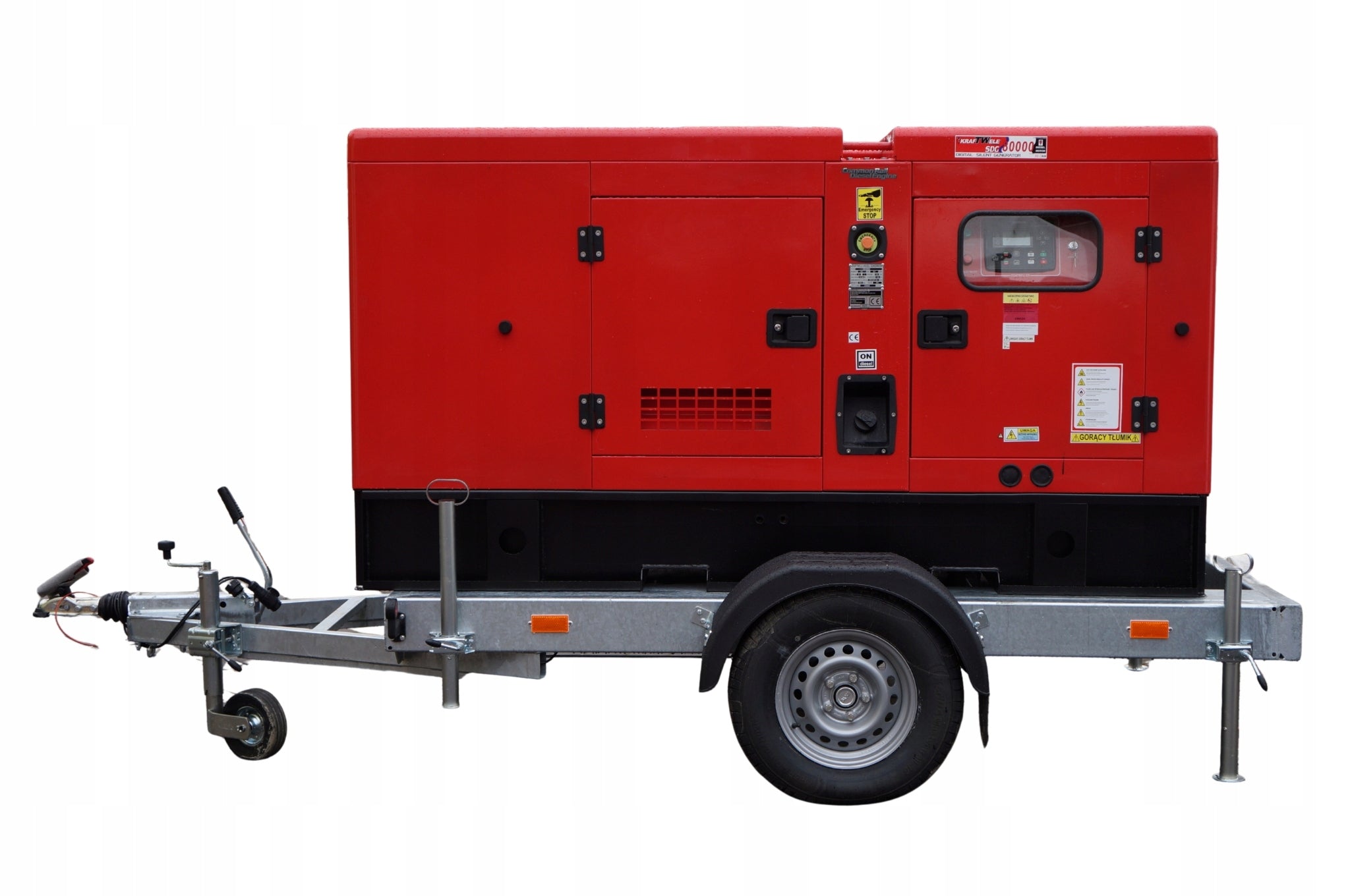

Elektros generatorius su priekaba, 100 kVA, tylus

Trumpai apie prekę

Prekė: Elektros generatorius su priekaba, 100 kVA, tylus. Kategorija: Elektros generatoriai.

• Gamintojas: KrafTWele
• Modelis: SDG100 000
• Įtampa: 400 V

MODEL: SDG100000

• Frequency (Hz): 50
• Voltage (V): 230/400
• Maximum power (kVA): 100,0
• Nominal power (kVA): 95,0
• Start-up: electric
• Control system: self-control, AVR (voltage stabilization)
• Type of fuel: Diesel
• Capacity of tank (l): 170
• Fuel consumption (l/h): 14,5
• Cooling: liquid cooled
• Weight: 1250
• Dimensions L /W. /height (mm): 2500/1000/1300

SDG 100000 DIGITAL SILENT IS EQUIPPED WITH AN INTERNAL POWER TAKE-OFF. ADDITIONALLY HAS EXTERNALLY PLACED 2 SOCKETS 230V (16A, 32A) AND 2 SOCKETS 400V (16A, 32A).

WARNINGS AND ALARMS:

• Low pressure engine oil.
• High temperature engine.
• Incorrect engine speed.
• Safety switch included.
• Wrong start.
• Wrong stop.
• Incorrect tension.
• Incorrect frequency.
• Incorrect battery charging voltage.
• Overload of the generator.
• Low fuel level.
• OUTPUT VOLTAGE (V).
• FREQUENCY (Hz).
• LOAD (A).
• ENGINE TEMPERATURE (C°).
• OIL PRESSURE (kPa).
• ENGINE SPEED (rpm).
• GENERATOR OPERATING TIME (H).
• BATTERY CHARGING VOLTAGE (V).
• FUEL LEVEL (%).
• THE VALUE OF ENERGY PRODUCED.
• CONTROL/CONTROL FUNCTIONS:

• For an additional fee, we can install automatic start/stop (ATS/SZR) functionality. The generator will automatically start in the event of a power outage and stop when power is restored.
• Discover the new Smartgen capabilities with the GPS/GSM module! This expansion is available on models from SDG22000 4R to SDG700000.

• The new SDG SILENT series of diesel generators, designed for continuous operation (24 hours), is an attractive option for customers who value high power at a competitive price.

• The presented photos are for illustrative purposes only. Devices may differ from the original due to different deliveries of goods. You will receive the latest information after contact by phone or e-mail.
