Trumpai apie prekę
Prekė: Elektros generatorius LONCIN LC8000D-AS-1F, 6,5 kW, 230V, vienfazis, su AVR. Kategorija: Elektros generatoriai.
- Gamintojas: Loncin
- Modelis: LC8000D-AS-1F
- Įtampa: 230 V
PAJM is an authorized distributor of CEDRUS in Poland

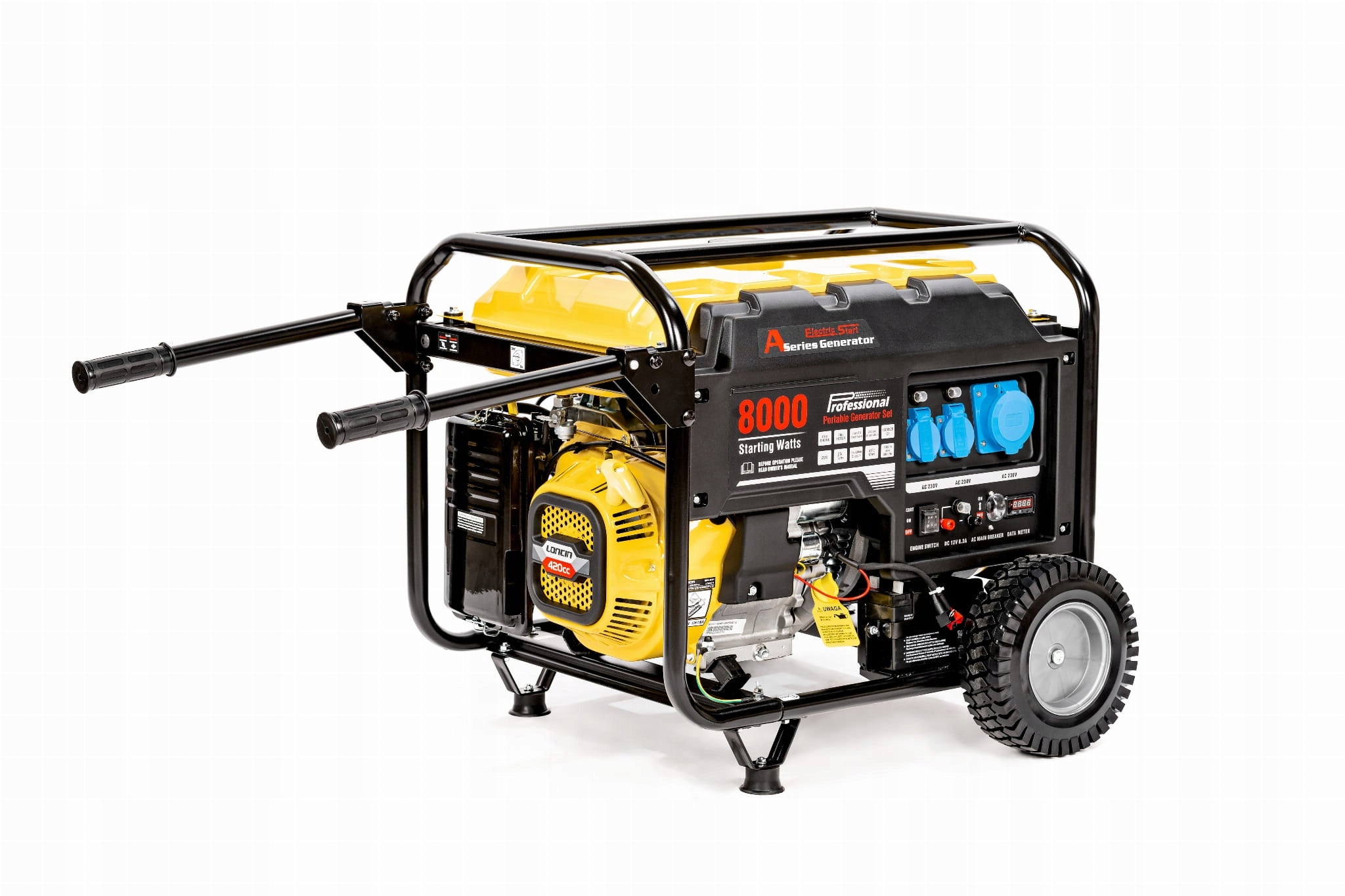

Generator set Loncin LC8000D-AS-1F
The aggregate uses a reliable and proven engine with a capacity of 420 cm³,
The unit has a nominal power generator capacity of 6kW and a starting power of 6,5kW
Aggregate with a total net weight of 85 kg. Specially designed generator with copper winding guarantees reliability of operation.
The AVR system provides voltage stabilization to protect powered receivers from voltage fluctuations.
The oil sensor will turn off the unit at a low oil level, protecting the engine from blurring.
- Brand Loncin
- Engine type single cylinder; 4-stroke; air-cooled; OHV
- Continuous operation time (with rated power) 7,0 h
- Capacity of oil pan 1,1 l
- Dimensions (L. x width x H ) 681x546x566mm (without mounted transport kit)
- Nominal power 230V- 6000 W
- Starting power 230V- 6500 W
- Engine capacity 420 cm³
- Engine manufacturer Loncin
- Engine model LC199FD-1
- Battery charging socket Yes
- Power sockets 230V 16A - 2
- Power sockets 230V 32A (3pins) - 1
- Automatic shutdown at low oil level Yes
- Starter manual + electric from the battery supplied with the unit
- Voltage/Frequency 230V/50Hz
- Type of fuel Petrol
- Capacity of fuel tank 25,0 l
- Capacity of oil bowl 1,1 l
- Transport kit: included
- Burning (load 100% / load 75%): 3,7 l/h / 3,2l/h
- Working time at full tank (load 100% / load 75%): 7h / 8h
- Noise dB/LpA/LwA/K: 97 dB(A) / at a distance of 4 meters from the unit, at 3/4 load this value drops to 75dB(A)
- Net weight 85 kg

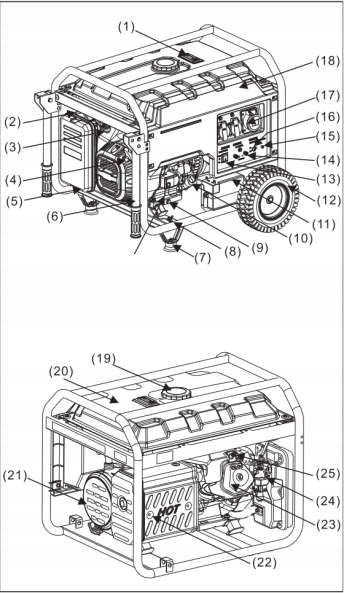

Equipment
(1) Fuel Level Indicator
(2) Suction valve
(3) Fuel valve lever
(4) Starter handle
(5) Air filter
(6) Handle
(7) Footer
(8) Ground Clamp
(9) Oil Drain Screw
(10) Oil filler cap
(11) Battery as standard
(12) Circle
(13) Motor switch
(14) DC output
(15) Output power indicator
(16) AC fuse
(17) AC Output
(18) Panel
(19) Fuel filler cap
(20) Fuel tank
(21) Rear cover of the unit
(22) Silencer
(23) Cylinder head
(24) Carburetor
(25) Spark plug
Standard equipment: (view photo)
- Stabilization of AVR
- 1 x 230 V 32 A socket
- 2 x 230 V 16 A socket
- 1 x DC 12V output for battery charging
- Overload protection
- Oil level sensor
- Multifunctional operating parameter counter
Copper winding of the generator greatly reduces the risk of overheating
The heart of the unit is the Loncin engine, which is a four-stroke unit in a top-valve system. Air-cooled engine, designed for: tillers, compactors, generator sets, verticulators, mashers, high pressure pumps and many other agricultural and construction machinery, depending on the crankshaft version.
- Engine model: LC190FD
- Engine manufacturer Loncin
- Type of fuel petrol
- Splatter Lubrication
- Starting the engine: manual or possibly manual + from the battery
- Engine capacity: 460 cm3
- Engine power: 12,2 HP
- Engine speed: 3600 rpm
- Engine Type: 4-stroke
- Number of Engine Cylinders: 1
- Suggested oil type: SAE 10W-30
- Oil bowl capacity: 1,1 l
- Oil Sensor Yes
- Machine Axle Position: Horizontal
Transport kit is already included
(for self-assembly)
Included in Delivery:
1 x Generator with standard accessories
1 x Transport kit
1 x User manual in Polish
1 x Warranty card
Please note: Oil required for the initial filling of the generator's engine chamber is NOT included (generators are shipped "dry"). Select a kit with oil available above (click "show all sets") and choose the set that best suits you. Any type of oil displayed in these sets can be used for this generator.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Loncin |
| Parametry | Model | LC8000D-AS-1F |
| Parametry | Kind | portable |
| Parametry | Generator type | single-phase |
| Parametry | Engine | 4-stroke |
| Parametry | Maximum power | 6500 W |
| Parametry | Nominal power of the alternator | 6000 W |
| Parametry | Engine power | 12.2 KM |
| Parametry | Device weight | 85 kg |
| Parametry | Fuel type | petrol |
| Parametry | Frequency | 50 Hz |
| Parametry | Operating time on the tank | 8 h |
| Parametry | Lc IEC noise level | 98 dB |
| Parametry | Product height | 68.1 cm |
| Parametry | Product width | 54.6 cm |
| Parametry | Product depth | 56.6 cm |
| Parametry | Average combustion | 3.1 l/h |
| Parametry | Number of 1-phase outlets | 3 |
| Parametry | Number of 3-phase outlets | none |
| Parametry | European emissions standard | EURO 5 |
| Parametry | Supply voltage | 230 V |
| Parametry | Manufacturer code | LC8000D-AS-1F |
| Parametry | Product weight with unit packaging | 100 kg |
| Parametry | Packaging status | original |
| Parametry | Startup | electric,manual |
| Parametry | Additional information | voltage regulation (AVR),12 V outlet |
