Trumpai apie prekę

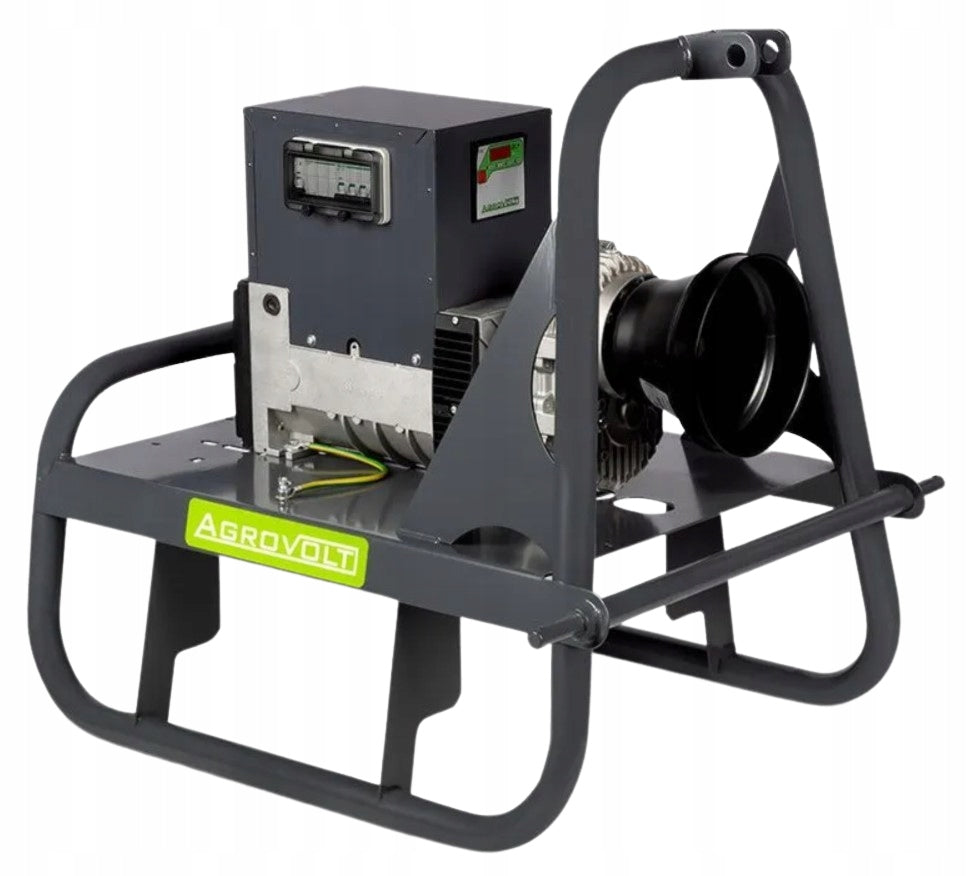

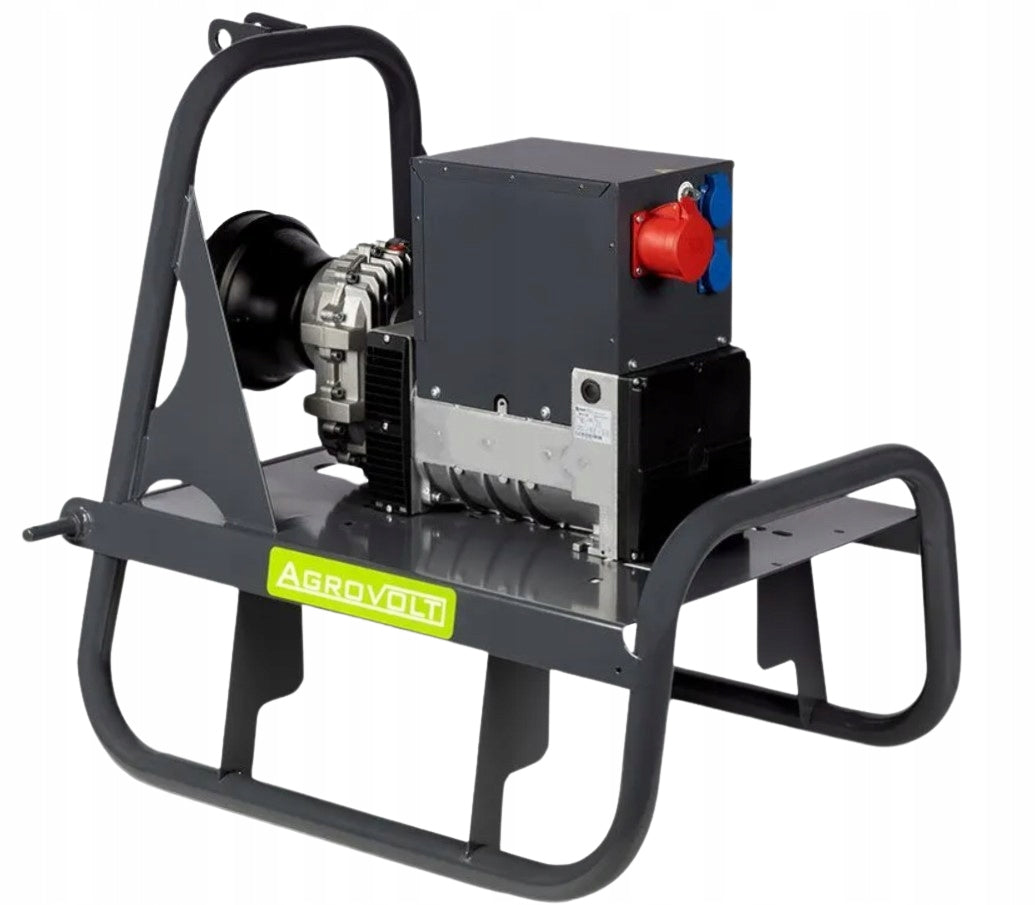

Prekė: Elektros generatorius Agrovolt AV 18, 7,9 kW, 123 kg, žemės ūkiui. Kategorija: Elektros generatoriai.
- Gamintojas: AgroVolt
- Modelis: AV18
- Įtampa: 400 V
WE ARE AN AUTHORIZED DEALER OF THE COMPANY
Purpose: agriculture, gardening, horticulture, animal husbandry
Recommended for: milking halls, milk coolers, electric agricultural machinery, submersible pumps for irrigation, etc.
Technical specification:
- Maximum power 3~: 19,8 kVA
- Rated power 3 ~: 18 kVA
- Voltage stabilization: +5-10%
- Maximum power 1~: 7,9 kW
- Rated power 1~: 7,2 kW
- Rotation gear: 3000/428
- Dimensions [L x W x H]: 950 x 800 x 933 mm
- Weight: 123 kg
- Tractor shaft power: 17,8 kW
Prądnica:
- Type: synchronous
- Degree of protection: IP 23
- Rotation: 3000 rpm
Translation:
- Type: toothed, single-stage
- Oil Type: SAE 80W-90
- Amount of oil: 0,7l
Tractor:
- Power take-off shaft rotation (W.O.M.): 430 rpm
- Suggested tractor power: 50 hp (37 kW)
- Power on power take-off shaft (W.O.M.): 27 hp (20 kW)
- Min. Cardan shaft strength: 60 hp (45 kW)
Standard equipment:
- 4 field fuse machine
- Residual current protection
- 3-phase socket 32A
- 2 1-phase 16A sockets
- 2 thermal switches 230V
- Power measurement
- Voltage measurement
- Frequency measurement
- Current measurement
- Motor hours counter
- Socket for full power reception 1~ (optional)
- Grounding kit (optional)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | AgroVolt |
| Parametry | Model | AV18 |
| Parametry | Kind | portable |
| Parametry | Generator type | three-phase |
| Parametry | Engine | no information |
| Parametry | Startup | Not specified |
| Parametry | Maximum power | 1.4 W |
| Parametry | Nominal power of the alternator | 14400 W |
| Parametry | Engine power | 50 KM |
| Parametry | Device weight | 123 kg |
| Parametry | Fuel type | petrol |
| Parametry | Frequency | 50 Hz |
| Parametry | Product height | 93 cm |
| Parametry | Product width | 80 cm |
| Parametry | Product depth | 93 cm |
| Parametry | Additional information | 12 V outlet |
| Parametry | Number of 1-phase outlets | 2 |
| Parametry | Number of 3-phase outlets | 1 |
| Parametry | Supply voltage | 400 V |
| Parametry | Manufacturer code | AV18 |
