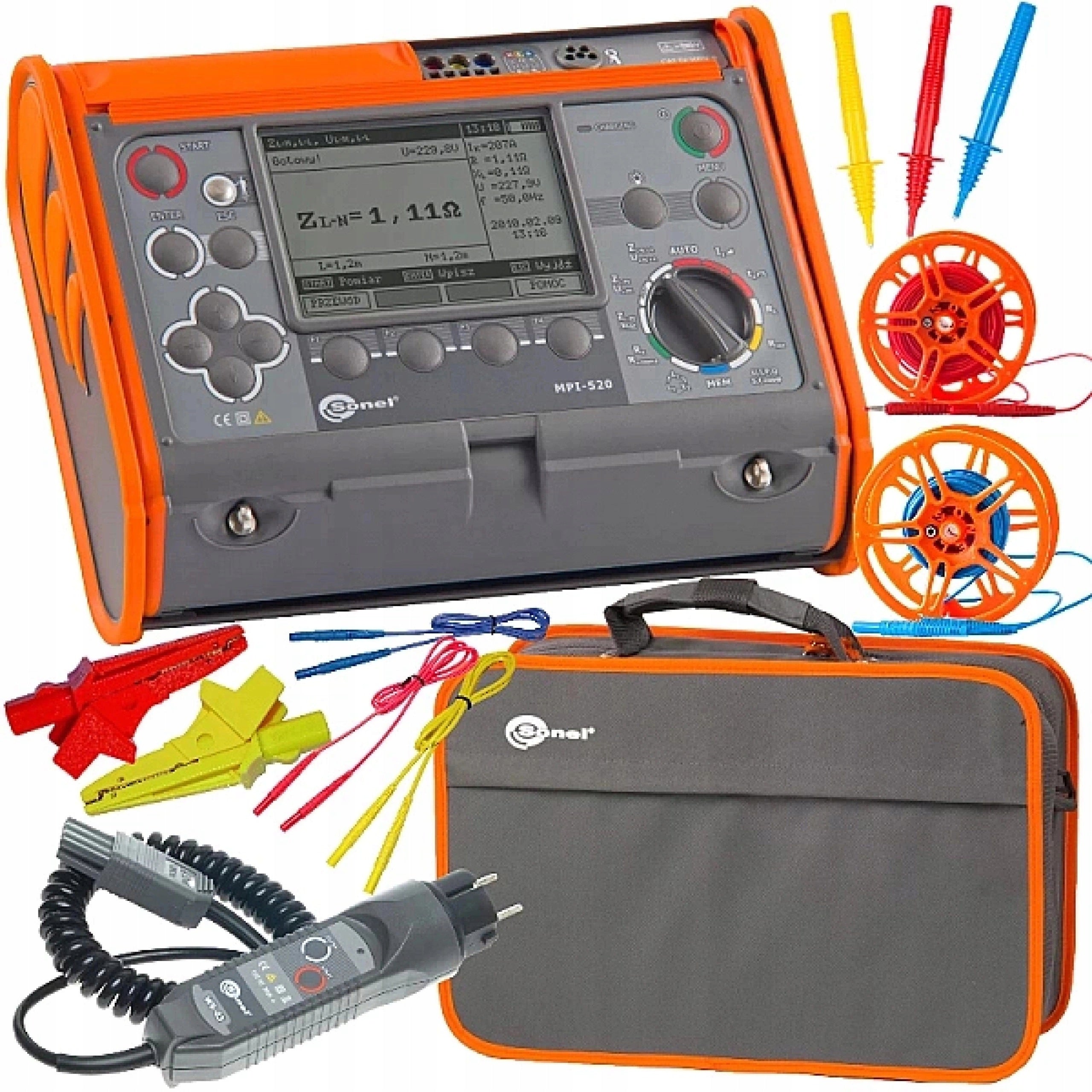

Elektrinių instaliacijų parametrų matuoklis SONEL MPI-520

Trumpai apie prekę

Prekė: Elektrinių instaliacijų parametrų matuoklis SONEL MPI-520. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMPI520

Electrical Installation Parameter Meter

SONEL MPI-520 - basic version

Professional measurements within your budget?

Explore the versatile Sonel MPI-520 meter! This easy-to-use, yet advanced device is ideal for both dfor novice installers and experienced specialists.

It combines the functions of many devices, enabling precise measurements of short-circuit loop impedance (also with RCD), ground resistance and residual current circuit breaker parameters (AC, A, B).

The rugged IP54 enclosure guarantees reliability even in harsh environments. Thanks to the memory of results and wireless data transmission, work becomes even more efficient.

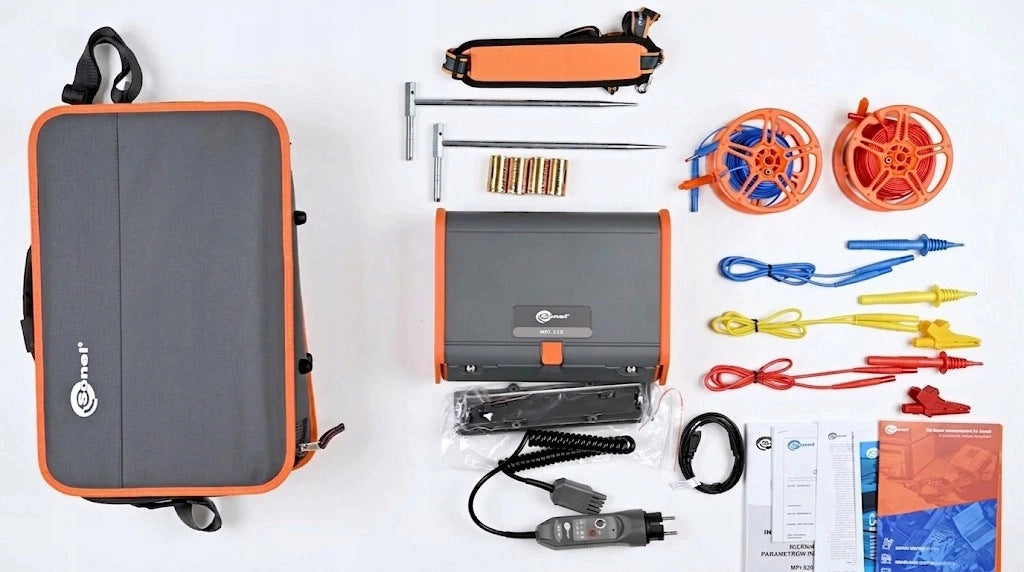

The set includes:

• 1 pcs. Multifunctional measurement of parameters of electrical installations MPI-520
• 1 pcs. Adapter triggering measurement (UNI-Schuko plug) WS-03
• 1 pcs. Cable 1,2 m red 1 kV (banana plugs) WAPRZ1X2REBB
• 1 pcs. Cable 1,2 m blue 1 kV (banana plugs) WAPRZ1X2BUBB
• 1 pcs. Cable 1,2 m yellow 1 kV (banana plugs) WAPRZ1X2YEBB
• 1 pcs. Cable 15 m blue for measuring grounding on spool (banana plugs) WAPRZ015BUBBSZ
• 1 pcs. Cable 30 m red for measuring grounding on spool (banana plugs) WAPRZ030REBBSZ
• 1 pcs. Probe blade red 1 kV (banana socket) WASONREOGB1
• 1 pcs. Probe blade blue 1 kV (banana socket) WASONBUOGB1
• 1 pcs. Probe blade yellow 1 kV (banana socket) WASONYEOGB1
• 2 pcs. Probe ground 30 cm WASONG30
• 1 pcs. Crocodile red 1 kV 20 A K-02
• 1 pcs. Crocodile yellow 1 kV 20 A K-02
• 4 pcs. Battery alkaline LR14 (C) 1,5 V WABATLR14
• 1 pcs. Container simple battery operated WAPOJ1
• 1 pcs. L-2 case

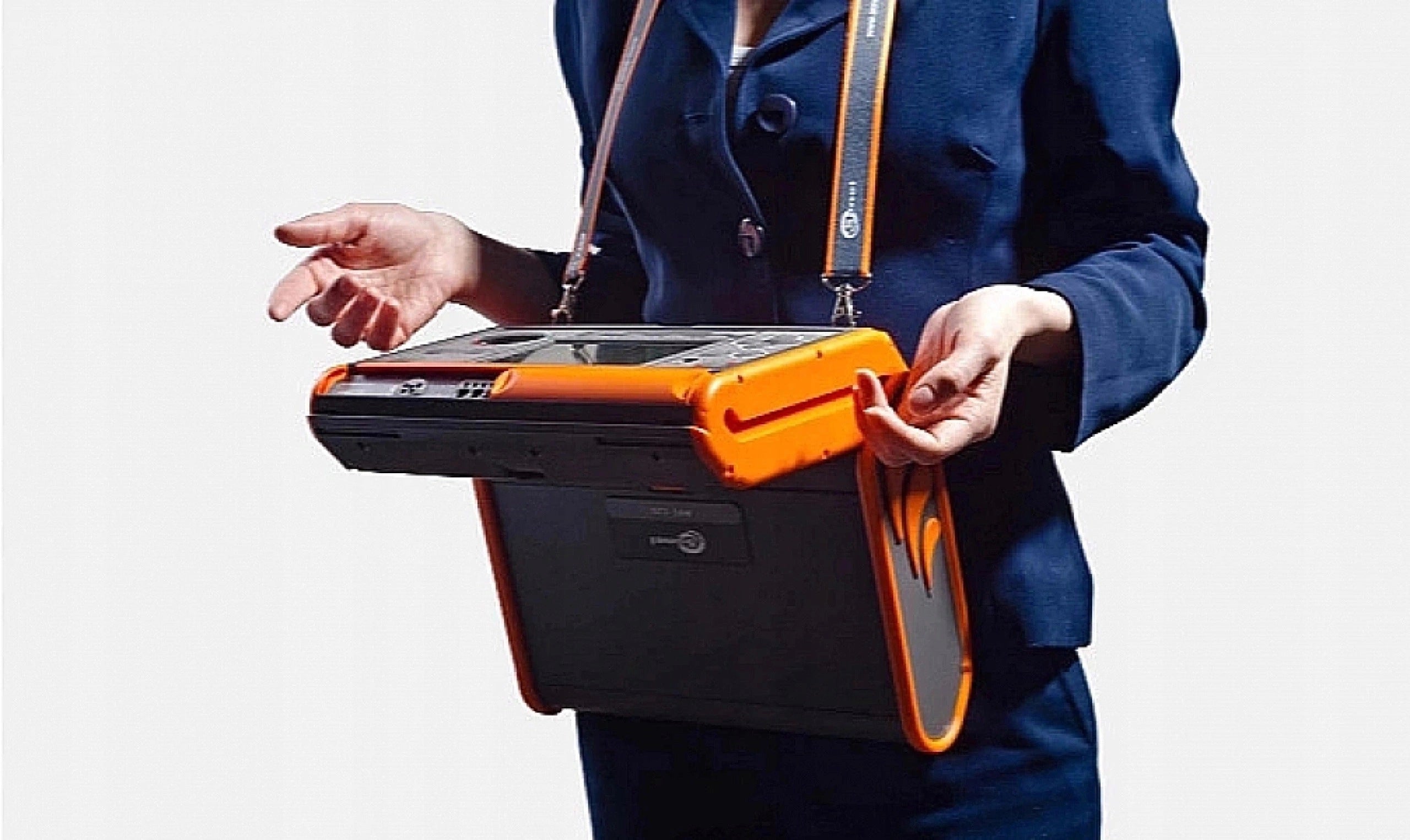

• 1 pcs. Szelki for meter set WAPOZSZEKPL
• 1 pcs. Cable USB WAPRZUSB
• 1 pcs. Calibration certificate WADOKCK
• Operating Instructions in Polish

The calibration certificate is a document issued free of charge in the production process of the meter.

It confirms the conferral of metrological properties and maintaining measurement consistency.

In the calibration certificate under the date of issue of the document there is a dotted field: “Date of commissioning”. This is the field left for the instrument user in which the date of purchase should be entered.

The entered date of purchase can be used to determine the next calibration date based on the manufacturer’s recommendation below:

Subsequent execution of the metrological confirmation (calibration) is recommended to be carried out within 12 months from the date of purchase, but no later than 24 months from the date of production / checking.

Another metrological inspection is carried out by the Research and Calibration Laboratory of Sonel S.A. companies, and the issued document is called - Calibration Certificate.

Basic advantages and functions

✔ Measuring versatility: It enables all acceptance measurements of electrical installations in accordance with PN-EN 61557, combining the functions of many devices.

✔ Precise short-circuit loop measurements: Accurate short-circuit loop impedance measurement, also in circuits with RCD circuit breakers, with automatic short-circuit current calculation.

✔ Comprehensive RCD test: Testing the parameters of AC, A and B residual current circuit breakers, with measurement of current and operating time, as well as touch voltage.

✔ Wide range of insulation resistance measurement: Possibility to measure insulation resistance up to 3 GΩ at different measuring voltages (up to 1000 V), with automatic capacity discharge function.

✔ Accurate measurement of grounding and continuity: Measurement of grounding resistance by 3-wire method and continuity of protective and compensatory connections with current ≥200 mA.

✔ Safety of use: Checking the correctness of PE connection with a touch electrode, protection against voltage on the object, detection of L and N wire replacement.

✔ Convenience and automation of work: Automatic RCD examination, the possibility of using adapters for sockets and testing the insulation of multicore wires, auto-calibration of measuring wires.

✔ Additional functions: Measurement of voltage and frequency of the network, indication of the order of phases, and with clamps - measurement of current, power and cosφ.

✔ Memory and data transmission: Ability to save 990 results and wireless (Bluetooth) or wired (USB) transfer them to your computer.

✔ Sturdy construction and compliance with standards: Housing with IP54 protection, compliance with PN-EN 61557 and high measurement category (CAT IV 300 V, III 600 V), SEP recommendation.

Software to support the Sonel MPI-520 device

✔ SONEL ELECTRICAL MEASUREMENTS 6 (not included)

• Helps create electrical measurement reports
• Simplifies the documentation process
• Automates
• Tree structure of the document

Possibility to purchase the PE6 program at our other auctions!

✔ SONEL READER - FREE

• Collect historical data and compare it with current results transferred from the meter's extensive memory.
• It allows you to transfer data to a computer , save it to popular formats and print it.
• Track the progress of insulation degradation
• Plan renovation work.

Measurement functions:

• Fault loop impedance:

  Fault loop ZLoE ZL+ Z14: 0.13 ...1999 (acc. to IEC 61557), display range 0.00 ...1999, resolution from 0.01, accuracy (5% wm + 3 digits). ;

  ZLOE fault loop in RCD mode: from 0.50 ...1999 (acc. to IEC 61557), display range 0.00 ...1999, resolution from 0.01, accuracy from (6% wm + 5 digits). ;

• Measurements of RCD parameters:

  RCD tripping test and tripping time measurement (tA), measuring current 0.5, 1, 2, 5, In:;

  Measurement of RCD tripping current IA, measuring current 0.2, 0.4, 0.6, 0.8, 1.0, 1.1, 1.2, 1.3, 1.4, 1.5, In:;

• Grounding resistance:

  3-wire method: from 0.5 ...1.99 kΩ (acc. to IEC 61557-5), display range 0.00 ...1.99 kΩ, resolution from 0.01 , accuracy from (2% wm + 3 digits). ;

• Insulation resistance:

  Measuring voltage 50 V: 50 kΩ. .250 M (according to IEC 61557-2), display range 0 k.. .250 M, resolution from 1 k, accuracy from (3% wm + 8 digits). ;

  Measuring voltage 100 V: 100 kΩ. .500 M (according to IEC 61557-2), display range 0 k.. .500 M, resolution from 1 k, accuracy from (3% wm + 8 digits). ;

  Measuring voltage 250 V: 250 kΩ. .999 M (according to IEC 61557-2), display range 0 k.. .999 M, resolution from 1 k, accuracy from (3% wm + 8 digits). ;

  Measuring voltage 500 V: 500 kΩ. .2.00 G (according to IEC 61557-2), display range 0 k.. .2.00 G, resolution from 1 k, accuracy from (3% wm + 8 digits). ;

  Measuring voltage 1000 V: 1000 kΩ. .3.00 G (according to IEC 61557-2), display range 0 k.. .3.00 G, resolution from 1 k, accuracy from (3% wm + 8 digits). ;

• Resistance of protective and equipotential bonding conductors:

  Measurement of continuity of protective and equipotential bonding with current 200 mA: 0.12 ...400 (acc. to IEC 61557-4), display range 0.00 ...400, resolution from 0.01, accuracy (2% wm + 3 digits). ;

  Resistance measurement with low current: 0.0 ... 1999 , display range 0.0 ... 1999 , resolution from 0.1 , accuracy (3% wm + 3 digits). ;

• Phase sequence indication: positive, negative, ULL voltage: 95 V. .500 V (45 Hz...65 Hz).

• Power measurement:

  Apparent power (S): 0.0 VA.. .200,000 VA, resolution from 0.1 VA, accuracy from (7% wm + 3 digits). ;

  Active power (P): 0.0 W. .200,000 W, resolution from 0.1 W, accuracy from (7% wm + 3 digits). ;

  Reactive power (Q): 0.0 var.. .200,000 var, resolution from 0.1 var. ;

Other technical data:

• Measurement category according to PN-EN 61010: IV 300 V, III 600 V.

• Degree of protection: IP54.

• Type of insulation according to PN-EN 61010-1 and IEC 61557: double.

• Dimensions: 288 x 223 x 75 mm.

• Meter weight: approx. 2,2 kg.

• Operating temperature: 0...+50°C.

• Storage temperature: -20...+70°C.

• Humidity: 20...90%.

• Nominal temperature: 232°C.

• Reference humidity: 40%...60%.

• Memory of measurement results: 990 cells, 57 500 records.

• Transmission of results: USB 2.0, radio.

• Quality standard development, design and production: ISO 9001.

• The product meets the requirements of EMC (emission for industrial environment) according to the following standards: PN-EN 61326-1, PN-EN 61326-2-2.

CONSTRUCTION OF THE INSTALLATION PARAMETERS METER

• 1- Charger socket and USB under sliding flap
• 2- Measuring sockets
• 3- Clamp socket measuring
• 4- Turning on and off meter power
• 5- MENU- selection of additional meter settings
• 6- Turn the backlight on and off of the display
• 7- Rotary switch functions
• 8 and 10- Ears for harness fastening
• 9- Display Operation Keys
• 11- Offset/select right/left, up/down
• 12- ESC- return to previous screen, exit from function
• 13- Approval of selection
• 14- Touch electrode
• 15- Starting the measurement procedure
• 16- Charger socket
• 17- USB port

Comparison of MPI measures

Signs in Table

1. Measuring voltage [V]
2. Measuring range
3. Power supply
4. Memory (number of records)
5. Measurement function of ground resistance
6. Expandable with lux meter probe

Specification

Markings in the table:

• 1- Measuring range
• 2- Display range
• 3- Resolution
• 4- Accuracy

A- Grounding resistance

• A1- 3-wire method

B- Insulation resistance

• B1- Measuring voltage 50 V
• B2- Measuring voltage 100 V
• B3- Measuring voltage 250 V
• B4- Measuring voltage 500 V
• B5- Measuring voltage 1000 V

C- Resistance of protective and compensating conductors

• C1- Measurement of continuity of protective and compensatory connections with current ±200 mA
• C2- Measurement of resistance with low current

D- Indications of phase order

E- Power measurement

Specification

Symbols in the table:

• 1- Measurement range
• 2- Display range
• 3- Resolution
• 3- Accuracy

A- Fault loop impedance

• A1- Short circuit loop ZL-PE, ZL-N, ZL-L
• A2- ZL-PE short circuit loop in RCD mode

B- Measurements of RCD parameters, RCD tripping test and measurement of tripping time tA measuring current 0.5 IΔn, 1 IΔn, 2 IΔn, 5 IΔn

• B1 - RCD of general type and short-time delay
• B2 - Selective RCD

C - Measurement of RCD tripping current IA measuring current 0.2 IΔn…2.0 IΔn

• C1 - for sinusoidal differential current (AC type)
• C2 - for 1-way differential current and 1-way differential current with 6 mA DC bias (type A)
• C3 - for direct differential current (type B)
