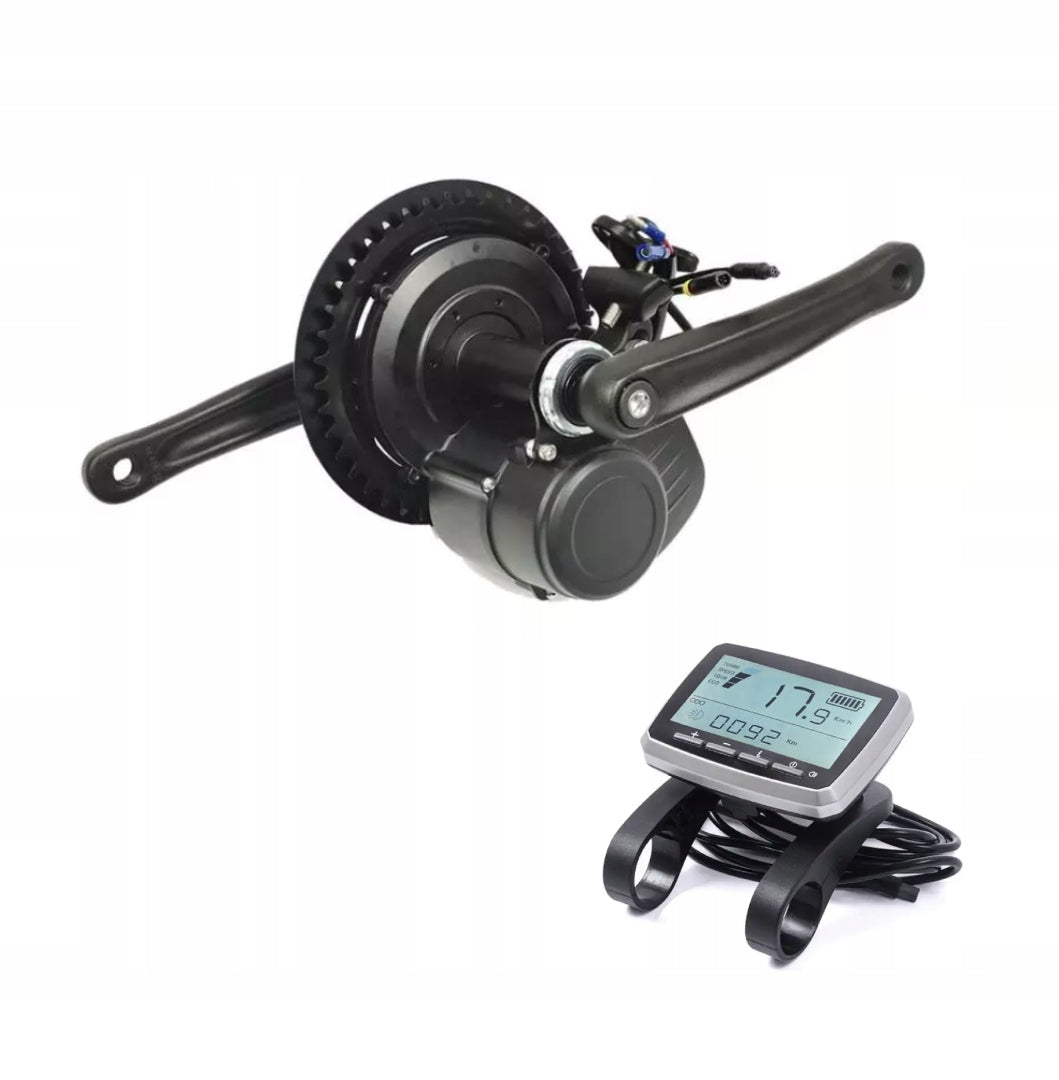

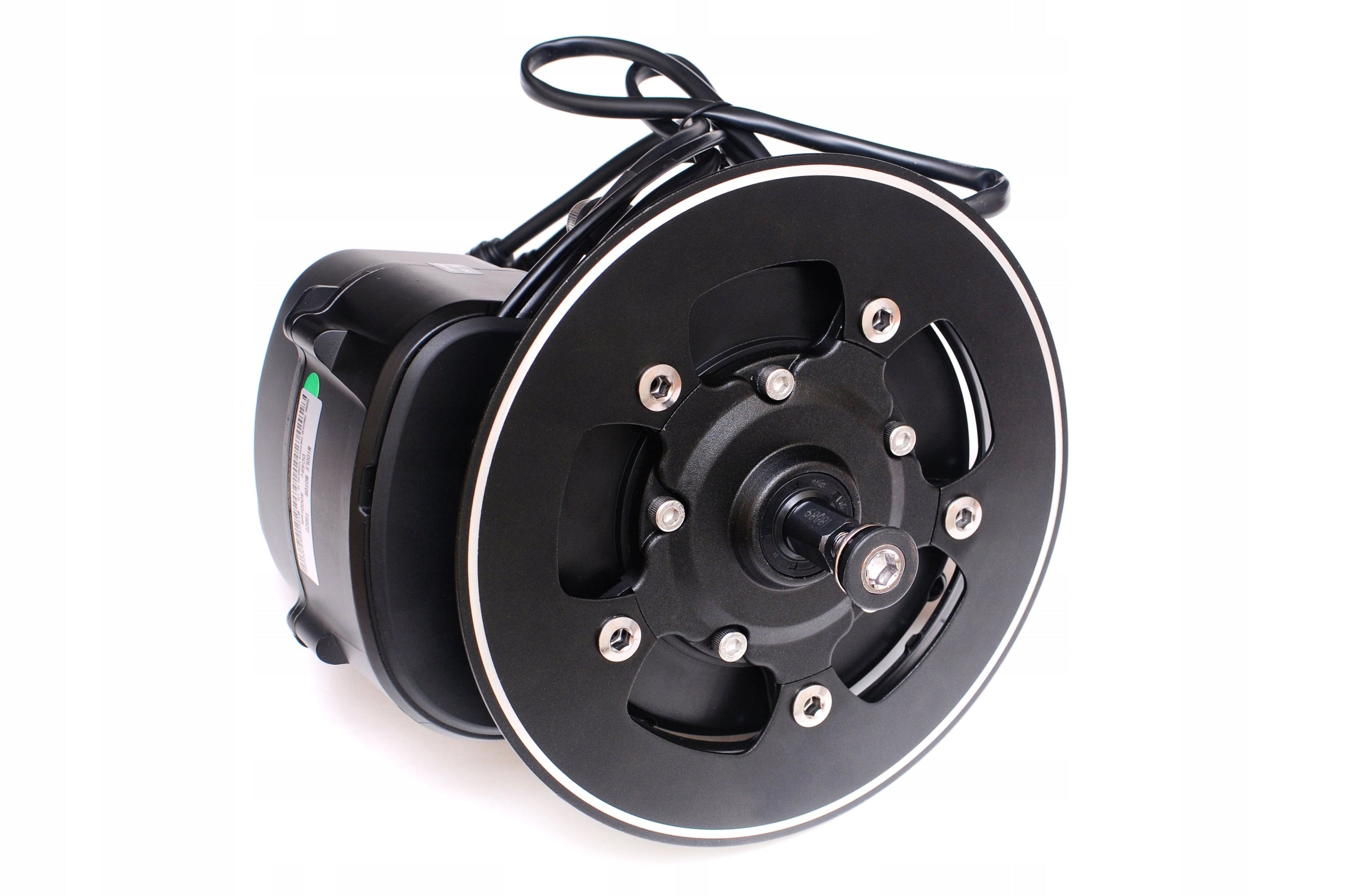

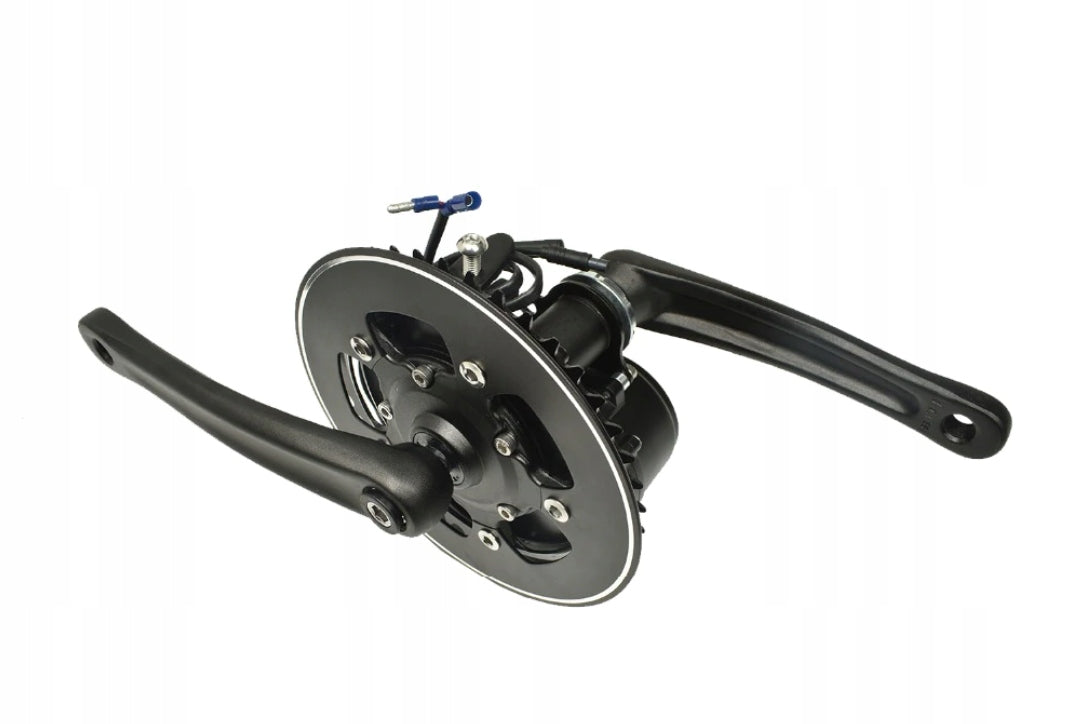

Elektrinis variklis TONGSHENG TSDZ2B 48V 500W

Trumpai apie prekę

Prekė: Elektrinis variklis TONGSHENG TSDZ2B 48V 500W. Kategorija: Perdarymo rinkiniai.

• Gamintojas: no brand
• Modelis: TSDZ2B

A complete set with 500W power, which will allow you to easily and quickly turn your existing bike into an e-bike

Technical data:

• Set power: 500W
• Speed max.: approx. 40 km/h
• Engine model: 48-WP-500W
• Engine weight: 4 kg
• Assembly location: Centrally - support axis
• Suitable for supports: 68-73 mm
• Controller model: Integrated (in engine)
• Tooth: 42T
• Voltage: 48V

OPERATION AND CONVERSION OF across all of Poland

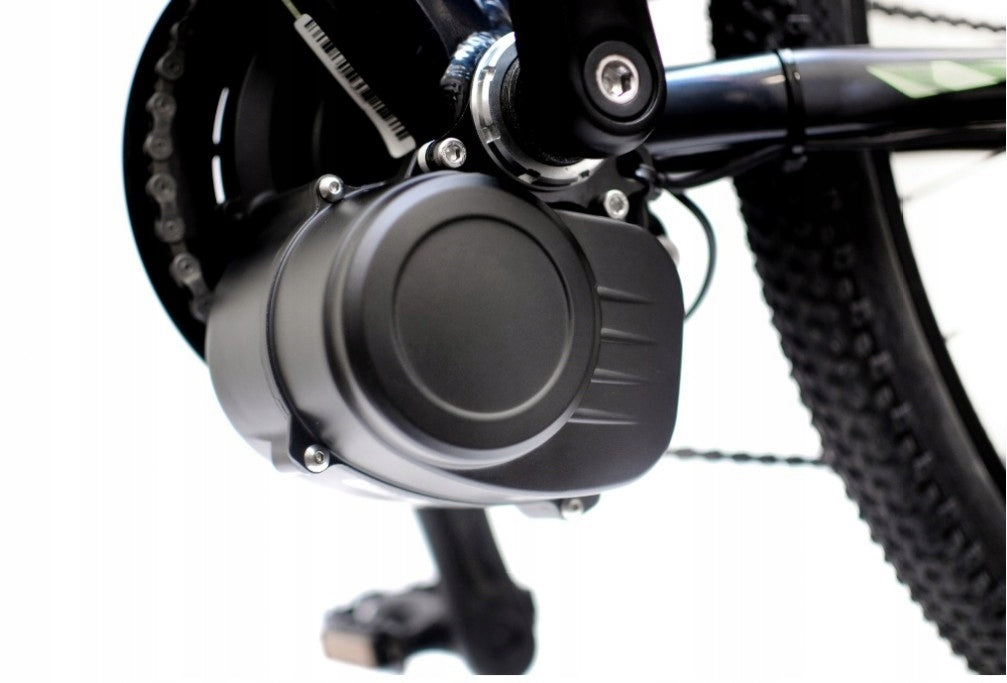

The central motor is the best solution for electric bicycles because it allows you to maintain a natural center of gravity for the bike. The use of a support motor increases pedaling cadence and allows for efficient and direct transfer of force to the drive.

The pedal pressure sensor can be found mainly in the most expensive brands of factory bikes with central drive Bosch and Yamacha.

How does it work?

It reads the rotational speed of the cranks and the pressure on the pedals as the power of the cyclist and converts them into a correspondingly increased (it is possible to adjust) power of the electric drive.

What does it provide?

Individual selection of power assistance depending on the cyclist. It is the cyclist who determines the power of the assistance and thus the speed of the vehicle. There is no effect as in the usual BELT that the bike chases to a certain speed.

Brak need to install door handles with current imprint or brake sensors. After stopping pedaling, the motor stops supporting in a fraction of a second, which ensures stable gaining and losing speed at any time. The engine gives not only strength, but also control.

Better control over the speed of the bike. The bike will never go faster than we can pedal. So there will never be a situation where the bike overtakes our pedaling

The ability to start from scratch, without a gas handle, with just pressure on the pedal.

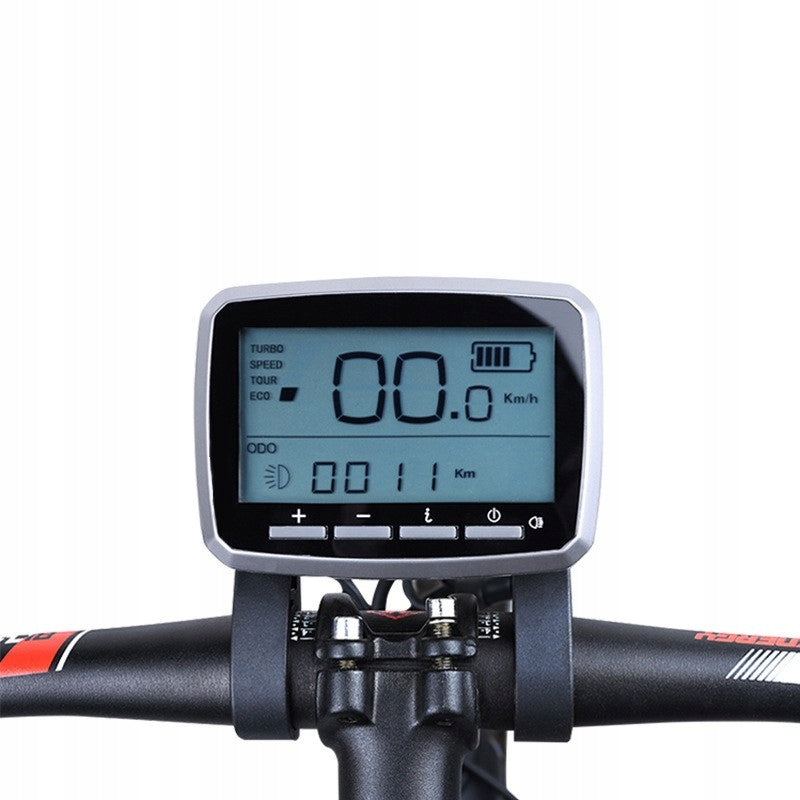

With an easy-to-use LCD display, you can enter the necessary settings, configure power assistance and top speed, and above all, monitor the battery status on an ongoing basis. The intelligent system monitors the way you drive and indicates the battery level proportional to the power used.

Large screen, installs in the middle of the steering wheel.

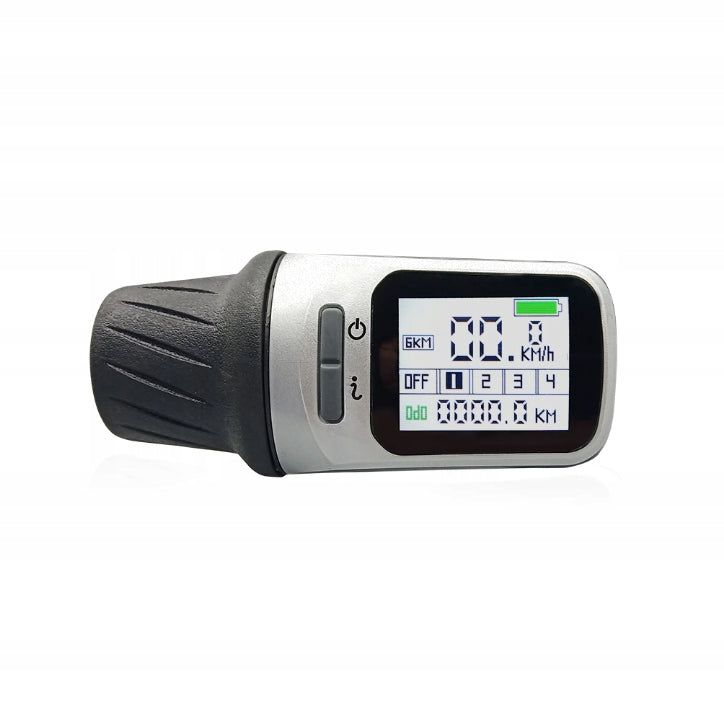

Compact display with convenient mounting method. It does not support gas handle.

You can use the assistance in two ways – the first is the automatic start of the engine during pedaling thanks to the motion sensor, which is placed at the crank, and the second gas handle, which also allows you to use the drive in full range.

When choosing LCD type 2, it is not possible to use the gas handle.

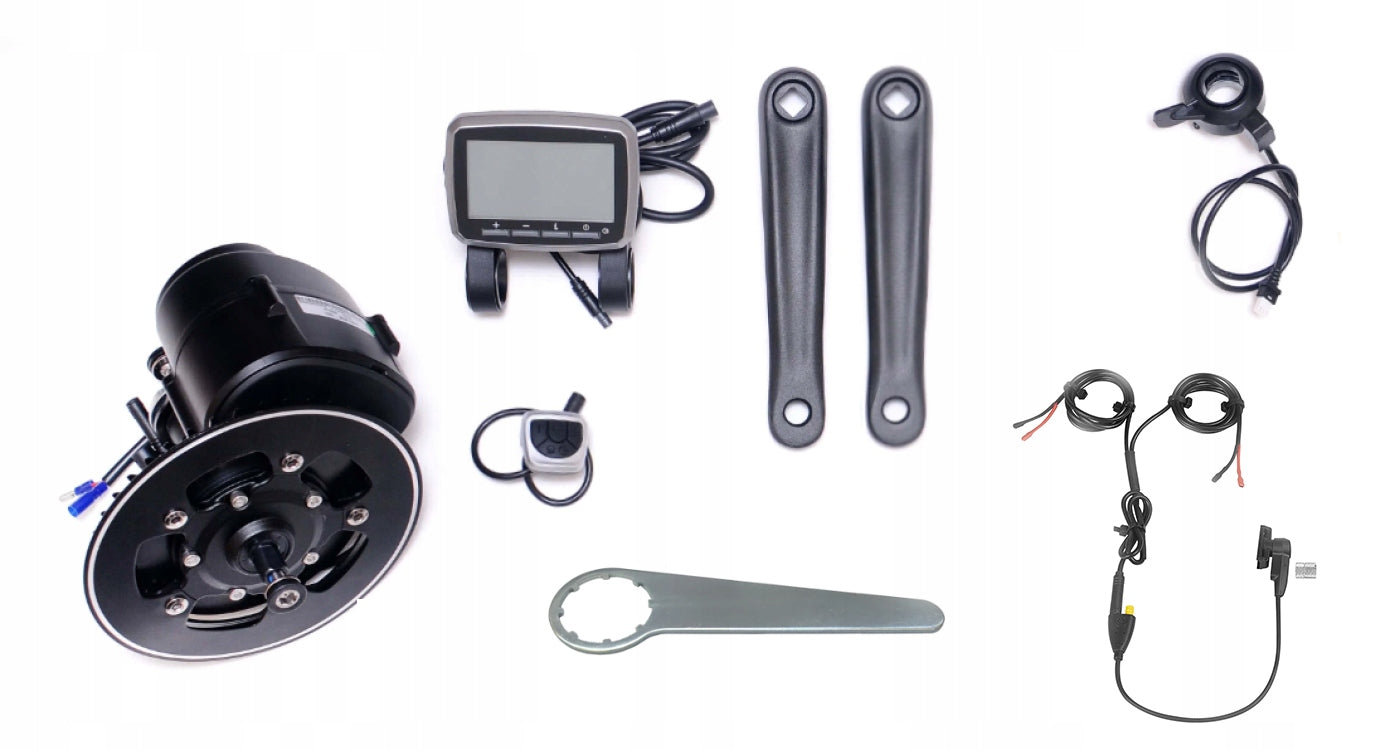

1. LCD TYPE: 1 OR 2.

1. 48V 500W Tongsheng engine;

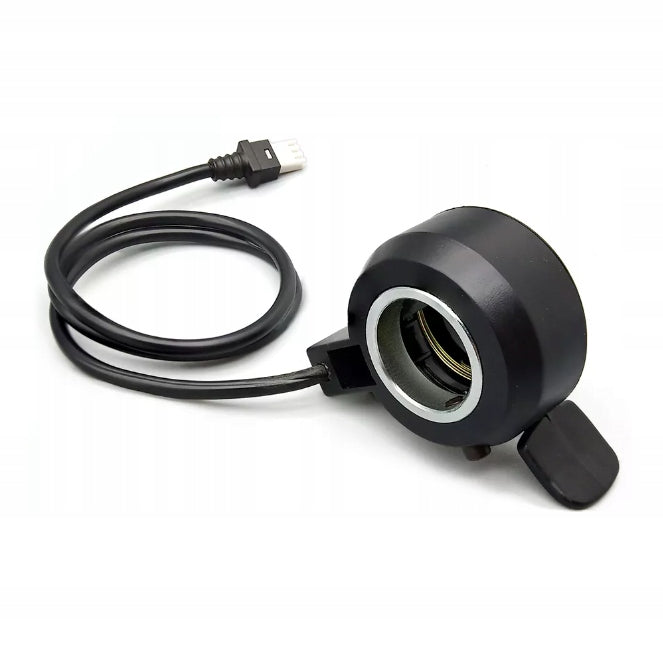

2. Wiring with LCD display and gas shifter;
3. 42T sprocket;
4. Cranks;
5. Key for assembly;
6. User manual and warranty card.

The comprehensive warranty and battery-operated Ultimate Action service is 1 year. We operate across all of Poland.

We offer additional services of conversion and servicing of electric bicycles across all of Poland.

The set includes instructions that contain the main information on the correct use, operation and installation of the TSZD2 electric kit (Tongsheng), display and additional parts.
