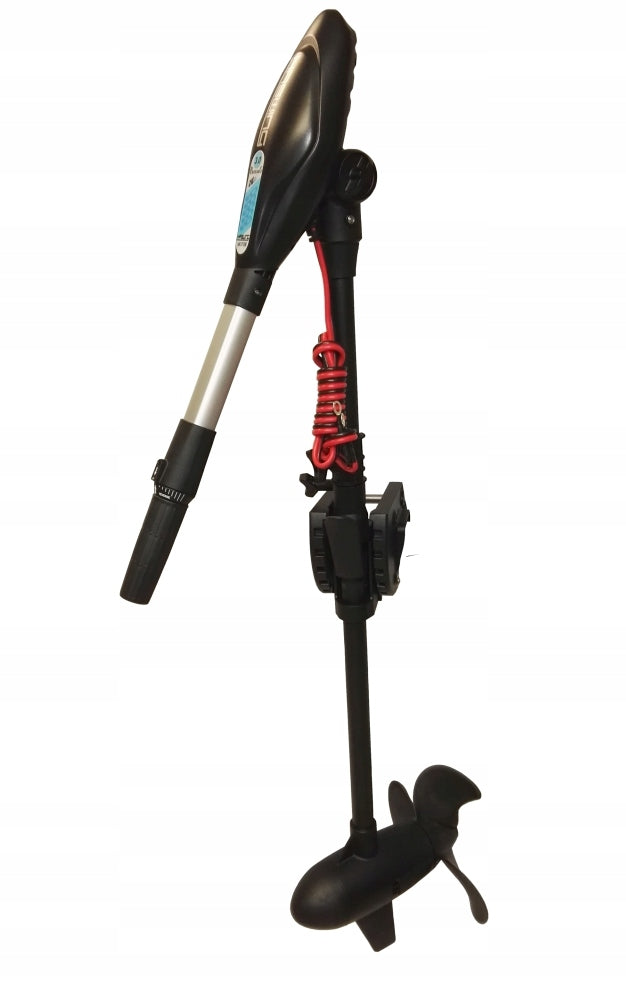

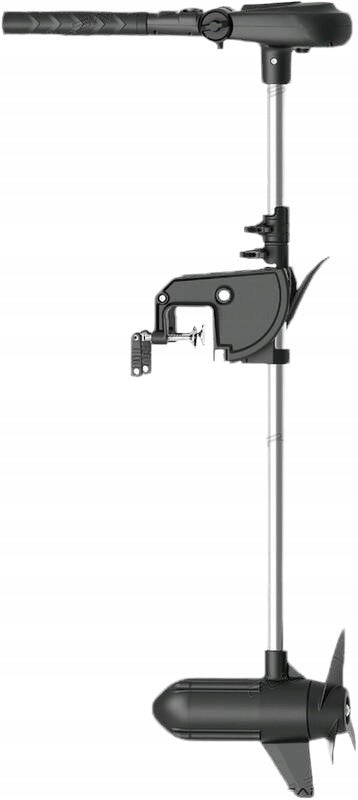

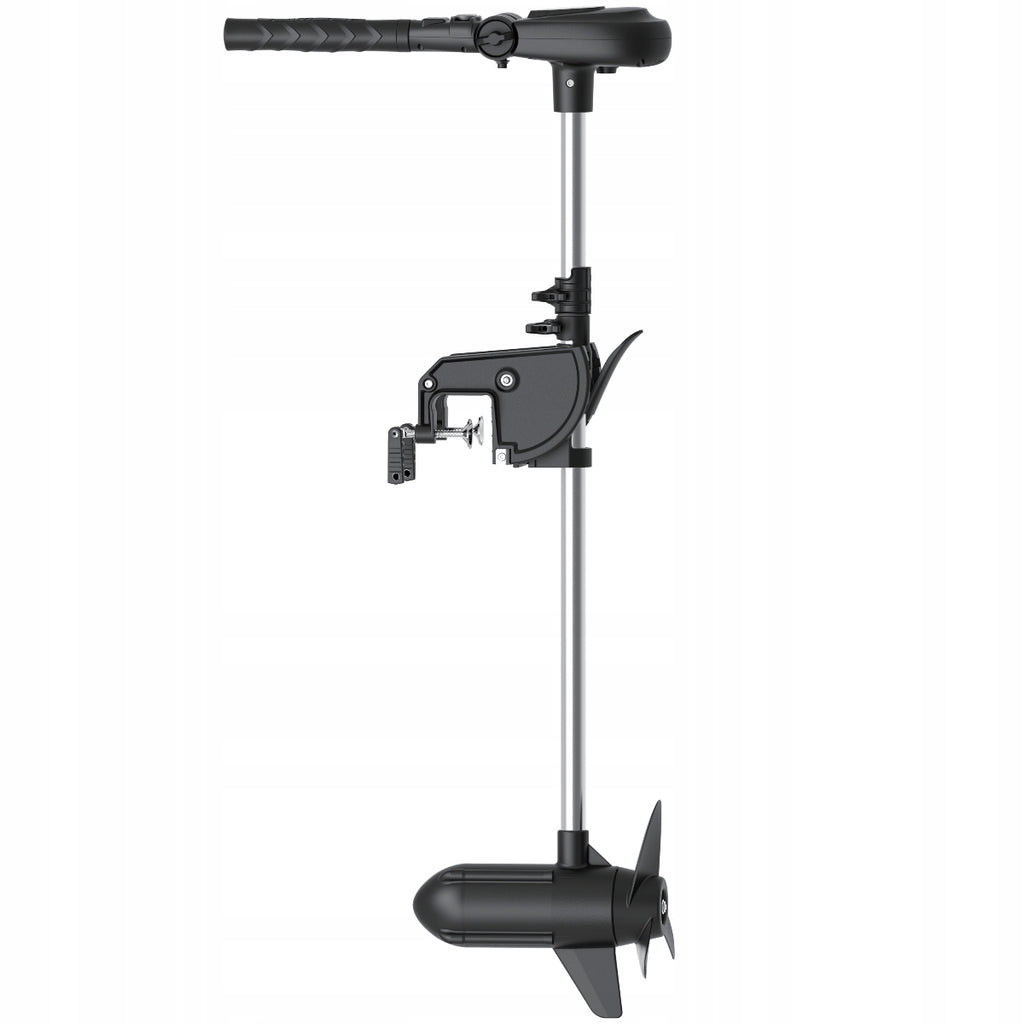

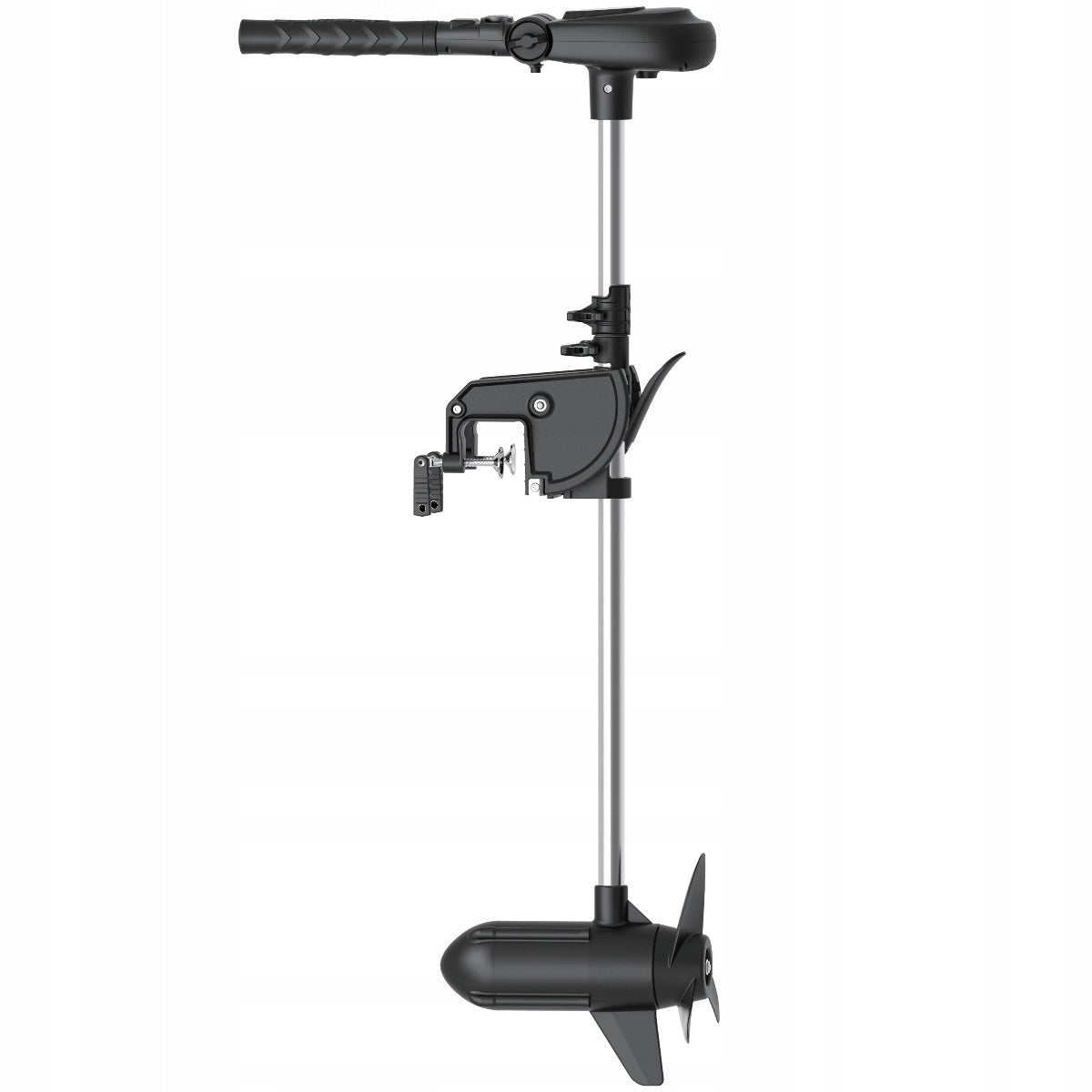

Elektrinis variklis Haswing Protruar G 5.0 2520W 24V

Trumpai apie prekę

Prekė: Elektrinis variklis Haswing Protruar G 5.0 2520W 24V. Kategorija: Masalui skirti laivai.

• Gamintojas: Haswing
• Modelis: IC-HW- 50719-100_B
• Svoris: 14000 g

Electric motor Haswing Protruar G 5.0 2520W 24V

• Manufacturer code: 91064

HasWing is a brand created for the demanding Japanese market. Several years of experience in the production of engines has meant that currently products from the HasWing brand are available on all continents. The main customers are Japan, USA, Australia, Great Britain, Netherlands, Germany, Austria, Poland, Italy, France, Spain, Russia. For several years of presence on the Polish market, HasWing has proven that the engines of this brand are associated with quality, durability and durability, making them the most frequently purchased engines on our market. They have professional warranty and post-warranty service, as well as access to original spare parts, which ensures smooth operation for many years. Currently, the offer of HasWing includes more than 30 models of motors from 200W to more than 2500W mounted on the front or rear of boats, controlled manually or from a wireless remote control, jump control - running and smooth with maximizer, brush and brushless motors.

HASWING Protruar 5.0 24V 160lbs

• Smooth rotation adjustment, front/rear (maximizer).
• Security key/snapshot
• Battery charge indicator
• Handle with adjustable tilt angle.
• Stainless steel column.
• Thick 14mm2 power cables
• Durable metal handle
• Brushless motor
• 3 blade screw

The most powerful model of the Haswing brand, with brushless motor. It is designed for large vessels. The 160lbs pull easily handles large boats, sailboats, yachts or water trams. The best quality of materials used and aesthetics of finish.

1. High Power Brushless Motor!

Haswing Protruar 5.0 is a high-end model with a power of 160lbs. It has high power and high torque. For use on boats weighing up to 5000kg Brushless motors offer more power with greater efficiency than standard brush motors. The absence of brushes also means greater durability and reliability.

2. Battery charge indicator!

The motor has a LED battery indicator. Device informing about the status of the battery. The 21V discharge level for 24V power supply during engine operation is a safe limit, after which the battery loses its properties (capacity, service life).

3. Stepless adjustment - Maximizer!

The speed is infinitely adjustable, smoothly - maximizer technology!

It is also possible to block the engine speed in several positions. The rotation can be adjusted forward and backward. Maximizer significantly saves power consumption - you can achieve up to 5 times longer swimming time compared to motors with gear switch. The rumple uses a mechanism to turn off the engine speed in the event of falling overboard, This works on the principle of a "key". The key is connected to the bottom of the handle, while the other end is fastened, e.g. to the life jacket. If we fall offboard, we will be sure that the boat will not escape us, because the engine will turn off.

4. Durable metal handle!

The metal handle used is rust-resistant, made of alloy for excellent durability and strength. The material used guarantees the rigidity of the structure. In addition, the housing is adjusted to the optimal angle, so we can easily and safely lock the lever. In addition, the depth of immersion can be set at the most comfortable level thanks to the height adjustment relative to the transom of the boat.

5. Handle with adjustable tilt angle!

The motor is equipped with a tilting handle, which increases the convenience of operation. It is possible to adjust the rumpel by 100 degrees.

6. Salt water resistant column!

The shape of the Protruar 5.0 engine column has a round shape. Made of stainless steel and resistant to salt water, it can be used both in fresh water and in the sea. Additional protection when hitting the bottom is the engine fin.

7. High torque - Screw with 3 blades!

With the increase in the rotational speed of the screw, there is a worse performance - the phenomenon of cavitation. Therefore, a large diameter propeller (272mm) was used to achieve the highest possible performance. Consequently, the screw offers high torque and high efficiency, resulting in low power consumption compared to standard motors. The screw has a clutch - if the line or braid is screwed in or snagged on the root, the screw will jump on the clutch teeth.

Engine Specifications:

• Water Cooled Brushless Motor
• Pull 160lbs, Power 2520W
• Maximizer smooth adjustment front - rear
• Length of power cord - approx. 1,6m
• Protection - overload, too low / high voltage
• Screw diameter 272mm
• Number of blades - 3
• Engine weight - 14kg
• Power consumption - max 105A battery pack required approx 200Ah - (2 x 12V 200Ah) / (4 x 12V 100Ah) or more
• Engine Column Length 39 inches 100cm
• Transport engine height 130cm
• Maximum thickness of transom board - 65mm
• Minimum transom width for engine attachment - 13cm
• 24V power supply (2x12V in series)

The engine has safety features:

• too low voltage - the motor will not start or stop
• too high voltage - the motor will not start
• overload - cyclic beep, (at low speed the engine will stop
• Clutch on the screw - if the line or braid is screwed in or snagged on the root, the screw will jump on the clutch teeth.

* We reserve the right to make an error in the photo/description of the product created when issuing the offer.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Haswing
Parametry	Manufacturer code	IC-HW- 50719-100_B
Parametry	Model	IC-HW- 50719-100_B
Parametry	Weight	14000 g
Parametry	EAN (GTIN)	9580208507194
Parametry	Batteries included	no
