Elektrinis šuns aptvaro rinkinys Shepherd, su priedais

Trumpai apie prekę

Prekė: Elektrinis šuns aptvaro rinkinys Shepherd, su priedais. Kategorija: Gyvūnų atbaidytuvai.

• Gamintojas: Matador
• Modelis: Pastuch elektryczny dla psów i kotów

Symbol of goods: 88034590

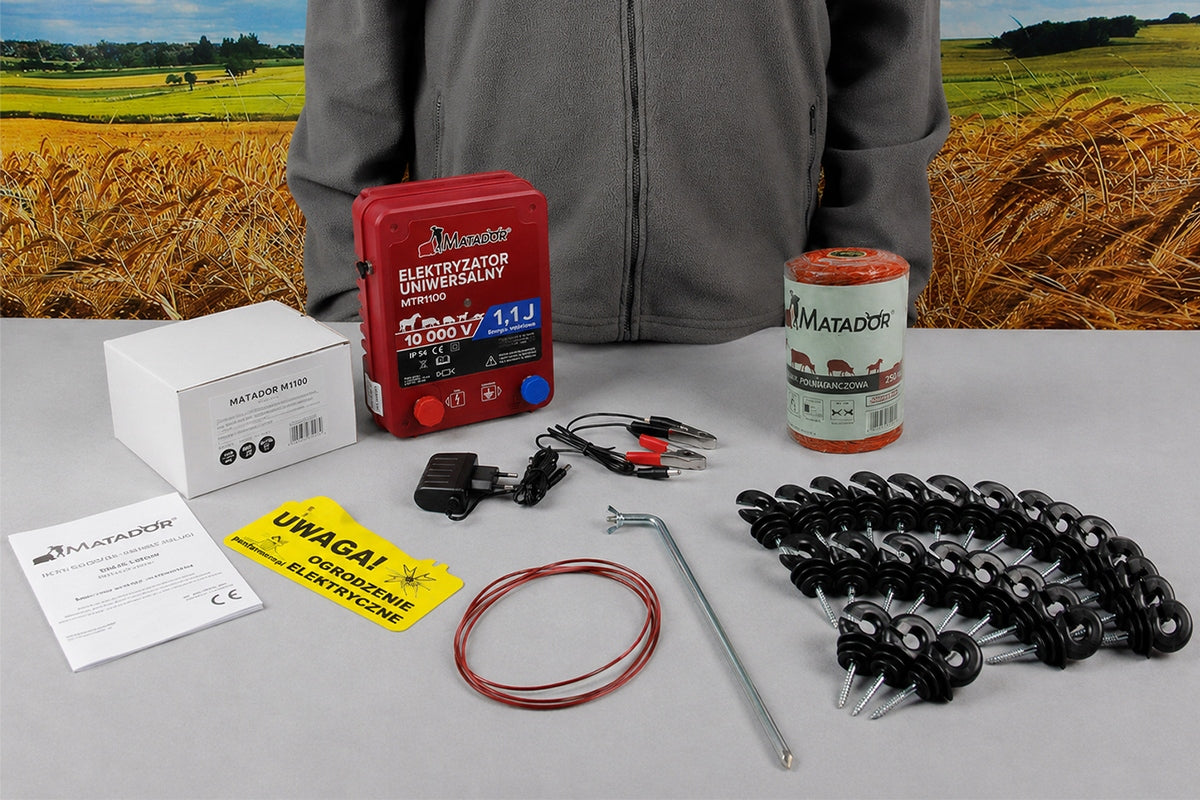

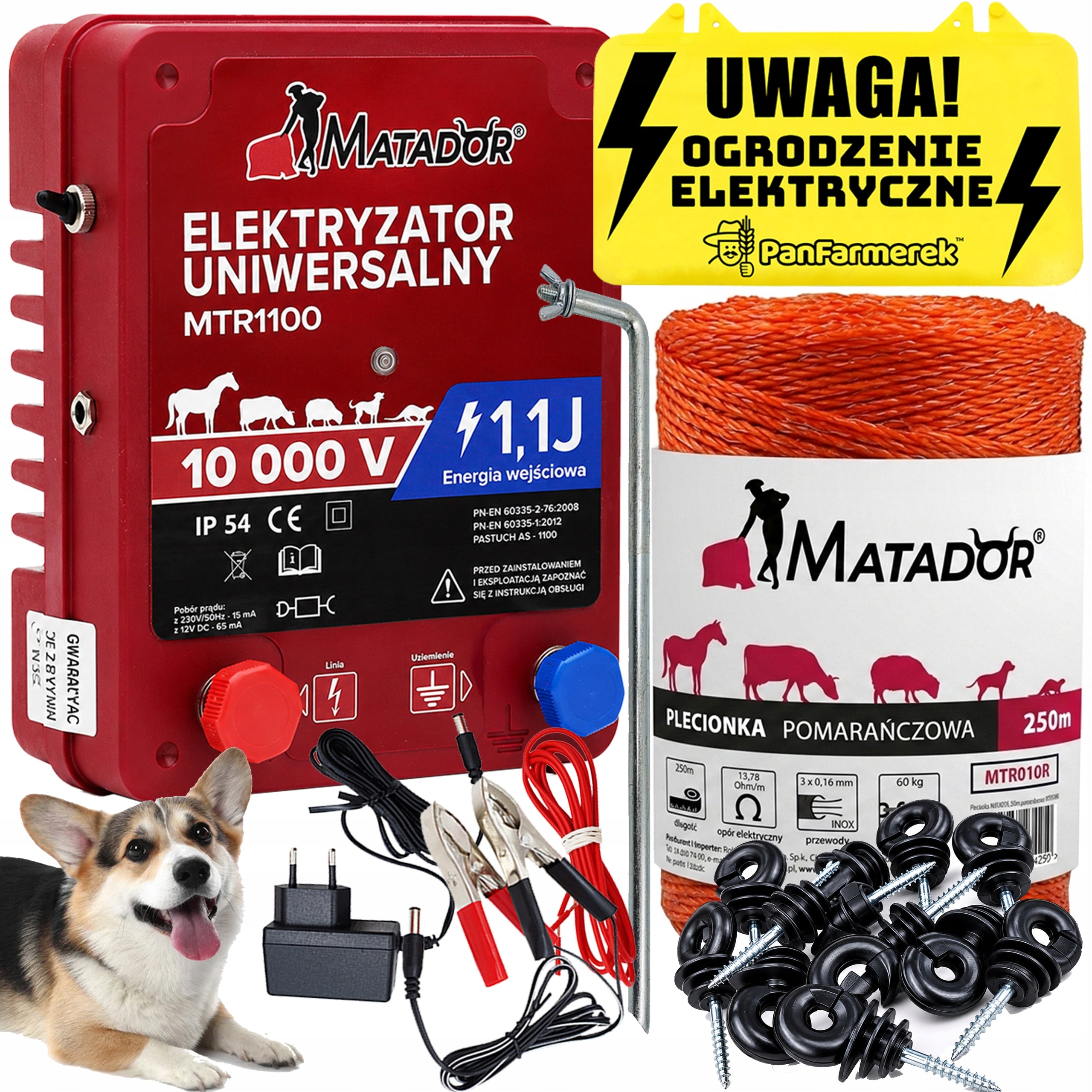

✅ The offered P13 set includes:

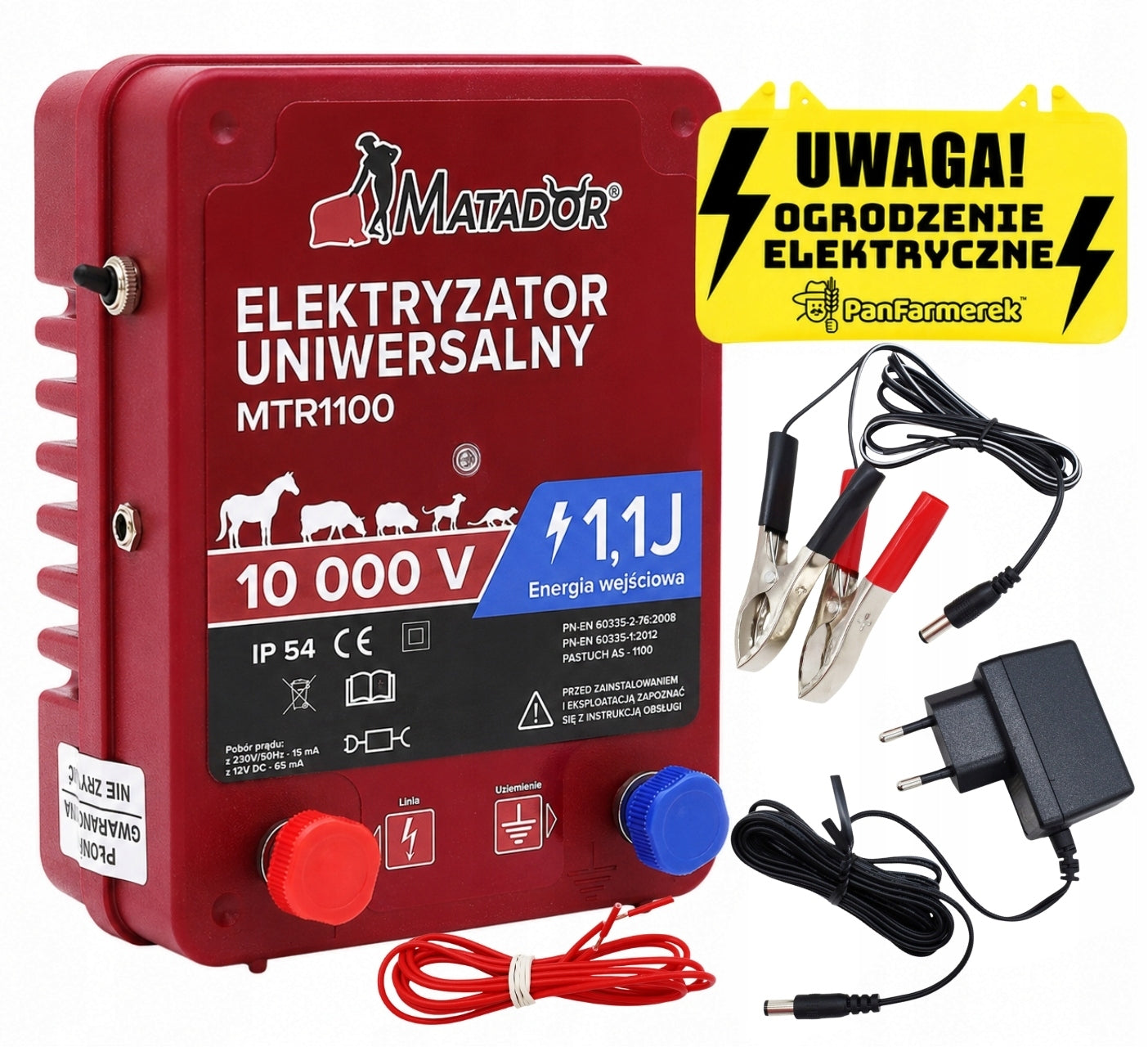

1. Network-battery electrician Matador® MTR1100
2. The Matador® 250 m
3. Wire insulators Matador® with wood screw 25 pcs
4. Power cable for electrical network 230 V
5. Crocodiles for connecting a 12V battery
6. Cable for connecting the electrician to the fence and to the ground stake (red)
7. Grounding stake 33 cm
8. Warranty card + instruction manual and installation
9. Warning plate

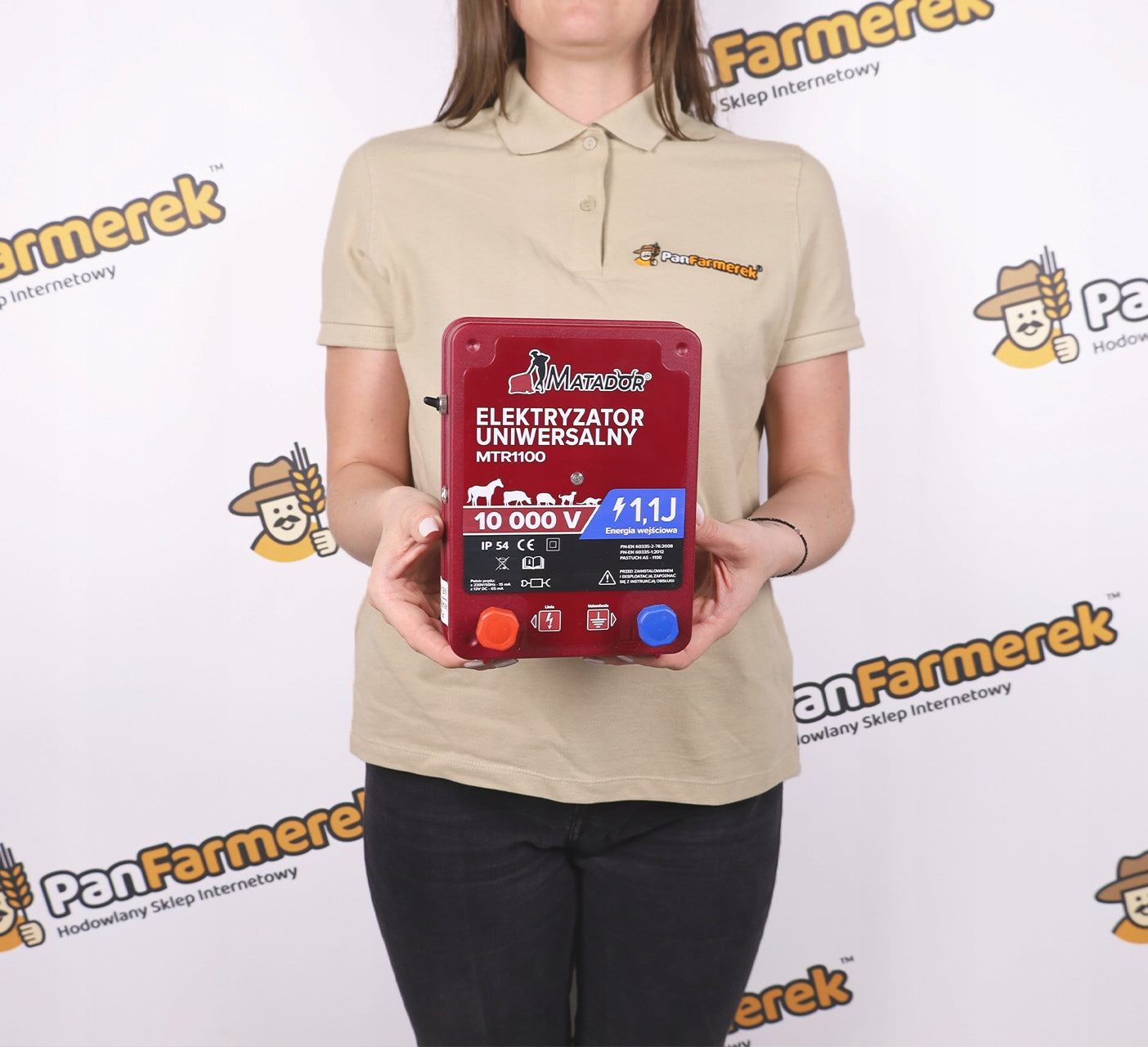

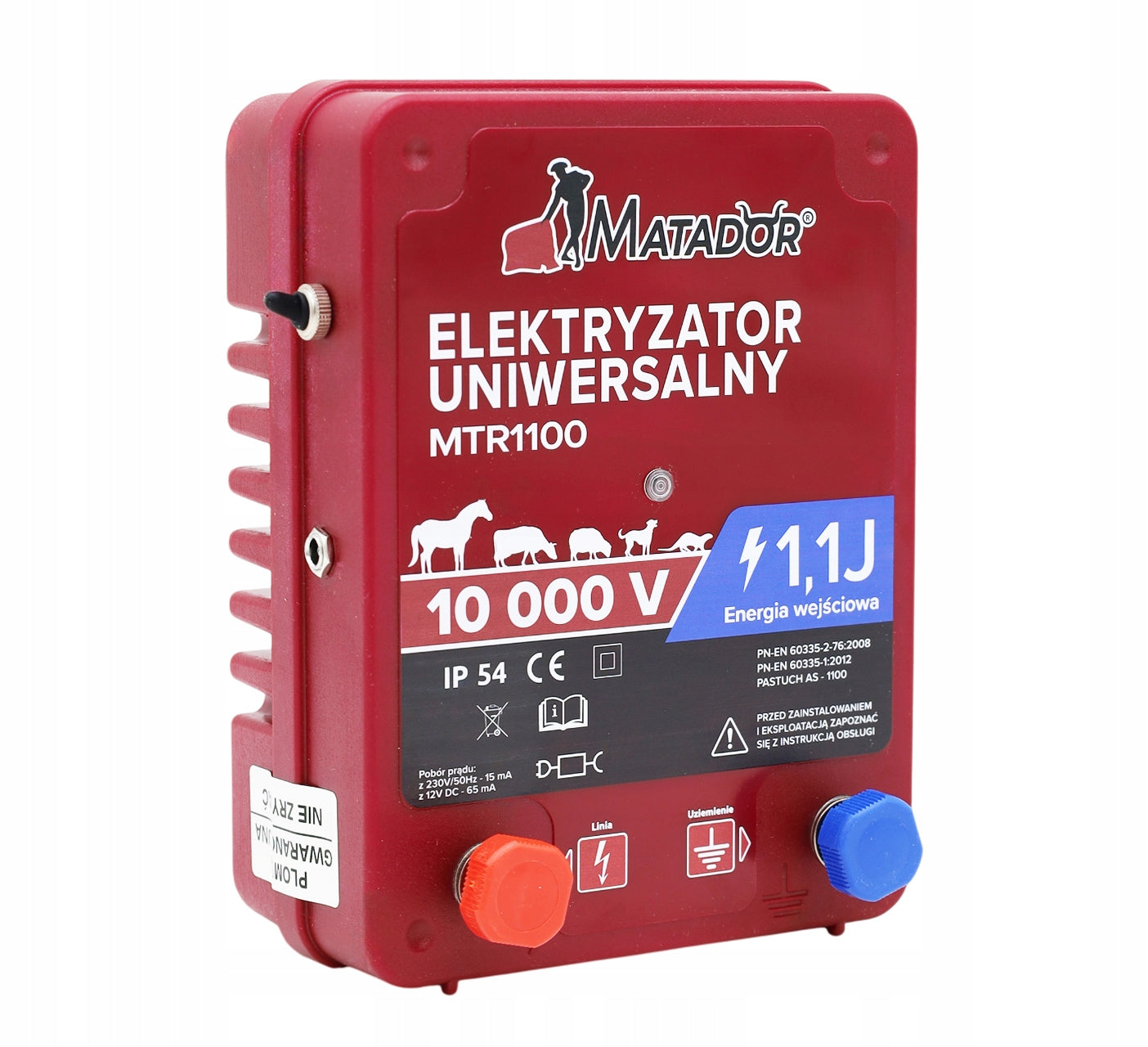

✅The Matador® MTR1100 mains-battery electrician is designed for electric fences for dogs

➡ but can also be used to protect the area against: cats, dairy cattle and goats (deer male)❗

✅The P13 kit allows you to create a fence adapted to the behavior and size of dogs.

✅It is a solid and ready-made electric shepherd made with special attention to convenience of use and reliable operation❗

✅ Why buy a P13 kit with a universal electrician Matador® MTR1100 1,1J?

• Effective protection against dogs – a strong impulse deters the animal at the first contact, without causing it harm.
• Universal power supply – possibility of working with 12 V battery or from 230 V❗ mains
• For small and medium-sized fences – capacity up to approx. 12 km fence line❗
• Easy installation – all components of the kit are compatible and ready for installation❗
• Durability and reliability – resistant housing ensures long-term operation.
• Suitable for wooden stakes❗ – the set includes insulators with wood screw, thanks to which the installation on wooden posts is fast, stable and extremely durable (wood stakes are not included).

Advantages of the offered Matador ® MTR1100 energizer:

➡ UNIVERSAL - can be powered from a 12V battery (e.g. car) and from the 230 V electrical network.

➡ EFFECTIVE - a strong electric impulse guarantees full control over difficult-to-control animals.

➡ SAFE - flashing indicator light showing correct operation of the energizer.

➡ DURABILITY - made of durable plastic , it will last for several years.

✅ Parameters of the Matador® MTR1100 electrician:

• network-battery
• power supply voltage: from the mains via the power supply: approx. 230V 50 Hz | from battery: 12 V
• maximum output voltage: 10000 V
• maximum length of electric fence line: when powered from power supply: 12 km
• pulsing frequency: when powered from a power supply: 60 imp. /min -20%
• input pulse energy: 1100 mJ
• output pulse energy: 500 mJ
• purpose of the electrician: except for dogs - for cats, horses, dairy cattle, goats (deer male)

INSTALLATION OF THE FENCE – QUICK AND SIMPLE STEP BY STEP:

1) Preparation of posts

• Screw the insulators into the wooden stakes.
• Drive stakes into the ground, keeping distance approx. 4 to 5 meters.

2) Cable suspension (bracelets)

• Fix the braid on the insulators at the appropriate levels:

➡ for dogs: 2 – 3 lines (first approx. 15 cm, second at nose level, 3 line optional depending on dog size 55 to 65 cm)

➡ for cats: 3 lines (first approx. 10 to 15 cm above the ground, second: 20 to 25 cm, third: 35 to 45 cm)

➡ for cattle (standard for cows): 2 lines (first approx. 55 to 70 cm above ground, second: 90 to 110 cm)

• Make sure that the wire does not touch grass, bushes, branches.

3) Connection of electrician

• Connect the electrician to the braid with a high voltage cable.
• Connect the second wire to the ground stake and drive it deep into the ground.
• On very dry terrain wet the ground around the ground.

4) Launching the fence

• Connect the electrician to the grid.
• The fence is ready to work

5) Fence designation

• Hang a warning plate on the braid – it is a mandatory element of the installation, increases the safety of bystanders❗

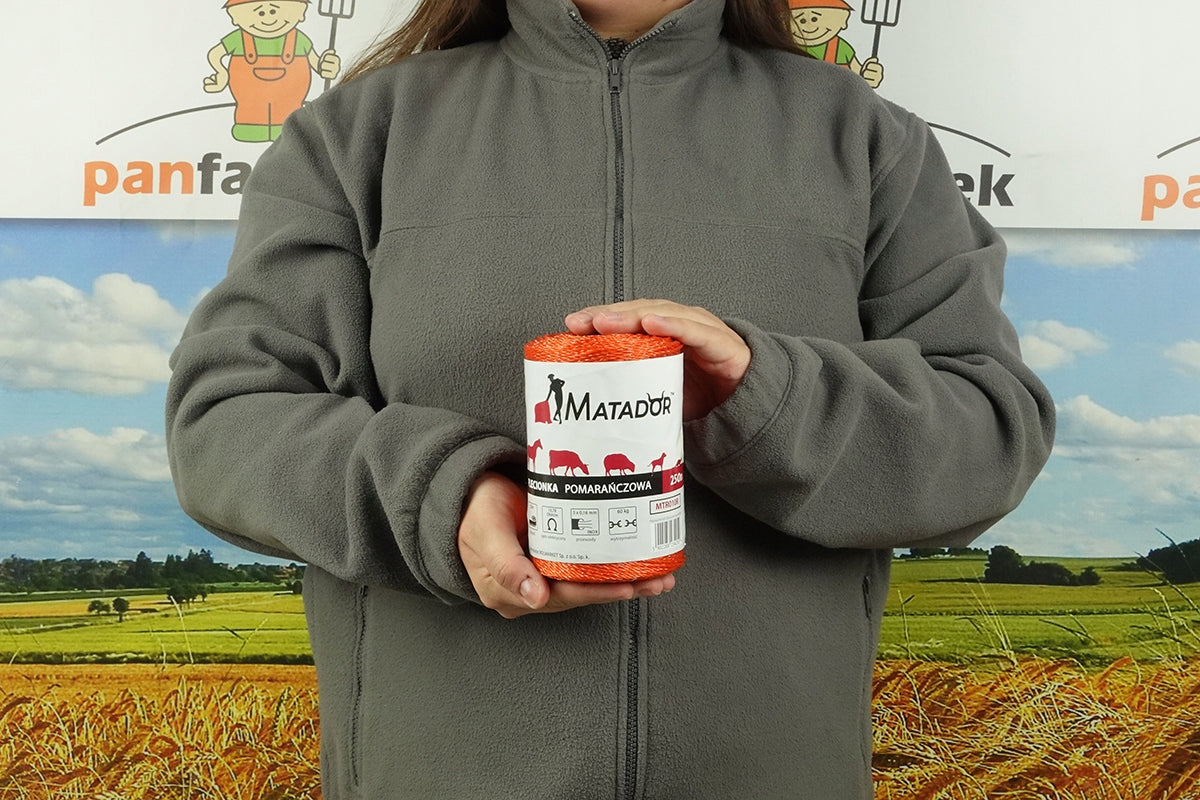

✅ High quality Matador® braid with a length of 250 meters is characterized by good current conductivity and durability.

It has a longer service life, than the once popular galvanized wire. An additional advantage is, unlike wire, the ability to easily unroll and roll.

TECHNICAL PARAMETERS:

• length: 250 m
• tensile strength: 60 kg
• electrical resistance: 13,78 Ohm/m - good current conductivity = effective deterrence of animals
• number of wires: 3 by 0,16 mm - better work of the shepherd, even with longer sections of the fence❗
• color: orange - good visibility for animals❗

✅Galvanized ground stake is the basis of good grounding

• Galvanized ground stake with a length of 33cm, used to make grounding at the electric fence.
• Galvanized coating significantly extends the life of the stake. Bolt ending with butterfly screw, which greatly facilitates installation.

✅ Polish insulators with wood screws

➡ The insulators are designed for mounting on wooden posts .

➡ It is made of plastic ensuring high insulation parameters.

➡ It is designed to carry cables such as galvanized wire, steel cable, shepherd's rope or braid .

➡ The gap through which the wire is inserted is cut at an angle to prevent the electric fence wires from falling out on their own .

➡ In addition, between the metal pin and the insulator holder itself there is a plastic, triple collar protecting against puncture due to moisture.

❓ FAQ - FREQUENTLY ASKED QUESTIONS AND ANSWERS SECTION

1. Is the set suitable for fence around the house?

Yes, it is ideal for protecting your garden, lawn and plants from dogs and cats.

2. Can the electrician be powered only from the battery?

No, the device works both from a 12 V battery and from a 230 V mains.

3. Does the electrician need protection from the weather?

To ensure trouble-free operation and long service life it is recommended to install the device in a place protected from direct rain and frost e.g. under a roof or in a protective housing.

4. What to do if the impulse is weak?

The most common causes are: poor grounding, contact of the braid with vegetation, damaged insulator or discharged battery.

5. Does the set require additional fence stakes?

Yes — wooden stakes are needed to assemble the braid, which are not included. Only insulators adapted to wooden stakes are included.

6. Is the braid in the set suitable for many years of use?

Yes — it is resistant to UV radiation, moisture and changing terrain conditions.
