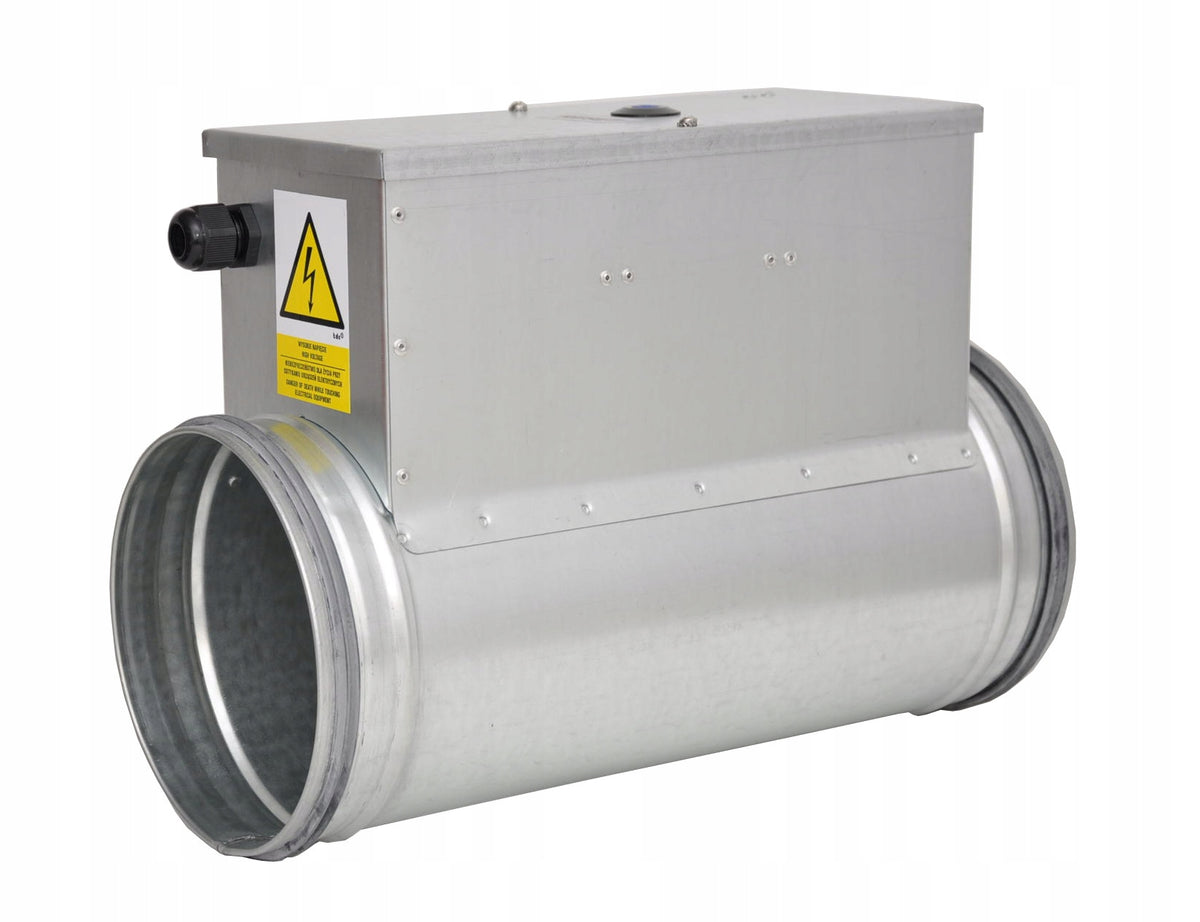

Elektrinis šildytuvas Alnor 3 kW

Trumpai apie prekę

Prekė: Elektrinis šildytuvas Alnor 3 kW. Kategorija: Oro šildytuvai.

• Gamintojas: Alnor
• Modelis: HDE 315-3,0

Channel Electric Heater

Diameter - 315 mm

Power - 3000 W

Electric Duct Heaters are used in ventilation systems in which it is necessary to increase the supply air.

They are used m.in in air vents for: cafes, restaurants, sports facilities.

It can also be installed in home recuperation systems.

Housing: Galvanized Steel Sheet

Heating Elements: Stainless Steel

Connection block: Electrical connection and Thermal protection

Overheating protection is provided by a triple thermostat. The first automatic thermostat turns on after exceeding + 60 degrees, the second manual thermostat turns on after exceeding + 90 degrees (for restarting you need RESET manual)

The heater has mountings with EPDM gasket on the connection connectors. The HDE heater can be mounted on the ventilation duct in both horizontal and vertical positions. However, you should pay attention to the order of the motage when connecting the heater with the fan.

The HDE range of heaters includes many combinations of heater power and diameters. Below the sizes available in continuous sale.

How to choose a heater.

• we should provide air temperature not higher than 40 degrees
• The flow rate through the heater must not be less than 1,5 m/s

Dissolved pattern for the power of the heater:

P = Q x 0,36 x dt

P- heater power [W]

Q - efficiency of air flow [m3/h]

dt - Temperature difference inlet/outlet [K]

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Alnor
Parametry	Kind	electric
Parametry	Heating power	3 kW
Parametry	Model	HDE 315-3,0
Parametry	Product weight with unit packaging	5.2 kg
Parametry	Manufacturer code	HDE315
Parametry	Energy efficiency class	A
Parametry	Range of energy efficiency classes	A++ - G
