Elektrinis miesto dviratis TTGO Z3 27,5", 250 W, 48V, 720 Wh, 7 pavaros

Trumpai apie prekę

Prekė: Elektrinis miesto dviratis TTGO Z3 27,5", 250 W, 48V, 720 Wh, 7 pavaros. Kategorija: Elektriniai miesto dviračiai.

• Gamintojas: TTGO
• Modelis: TTGO Z3 8581700266573
• Spalva: white

Adult electric bike ideal for daily city commuting – robust, comfortable and efficient!

The TTGO Z3 is an urban electric bike designed for the modern lifestyle. It is available in three sophisticated color versions – pure white, warm brown and matte black – and features a minimalist design that meets the needs of different aesthetics and occasions, providing the perfect balance between looks and practicality.

Improvements in the TTGO Z3 model compared to TTGO HZ-28ST

1. Tyres: 28"*1,75 tyre replacement for CST 27,5"*2,4 with reflective strips

2. Seat tube: a thicker seat tube is installed, which looks better

3. Handlebar: changed the angle of the handlebar to make it more ergonomic and improve driving comfort

4. Pedals: converted to pedals entirely made of aluminum, with better quality and better fit for shoes

5. Luggage Rack: Replaced

6. Wraps + saddle: a skin-friendly leather saddle and silicone wraps with aluminum rings for added comfort

7. Post: Xinlong cushioned seat post for added riding comfort

8. Driver: swapped small 6-tube for large 6-tube, increasing power and making it easier to overcome different road conditions

9. Front light: double front light, increased brightness, nicer appearance

10. Brakes: conversion of disc brakes to hydraulic, better braking performance

11. Addition of Velcro: more aesthetically pleasing wire routing, black finish of all frame elements, better build quality

12. Lacquer color: replacement of 3-layer lacquer with 5-layer high-quality pearl lacquer, better appearance

📊 Technical Specification

• Range: 80 km-120 km
• Speed: 25 km/h by default
• Pedal Assist: 5 levels
• Suspension: Aluminum fork with shock absorbers
• Drive: SHIMANO 7 gears
• Tyres: 27,5" x 2,4"
• Bike weight: 28 kg
• Lifting capacity: 125 kg
• User height: 165-195 cm
• Motor: 250W brushless DC motor
• Minimum torque: 70 Nm
• Battery: 48 V 15 Ah
• Charger: 54,6V, 3A charging voltage, full charge takes 6-8 hours
• Display: All-in-one color LCD display
• Sensor: speed sensor
• Frame: Aluminum Alloy
• Handlebar: Aluminum Alloy
• Fork: Aluminum
• Brakes: hydraulic disc brakes
• Drive: SHIMANO 7-speed
• Luggage Rack: Aluminum
• Tyre: rubber
• Front lamp: built-in, improved LED lights
• Rear lamp: with E marking
• Sprocket: material: steel Dimensions: 1/2"*3/32"*116L
• Pedals: Aluminum Frame
• Seat tube: a new type of shock-absorbing seat post

Brushless DC motor with a power of 250 W and a torque of 70 Nm

It is equipped with a 48 V brushless DC motor with a power of 250 W and a built-in, precise Hall sensor, generating a maximum torque of 70 Nm.

48V 15Ah High Capacity Battery Pack

The built-in, removable 48-Volt and 15 Ah high-capacity battery provides a range of 80 to 120 kilometers, so long journeys are no problem. The battery can be easily removed and recharged, allowing you to completely get rid of your range concerns.

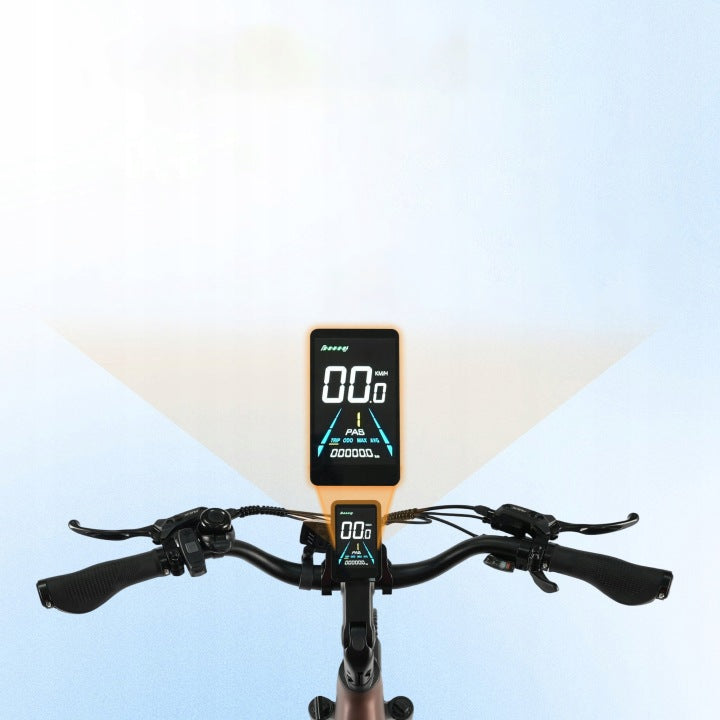

Integrated, intelligent LCD indicator panel

The intelligent color LCD indicator panel displays key information such as battery level, current gear, driving mode, real-time speed and total mileage.

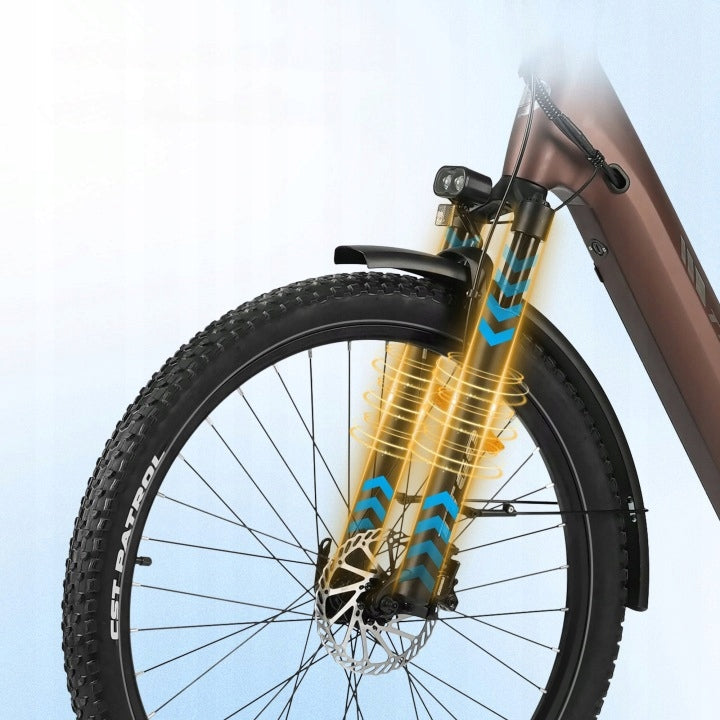

Efficient fork with shock absorption

The high-performance aluminum alloy fork, with shoulder guard and shin tube, combines lightweight construction with high strength, effectively cushioning bumps and impacts.

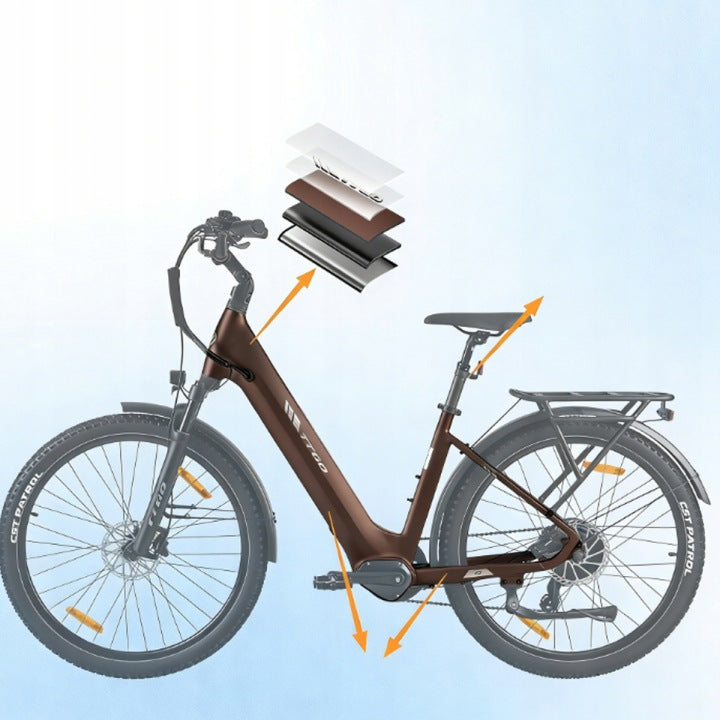

Three major improvements

The frame is covered with a five-layer coating of high-quality pearl varnish, which is characterized by a beautiful gloss, is resistant to abrasion and does not fade;

Equipped with an ergonomic cushioning system for greater riding comfort, and an improved seat post cover that allows easier and more secure adjustment

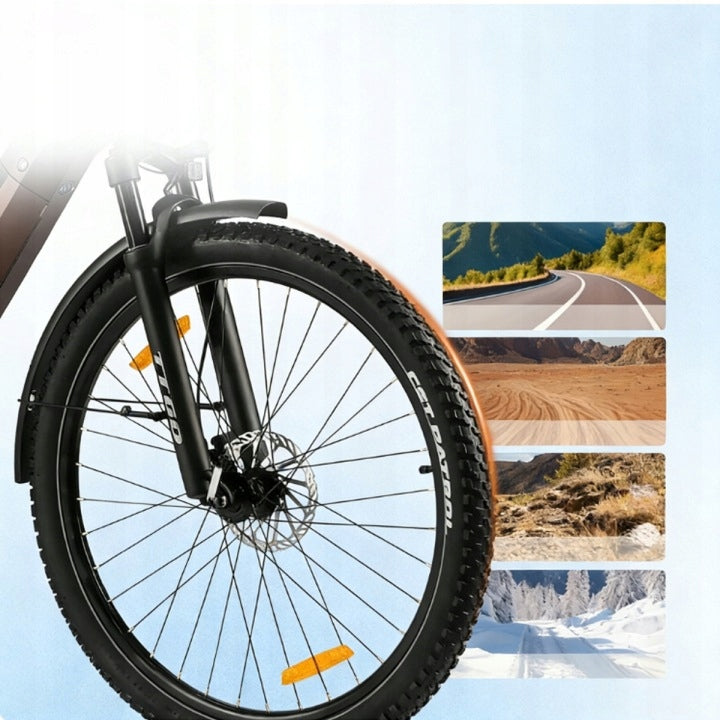

Off-road tyres

Tyres with a width of 27,5×2,4 inches with reflective elements provide greater safety when driving at night; deep tread guarantees excellent grip, making the tires perfect for harsh conditions such as asphalt, sand, gravel and snow roads.

7-speed Shimano transmission + hydraulic disc brake

Shimano high-speed transmission combined with hydraulic disc brake enables precise and smooth gear shifting and strong and responsive braking.

Simple and elegant lighting design:

The front lights have dual headlights and the rear lights have integrated, bright lights. The minimalist design blends seamlessly with your vehicle's body, providing a balance between lighting performance and aesthetics.

Vehicle size

A: Overall length 186 cm

B: Handlebar length 116-120 cm

C: Wheelbase 125 cm

D: Saddle height 87-102 cm

E: Length of upper tube 61 cm

F: Wheel diameter 71 cm

G: Handlebar length 67 cm

Permissible height: 165-195 cm

Maximum load: 125 kg

Charger: 54,6 V, 3 A

Charging time: 6-8 hours

This link is brown by default. If you prefer a different color, please let us know in the notes to order. Thank you very much for your support and we wish you all the best.
