Elektrinis miesto dviratis TTGO Z3 27,5", 250 W, 48 V, 15 Ah, 7 pavaros

Trumpai apie prekę

Prekė: Elektrinis miesto dviratis TTGO Z3 27,5", 250 W, 48 V, 15 Ah, 7 pavaros. Kategorija: Elektriniai miesto dviračiai.

• Gamintojas: TTGO
• Modelis: miejski 250 W 48 V 15Ah 7 biegów 120KM
• Spalva: gray

Adult electric bike ideal for everyday city commuting – robust, comfortable and efficient!

The TTGO Z3 is an urban electric bike designed for the modern lifestyle. It is available in three sophisticated color versions – pure white, warm brown and matte black – and features a minimalist design that meets the needs of different aesthetics and occasions, providing the perfect balance between looks and practicality.

Model: TTGO Z3

Frame: 27,5" aluminium alloy 6061 frame

Fork: Suspension fork

Engine: Engine in rear wheel hub 48 V, 250 W

Maximum torque: 70 Nm

Rechargeable Battery: Removable 48V Lithium-Ion Battery, 15Ah

Range: Up to 120 km (with pedaling assistance)

Maximum speed: 25 km/h

Display: central LCD display

Sensor: speed sensor

Shifters: Shimano 7-speed

Tyres: CST 27,5 × 2,4

Brakes: hydraulic disc brakes

Post: cushioned seat post

Bridge: adjustable bridge

Charger: 54,6 V 3 A charger

Charging time: 5 to 6 hours

Maximum load: 120 kg

Net weight: 27 kg

Gross weight: 36,8 kg

Brushless DC motor with a power of 250 W and a torque of 70 Nm

It is equipped with a 48 V brushless DC motor with a power of 250 W and a built-in, precise Hall sensor, generating a maximum torque of 70 Nm.

48V 15Ah High Capacity Battery Pack

The 48V 15Ah high-capacity hidden battery provides an extremely long range of 80-120km, eliminating range concerns.

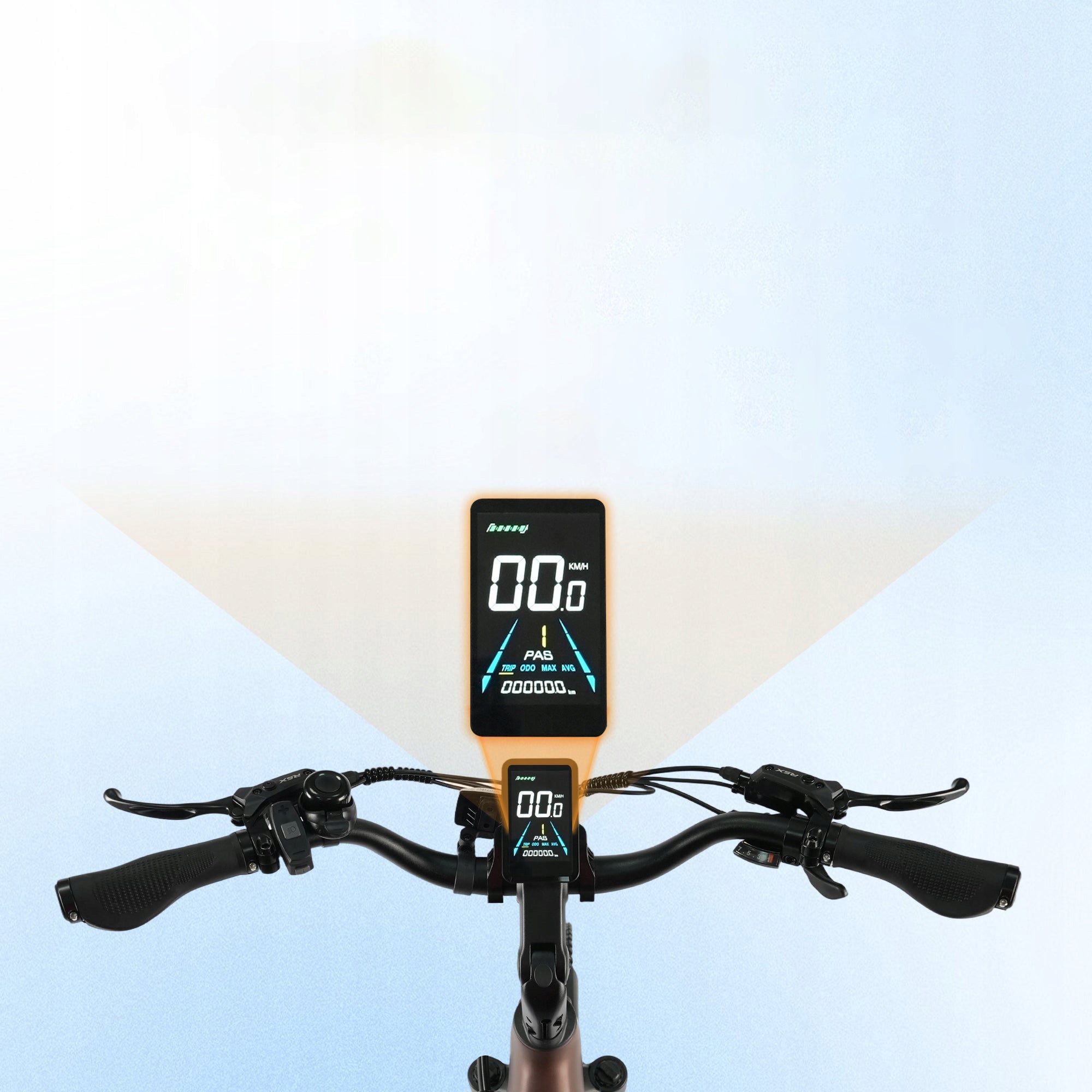

Integrated, intelligent LCD indicator panel

The intelligent color LCD indicator panel displays key information such as battery level, current gear, driving mode, real-time speed and total mileage.

Efficient fork with shock absorption

The high-performance aluminum alloy fork, with shoulder guard and shin tube, combines lightweight construction with high strength, effectively cushioning bumps and impacts.

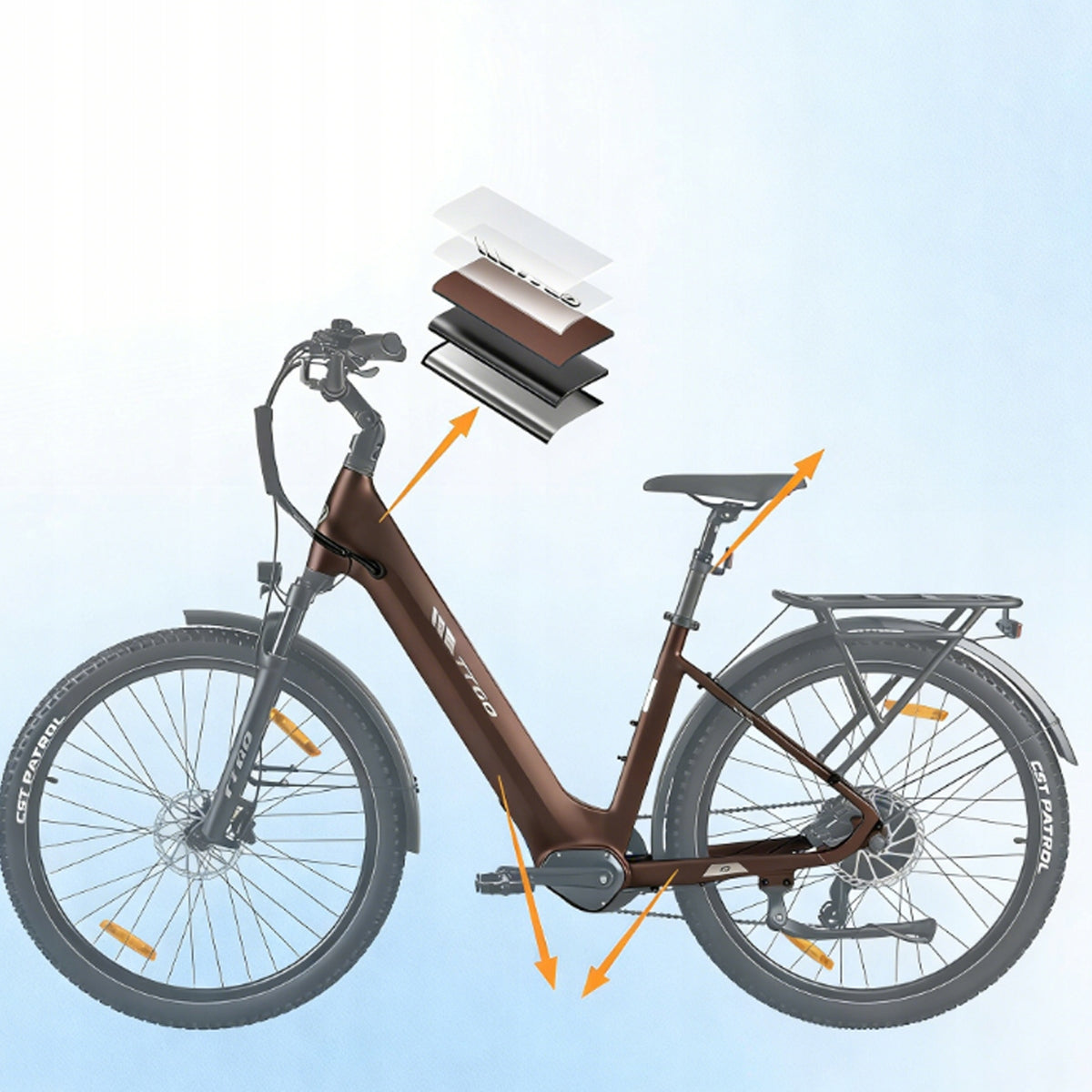

Three major improvements

The frame is covered with a five-layer, high-quality pearl lacquer, an ergonomically designed cushioning system and a newly improved seat post bracket.

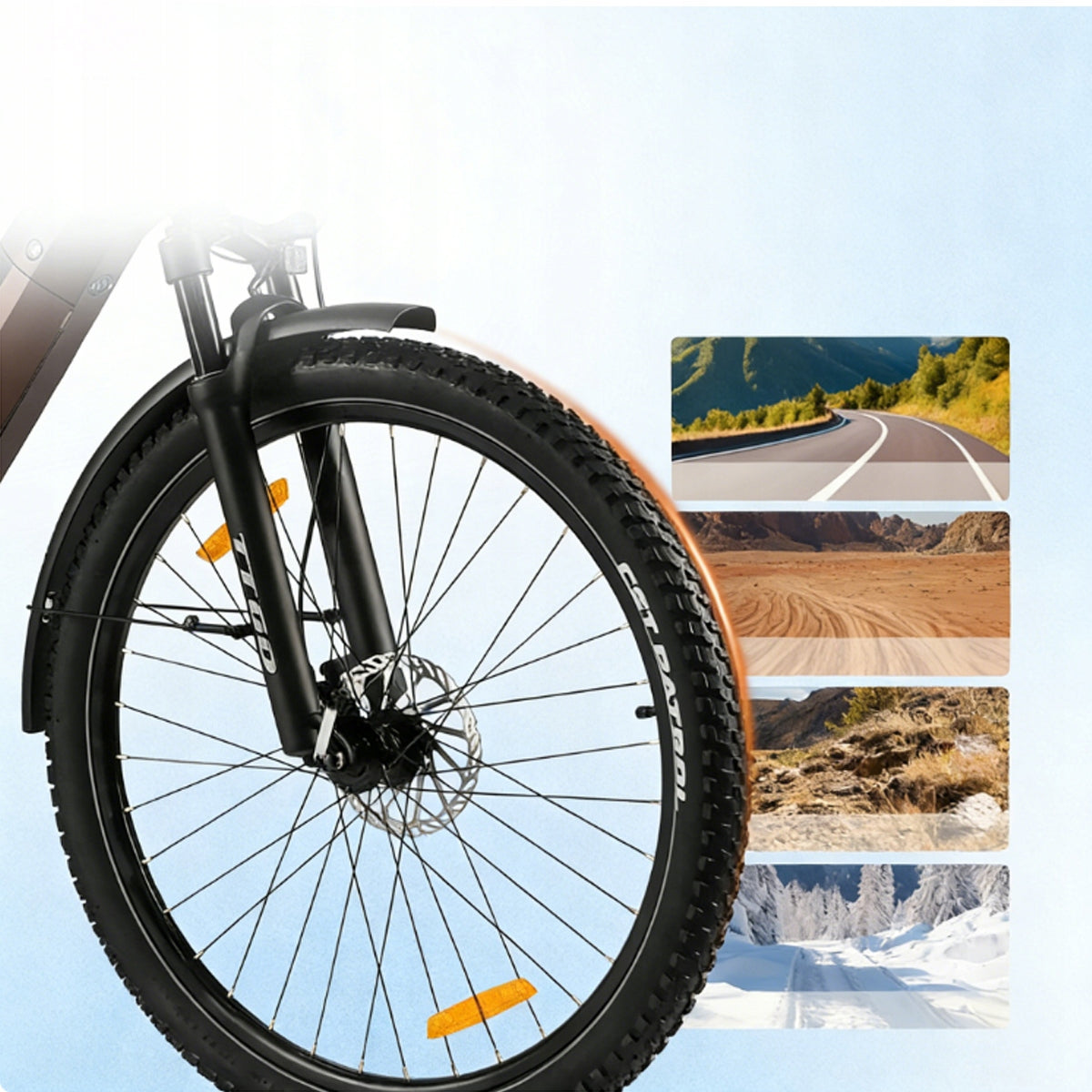

Off-road tyres

27,5*2,4-inch reflective tires with wide tread and deep grooves that can handle all road conditions, including highways, sand, gravel roads and snow.

7-speed Shimano transmission + hydraulic disc brake

Shimano high-speed transmission combined with hydraulic disc brake enables precise and smooth gear shifting and strong and responsive braking.

Simple and elegant lighting design:

The front lights have dual headlights and the rear lights have integrated, bright lights. The minimalist design blends seamlessly with your vehicle's body, providing a balance between lighting performance and aesthetics.

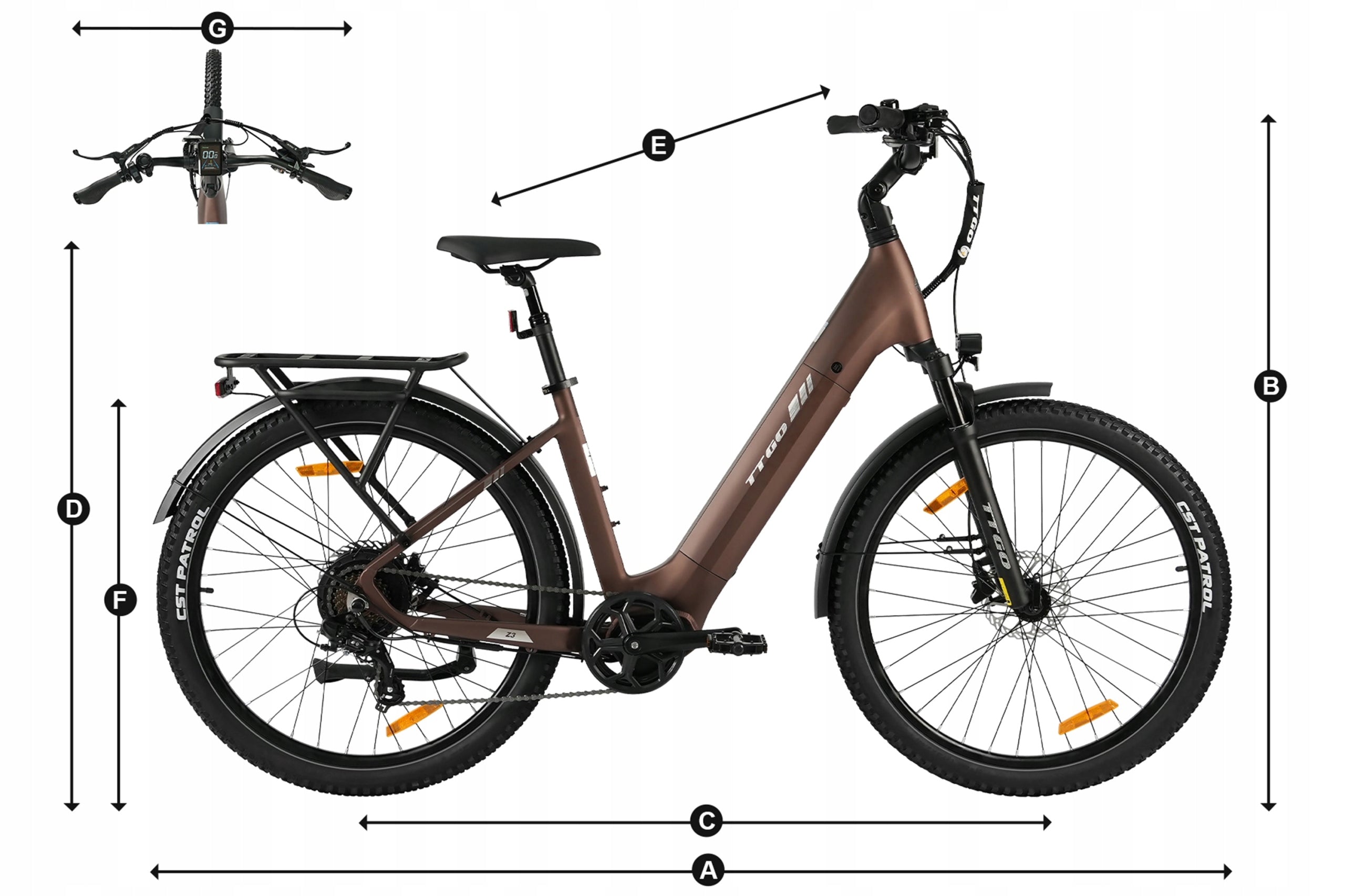

Vehicle size

A: Overall length 186 cm

B: Handlebar length 116-120 cm

C: Wheelbase 125 cm

D: Saddle height 87-102 cm

E: Length of upper tube 61 cm

F: Wheel diameter 71 cm

G: Handlebar length 67 cm

Permissible height: 165-195 cm

Maximum load: 125 kg

Charger: 54,6 V, 3 A

Charging time: 6-8 hours

Specifications
