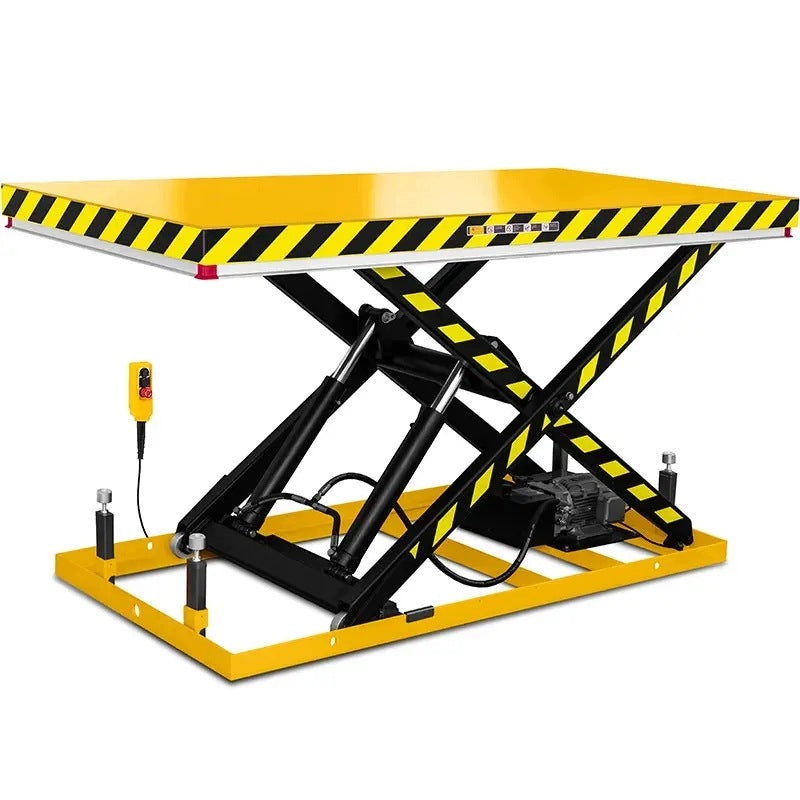

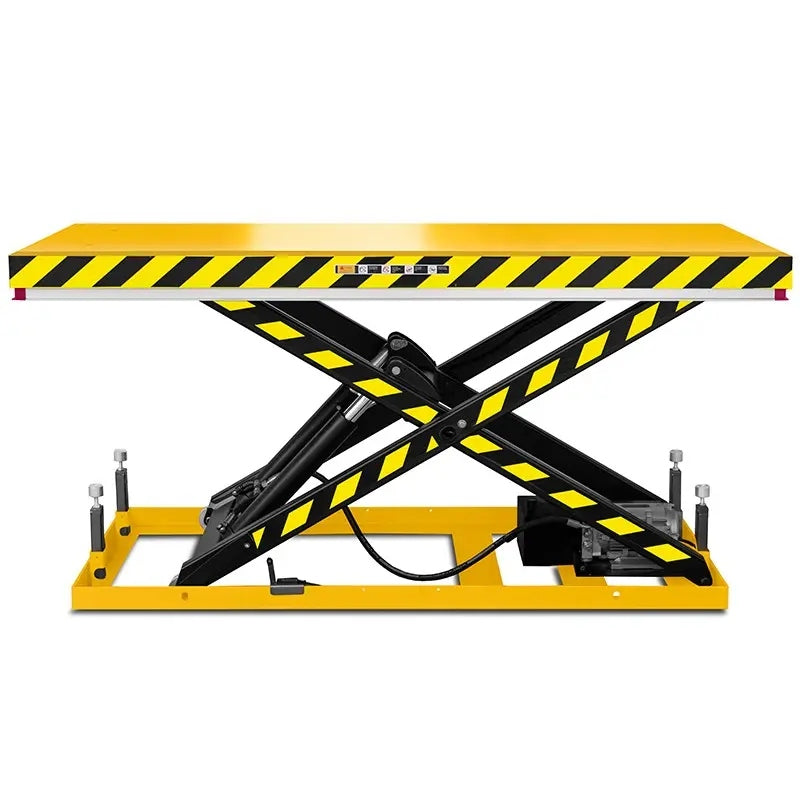

Elektrinis keltuvas CORMAK TA1000/2010, 1000 kg, 300–1060 mm

Trumpai apie prekę

Prekė: Elektrinis keltuvas CORMAK TA1000/2010, 1000 kg, 300–1060 mm. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Cormak
• Modelis: Stoł podnośny TA1000/2010

Lifting capacity 1000 kg | worktop 2000 × 1000 mm | lifting capacity 300 – 1060 mm | 400 V

The stationary lifting table CORMAK TA1000/2010 is designed for lifting, positioning and setting large and heavy loads at the appropriate working height. The lifting capacity of 1000 kg allows you to handle crates, containers, machine components, structures, production materials and other heavy components.

The biggest advantage of the model is a large tabletop with dimensions 2000 × 1000 mm. The large surface area provides more space for elements of non-standard dimensions that do not fit on typical lifting tables.

The electric-hydraulic system allows you to lift and lower the platform with the remote control. The operating range from 300 to 1060 mm allows you to adjust the height of the load to the assembly station, machine, technological line or activity.

The table requires notification to UDT.

The most important advantages

• Leverage 1000 kg – for handling heavy materials, crates, containers and components.
• Large worktop 2000 × 1000 mm – more space for long, wide and non-standard loads.
• Lifting range 300 – 1060 mm – adjusting the height of the platform to the type of work performed.
• Electric-hydraulic lifting – convenient operation without manual pumping.
• Control with remote control – efficient lifting and lowering of the platform.

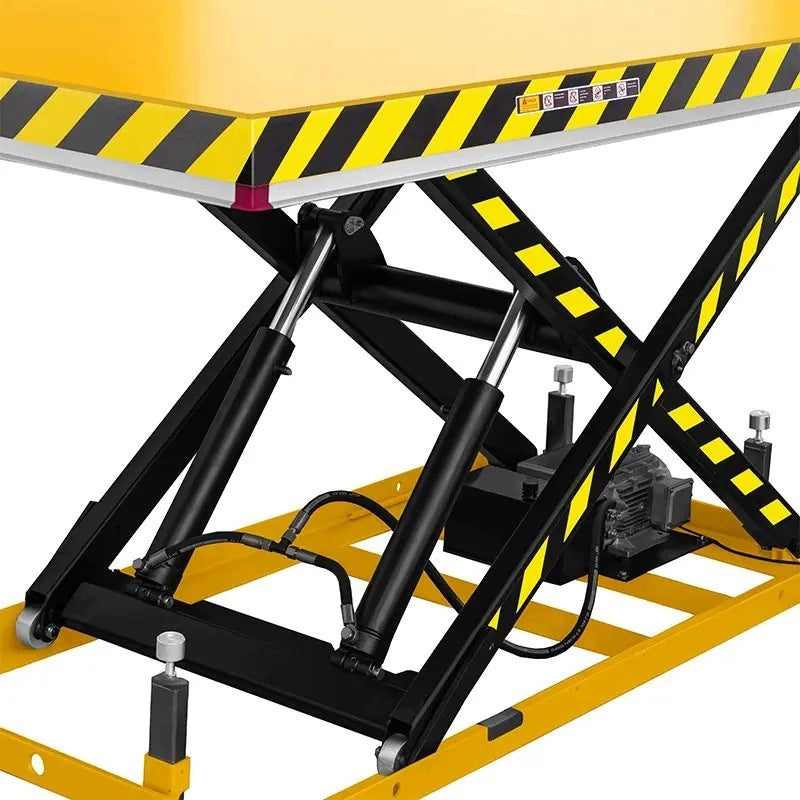

• Scissor construction – stable and even running of the table top.
• Safety ends – automatic stop when the maximum height is reached.
• Protective strips under the table top – stops leaving the platform after encountering an obstacle.
• Power supply 400 V – a solution for manufacturing and industrial applications.
• Unladen weight 250 kg – stable structure designed for stationary work.

Equipment included

• CORMAK TA1000/2010 scissor lifting table,
• electrical and hydraulic lifting system,
• remote control for lifting and lowering the platform,
• the ends of safety,
• protective strip under the edge of the tabletop,
• instruction manual in Polish.

Technical data

• Model: TA1000/2010
• Maximum lifting capacity: 1000 kg
• Minimum worktop height: 300 mm
• Maximum worktop height: 1060 mm
• Tabletop dimensions: 2000 × 1000 mm
• Power supply: 400 V
• Weight of the device: 250 kg
• UDT Required: YES
• Brand: CORMAK

Practical application of TA1000/2010

Lifting table TA1000/2010 will work during:

• feeding large components to machines and technological lines,
• setting heavy elements at assembly stations,
• lifting crates, containers and large packages,
• handling long metal or wooden elements,
• packaging and completing larger products,
• receiving materials from production equipment,
• quality control and measurement,
• service work on heavy components.

The large tabletop allows you to work with loads for which the standard platform is too small. Height adjustment reduces the need to manually lift heavy elements and helps to set them at a level appropriate for the activity.

You buy the presented product from proven seller CORMAK — polish brand providing equipment for warehouses, workshops, production and industry.

You get a product from a reliable source, consistent with the description and intended for everyday work.

• Quality – robust equipment for warehouse and industrial applications.
• Service – access to technical support and parts.
• Security – the device has the required markings and documentation.
• Counselling – help in choosing the right solution for the company.
