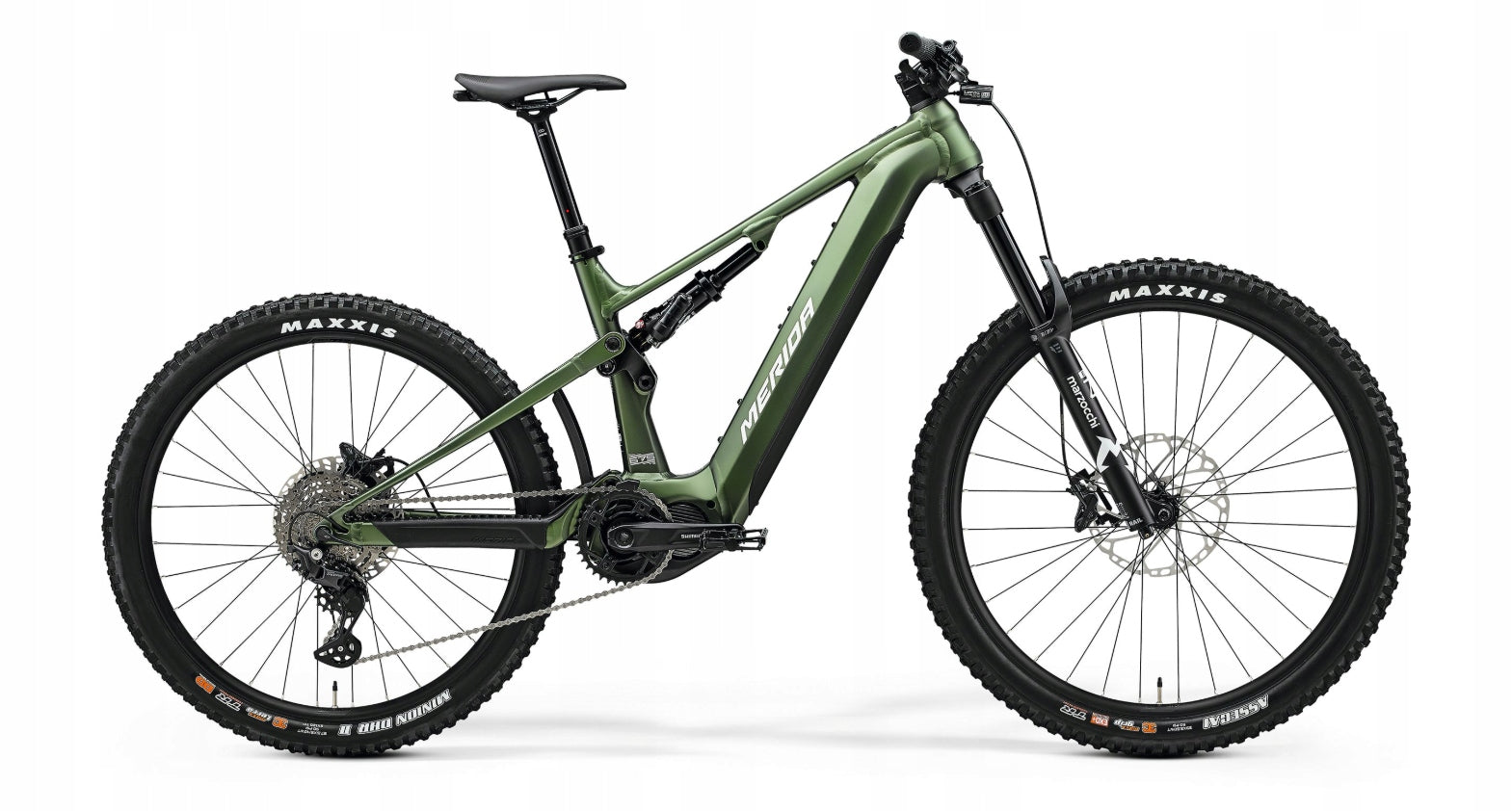

Elektrinis kalnų dviratis MERIDA eONE-SIXTY 675 LONG 18", žalia / balta

Trumpai apie prekę

Prekė: Elektrinis kalnų dviratis MERIDA eONE-SIXTY 675 LONG 18", žalia / balta. Kategorija: Elektriniai kalnų dviračiai.

• Gamintojas: Merida
• Modelis: eONE-SIXTY 675
• Spalva: green

4711256496894

LONG(18)

SILK FOG GREEN (WHITE)

DELIVERY of a folded bike to the customer within a radius of 100 km free of charge

The latest version of the award-winning electric bike, better than ever.

Based on the strengths of its predecessor, it introduces new elements and solutions.

The result of the changes is a powerful electric enduro bike with excellent performance and a long range, which provides an internal battery with a capacity of up to 750 Wh. The range of the bike can be further increased by using an additional 360-Wh battery. This mountain e-bike impresses with its new lightweight, rigid and durable Lite IV aluminum frame with progressive geometry inspired by the classic One-Sixty.

The bike is now lower than before, allowing you to take a more aggressive riding position,

However, it retained the valued driving characteristics of the earlier version of the bike.

Suspension kinematics includes special shape of flex stay rear triangle tubes,

which gives greater frame rigidity and easier servicing, and Flip-Chip element,

which allows you to use the eOne-Sixty with both 29" wheels (160 mm rear suspension travel),

as well as in the factory configuration mullet with 29" wheel on the front and 27,5" on the back (174 mm stroke).

The frame size selection system allows you to choose the frame due to your preferred riding style,

and the suspension becomes more progressive as the frame size increases.

The frame has wires integrated in the Wire Port system, this solution protects the wires from dirt and moisture,

while ensuring a clean look for your bike.

A special system prevents the fork crown from hitting the lower tube.

This e-bike has a lightweight and powerful Shimano EP801 motor with max. torque 85 Nm.

Great suspension behaviour is the result of cooperation of the frame with the front 170-mm Marzocchi Z1 eMTB shock absorber

and Marzocchi Bomber Air damper.

Amazing traction and agility gives you a 27,5” wheel in the back, and great rolling over obstacles

This is due to the 29” wheel on the front. Strong Merida Expert TR II (tubeless ready) wheels promote great bike performance.

The wheels have Boost hubs that increase lateral rigidity and strengthen them.

The bike is equipped with a 1 x 10 drive with Shimano Deore RDM5130 LinkGlide 10 derailleur,

safety on rough terrain is enhanced by Shimano Deore M6120 4-piston hydraulic disc brakes

with 220 mm discs at the front and 203 mm at the rear.

The Maxxis Assegai 2,5" (front) and Maxxis Minion DHR II 2,4" (rear) tyres will also work in it.

Thanks to the adjustable Merida Team TR II seatpost, you can quickly adjust the position on the bike to the situation on the route.

Many protective elements of the frame help maintain the good appearance of the bike,

Protecting it from the impact of various elements on the route, also ensuring a quiet ride.

Only the expression of delight of the new eOne-Sixty on the route will be loud. Find out!

• New lightweight, rigid and durable Lite IV aluminium frame
• Shimano EP801 motor with max. torque 85 Nm
• Internal battery o poj. 750 Wh and the possibility of using an additional battery with a capacity. 360 Wh
• Marzocchi Z1 eMTB fork with 170 mm travel and Marzocchi Bomber Air damper
• Shimano Deore RDM5130 LinkGlide 10 derailleur, Shimano FC-EM600 36 crank, 10-row Shimano LG400 11-43 cassette
• Shimano Deore M6120 4-piston hydraulic disc brakes
• Merida Expert TR II wheels (29" front and 27,5" rear, tubeless ready) for better control on rough terrain
• Maxxis Assegai 2,5"/Maxxis Minion DHR II 2,4" tyres
• Adjustable pole Merida Team TR II
• Lezyne front and rear lighting
• Advanced proprietary solutions by Merida

Specification

eONE-SIXTY LITE IV

Material: Aluminum

160 mm suspension travel

maximum wheel size: 29 x 2.6"

Axle standard: 148 x 12 mm

Frame Size Long

color SILK FOG GREEN (WHITE)

Fork Marzocchi Z1 eMTB

air 170 mm stroke taper 44 mm offset maximum wheel size: 29 x 2.6"

Damper Marzocchi Bomber Air platform

front brake Shimano Deore M6120-4 pistons

Shimano Deore M6120-4 piston rear brake

Brake disc front Shimano RT64 220 mm

Brake disc rear Shimano RTEM600 203 mm

Steers Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Steering wheel MERIDA EXPERT eTR 780 mm wide , 30 mm high

Bridge MERIDA EXPERT eTR II-material: aluminium,35 mm diameter,0 degrees,Supernova-40 mm mounting for all frame sizes

40 mm bridge size for all frame sizes

Handlebar grips MERIDA EXPERT EC

Rear derailleur Shimano Deore RDM5130 LinkGlide 10

Shimano XT M5130 10 rear shifter

Front handle Shimano SL -MT500-L

Post MERIDA EXPERT TR II-34.9 mm diameter,0 mm retraction,M/L: 200 mm seat post travel

Seat clamp MERIDA EXPERT,

saddle MERIDA COMP SL.28% recycled-V-mount materials, included with MERIDA minitool

Pedals VP VP-532

Shimano LG500 chain

Crank mechanism Steel chainring FSA 1x36 t

Shimano EP801-85 Nm drive

Cassette/freewheel Shimano LG400-11-43 t,10 s

Shimano FC-EM600-165 mm crank for all frame sizes

Hub front Shimano TC500-B-110 x 15 mm,32 spokes,centerlock

Rear hub Shimano TC600-HM-B,148 x 12 mm,32 spokes,centerlock

Rim MERIDA EXPERT TR II,28 mm internal width,material: aluminium,tubeless ready (no belt and valves included)

front 29",back 27.5"

Spokes Black Stainless

Rear axle MERIDA EXPERT TR, included with removable lever, 6/4 mm Allen key

Maxxis Assegai front tyre,29 x 2.5 ",retractable,TR EXO+ 3C MaxxGrip

Rear tyre Maxxis Minion DHR II ,27.5 x 2.4 ", rolled,3C DD TR MaxxTerra

Tubes 27.5 x 2.3/3.0(2.4/2.8) F.V 48L THIN(1MM)

Lezyne Hecto StVZO E350+ Reverse Front Light, Reverse Custom Mount Merida

Lezyne LED Fempto USB rear STVZO rear light

Engine Battery cover CR-009

Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2,removable

Charger Trendpower EU Smart,4A

Shimano SC-EM800 display

Abus key battery lock

Battery Holder Trendpower Battery Mount

Shimano EW SD300,1400 mm + 2 x 750 mm electric cables

Drive cover CR-010 + CR011

Geometry

Frame Size XShort Short Mid Long XLong Tire Size 29/27.5" 29/27.5" 29/27.5" 29/27.5" 29/27.5" ST -seat tube [mm] 400 410 425 445 465 TT - frame length [mm] 546 567 589 610 632 CS -lower tubes of the rear triangle [mm] 446 446 446 446 446 HTA -angle of frame head [degrees] 64.4 64.4 64.4 64.4 64.4 STA -seat tube angle [°] 78.5° 78.5° 78.4° 78.4° 78.3° Bd -position of the support centre [mm] 9 9 9 9 9 Ht - height of the frame head [mm] 100 105 110 115 120 Fl -fork length [mm] 581 581 581 581 581 R - reach -range [mm] 419 439 459 479 499 S - stack - frame height [mm] 624 628 633 637 642 WB -wheel base [mm] 1199 1221 1244 1266 1288 Sh - height of the upper tube from the ground -crossing [Mm] 763 757 751 749 744

HFS - HYDRO FORMING SYSTEM

Production of three-dimensionally bent pipes using a complex process of “hydroforming”. The combination of hot oil and water pushes out the shape of the frame under high pressure (from inside to outside), allowing the creation of advanced pipe profiles. Thanks to MERIDA’s vast experience, its aluminium processing technologies are at the highest level.

X-TAPER HEADTUBE

The expanding steerer tube with 1 1/8” bearing at the top and 1 1/2” or 1 1/4” at the bottom allows you to stiffen the frame head, which increases control precision and driving confidence. In addition, thanks to this solution, the bike responds better to extreme overloads in corners.

SMOOTH WELDING

Smoothing welds with appropriate welding techniques – improved appearance without deteriorating the weld structure. This solution allows you to maintain the proper rigidity of the frame and get its attractive finish. Thanks to MERIDA’s vast experience, its aluminium processing technologies are at the highest level.

INTERNAL CABLE ROUTING

Leading wires inside the frame pipes. This solution not only improves the appearance of the bike, but also protects the cables from dirt and moisture.

Di2 READY

A solution that allows you to mount Shimano's Di2 electronic derailleur system. It is characterized by high reliability and efficient, trouble-free operation. ‘Di2 Ready’ means frames which are optimally prepared for the use of this technology, including the possibility of mounting the battery in the seat post or inside the steering tube.

RACELITE 61 ALUMINIUM

Extremely light and strong 6061 aluminum alloy used in the aerospace industry. MERIDA subjects it to additional hardening, creating double-shaded light and rigid pipes.

K-MOUNT

Fixing on the bottom tube of the rear triangle, which allows you to screw the support with two screws. The integrated design ensures optimal rigidity during braking.

CASTING MOTOR BRACKET

Advanced shapes possible to achieve thanks to casting technology. It provides a consistent look, as well as a strong connection between the frame and motor on the electric bike. This technology also gives better performance and stable construction.

NON-SLIP TIGHTENING

Selected bicycle screws can be tightened with a Torx 30 wrench only on one side. There is no risk that the screw on the other side will slip or turn. This solution allows you to screw important components faster and more securely.

INTERNAL BLOCK

The Internal Block system located in the rudders prevents the fork crown from hitting the lower tube, for example, during falls or in sharp turns. It was first used in the NINETY-SIX in 2015. The rubber covers additionally protect against any impact of the fork crown against the frame.

ENERGY GUARD TWIST

The rotating safety mechanism located at the top end of the Energy Guard inner battery cover ensures easy closing and opening of the cover.

P-FLEX

The flexibility of the frame material and the special shape of the pipes allow the frame to bend around the connection of the upper and lower tubes of the rear triangle, without the need to place a pivot point on it. This solution reduces the weight of the bike and increases the rigidity of the frame.

WIRE PORT

The rudders designed by MERIDA allow you to insert wires into the frame through them. This solution ensures a clean look of the bike without interfering with the frame. Depending on the model, the wires are integrated and guided entirely internally (through the steering wheel and bridge) or semi-integrated, guided to the frame under the bridge.

FAST KINEMATIC

Flexstay rear suspension platform with suspension kinematics specific to each frame size. Models with longer ranges have increased progression to better suit more vicious and/or heavier riders. The suspension can be adjusted for the 29” front and rear wheels or the variable wheel size (29” and 27,5”), while maintaining the geometry of the bike. Flexstay-Adjustable-Size-Tuned: FAST kinematics.

LONG FENDER

ONE-FORTY and ONE-SIXTY can have an elegantly integrated full-length rear fender on. It provides excellent protection against dirt and water from under the rear wheel. In addition, the standard short mudguard protects the main pivot point bearings and wires, prolonging their service life.

AM + ENDURO

CATEGORY 4
