Trumpai apie prekę
Prekė: Elektrinis dviratis Winora YAKUN X10 LOW, 750 Wh, 10 pavarų, Bosch CX variklis, rėmo dydis 50. Kategorija: Elektriniai turistiniai dviračiai.
- Gamintojas: Winora
- Modelis: Yakun X10 Low
- Svoris: 130 kg
- Spalva: blue
NEW YAKUN X10 LOW ELECTRIC BIKE 27.5" – BOSCH PERFORMANCE LINE CX 4 GEN 85 Nm – 750 WH BATTERY – 27.5” WHEELS – SIZE M FRAME – 2024 MODEL
Model: Winora YAKUN X10 LOW (2024)
List Price: 17599 zł - Our Price 10497 zł
Frame Size: M (50)
Wheel Size: 27.5”
Type: Trekking
Motor: Bosch Performance Line CX 4 GEN – 85 Nm
Battery: Bosch Powertube 750
Maximum Gross Weight: 150 kg
Rider Height: 168 - 180 cm
Winora YAKUN X10 LOW
Effort... what is it? The Winora Yakun X10 offers everything you need for an electric bike (e-bike) trip – both within and outside the city limits. The powerful Bosch Performance CX Smart System engine and 750Wh battery allow you to drive even on steep climbs. The 80 mm steel suspension fork skillfully absorbs uneven terrain. Thick, 27,5-inch tires turn even uneven pavement into table-smooth asphalt. In turn, the practical modular rail system allows quick and easy installation of accessories such as a water bottle, bicycle clasp or front rack. Combined with a standard rear rack, this allows you to easily accommodate picnic gear. Thanks to this, family trekking trips with an electrician will be an unforgettable experience – without any effort.
Technical specification
Frame and Geometry
- Frame: Aluminum LOW/Low Entry
- Frame Size: M
- Fork: Suntour XCM32 ATB NLO DS, suspension, stroke 80 mm
- Fork Type: Suspension
Geometry
- Lowering of the support: 60 mm
- Length of rear triangle: 472 mm
- Fork Offset: 46 mm
- Total fork length: 477 mm
- Frame head angle: 70°
- Frame head length: 170 mm
- Reach: 471 mm
- Stack: 655 mm
- Seat tube angle: 78°
- Seat tube length: 500 mm
- Length of upper tube: 610 mm
- Wheelbase: 1198 mm
Drive and accessories
- Drive: MicroSHIFT Advent X 10-row
- Right handle: MicroSHIFT Advent X SL-M9505-R Trail Shifter
- Rear derailleur: MicroSHIFT Advent X RD-M6205GM Active Motion+
- MicroSHIFT Advent X CS-HG104-10 HG 11-48T
- Chain: KMC e10S Silver/Black Sport
- Crank: XLC Virage ISIS DM, length 170 mm
- Crank Disc: 38T
- Pedals: VP VPE-625 with reflectors
Brakes
- Front brake: Shimano Deore BR-MT410, hydraulic, 2-piston, 180 mm disc
- Rear brake: Shimano Deore BR-MT410, hydraulic, 2-piston, 180 mm disc
- Brake handles: Shimano BL-MT402-3A
- Brake Mount: Post Mount
- Third brake: no
Motor and battery

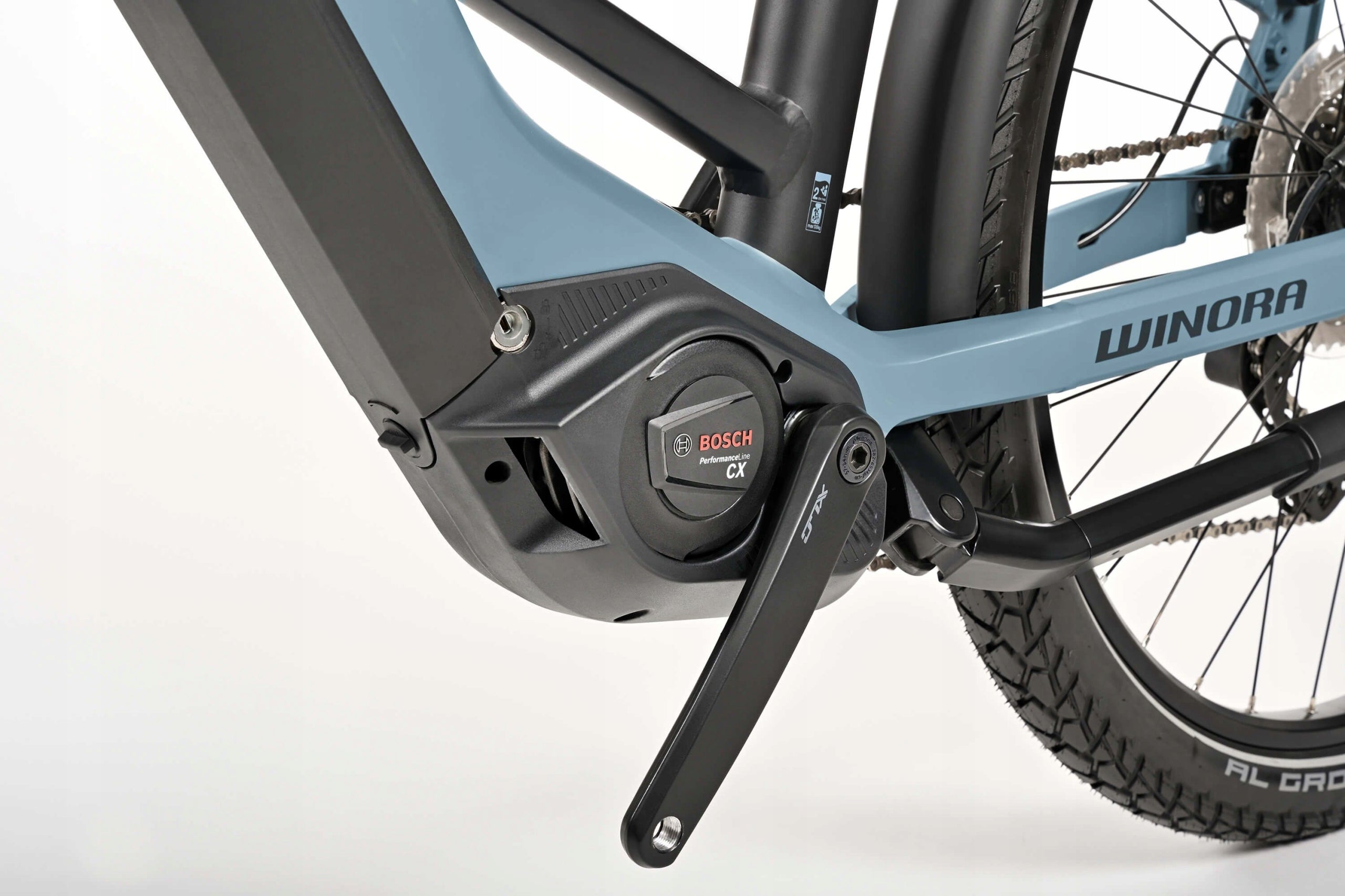

- Engine: Bosch Performance Line CX Smart System
- Maximum torque: 85 Nm
- Engine Location: Central
- Maximum assist speed: 25 km/h
- Battery: Bosch InTube 750 Wh
- Battery Type: PowerTube
- Removable battery: yes
- Charger: Bosch Charger 2A 220 – 240V

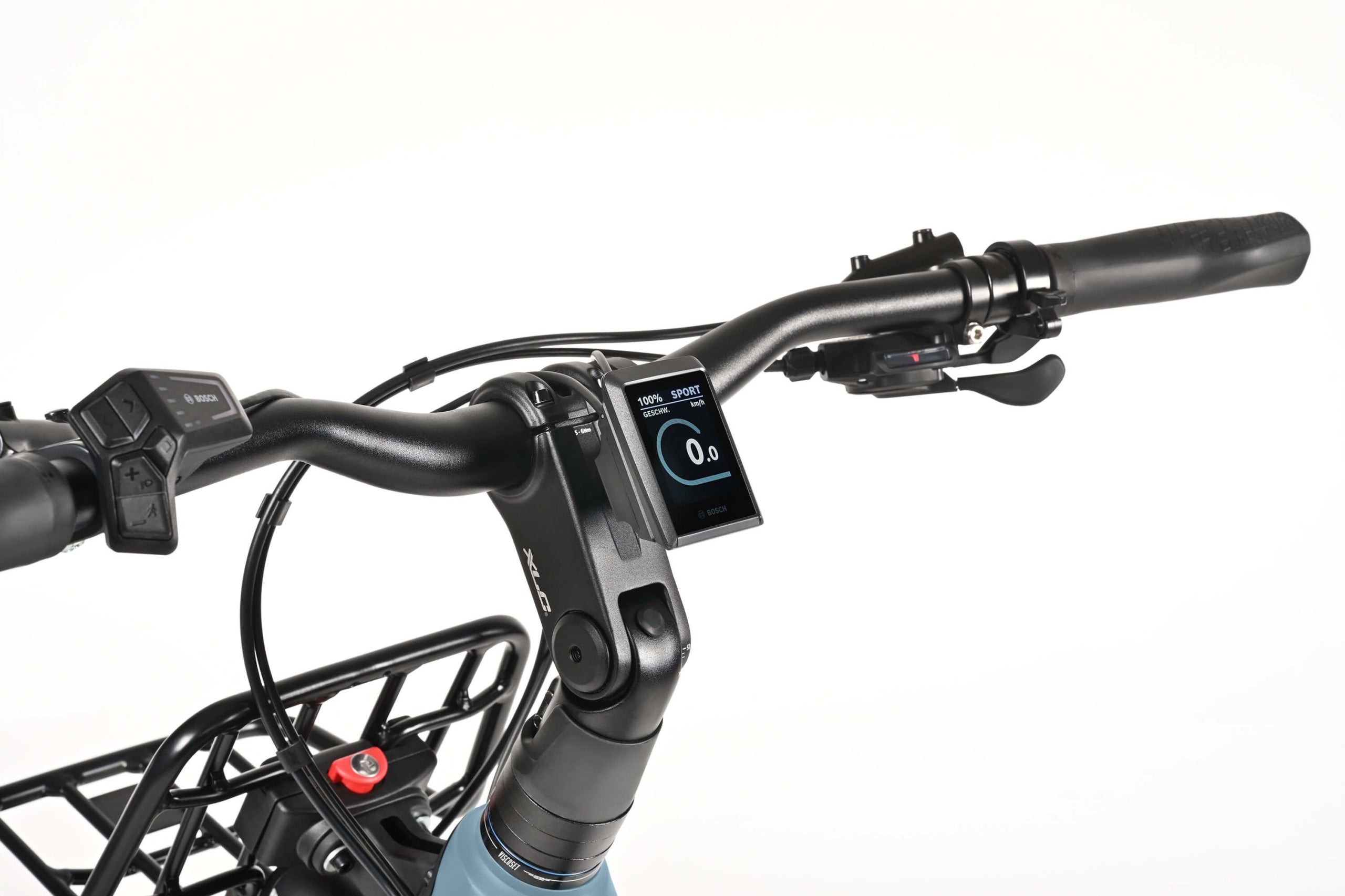

- Display: Bosch Kiox 300 + LED Remote
Wheels and tyres
- Wheel Size: 27.5”
- Front hub: Formula CL51 QRx100 mm, 32H, Centerlock
- Rear hub: Shimano FH-TC500-HM 12x142 mm, 32H, Centerlock, HG
- Rims: Schurmann YAK Disc 25-584 32H
- Spokes: Sapim Leader Inox 2.0 mm
- Tyres: Schwalbe Al Grounder Performance 60-584
Equipment
- Luggage Rack: Easylife MIK HD
- Maximum load on the luggage compartment: 27 kg
- Front mudguard: Curana Apollo 65, extra matte black
- Rear mudguard: Curana Apollo 65, extra matte black
- Foot: Ursus Power 94 Center Stand
- Bell: yes
- Possibility of mounting a child seat: yes
Lighting
- Front lamp: Herrmans H-Black MR8 Via E-bike System 6 – 12V
- Rear lamp: Spanninga Pimento XE Via E-bike System 6 – 36V
- Light STOP: yes
Cockpit and saddle
- Handlebar: JD Riser Bar MTB502A, diameter 31.8 mm, backsweep 15°, rise 25 mm
- Bridge: XLC ST99A-1, diameter 31.8 mm, length 80 mm
- Adjustable Bridge: Yes
- Grips: XLC
- Steers: Cane Creek Upper Viscoset ZS44 / FEIMIN Lower Cup ZS56, semi-integrated
- Saddle: Selle Italia Vivo
- Pole: JD SP20T.1A, aluminium, diameter 34.9 mm, length 400 mm
Additional information
- Maximum permissible gross weight: 130 kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Winora |
| Parametry | Model | Yakun X10 Low |
| Parametry | Gender | unisex product |
| Parametry | Manufacturer code | 44304440 |
| Parametry | Kind | trekking |
| Parametry | Maximum rated power | electric bike (under 250W) |
| Parametry | Battery capacity (Wh) | 750 Wh |
| Parametry | Frame size | 50 cm |
| Parametry | Wheel size (") | 27,5 |
| Parametry | Color | blue |
| Parametry | Weight | 130 kg |
| Parametry | Frame material | aluminum |
| Parametry | Product weight with unit packaging | 30 kg |
| Parametry | User height | 168–180 cm |
| Parametry | Width (inch) | 0.1" |
| Parametry | Number of gears | 10 |
| Parametry | Brakes | hydraulic disc |
| Parametry | Derailleur type | external |
| Parametry | Shock absorption | front |
| Parametry | Rechargeable battery | lithium-ion |
| Parametry | Motor location | in crank |
| Parametry | Engine power | 250 W |
| Parametry | Range | 100 km |
| Parametry | Charging time | 6 h |
| Parametry | Crank | single row |
| Parametry | Pedals | platform |
| Parametry | Maximum load | 130 kg |
| Parametry | Year of manufacture | 2025 |
| Parametry | Foldability | partially assembled, calibrated |
| Parametry | Motor manufacturer | Bosch |
| Parametry | Maximum speed | 25 km/h |
| Parametry | Motor type | bezprzekładniowy |
| Parametry | Accessory equipment | rack,fenders,bell,lighting,kickstand,electrically-assisted |
| Parametry | EAN (GTIN) | 4054624151156 |
| Parametry | Batteries included | yes |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Customs tariff code | 87116010 |
