Elektrinis dviratis Mihogo Air MAX 48V 19.2Ah, 195HP, Shimano 7 pavarų, su programėle, EU

Trumpai apie prekę

Prekė: Elektrinis dviratis Mihogo Air MAX 48V 19.2Ah, 195HP, Shimano 7 pavarų, su programėle, EU. Kategorija: Elektriniai miesto dviračiai.

• Gamintojas: MIHOGO
• Modelis: Mihogo Air Max
• Svoris: 26.9 kg
• Spalva: gray

Description

✨✨✨✨✨✨✨✨✨✨

• Ultralight carbon fiber frame 3.49KG
• Four-piston hydraulic disc brakes
• Two-arm torque sensors
• High-performance engine
• High Capacity 19.2AH Battery(48V9.6AH *2)
• MIHOGO smart app

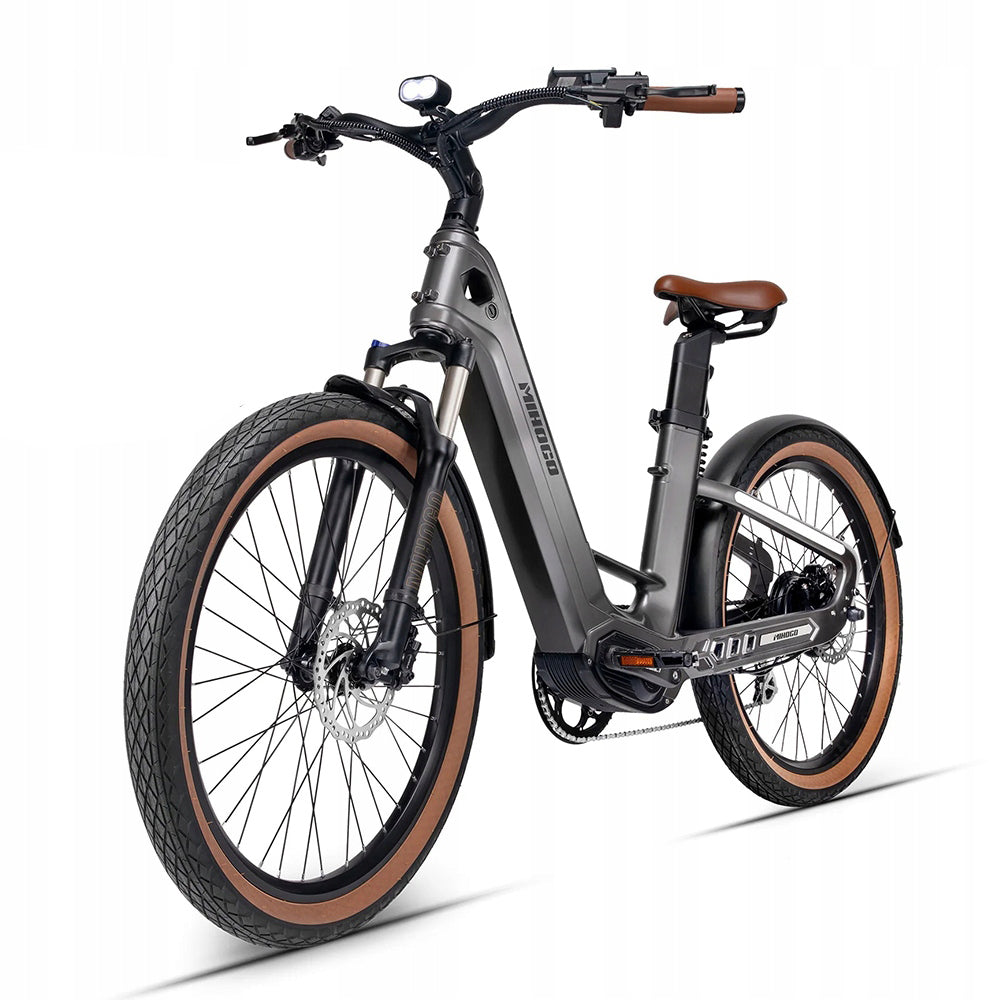

Mihogo Air Max

• Tires: 26*2.5 coloured tyres
• Frame: 26-inch carbon JAPANESE TORAY T800 CARBON FIBER
• Headset: Headset with hidden bearing made of aluminum alloy

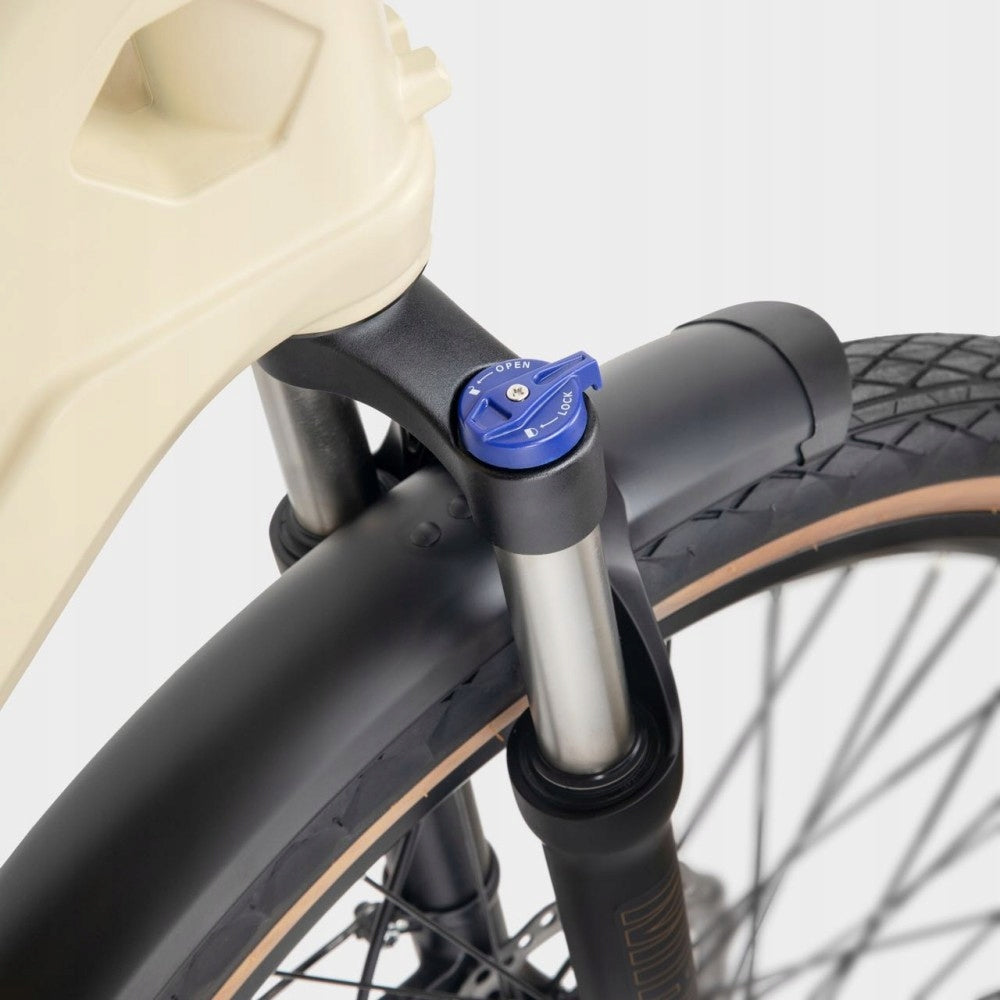

• Fork: Hydraulic suspension front fork made of aluminium alloy (60mm stroke) with opening width of 100mm
• Battery: 48V 9.6AH*2 (Total 19.2AH)
• Maximum speed: 25MPH
• Rear derailleur: Shimano M310
• Gear grips: Shimano SL-M315-7R
• Rear cogs: Shimano 500-7speeds
• Chain：KMC 136links
• Crank set: 52T aluminum alloy
• Sensor: BBTS3PSD LDS Torque Sensor
• Brakes: Hydraulic four-piston disc brake with power cut-off
• Brake levers: Three-finger aluminum alloy brake lever
• Front hub: Integrated aluminum alloy wheel with double bearings (detachable axle M10*100*185mm)
• Rims: 20-inch spoked aluminium alloy wheel
• Spokes: 12g
• Net weight: 59.4lbs（26.9KG）
• Capacity: 275lbs（125kg）
• Suitable Height: 155cm-195cm
• Charger ：48V2A
• Lithium-ion battery ：460.8Wh+460.8Wh
• Display ：IPS 2.4" Smart Easy Read Display with colour screen Connectivity via mobile phone
• Stem：Aluminum alloy Adjustable stem
• Steering wheel：Aluminum alloy (Length: 680mm Maximum diameter: 31.8mm Minimum diameter: 22.2mm)

EASY LIFTING WITH ONE HAND

Two-arm torque sensors - extended

TRAVEL AND LESS FREQUENT CHARGING

The Mihogo Air two-arm torque sensors are precision instruments, ensuring optimal steering of every ounce of power from both the left and right pedals. What about the result? A remarkable 23% increase in battery life compared to single torque sensor systems and an astounding 105% improvement over speed sensor systems. Your journey has just become longer and more energy efficient.

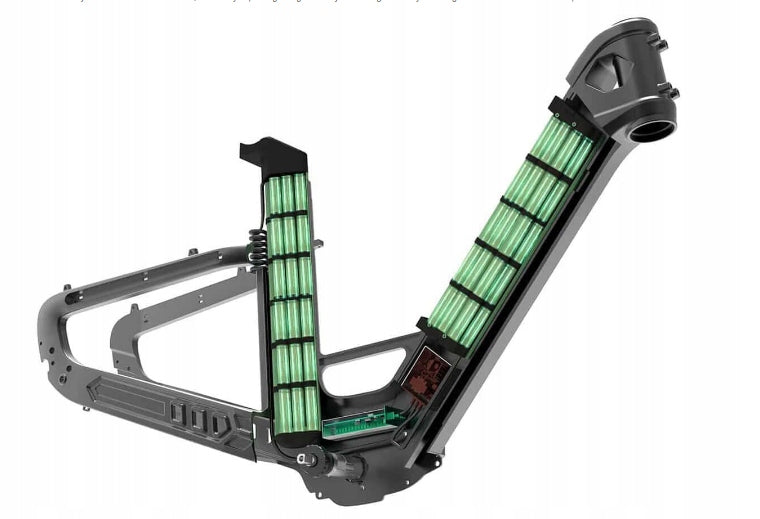

DUAL BATTERIES 121 MILES

Super long durability: To continue the challenge of super long endurance transport tools, the MIHOGO AIR model is equipped with front and rear hidden dual batteries for long-strength electric vehicles, with a total battery capacity close to 921.6WH. It also has dual torque detection drive on both sides, and the total weight of the vehicle is only 0.66 traditional aluminum, effectively improving driving efficiency and saving electricity. The longest endurance can reach an impressive 128 miles.

VERY LOW TEMPERATURE AND FAST CHARGING

BATTERY CAN BE REMOVED FREELY

The battery can be removed freely, and the front battery is also equipped with a USB discharge interface, which can be used as a mobile power source.

The design of the airframe has obtained TUV certificate

Super strong and durable: the MIHOGO AIR frame has passed the very strict German Rheinland (TUV) certificate, ensuring safety, reliability and durability.

First-of-its-kind central control technology

MIHOGO AIR uses centralized intelligent control drive technology that can stimulate engine operational efficiency. The automatic detection module of two batteries can read the voltage values of two batteries more than 1000 times per second. Users can complete the automatic switching of two batteries without changing the battery, and the ultra-long endurance of more than 128 miles is verified using this technology. The smart app and IPV color screen provide a stable Bluetooth connection, and the instrument panel is equipped with navigation mapping features to meet navigation assistance when traveling long distances.

COMPACT SMART LIGHTING DESICN

Compact smart lighting design: The MIHOGO AIR is equipped with front dual night light heads, which increases effective range by 57%. The rear frame lights on both sides are designed with an embedded 15 inch LED daytime running light, and the rear light is integrated with embedded LED lights that can ensure driving safety every time.

FLEXIBLE HUMAN MACHINE

ADJUST THE POSTURE AND RIDE HEIGHT

Flexible human-machine posture adjustment: Taking into account the different requirements of riders, the MIHOGO AIR has designed with 3 adjustable positions for posture and ride height throughout the journey and equipped with a curved adjustable handle bar, which makes it easier for any user to drive Vehicles. The front shock absorber can be manually adjusted for softness to adapt to different road conditions.

90% HIDDEN IPV6T WATERPROOF WIRING DESIGN

Simple modular electrical control design: The MIHOGO AlR uses a hidden wiring design of up to 90%, which is equipped with waterproof iP67 interfaces and makes it easy to remove any electrical control part. Modular disassembly of vehicle electronic control elements facilitates after-sales service.

SHIMANO 500-7 Speed Drive System – Precision and Smooth Shifting

The Mihogo Air Max is equipped with a modern Shimano 500-7 speed gear system for smooth and precise shifting. Its wide gear range allows for efficient climbing and smooth descents, effortlessly tackling a variety of terrain.

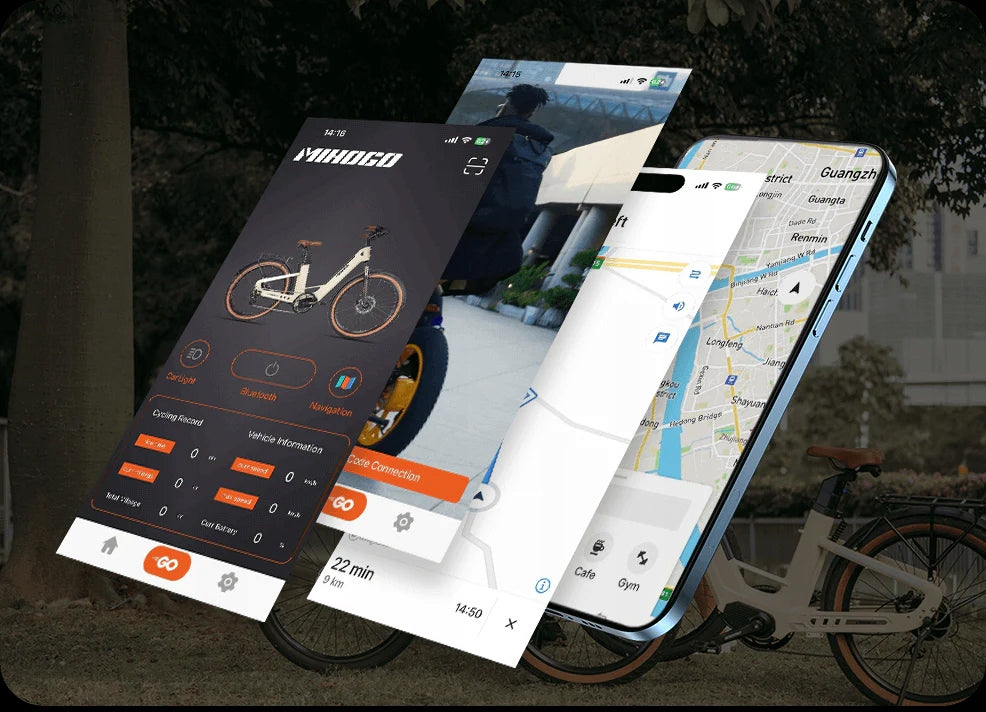

APPLICATION MIHOGO

Stay up to date with vehicle data in real time, enjoy the convenience of a digital key, effortlessly track the location of your Vehicles and unlock a whole range of amazing features at your fingertips.

All measurements given in mm, unless otherwise stated.

Recommend height 5'1" (155cm) - 6'5" (195cm)

Wheel Size ：kenda 20*4.0"

• Tube A-Seat： 416mm
• B-Angle seat tube：75.5°
• C-Tube head：150mm
• Head angle D：72°
• Tube length E-Top 465mm
• F-Standover height 560mm
• G-BB drop 87mm
• H-Rear center 479mm
• I-Wheelbase 1150mm
• J-Reach 375mm
• Type K 440mm
• L-Maximum seat height 1030mm
• M-Minimum seat height 880mm
• N-Rear trunk height 645mm
• O-Total length 1730mm
• P-Height of the steering wheel 1200-1320mm
• Q-Length of handlebar 640mm
• R-Length of rear trunk 50mm
• S-sear outer stand diameter length 375mm
• T-Width of rear luggage compartment 165mm

Specifications
