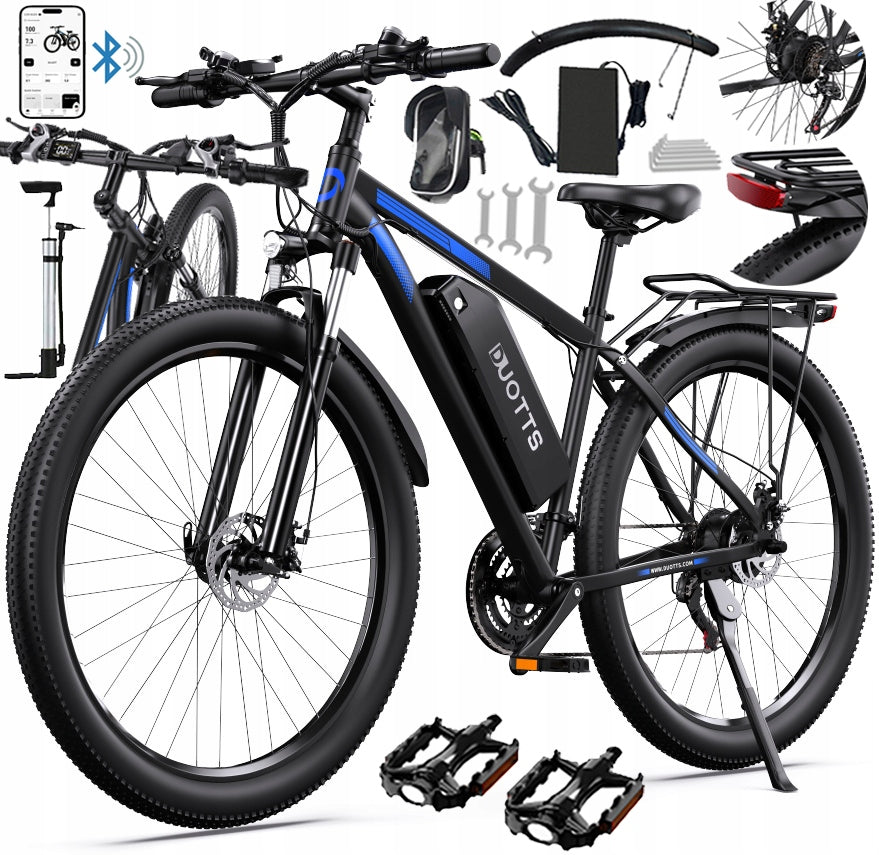

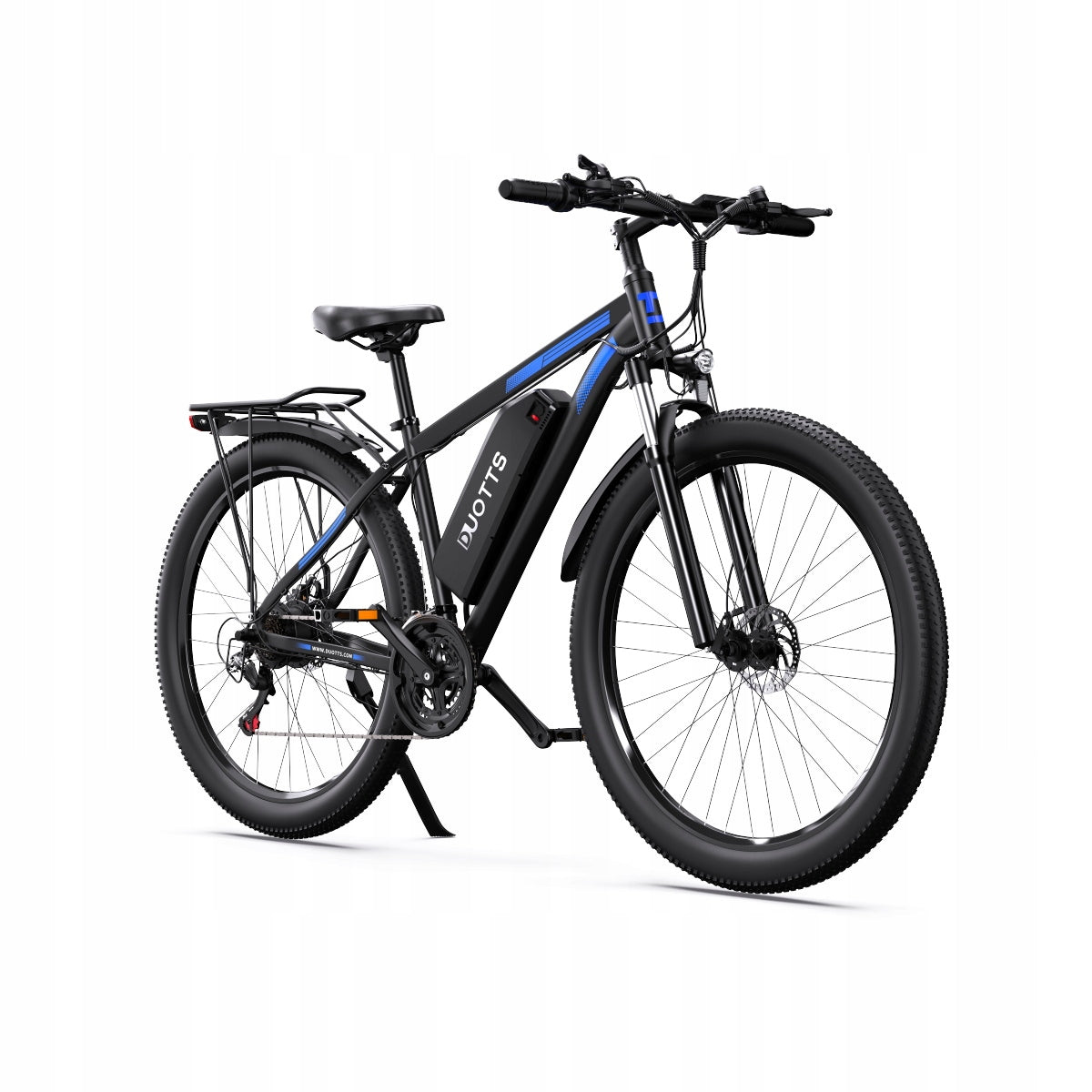

Elektrinis dviratis DUOTTS C29*2, 48V 15Ah, 1000W, iki 55 km/val., su Road App

Trumpai apie prekę

Prekė: Elektrinis dviratis DUOTTS C29*2, 48V 15Ah, 1000W, iki 55 km/val., su Road App. Kategorija: Elektriniai automobiliai.

• Gamintojas: Duotts
• Modelis: C29
• Svoris: 26.49 kg
• Spalva: black

Embark on adventures into the unknown and immerse yourself in the beauty of nature. Whether you’re craving exciting mountain rides or prefer quiet urban exploration, the lightweight Duotts C29 750W electric vehicle (1000W peak) is your ideal companion.

We have an excellent after-sales service team in Poland, we provide technical support and warranty service. Your satisfaction with your purchase is invaluable to us.

Brushless motor 48 V 750 W (peak 1000 W), weight : 26,5 KG. Load capacity: 120KG, Strong company tires 29x2.1 for urban and mountain biking.

Removable battery, you can remove the batteries from and charge it at home.

3 operating modes

Pedal mode, assist mode, purely electric mode.

is originally packed in a carton, it is 95% folded, however, it requires folding and adjusting some elements such as brakes, derailleurs, etc. Everything is very simple.

21-speed derailleurs from SHIMANO. 3 gears in the pedal crank hub, 7 gears in the rear freewheel wheel!

Auxiliary app (DUOTTS) and C29 connection

Familiarize yourself with our product and watch the video;

https://www.youtube.com/watch?v=YmACxd-zEoE

Specification

• Frame: All aluminum alloy
• Brake: Front and rear disc brake
• Front fork: Shockproof aluminum front fork
• Range: 80 to 100 km (assisted mode) (Actual performance may vary depending on temperature, road conditions, weight, etc. )
• Range: 50 to 60 km (Pure electric mode) (Actual performance may vary depending on temperature, road conditions, weight, etc. )
• Speed: 55 km/h (When the speed limit is set to 25, the motor will stop delivering power at the specified maximum speed. You can still drive above a certain maximum speed using pure muscle strength. This limit is set in accordance with local regulations)
• Net weight: 26,5 kg
• Product Size: 1840*715*1130mm
• Package Size: 1460*240*790mm
• Tyre Size: 29*2,1 inch
• Assisted Intelligence: 0 to 5 levels of pedaling assistance
• Driveway angle: Maximum driveway angle 30° (suitable for medium urban inclinations)
• Waterproof level: IPX4 (protection against light rain or splashing rain, but inability to rinse directly or be exposed to rain)
• Engine: GT-S03 48V 750W peak 1000W
• Torque: 65 Nm
• Battery: KT-E26 48V 15AH
• Battery Charger: 54,6 V 2 A
• Charging time: 6-8 hours
• Sensor: Speed sensor
• Throttle: Electric semi-throttle
• Screen: S869/48V
• Smart connection: supports Bluetooth APP connection, can connect via DUOTTS APP
• Transmission: Shimano MF-TZ500
• Suspension: Front suspension only, no softtail rear suspension and cushion seat
• Brakes: Left and right brakes with detachable, front and rear disc brakes
• Brake disc: disc diameter 160mm
• Recommended height 170-200 cm
• Load capacity up to 120 kg

Note: Actual performance depends on user weight, road conditions and battery level.

2 x C29

1 x Battery

1 x EU Charger

2 x Mudguard

1 x Installation Tool

1 x USB Charging Port

1 x Waterproof Mobile Phone Bag

More powerful 750W(peak 1000W) motor

With a 750W (peak 1000W) brushless motor, this state-of-the-art motor not only delivers tremendous power, but also features maximum efficiency, seamlessly combining speed with quiet operation. Easily overcome climbs, heavy loads or the need for higher speeds. Whether you're commuting to work in the city or tackling rough mountain trails, enjoy a smoother, effortless ride.

High Capacity 48V/15Ah Battery

Course, lights, front fork

The DUOTTS C29 offers three driving modes. Equipped with 15AH battery, the range can be 80-100 kilometers. The headlights illuminate the road in front of the vehicle, while the lightweight, all-aluminum front fork with shock absorption provides a safer and more comfortable ride.

Elements of the steering wheel

The DUOTTS C29 control panel includes a 21-speed Shimano transmission, front and rear disc brakes, an electric semi-manual throttle, a front light switch, a horn button, a phone charging socket and a 5-speed multifunction display. The precise throttle control ensures flexible handling, while the Shimano gear set allows for smooth gear shifting for a variety of riding experiences.

Large diameter pneumatic tyres

DUOTTS C29 is equipped with 29*2.1 pneumatic tyres. Unlike traditional rubber tires, pneumatic tires allow the driver to adjust the air pressure depending on the ambient conditions and personal preferences, which translates into comfort, grip and resistance, ensuring the desired performance while driving.

The newly upgraded C29 can connect to a mobile phone app (DUOTTS) via Bluetooth.

Our LCD display provides additional information such as operating time, special travel distance, current frequency, selected level of assistance, etc.

Mobile phone charging port

Drive with confidence and charge anytime, anywhere! Our DUOTTS C29 comes with a mobile phone charging port in the handlebar area, so you can charge your phone while driving. Whether you're driving far away or going on a short trip, you never have to worry about a dead battery. Stay connected and enjoy a smart and comfortable ride.

To increase driving comfort, the car comes with a waterproof mobile phone bag and a USB charging port that makes it easy to charge your devices while driving.

FRONT FORK SUSPENSION

High carbon steel suspension fork has good damping effect, reducing shock when driving on uneven roads Brake confidently, reacting quickly, driving safe

Rear rack and tail lights

The DUOTTS C29 also comes with a rear rack for added convenience and practicality, while its integrated rear light enhances visibility and safety while driving at night

Solid performance guarantee

The DUOTTS C29 features a 21-speed Shimano transmission and rear derailleur protection for smooth and reliable operation. The protection prevents damage and slipping of the chain, while the gear system offers multiple options, making it easy to handle any terrain.

3 operating modes

Pedal mode, assist mode, purely electric mode.

is originally packed in a carton, it is 95% folded, however, it requires folding and adjusting some elements such as brakes, derailleurs, etc. Everything is very simple.

21-speed derailleurs from SHIMANO. 3 gears in the pedal crank hub, 7 gears in the rear freewheel wheel!
