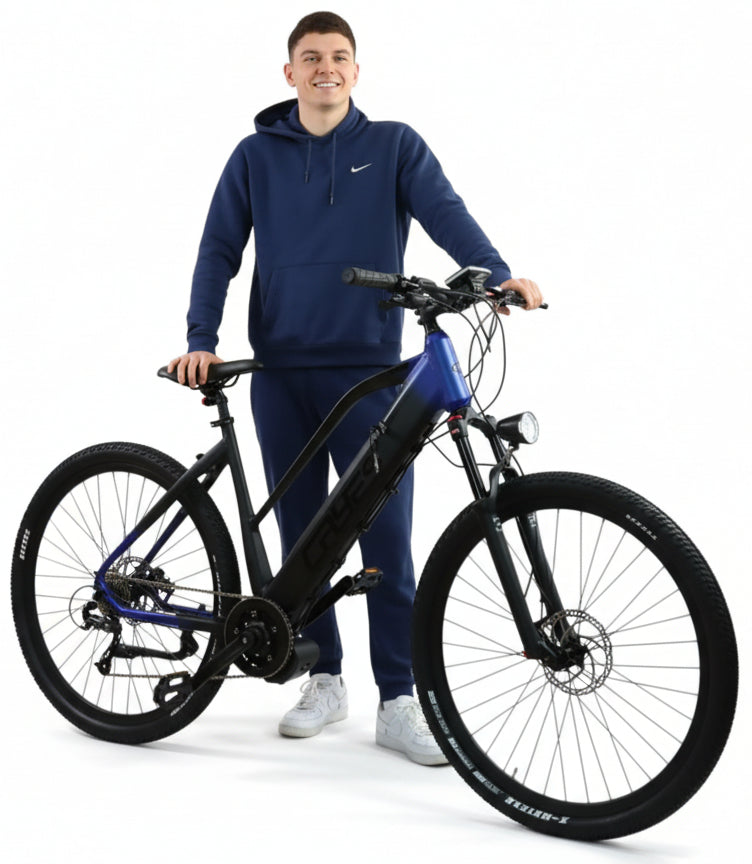

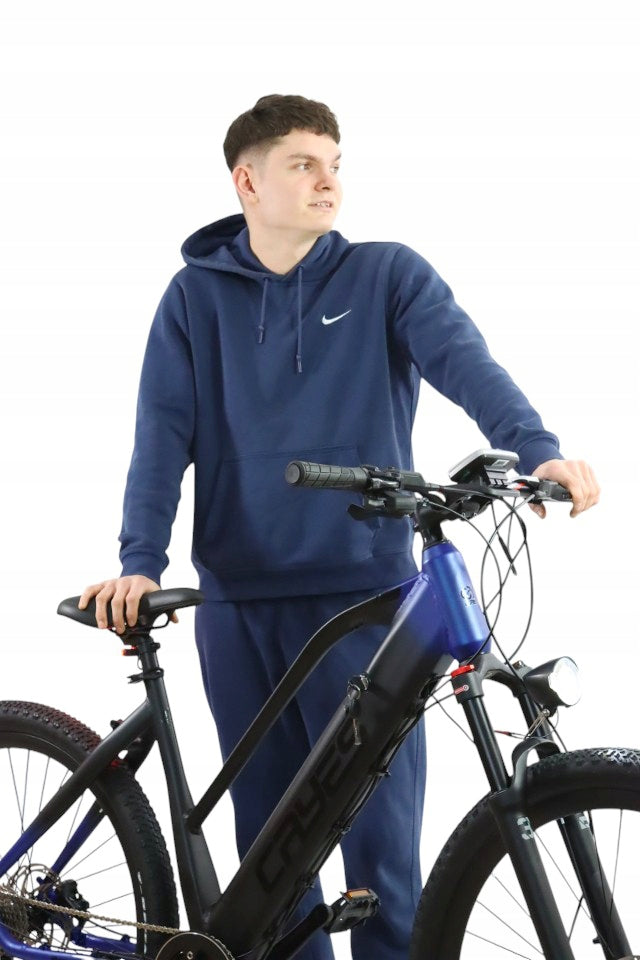

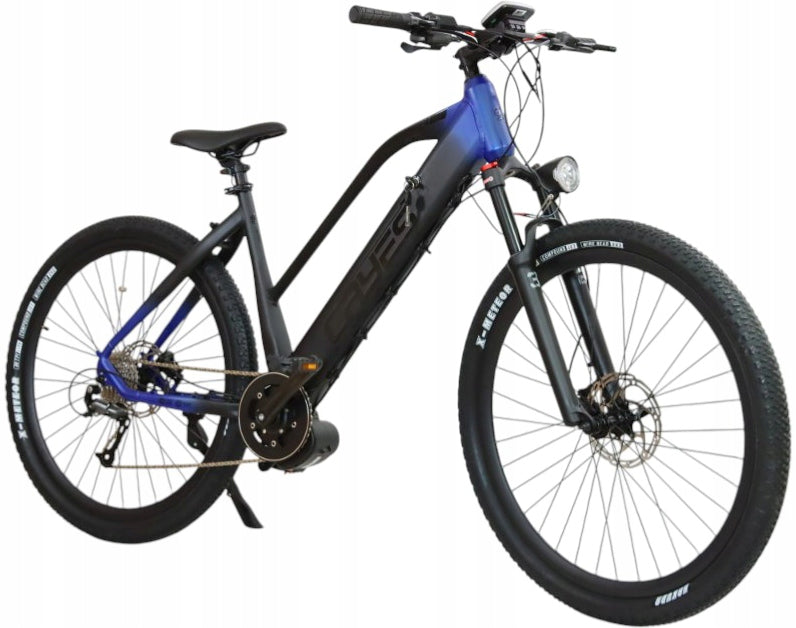

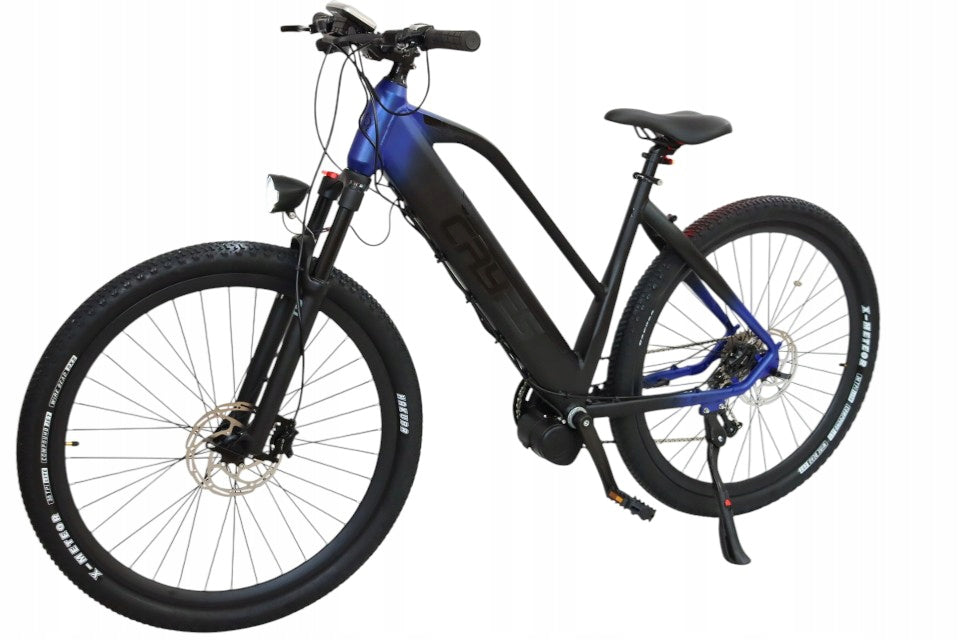

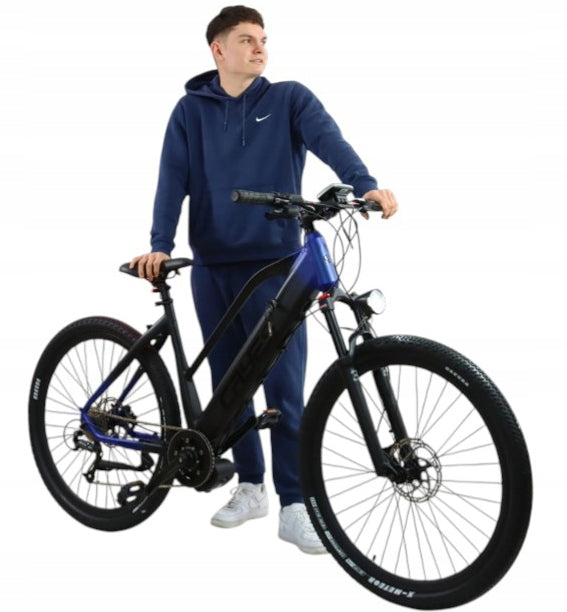

Elektrinis dviratis 29" aliuminis, 80 Nm, 612 Wh, hidrauliniai stabdžiai, centrinis variklis

Trumpai apie prekę

Prekė: Elektrinis dviratis 29" aliuminis, 80 Nm, 612 Wh, hidrauliniai stabdžiai, centrinis variklis. Kategorija: Elektriniai kalnų dviračiai.

• Gamintojas: CAYES
• Modelis: ELEKTRYK MTB GÓRAL 29 CALI MĘSKI SAMSUNG SUV
• Svoris: 24.5 kg
• Spalva: black

Electric bike CAYES is a proposal for people,which expect true assistance power, reliable hydraulic disc brakes,capacious and durable battery, which will not fail during a demanding route,extraordinary stability and maneuverability of the MTB bike,convenient control from the display, 4 assist modes and the walking function WALK.

The CAYES EBIKE ELECTRIC RIDER has been designed so that each component actually improves comfort, safety and support efficiency – especially in the field.

PL Polish brand | Produced in Poland

• Brand: CAYES
• MODEL: ELECTRIC RIDER
• Produced by: Poland
• Designed for European conditions of use
• Quality control and service availability
• DPD transport time: up to 3 working days from the date of dispatch**

Frame and ergonomics

• Material: aluminium
• Frame Size: 20”
• Suggested User Height: 175 – 192 cm*
• Type: MTB
• Gender: unisex
• Maximum load: 120 kg
• (Are you interested in other colors and sizes? Look at our other offers)

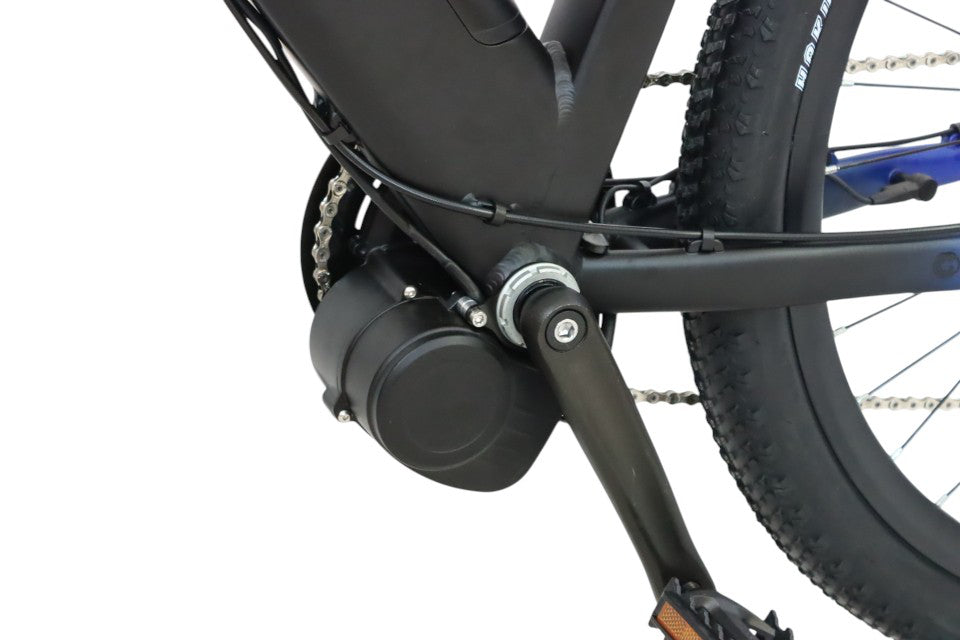

The TONGSHENG TS-DZ2 is a central drive that:

• through its central position, it provides almost perfect weight distribution, which increases grip and maneuverability
• Improves stability on driveways
• is more economical in battery consumption than hub motors

Engine parameters:

• Power: 250 W
• Voltage: 36 V
• Torque: 80 Nm
• Location: central (crank)

BETTER GRIP AND STABILITY

The motor placed centrally (at the support) ensures perfect weight distribution. The bike does not “pull” backwards or forwards, thanks to which: it does not lose traction on climbs, is driven predictably in the field, maintains stability on unevenness.

NATURAL DRIVING EXPERIENCE

The drive supports the work of the legs, not replaces pedaling. Thanks to this, the ride: it is smooth, resembles a classic MTB bike, only with “stronger legs”, does not cause or delays.

LOWER ENERGY CONSUMPTION

The central motor operates on the gears of the bike, which means: higher efficiency, longer real range, less battery and drive load.

The Electric Rider offers 4 levels of electrical assistance, which allow you to precisely adjust the driving force to the conditions on the route, your capabilities and the level of fatigue.

4 assist modes – full control over the ride

Instead of a single mode, you have 4 assist levels that allow you to:

• save battery on long routes
• adjust the power to the terrain
• Driving economically or dynamically – depending on the need

WALK 6 km/h mode – an underestimated, very practical function

WALK mode 6 km/h – what is it?

The WALK option, i.e. the walking function, allows to drive a bike with active support up to 6 km/h, e.g.:

• on steep climbs
• when driving a bike on rough terrain
• with additional load

WALK mode is the engine support during running a bike on foot.

In practice: the bike “walks” next to you, the perfect solution for: very steep climbs, difficult terrain, driving a bike with luggage.

How to activate the WALK ASSIST function?

STEP 1: Enter the service menu (Hidden Menu)

1. Turn on the bike with the power button.
2. Make sure that the assist level on the home screen is set to 0 (no support).
3. At the same time, press and hold two buttons: Power and Information (i) for about 5 to 10 seconds.
4. The screen will change and you will enter the configuration menu.

STEP 2: Find and activate Walk Assist

1. Press the button briefly and (or the plus/minus buttons, depending on the software version) to switch between the menu parameters.
2. Look for the parameter responsible for push mode. On the VLCD5 display, the parameters are numbered or marked with the following symbols:

   In most factory versions of the software, this is the position marked on the screen as "6 km/h" or the icon of the walking man.

   At the bottom of the screen you will see a flashing OFF sign (disabled function).

3. Use the Plus (+) button to change the flashing value from OFF to ON.
4. To save the setting and exit the menu, press and hold the Power button again for a few seconds until the screen returns to the main view.

STEP 3: Starting Walk Assist while driving a bike

After activating the option in the hidden menu, the function will start to respond to the buttons:

1. Change the level of support from zero to any higher gear (e.g. Eco, Tour or Speed). At level 0, the function will not work.
2. Press and hold the Minus (-) button on the steering wheel control panel.
3. After about 1-2 seconds, the engine will start smoothly and start propelling the bike to a safe walking speed (approx. 4-6 km/h).
4. The engine only works if you hold down the button. When you let him go, the power will shut down immediately.

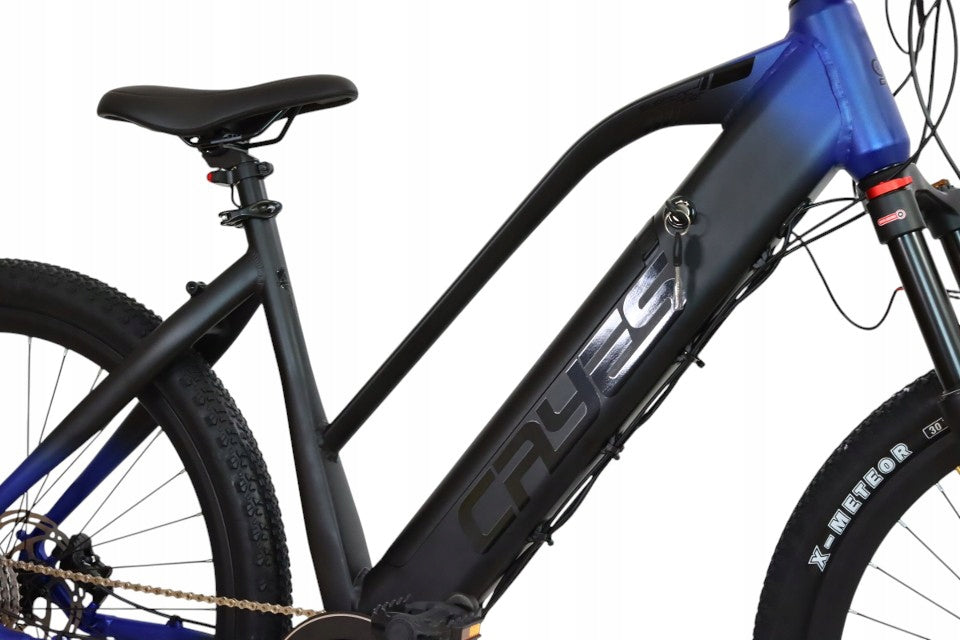

• Capacity: 612 Wh (17 Ah / 36 V)
• Model: AJ-36V
• Technology: lithium-ion
• Cells: SAMSUNG SS35E 18650
• Battery: integrated into the frame
• Removable – lockable (2 keys included)

Range up to 120 km*

• Depends on user weight, terrain, driving mode and load

612Wh battery on SAMSUNG cells – what do you gain?

Large capacity = real range

The 612 Wh battery is:

• Longer routes without stress
• ability to drive in higher assist modes
• less need for frequent charging

The declared range of up to 120 km is possible thanks to:

• central engine
• high efficiency of cells
• optimal operation of the controller

SAMSUNG SS35E 18650 CELLS

Reputable cells: they lose capacity more slowly, maintain temperature stability, ensure longer battery life, better tolerate intensive use, and most importantly, if there is a need to regenerate the battery in the future - the mechanic will easily buy them.

• shows battery status
• supports assistance modes
• enables on and off lighting
• supports WALK mode (walking)

Lighting powered by bicycle batteries – comfort every day

• no constant replacement of batteries in the lamps
• lights always ready to go
• control from the display
• Front + rear as standard

Shock absorber with lock and adjustment – comfort and efficiency

• Jump adjustment allows you to adjust the shock absorber operation to the user's weight
• Block allows rigid driving on asphalt
• The 700 mm wide aluminum steering wheel and rudders on the machine bearings allow the mechanism to work lightly, so you can turn smoothly.

Shock absorber with lock and adjustment – comfort and efficiency

• Jump adjustment allows you to adjust the shock absorber operation to the user's weight
• Block allows rigid driving on asphalt
• The 700 mm wide aluminum steering wheel and rudders on the machine bearings allow the mechanism to work lightly, so you can turn smoothly.

Proven accessories – durability and precision

In the CAYES bike, we used the handle-handle L-TWOO 9 SPEED to make the gear change a light, pleasant experience. They allow you to change gears only with your thumb and index finger, which is why they enjoy great recognition among users of two-wheelers.

• Shifter: SHIMANO ALTUS
• Handle: L-TWOO
• Number of gears: 9

9 gears is an amount that perfectly meets the requirements of forest trips and is completely sufficient for a small urban diversity of the terrain.

Reliable equipment from the world leader in Shimano bicycle components: the Rear derailleur Shimano ALTUS. Altus changes gears extremely precisely and reacts instantly to the change in the shifter.

Frame and ergonomics

• Material: aluminium
• Frame Size: 20”
• Recommended height: 175 – 192 cm*
• Type: MTB
• Gender: unisex
• Maximum load: 120 kg

⚖ Weight

• 24,5 kg with battery
• 21,2 kg without batteries

29” wheels – stability and smooth ride

Large wheels:

• more easily overcome obstacles
• improve stability
• better hold the direction
• provide good grip
• suppress inequalities
• they work both in the forest and on gravel

Ergonomic saddle with V-CUT profile reduces unnecessary pressure.

You can change the height of the saddle at any time without having to use your keys, because the seat bracket is adjustable to clamp.

The rear lamp is integrated in the seat post.

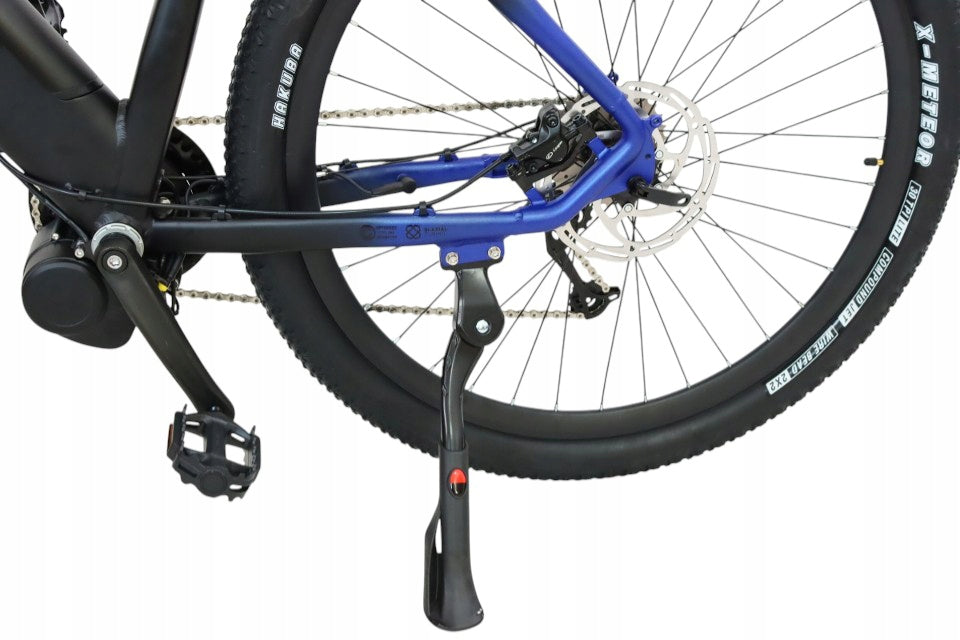

Hydraulic disc brakes LOGAN provide:

• shorter braking distance
• constant braking force regardless of the weather
• less hand fatigue
• greater control at descents

In an electric bike which:

• weighs more
• reaches higher speeds

  hydraulics is not an addition — is a necessity.

The bike is 85% folded. Before shipping, the bikes undergo adjustment of derailleurs and brakes to make your purchase more enjoyable.

There is no additional fee for regulation.

Grease is used for production, bicycles can be carried out by packing, so it is possible that the new bike has delicate marks.

*The height given in this offer is only a reference value, the detailed body structure (length of legs, arms) is an individual feature for each person, which may affect the selection of the perfect bike for you.

**Delivery time displayed by allegro buyers, this is a suggested delivery time, not guaranteed. The carrier has up to 3 working days to deliver the goods counting from the date of sending the goods, please take this information into account when placing the order.

Extensive range of bicycles at GERMANONLINE_PL

Condition and preparation for driving

• Condition: new
• Bicycle: partially assembled
• Pre-adjusted
• Factory protected for shipping

Documents and set

• Operating manual (guarantee card)
• Charger
• 2 keys to the battery

️

Mudguards matched to this model and other accessories you will buy in the set. Expand sets
