Elektrinis dviračio rinkinys BAFANG, 48V, 750W, 13Ah

Trumpai apie prekę

Prekė: Elektrinis dviračio rinkinys BAFANG, 48V, 750W, 13Ah. Kategorija: Perdarymo rinkiniai.

• Gamintojas: Bafang
• Modelis: 5905471271414

A complete 750W kit with a 13 Ah battery and charger that will allow you to easily and quickly turn your existing bike into an e-bike.

Technical data:

• Set power: 750W
• Maximum speed: 45-55 km/h
• Battery: 13 Ah (on LG cells)
• Distance: Up to 170 km
• Engine weight: 4 kg
• Assembly location: Centrally - support axis
• Suitable for supports: 68-73 mm
• Controller model: Integrated (in engine)
• Tooth: 44T, 46T, 48T (selectable)
• Voltage: 48V

2 years total warranty support!

OPERATION AND CONVERSION OF across all of Poland

The 750W Bafang BBS02N motor is an efficient and reliable central drive for electric bicycles. It is characterized by high torque (up to 120 Nm), which ensures excellent dynamics and smooth driving. Thanks to the installation in the place of the support, the engine optimally distributes the weight, improving stability and driving comfort. The BBS02N is compatible with most standard bicycle frames with a 68-73 mm BSA support.

Dimensions 36.8 x 9.5 x 12.5 cm

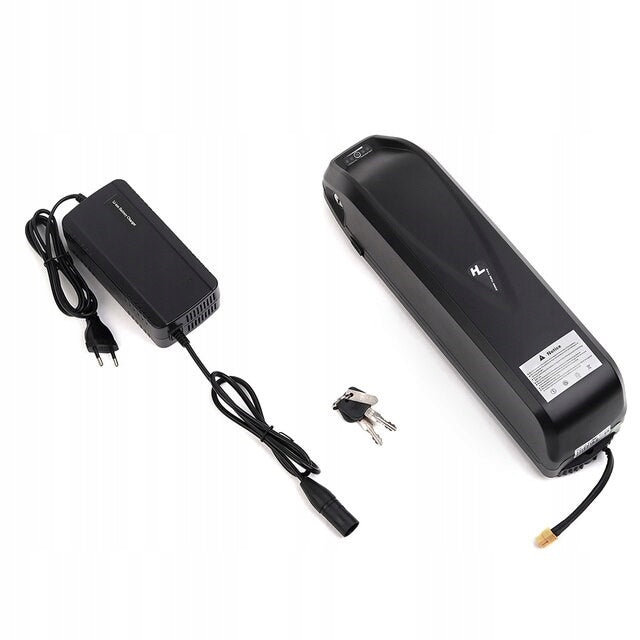

Lithium-ion battery on LG cells with a capacity of 13 Ah 48V allows you to overcome up to 110 km on a single charge. The battery is placed in a special container that not only protects it from external factors or accidental damage, but also allows it to be fastly mounted on the bike. Simply slide the battery into the rail that was previously mounted in the frame.

The B02N display is a modern control panel that allows you to conveniently manage the electrical assistance on your bike. It has a clear LCD screen on which the most important driving parameters are presented, such as speed, battery level, distance and the selected assist mode.

The display is equipped with a Bluetooth module that allows you to connect to a dedicated mobile application. This allows the user to adjust the assistance settings, monitor driving statistics and use navigation. When you set a destination in the app, route directions appear on the display screen, making it easy to navigate while driving.

You can use the assistance in two ways – the first is the automatic start of the engine during pedaling thanks to the motion sensor, which is placed at the crank, and the second gas handle, which also allows you to use the drive in full range.

44T, 46T, 48T (They have an additional chain guard and are suitable for driving in the city, forest and other flat mountainous areas)

We use 46T as standard.

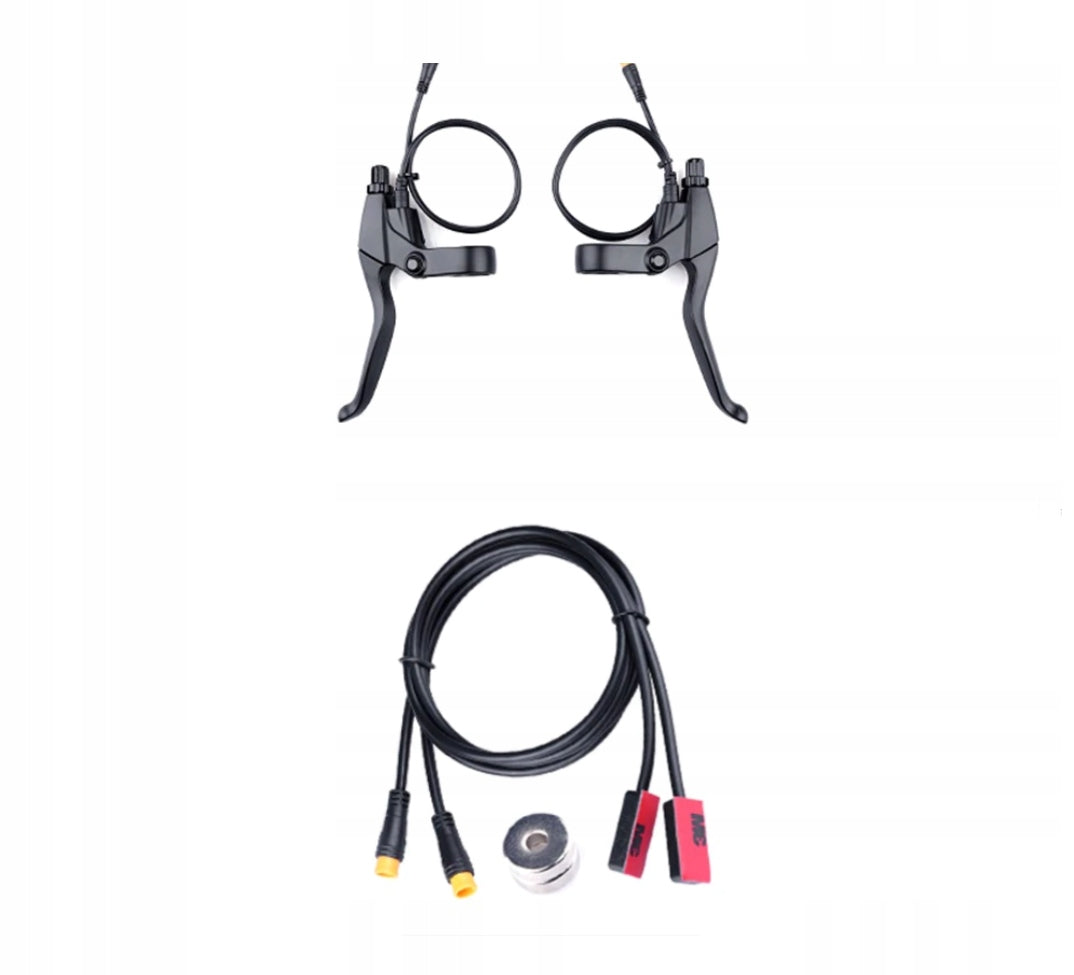

BRAKE HANDLES

They have contactors that allow you to activate the engine switch when pressed, which increases driving comfort and safety.

BRAKE SENSOR

The sensor is usually used when the original brake handles are integrated into the shift shifters on the bike or in the case of hydraulic brakes. The electronic brake sensor is placed on the brake handle and the moment of braking the handle moves, which detects the hallotron sensor and disconnects the engine in a fraction of a second.

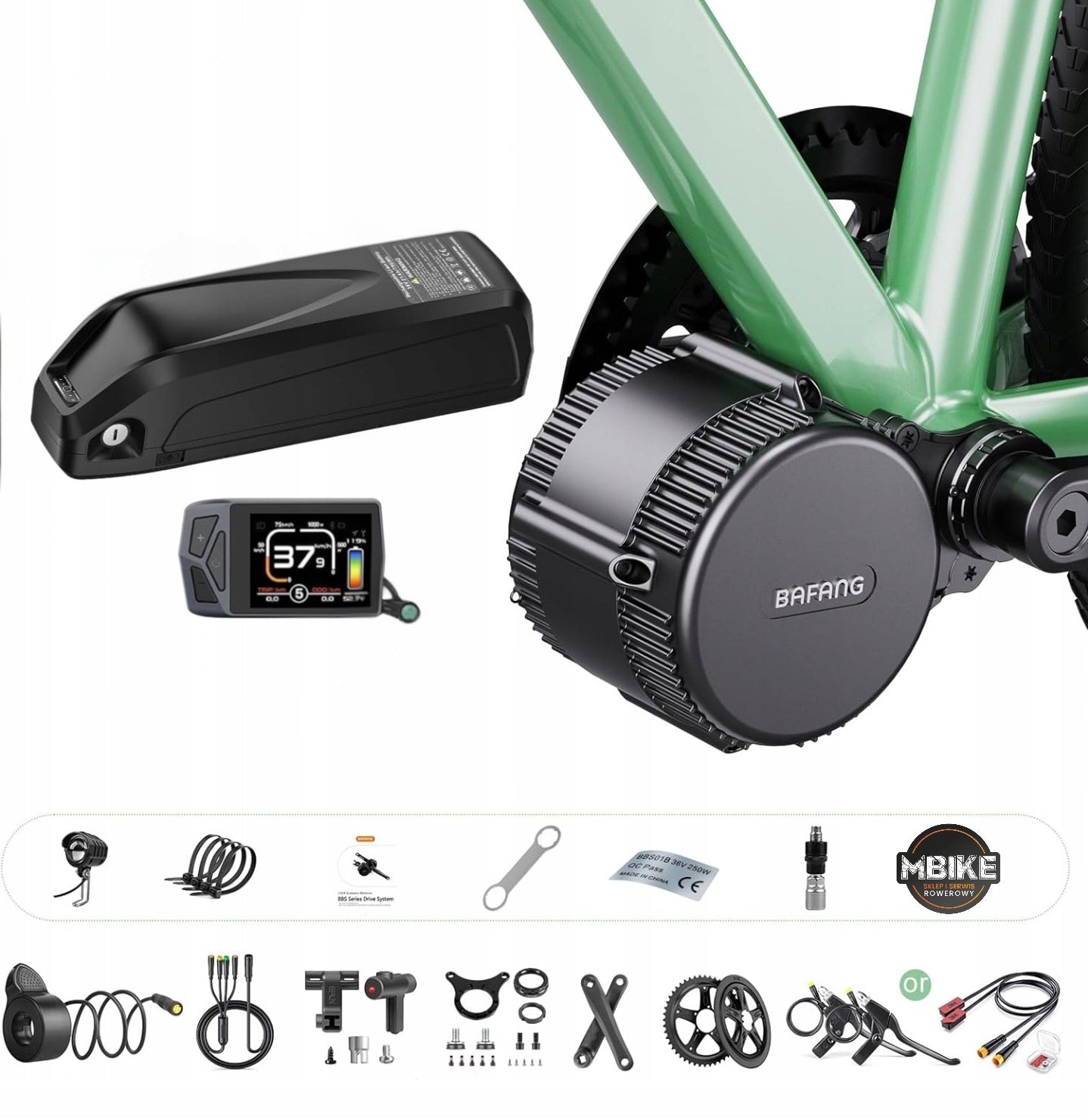

INCLUDED IN THE SET:

1. Engine Bafang BBS02B 750W
2. Display B02N
3. Gas handle
4. Brake sensor or brake grips
5. Front lamp
6. Sprocket 44T
7. Connection kit
8. Assembly Tool Kit
9. 13Ah 48V Battery with Charger

POSSIBLE CONVERSION OF across all of Poland

The set includes instructions that contain the main information on the correct use, operation and installation of the Bafang electric kit, display and additional parts.
