Elektrinis dviračio pavara Bafang 48V 750W, 16Ah

Trumpai apie prekę

Prekė: Elektrinis dviračio pavara Bafang 48V 750W, 16Ah. Kategorija: Perdarymo rinkiniai.

• Gamintojas: Bafang
• Modelis: BAFANG MID 48V 750W 16AH

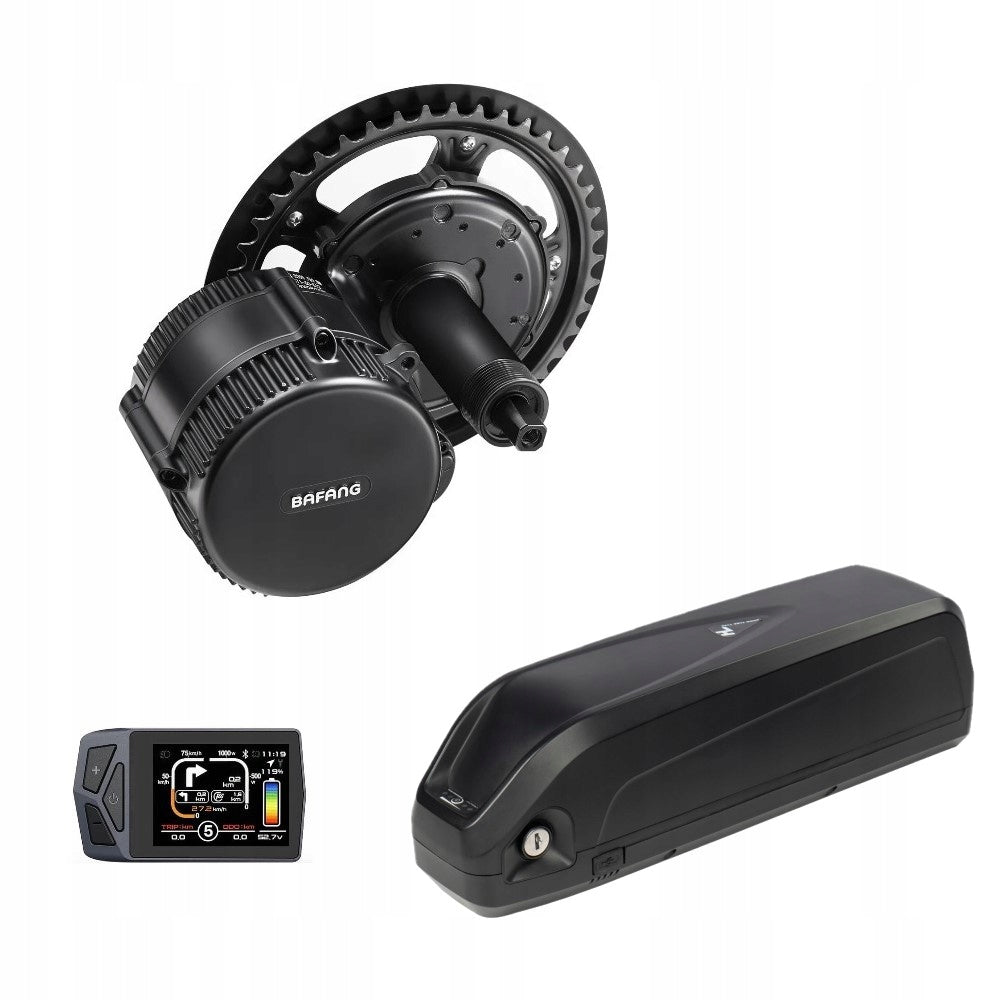

A complete 750W kit with a 16 Ah battery and charger that will allow you to easily and quickly turn your existing bike into an e-bike.

Technical data:

• Set power: 750W
• Speed max.: approx. 45 km/h
• Battery: 16 Ah
• Distance: 60-90 km
• Engine model: MM G340.750
• Engine weight: 4 kg
• Assembly location: Centrally - support axis
• Controller model: Integrated (in engine)
• Tooth: 32T, 36T, 44T, 48T (optional)
• Voltage: 48V
• Protocol: CAN

Don't miss the promotion! Additional one-year warranty on the set for only PLN 1! A total of 2 years of total warranty support!

OPERATION AND CONVERSION OF across all of Poland

The central motor is the best solution for electric bicycles because it allows you to maintain a natural center of gravity for the bike. The use of a support motor increases pedaling cadence and allows for efficient and direct transfer of force to the drive.

Dimensions 36.6 x 9.1 x 11 cm

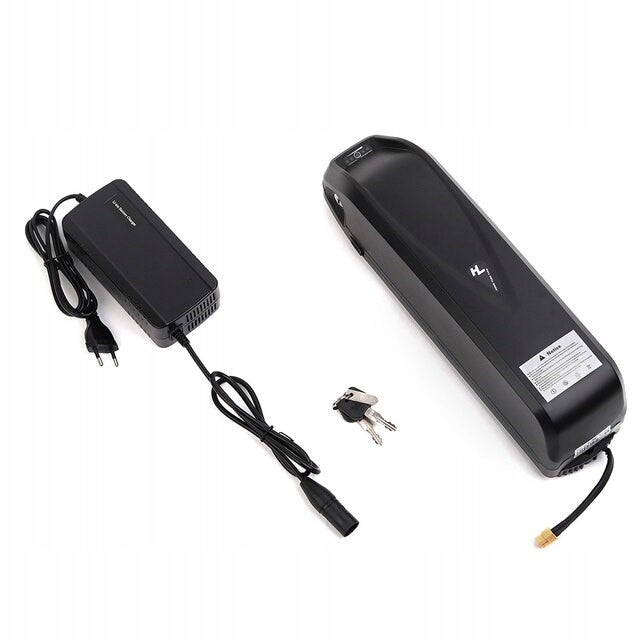

The lithium-ion battery in the set with a capacity of 16 Ah allows you to overcome from 60 to even 90 km on a single charge. The battery is placed in a special container that not only protects it from external factors or accidental damage, but also allows it to be fastly mounted on the bike. Simply slide the battery into the rail that was previously mounted in the frame. The battery is also equipped with a USB port, which can be used to charge your smartphone or other devices.

With its easy-to-use LCD display, you can enter the necessary settings, configure power assistance and top speed, and, above all, monitor the battery status on an ongoing basis. The intelligent system monitors the way you drive and indicates the battery level proportional to the power used.

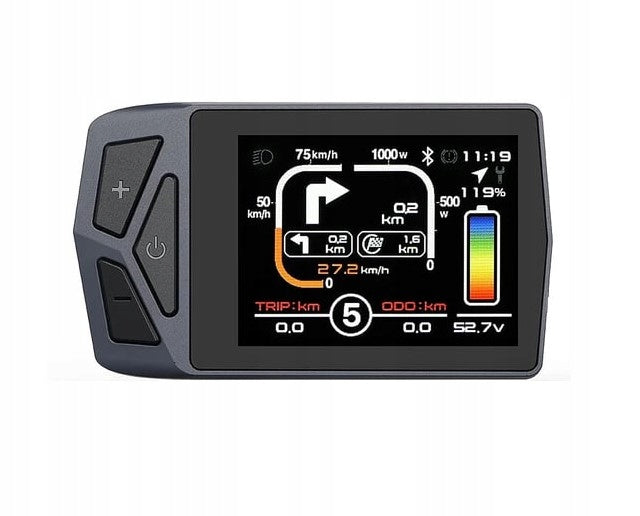

TYPE 1 (EKD01)

Side display with some increased functionality and bluetooth function

• Number of PAS: 3/5/9
• Screen size: 2.4″
• USB port: Yes

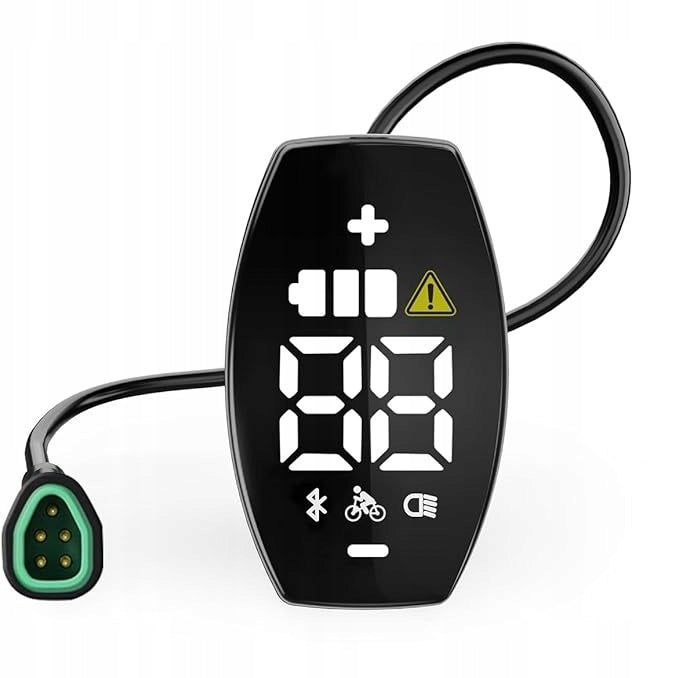

TYPE 2 (VD03)

Minimalist side display with bluetooth function

• Number of PAS: 3/5/9
• Screen size: 1.5″
• USB Port: None

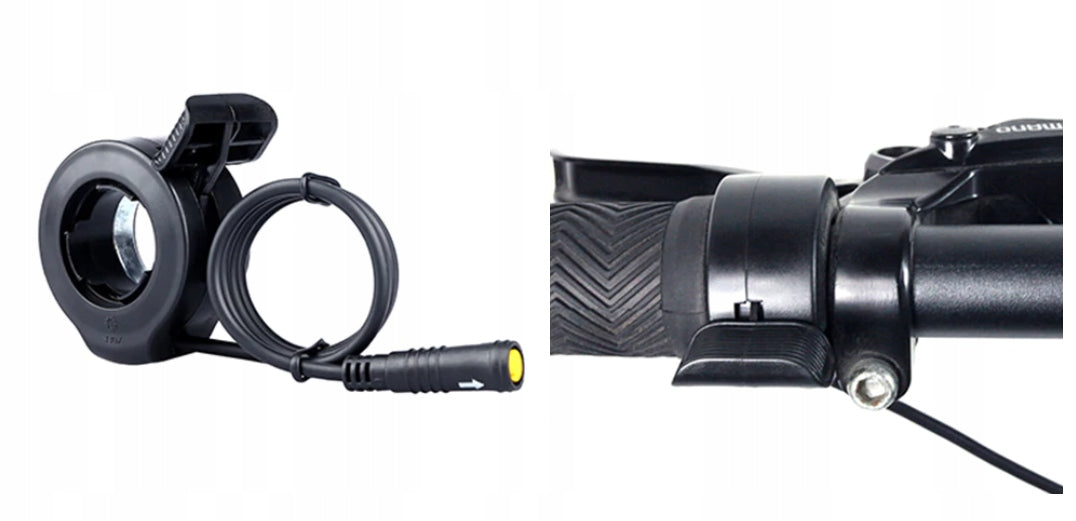

You can use the assistance in two ways – the first is the automatic start of the engine during pedaling thanks to the motion sensor, which is placed at the crank, and the second gas handle, which also allows you to use the drive in full range.

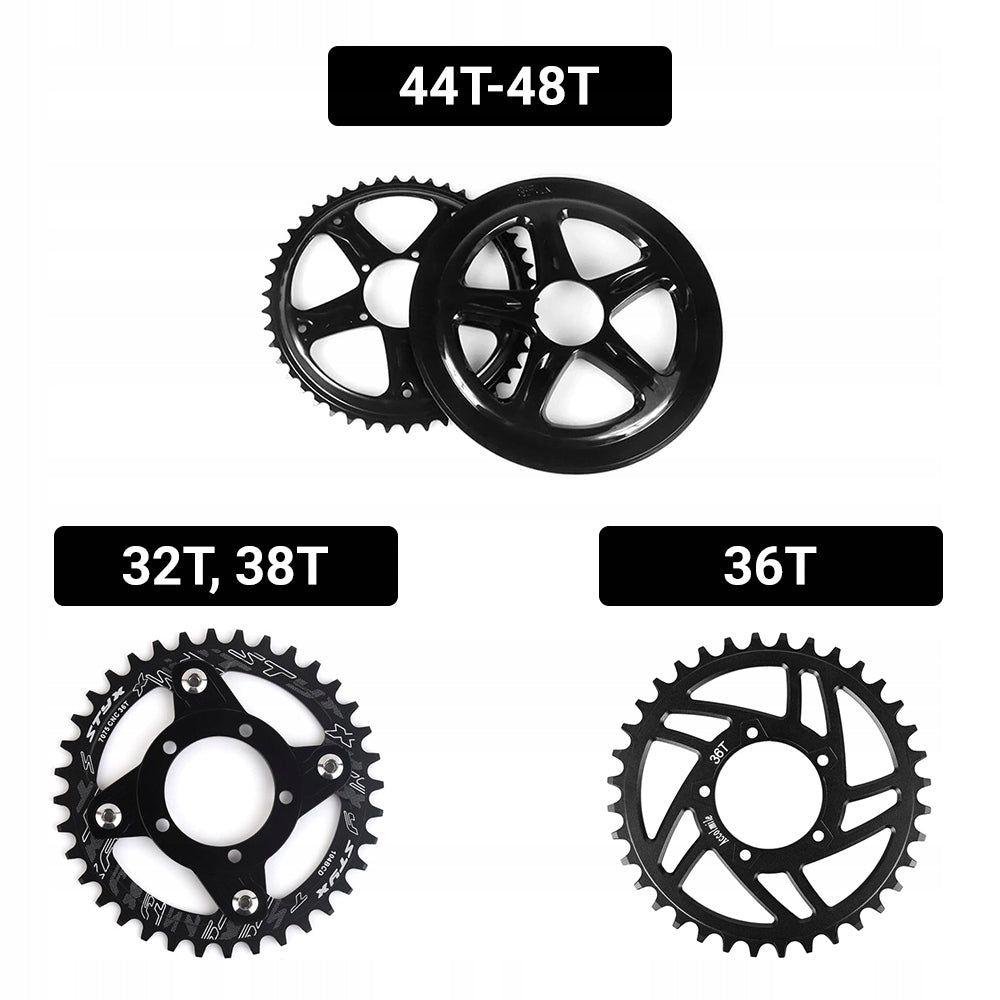

- 32T, 36T, 38T (Increase pedaling cadence and riding comfort in mountain terrain)

- 44T 48T (They have an additional chain guard and are suitable for driving in the city, forest and other flat mountainous areas)

We use 44T as standard.

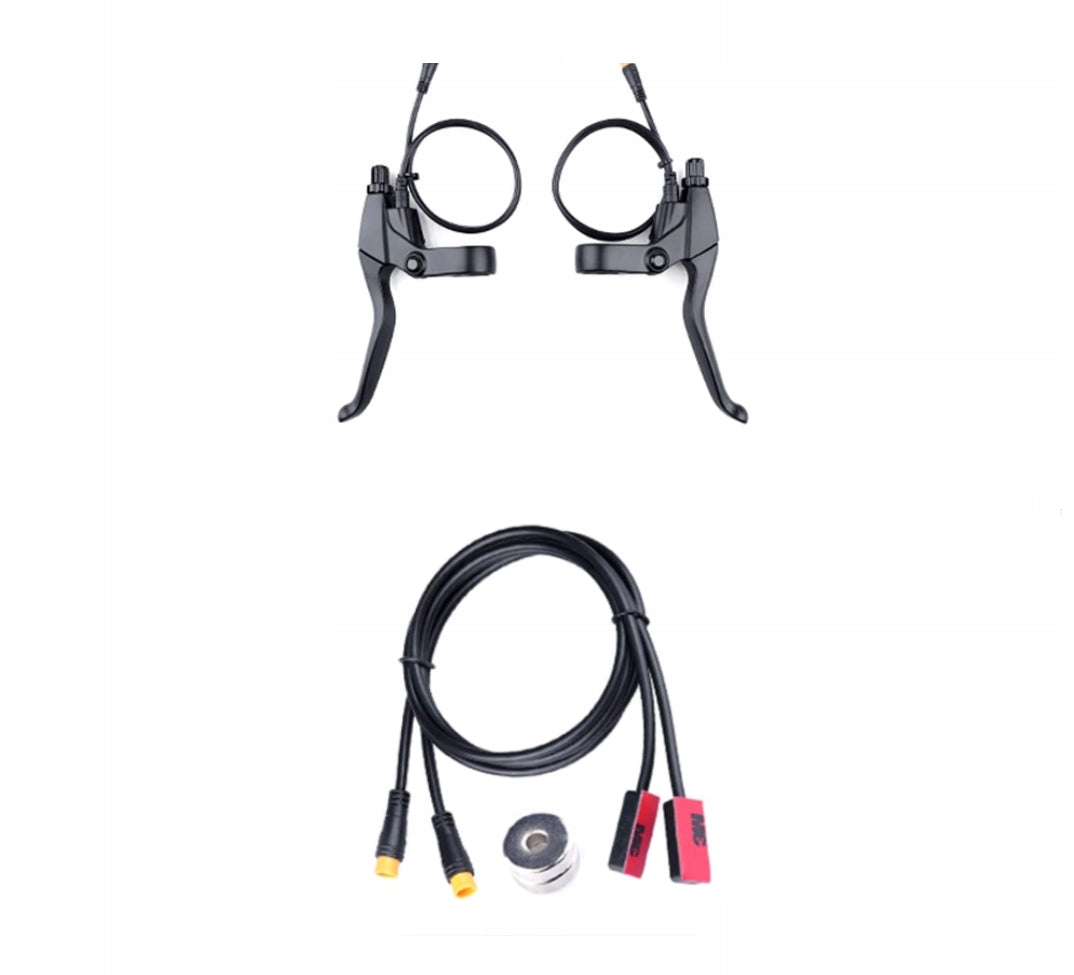

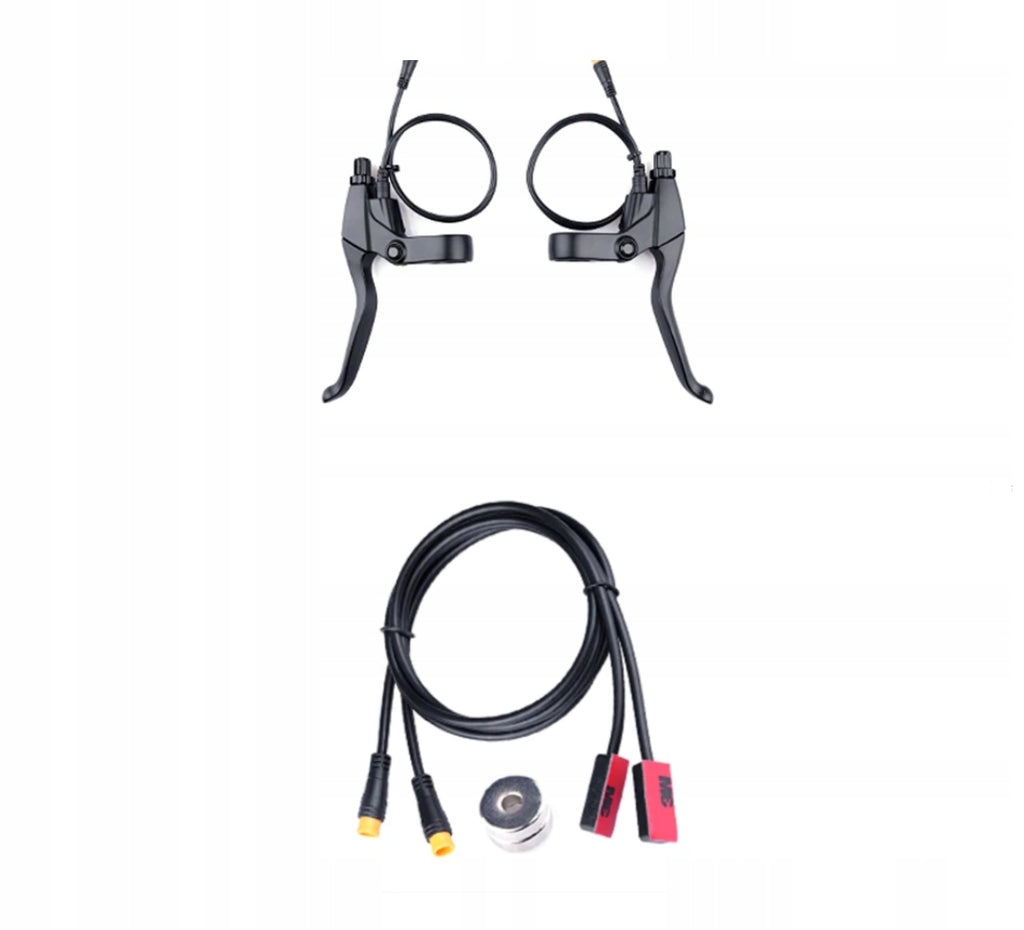

BRAKE HANDLES

They have contactors that allow you to activate the engine switch when pressed, which increases driving comfort and safety.

BRAKE SENSOR

The sensor is usually used when the original brake handles are integrated into the shift shifters on the bike or in the case of hydraulic brakes. The electronic brake sensor is placed on the brake handle and the moment of braking the handle moves, which detects the hallotron sensor and disconnects the engine in a fraction of a second.

1. FRONT SPROCKET TYPE: 32T, 36T, 44T, 48T and others;

2. BRAKE TYPE: BRAKE LEVER OR BRAKE SENSOR;

3 TYPE OF LCD: 1, 2.

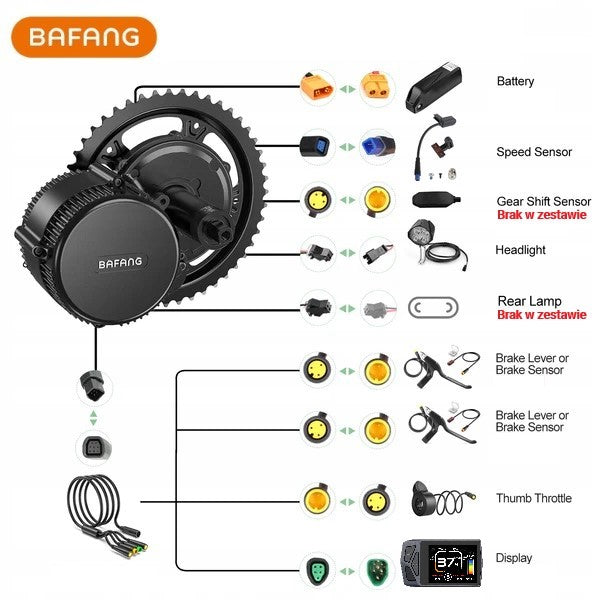

INCLUDED IN THE SET:

1. Engine Bafang 48V 750W;
2. 48V 16Ah battery;
3. Wiring with LCD display and gas shifter;
4. Brake handles with current cut-off or brake sensors;
5. Sprocket;
6. Cranks;
7. Lamp;
8. Tools for assembly;
9. User manual and warranty card.

The comprehensive warranty and battery-operated Ultimate Action service is 1 year. We operate across all of Poland.

We offer additional services of conversion and servicing of electric bicycles across all of Poland.

The set includes instructions that contain the main information on the correct use, operation and installation of the Bafang electric kit, display and additional parts.

Specifications
