Elektrinio dviračio konversijos rinkinys 250W 24V 3300 RPM 0,9 N.m

Trumpai apie prekę

Prekė: Elektrinio dviračio konversijos rinkinys 250W 24V 3300 RPM 0,9 N.m. Kategorija: Perdarymo rinkiniai.

• Gamintojas: no brand
• Modelis: 7019095

Description

This electric bike conversion kit is an excellent choice for do-it-yourself projects. It includes a motor, controller, sprocket, and other mounting accessories that can be used to transform a traditional bike into an electric bike, providing a more comfortable and energy-efficient ride. Whether you're upgrading your bike or pursuing a DIY project, this is the perfect choice to achieve the ultimate performance.

Main features

Robust and durable: The product is made of iron and copper and subjected to galvanization process, which gives it high durability, good appearance, resistance to corrosion, rust, abrasion and deformation.

Powerful and efficient: 250W pure copper brush motor with a rated speed of 3300 rpm. /min and torque of 0,9 N.m, works efficiently, providing enough power to easily overcome various road conditions.

Good load capacity: Selected materials and robust construction with a load capacity of up to 120 kg are used, so it can be safely used.

Adjustable Speed: The product comes with a pair of non-slip and comfortable handles that allow you to easily increase or decrease the speed (smooth adjustment), increasing your driving comfort.

Safety protection: The 21V overvoltage protection in the controller and IP54 motor protection ensure safe use and peace of mind during operation.

High cost-effectiveness: Compared to buying a new electric bike, turning your bike into a more energy-efficient electric bike is more economical and efficient, providing a more comfortable and easier ride.

Highly flexible and controllable: The product comes with a reliable controller that transmits signals quickly and accurately, making operation more sensitive and controlled.

Complete Set: This product is a complete set consisting of a controller, motor, handle pair, chain, sprocket, etc., which can be used for conversion without having to buy individual components separately, which saves costs and provides greater convenience.

Details

2 keys: They are used to unlock the electric lock on the shifter and provide additional security for your bike.

LED Display: Shows the remaining battery level, allowing you to quickly monitor the charge level and charge. Chain and sprocket: Ensure efficient power transfer from the engine to the drive wheel, propelling the bike forward.

Application

This conversion kit is used to convert ordinary bicycles into electric bikes. It is ideal for cyclists, commuters, bike lovers, students, couriers, etc.

Specification

Material: Iron, Copper, Rubber

Color: Black, Silver

Process: Galvanization

Style: Modern

Assembly Required: Yes

Display Type: LED (Battery Level Indicator)

Engine Type: Pure Copper Brush Motor

Speed control: Stepless

Load capacity: 120 kg/264,55 lbs

Voltage: 24 V

Output Power: 250 W

Rated speed: 3300 rpm /min

Rated Current: 14 A

Torque: 0,9 N.M

Protection Class: IP54

Sprocket diameter: 13 cm/5,12 inch

Inner gear hole diameter: 3,8 cm/1,5 inch

Total motor length: 14 cm/5,51 inch

Engine body dimensions (diameter*length): 10*9 cm/3,94*3,54 inch

Package Dimensions: 26,5*24*14 cm/10,43*90,45*5,51 inch

Gross weight: 4 kg/8,82 lbs

Net weight: 3,8 kg/8,38 lbs

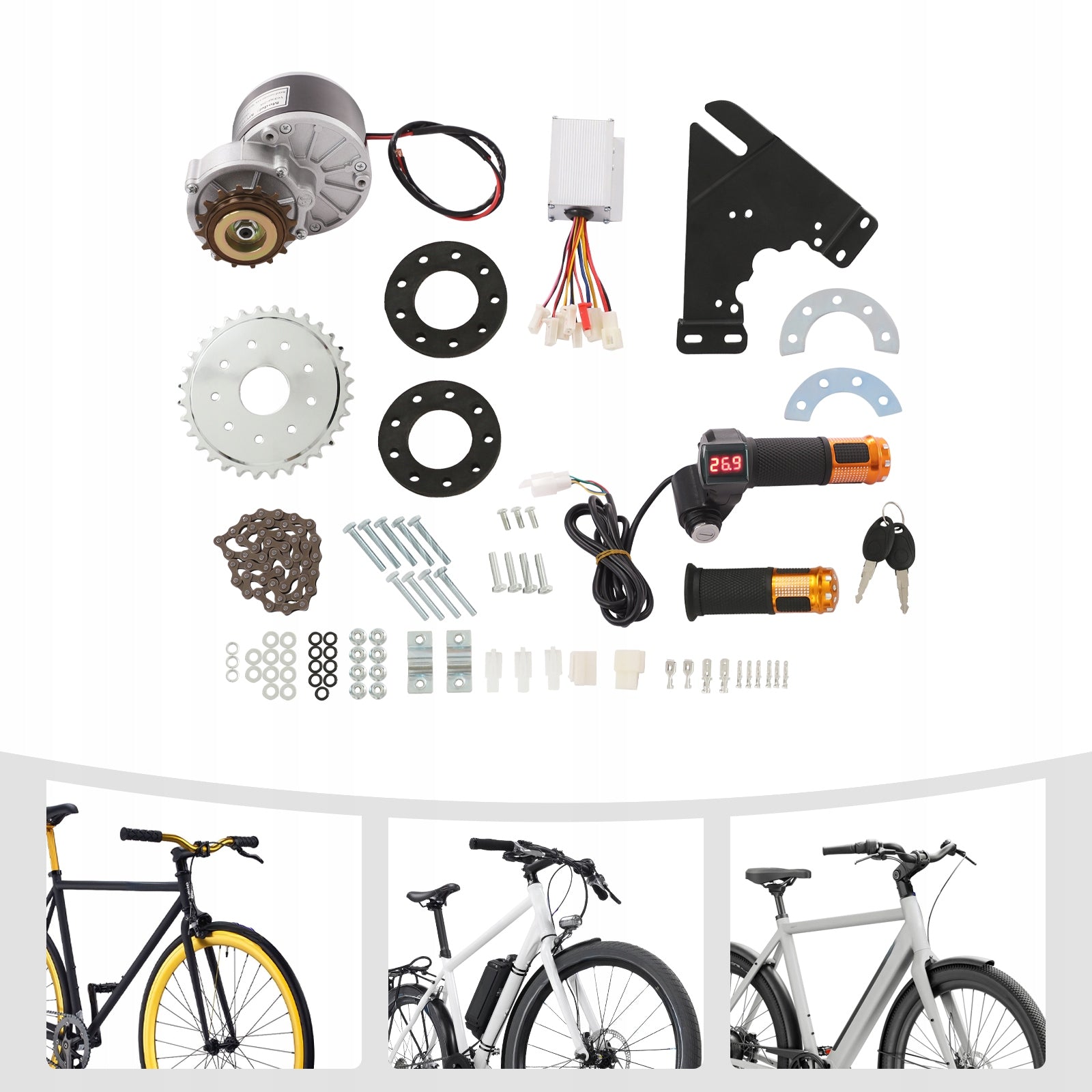

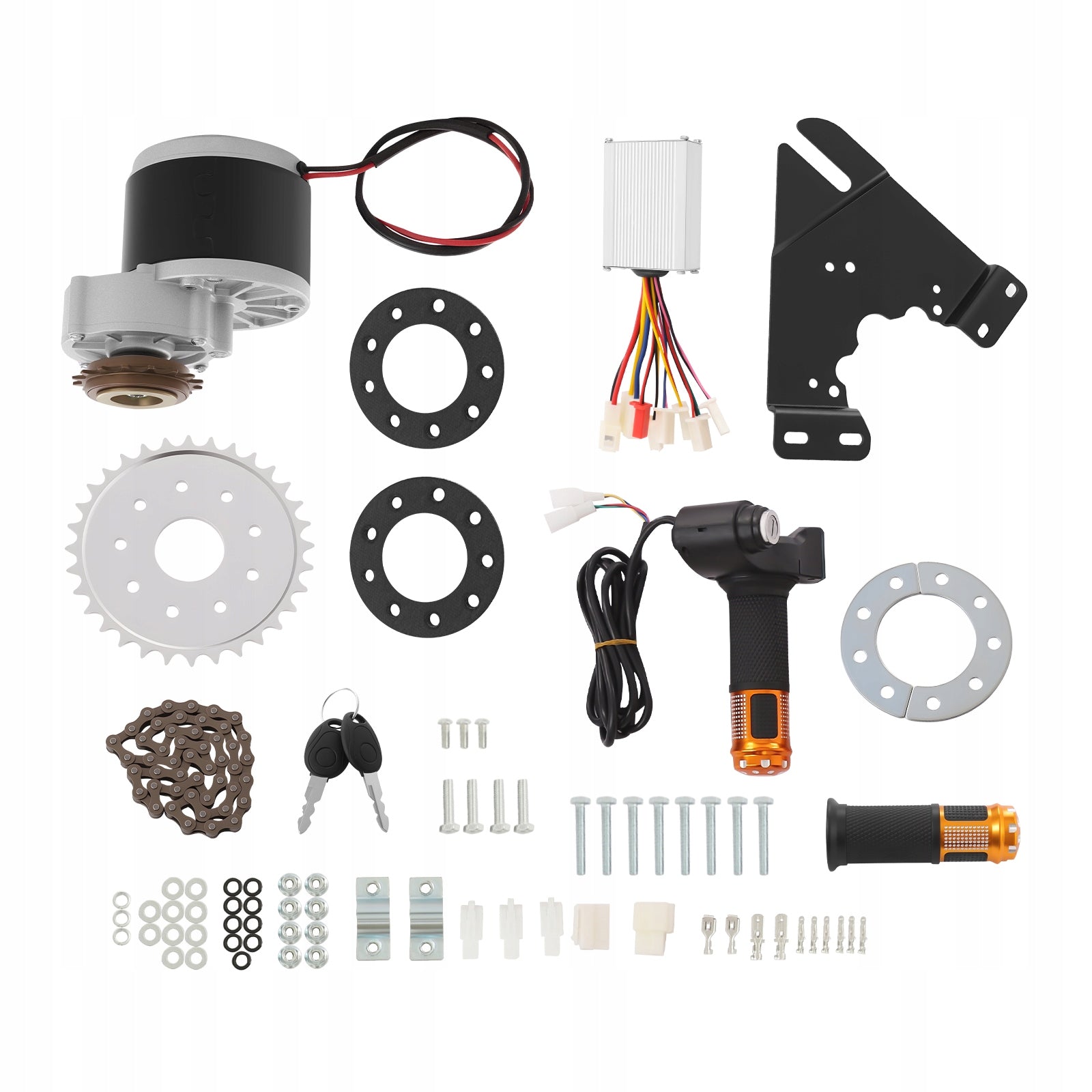

Content of the package:

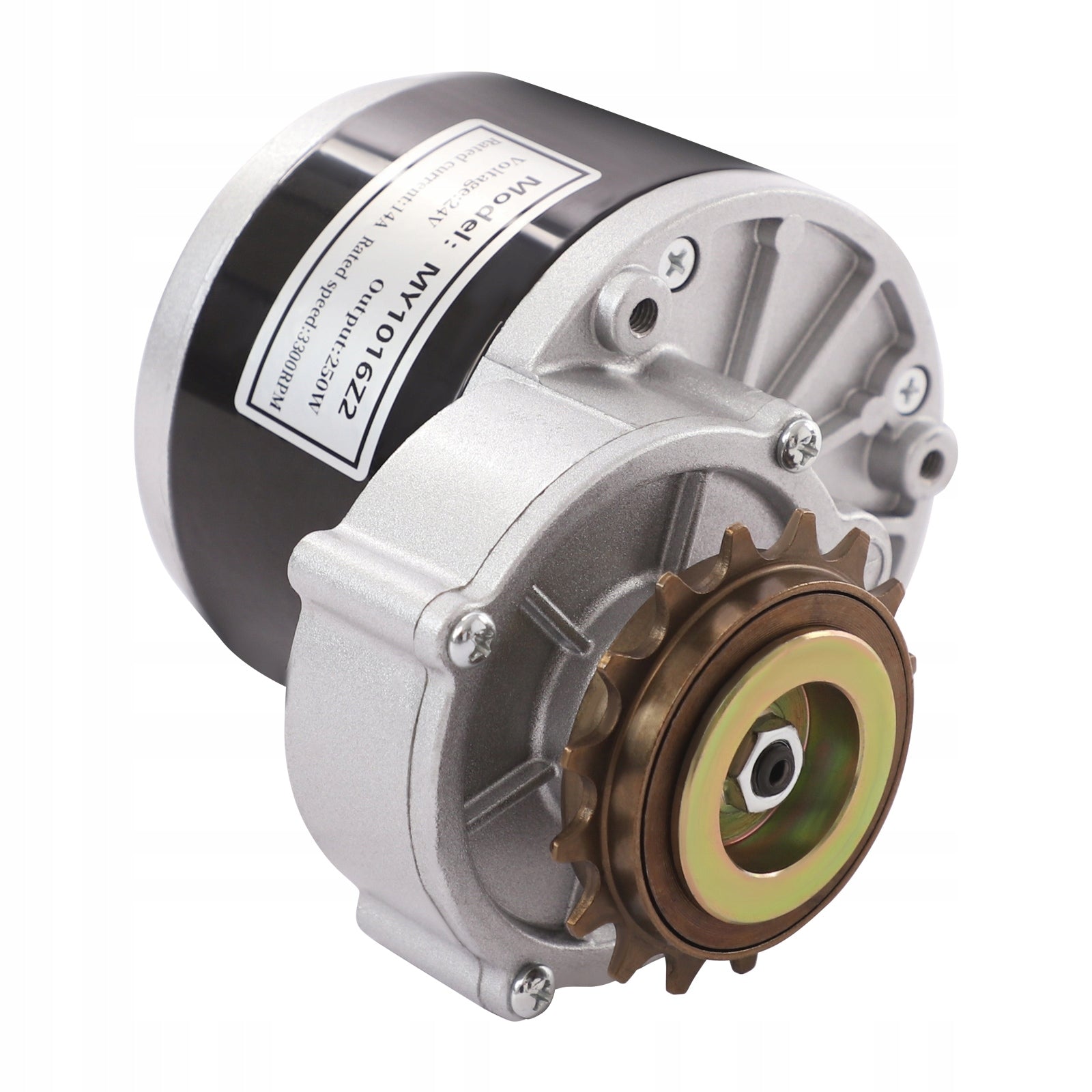

1* 250W 24V brush motor

1* Chain

1* Engine Controller

1* Gear

1* Triangular plate

2* Keys

1 pair* Handles with LED display

Other mounting accessories

Notes:

1. This product does not include tires, batteries or charger.

2. Suitable for two-wheeled bikes, not for tricycles or multi-wheeled vehicles.

3. Please double check that this product fits your bike before purchasing.

4. Assembly requires a certain level of knowledge and professional skills, so we strongly recommend using the services of a professional installer.

5. Please take into account the slight color difference caused by lighting during shooting and the 1-3 cm error resulting from manual measurement and make sure that this is not a problem before placing your order.
