Echolotas Lowrance EAGLE EYE 9 LIVE su gyvos sonaro funkcija

Trumpai apie prekę

Prekė: Echolotas Lowrance EAGLE EYE 9 LIVE su gyvos sonaro funkcija. Kategorija: Echolotai.

• Gamintojas: Lowrance
• Modelis: EAGLE EYE 9 LIVE

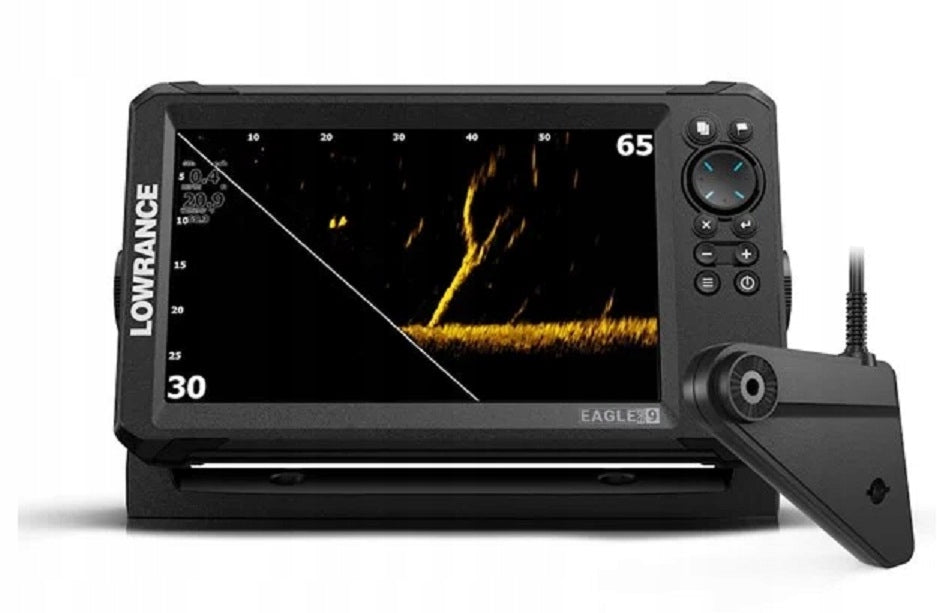

Lowrance Eagle Eye 9 Live is an echo sounder / fishfinder with live sonar function – it allows you to observe what is happening under or in front of the boat in real time. Perfect for fishing when you want to react to fish movements immediately.

NEW FROM LOWRANCE 2025

EAGLE 9 EYE

Main features

• 4 views from one transducer: Live Forward, Live Down, CHIRP Sonar, DownScan Imaging with FishReveal function.
• Autotuning sonar – automatically adjust the sonar settings to get the optimal image.
• 9 inch IPS display – good visibility from different angles, also with polarized glasses, strong brightness.
• Maps: Versions with different maps are available: C-MAP DISCOVER OnBoard, C-MAP US Inland or others depending on the version.
• Genesis Live – the ability to create maps of local water bodies in real time with the accuracy of the contours of the water area (every half foot for waters that are not mapped).
• Connectors and installation: new twist-lock connector system for easier assembly and disassembly.
• microSD card slot – software updates, Genesis Live map saves, etc.

NEWLY DESIGNED SONAR

The high-precision live sonar combines CHIRP and DownScan Imaging technologies with FishReveal technology in one transducer, providing an image comparable to that of an eagle radar during any type of fishing.

Live Sonar - Forward

See more clearly the terrain structure and fish in front of the boat, so you can plan your next throw perfectly.

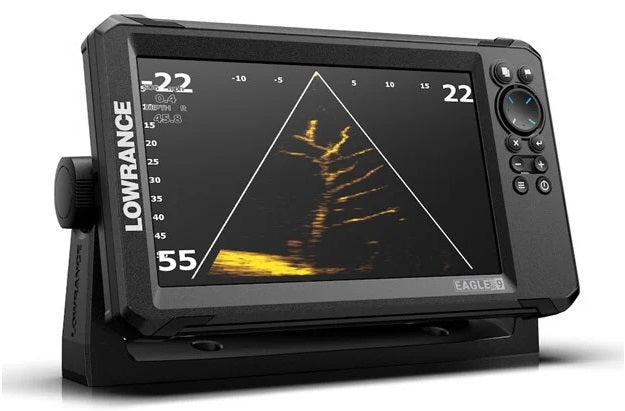

Live Sonar - Down

Explore the depth and see more closely what’s right under your boat so you can cast the bait right onto the fish.

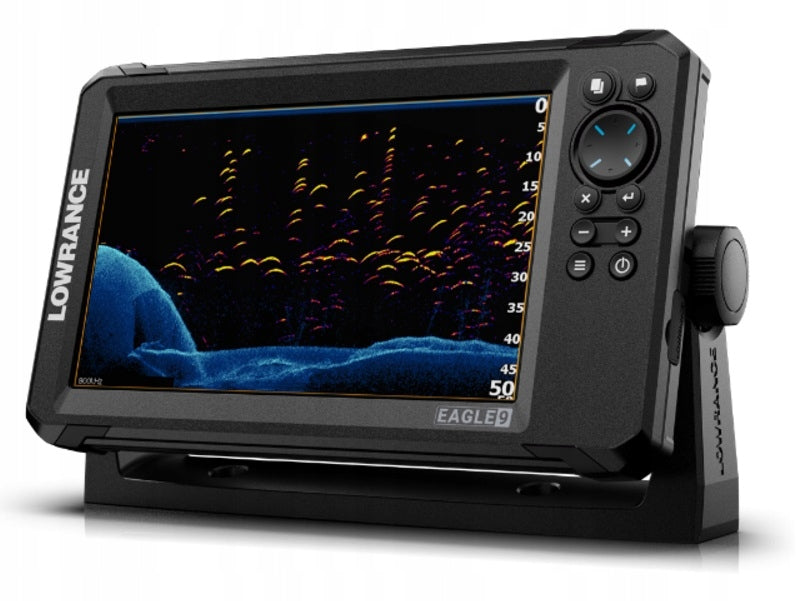

Sonar CHIRP

CHIRP sonar provides high-resolution imaging of individual fish, even if they are close to the bottom or form shoals.

DownScan imaging

With DownScan Imaging™ technology, it is easier to determine the relationship between fish and structure by providing images of rocks, trees and other underwater structures directly under the boat.

Genesis live

Advantages:

• The ability to observe live fish and structure both in front of the boat (forward) and under the boat (down) — gives you an advantage when half ahead, e.g. for trout or bass.
• The image from CHIRP and DownScan allows you to distinguish fish from structure (stones, vegetation) very well. FishReveal helps with identification.
• Good maps, the ability to create your own contours — useful in unknown or poorly mapped waters.

Discover fish

Eliminate the doubts of fish identification with FishReveal, which combines DownScan with CHIRP, providing unparalleled opportunities for separation and identification of targets.

New IPS screens

See clearly wherever you are with the new IPS screen that provides better resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.

TECHNICAL DATA

✅ Display

• Backlight color
• Pure White LED
• Display Resolution - 1024x600
• Display Size - 9 inches
• Screen Brightness - 1000 NITS
• Viewing angles - 85° up/down, 85° left/right
• Connectivity - SD card memory 1 slot (maximum 32 GB microSD®)

✅ Cartograph

• Supported charts - discover C-MAP® DISCOVER™.

✅ Electrics

• Maximum power consumption - 650 mA at 12 V DC with full backlight
• Typical power consumption - 650 mA at 12 V DC with full backlight
• Recommended fuse rating - 3A
• Supply voltage - 12 V DC (10,8-17 V DC)

✅ Environment

• Humidity - 66°C, relative humidity (RH) 95% for 48 hours
• Operating temperature range - from -15°C to 55°C (from 5°F to 131°F)
• Storage temperature range - -20°C to 60°C (from 4°F to 140°F)
• Waterproof - IPX7 with closed card door

✅ GPS

• Correction - SBAS
• Time for the first repair - 45 seconds

✅ MFD

• Cartography included - US C-MAP® inland maps covering more than 17 000 American lakes.
• Route points, routes, tracks - 3000 points of the route 100 routes 100 routes

✅ Other

• Safe Compass - 12" (300 mm)
• Dimensions width. x H x D. - 287,2 mm (11,30") x 162,5 mm (6,39") x 90 (3,54)
• Mounting type - gimbal holder or dashboard mount
• Weight - 0,9 kg (1,98 lbs)
• Interface - Keyboard: 8-way Keyboard, Zoom +/- (MOB), Output, Enter, Menu, Route Point, Power Supply / Backlight

THE SET INCLUDES :

✅ SONAR SCREEN

✅ EAGLE EYE Chirp/DS/Live TRANSDUCER

✅ TRANSDUCER MOUNT

✅ POWER CABLE

✅ INSTRUCTION in Polish

✅ COMPLETED WARRANTY CARD PL

✅ PURCHASE DOCUMENT

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Lowrance
Parametry	Manufacturer code	000-16130-001
Parametry	Model	EAGLE EYE 9 LIVE
Parametry	Product weight with unit packaging	3 kg
Parametry	EAN (GTIN)	9420064131549
Parametry	Packaging status	original
