Echolotas LOWRANCE EAGLE EYE 9 LIVE, lenkų meniu

Trumpai apie prekę

Prekė: Echolotas LOWRANCE EAGLE EYE 9 LIVE, lenkų meniu. Kategorija: Echolotai.

• Gamintojas: Lowrance
• Modelis: EAGLE EYE 9 LIVE

LOWRANCE EAGLE EYE 9 LIVE menu PL

Producer: LOWRANCE

Product Symbol: 69661

Description:

EAGLE 9 EYE (No. 000-16130-001)

Multilingual menu – standard package and Central and Eastern Europe (m.in. Polish, Czech, Slovak, German, English and other European languages – depending on the software version).

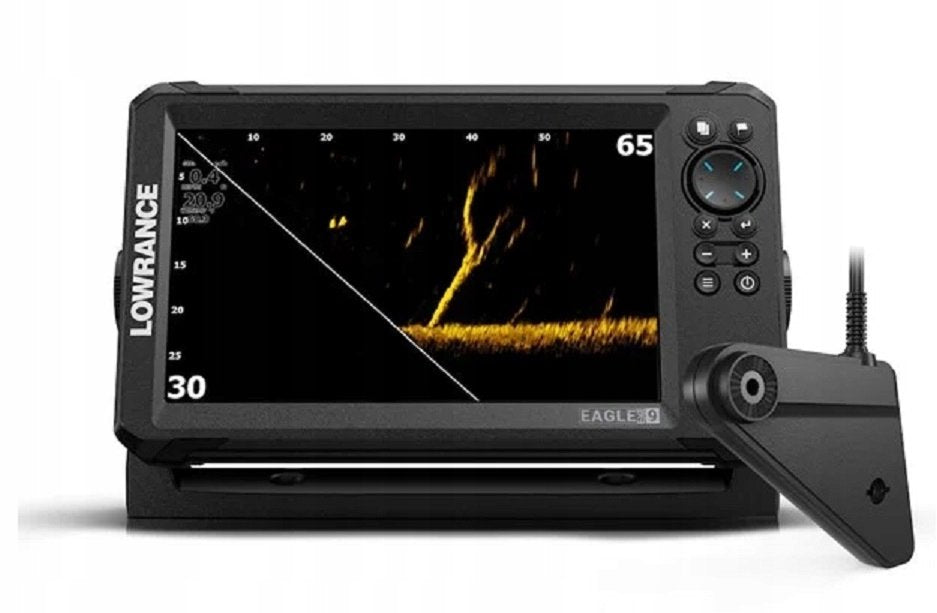

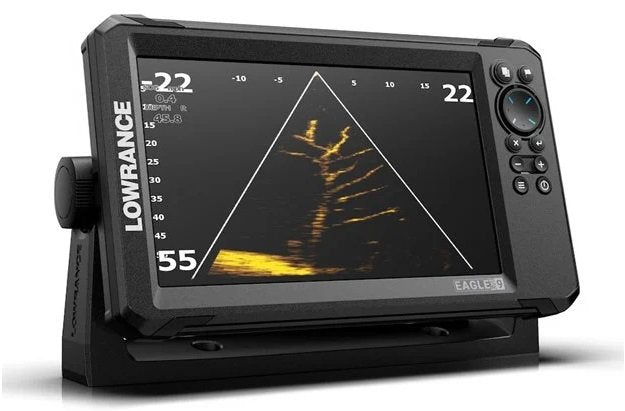

Eagle Eye is a sonar sounder with live sonar. The concentrated front and bottom live sonar combines with the CHIRP & DownScan Imaging from FishReveal in a single transducer, along with detailed C-MAP maps on a crystal clear IPS display. It provides the best-in-class live sonar resolution you can see in ActiveTarget 2.

The high-precision live sonar combines CHIRP and DownScan Imaging technologies with FishReveal technology in one transducer, providing an image comparable to that of an eagle radar during any type of fishing.

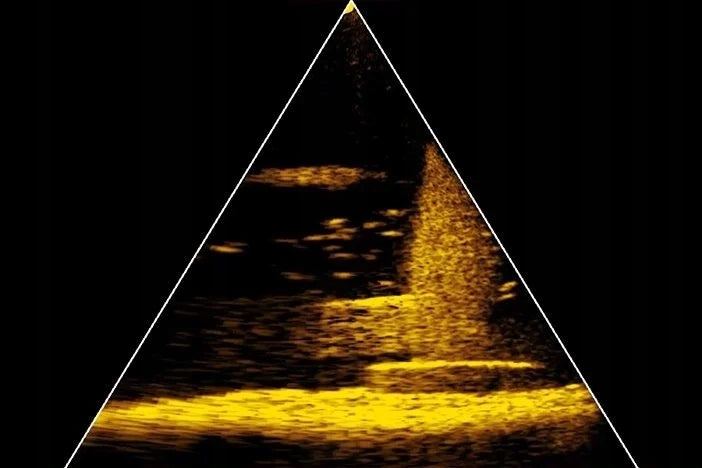

Live Sonar - Forward

See more clearly the terrain structure and fish in front of the boat, so you can plan your next throw perfectly.

Live Sonar - Down

Explore the depth and see more closely what’s right under your boat so you can cast the bait right onto the fish.

Sonar CHIRP

CHIRP sonar provides high-resolution imaging of individual fish, even if they are close to the bottom or form shoals.

DownScan imaging

With DownScan Imaging™ technology, it is easier to determine the relationship between fish and structure by providing images of rocks, trees and other underwater structures directly under the boat.

Genesis live

Explore your local waters better than anyone else with the ability to create custom, half-foot contour maps of your local lake or previously unknown waters in real time.

Discover fish

Eliminate the doubts of fish identification with FishReveal, which combines DownScan with CHIRP, providing unparalleled opportunities for separation and identification of targets.

New IPS screens

See clearly wherever you are with the new IPS screen that provides better resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.

TECHNICAL DATA

Display

• Backlight color
• Pure White LED
• Display Resolution - 1024x600
• Display Size - 9 inches
• Screen Brightness - 1000 NITS
• Viewing angles - 85° up/down, 85° left/right
• Connectivity - SD card memory 1 slot (maximum 32 GB microSD®)

Cartograph

• Supported charts - discover C-MAP® DISCOVER™.

Electrics

• Maximum power consumption - 650 mA at 12 V DC with full backlight
• Typical power consumption - 650 mA at 12 V DC with full backlight
• Recommended fuse rating - 3A
• Supply voltage - 12 V DC (10,8-17 V DC)

Environment

• Humidity - 66°C, relative humidity (RH) 95% for 48 hours
• Operating temperature range - from -15°C to 55°C (from 5°F to 131°F)
• Storage temperature range - -20°C to 60°C (from 4°F to 140°F)
• Waterproof - IPX7 with closed card door

GPS

• Correction - SBAS
• Time for the first repair - 45 seconds

MFD

• Cartography included - US C-MAP® inland maps covering more than 17 000 American lakes.
• Route points, routes, tracks - 3000 points of the route 100 routes 100 routes

Other

• Safe Compass - 12" (300 mm)
• Dimensions width. x H x D. - 287,2 mm (11,30") x 162,5 mm (6,39") x 90 (3,54)
• Mounting type - gimbal holder or dashboard mount
• Weight - 0,9 kg (1,98 lbs)
• Interface - Keyboard: 8-way Keyboard, Zoom +/- (MOB), Output, Enter, Menu, Route Point, Power Supply / Backlight

• width: 40
• height: 30
• depth: 15

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Lowrance
Parametry	Manufacturer code	000-16130-001
Parametry	Model	EAGLE EYE 9 LIVE
Parametry	Product weight with unit packaging	3 kg
Parametry	EAN (GTIN)	9420064131549
Parametry	Batteries included	no
