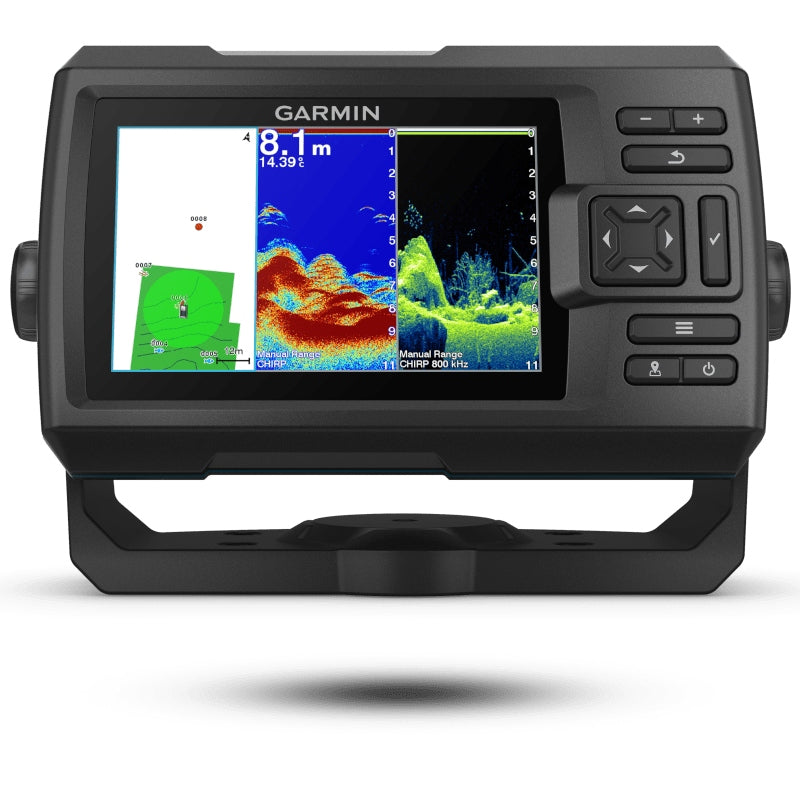

Echolotas Garmin STRIKER Vivid 5cv su GT20-TM davikliu

Trumpai apie prekę

Prekė: Echolotas Garmin STRIKER Vivid 5cv su GT20-TM davikliu. Kategorija: Echolotai.

• Gamintojas: Garmin
• Modelis: Striker Vivid 5cv z GT20-TM

Garmin Striker Vivid 5cv with GT20-TM ClearVU transducer Fishing echo sounder with GPS screen 5″ with industry-leading sonar technology and Quickdraw Contours software.

Specifications:

• Manufacturer: GARMIN
• Model: STRIKER VIVID 5CV
• Transducer: GT20-TM
• Manufacturer Code: 010-02551-01
• Waterproof Rating: IPX7
• Display Type: WVGA 5"
• Resolution: 800 × 480
• Transmit Power: 500 W (RMS)
• 4-Pin Transducer Ports: 1

Supported Frequencies:

• Traditional: 50/77/200 kHz CHIRP
• ClearVü: 260/455/800 kHz

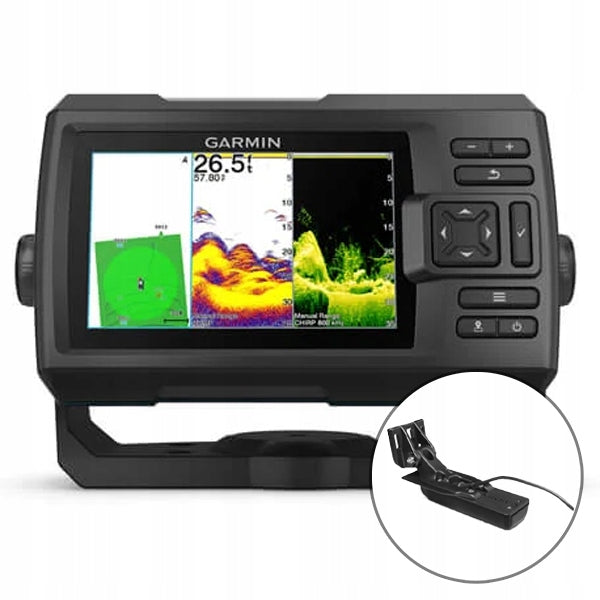

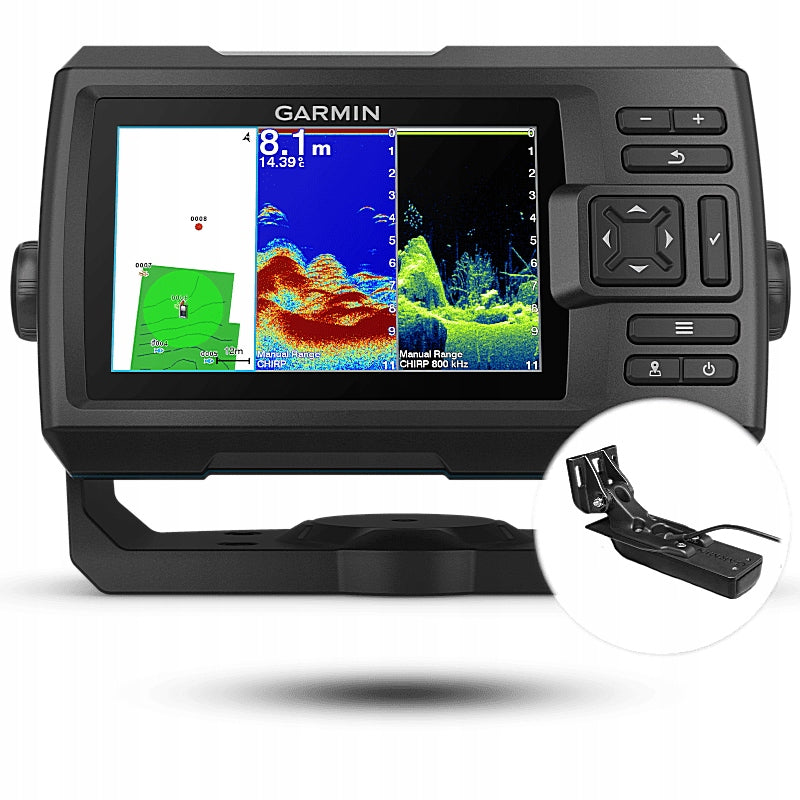

STRIKER Vivid 5cv with GT20-TM converter

• Clear and colorful image of the sonar - up to 7 new Vivid color palettes allow you to observe fish and objects underwater with maximum contrast and clarity on the 5-inch sonar.
• Built-in sonar - use the included GT20 transducer to get the function of a traditional Garmin CHIRP sonar and CHIRP ClearVü scanning sonar.
• Marking points - to catch more fish, you need to know where they take. Mark your seats with points and come back to them whenever you want.
• Highly sensitive GPS - plan and create routes and watch the speed of the boat on your fishing echo sounder using a very sensitive GPS module.
• Quickdraw - no one knows the waters you fish in better than you do. In the STRIKER Vivid 5cv fishing echo sounder you can store up to 8000 km² of maps with 30 cm isobaths.
• Included equipment - included with the STRIKER Vivid 5cv fishing echo sounder is a tilt-turn handle and a transom mounting kit with a cable.

Technical data:

• Physical dimensions: 18.8 x 11.6 x 5.4 cm
• Weight: 0.5 kg
• IPX7 waterproof rating
• Display type WVGA colour
• Display dimensions, width. x H 5″
• Display resolution, width. x H 800 x 480 pixels
• Built-in GPS: Yes
• Transducer Water Temperature Sensor: Yes
• Supply Voltage 10-20V DC
• Current consumption (12 V): 0,40 A
• Operating temperature -15°C to +55°C

Sonar Features and Technical Data:

• Dual-Frequency Sonar Support: Yes
• Dual-Beam Sonar Support: Yes
• Supported Frequencies

  Traditional: 50/77/200 kHz CHIRP (mid and high frequencies)

  ClearVü: 260/455/800 kHz

• Transmit Power: 500 W (RMS)
• Flaw Detection (displays signal reflected from the bottom): Yes
• Water Temperature Logging and Charting: Yes

Functions of the fishing echo sounder

• Magnification on one part of the split screen: Yes
• Ultrascroll™ (displaying fish shoals at higher boat speed): Yes
• Fish Symbol ID (supports fish search and marks them): Yes
• AutoGain technology (minimizes interference, maximizes target discrimination): Yes
• Depth line adjustment (measurement of depth of underwater objects): Yes
• A-scope (real-time display of fish flowing through the transducer beam): Yes
• Route Point Marking: Yes
• Course Over Bottom (COG): Yes

Contents of the set:

• Fishing sounder STRIKER Plus 5cv
• Transducer GT20-TM (with transom mount)
• Tilt-turn handle for sonar
• Transducer mounting on electric motor
• Power cord with fuse
• Bumper sticker
• User manual

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Garmin
Parametry	Manufacturer code	010-02551-01
Parametry	Model	Striker Vivid 5cv z GT20-TM
Parametry	Product weight with unit packaging	2 kg
Parametry	EAN (GTIN)	753759268329
Parametry	Batteries included	no
Parametry	Packaging status	original
