Dyzelinis pjūklas NAX 200C su 37cc Briggs&Stratton varikliu

Trumpai apie prekę

Prekė: Dyzelinis pjūklas NAX 200C su 37cc Briggs&Stratton varikliu. Kategorija: Grandininiai pjūklai.

• Gamintojas: NAX
• Modelis: NAX 200C

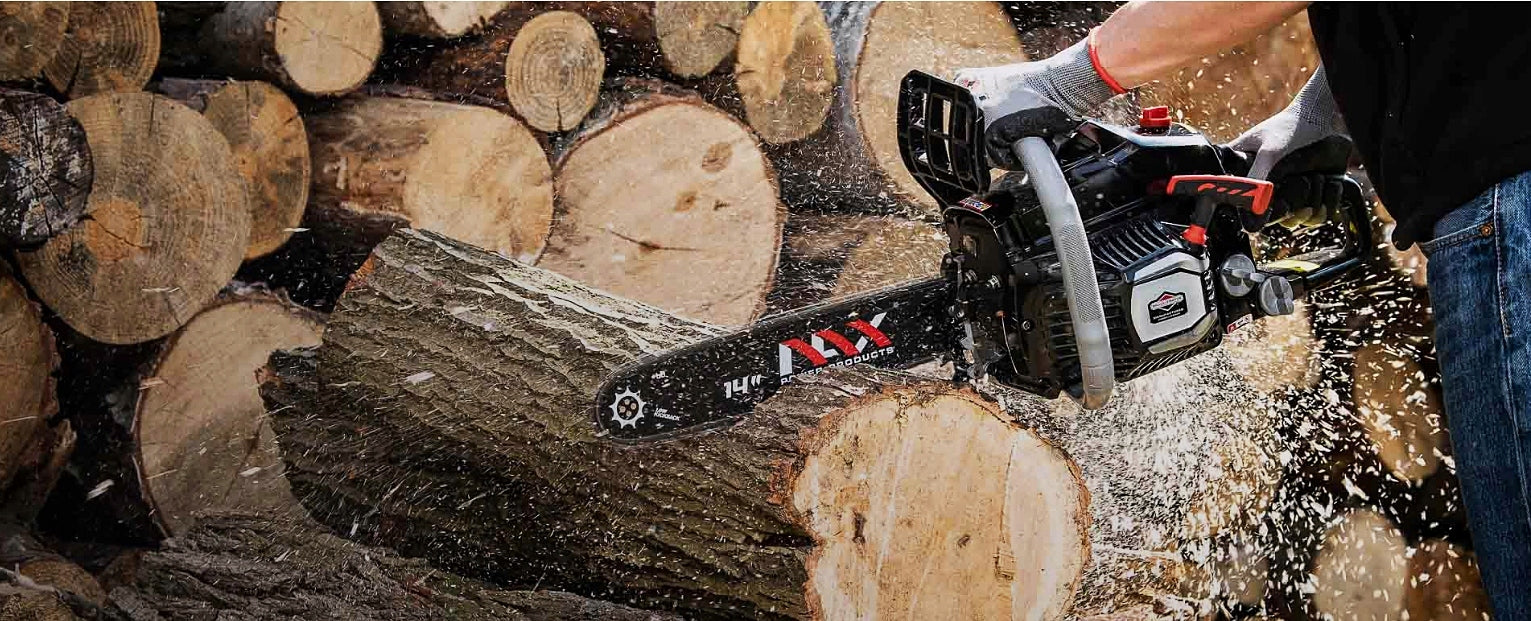

The NAX 200C combustion saw is a practical device designed for garden work, cutting firewood, branches and small cleaning works around the house. The model is equipped with a two-stroke engine with a capacity of 37 cm³, made under the Briggs&Stratton license.

Thanks to the 14” / 35 cm guide and the 3/8” pitch chain, the saw ensures comfortable and effective work when cutting wood. The compact design and weight of 5,5 kg make the device comfortable to use.

The most important features of the product:

• Two-stroke engine TT-1E39F BS series
• Licensed by Briggs&Stratton
• Engine capacity: 37 cm³
• Rated power: 1,2 kW at 8500 rpm /min
• Guide: 14” / 35 cm
• Chain: 3/8”, 1,3 mm, 52 links
• Maximum chain speed: 19 m/s
• Fuel tank: 0,31 l
• Fuel Blend: 1:40
• Weight: 5,5 kg

Technical parameters:

• Model: NAX 200C
• Engine: two-stroke TT-1E39F BS series
• Engine displacement: 37 cm³
• Rated power: 1,2 kW at 8500 rpm /min
• Maximum torque: 1,4 Nm at 6500 rpm /min
• Maximum engine speed: 10300 rpm /min
• Idle speed: 3000 rpm /min
• Gear: 6T x 3/8”
• Chain pitch: 3/8”
• Chain thickness: 1,3 mm
• Number of chain links: 52
• Guide length: 14” / 35 cm
• Maximum chain feed speed: 19 m/s
• Fuel tank capacity: 0,31 l
• Recommended fuel mixture: 1:40, or 100 ml of oil for two-stroke engines per 4 l of gasoline
• Weight: 5,5 kg

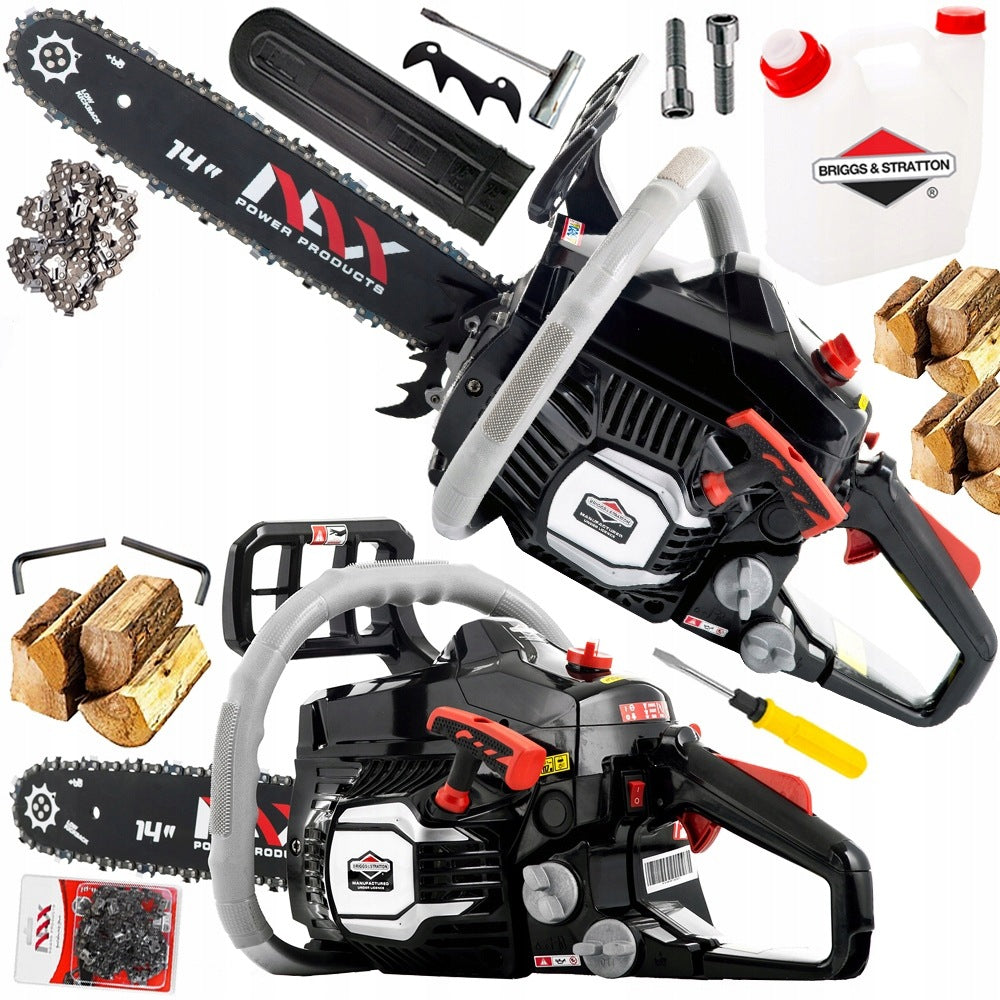

The set includes:

• NAX 200C combustion saw
• Guide
• Chain
• Guide guard
• Round file for sharpening the chain
• Container for preparing fuel mixture
• Accessories and mounting keys
