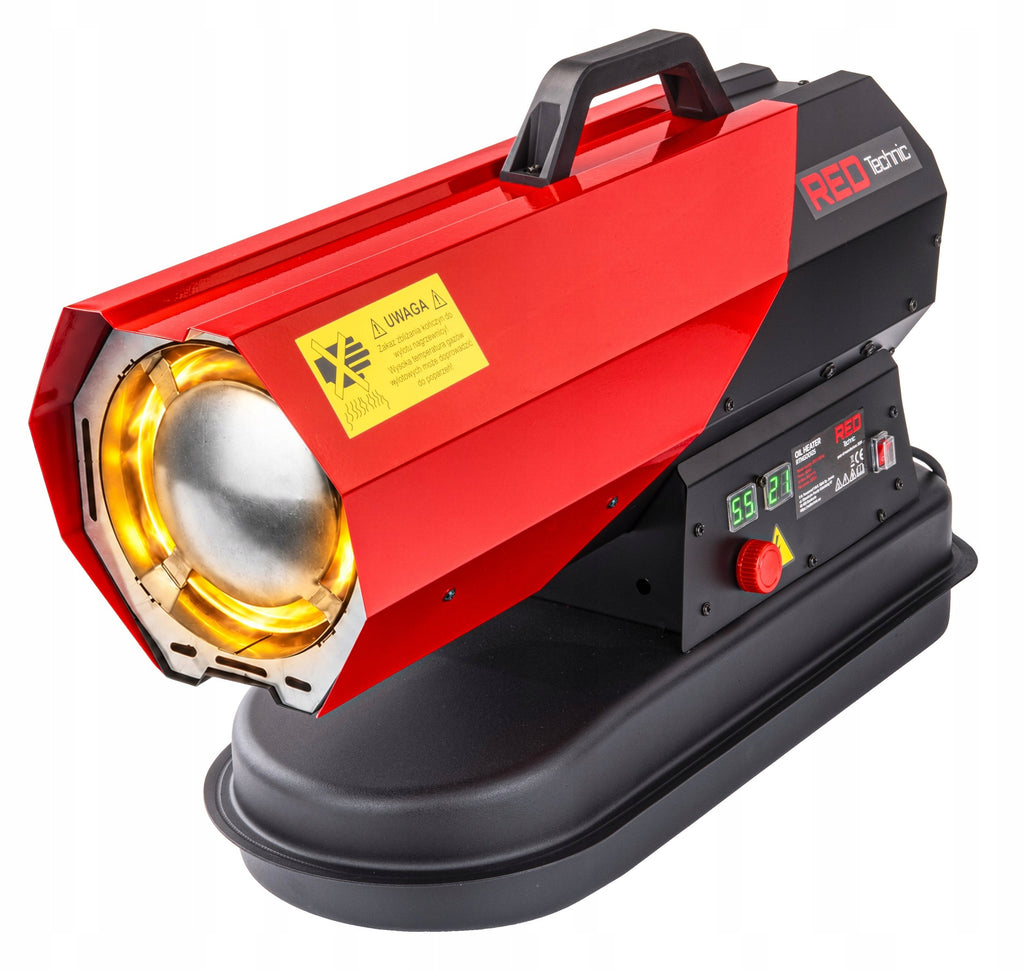

Dyzelinis oro šildytuvas 30 kW su termostatu ir LCD ekranu

Trumpai apie prekę

Prekė: Dyzelinis oro šildytuvas 30 kW su termostatu ir LCD ekranu. Kategorija: Oro šildytuvai.

• Gamintojas: RED TECHNIC
• Modelis: RTNGO0125

POWER 30 kW | BLOWING 850 m³/h | THERMOSTAT WITH LCD | TANK 12 L

Model: RTNGO0125

With an oil heater, you can heat a workshop, warehouse or hall with proper ventilation. You gain 30 kW of power, a heat distribution blower and a thermostat with a digital display to set the temperature. The built-in tank and transport handle make it easy to use the device in various places where you have access to 230 V power.

⚫ COLD IN THE WORKSHOP?

▪ You gain 30 kW of heating power and blowing 850 m³/h, which distributes heat.

▪ You choose the temperature on the thermostat and ensure proper ventilation of the workplace.

🔴 WHY CHOOSE OUR HEATER?

🔻 POWER FOR HEATING THE WORKING SPACE

You can use 30 kW of heating power to heat a hall, warehouse or workshop with proper ventilation. You gain a heat source to places where you need to raise the temperature during operation.

🔻 HEAT DISTRIBUTED BY BLOWER

A fan with a flow rate of 850 m³/h directs heated air into the environment. You benefit from a forced circulation that helps distribute heat throughout your workspace.

🔻 TEMPERATURE SET ON THE PANEL

The thermostat with digital display allows you to choose the temperature from 5 to 55°C. You adjust the setting to your needs using the regulator placed on the device.

🔴 WHY DOES THIS MODEL STAND OUT FROM THE REST?

🔻 FUEL LEVEL READING

This model offers an external fuel level indicator. You check the condition of the tank to plan its replenishment.

🔻 CARRYING HANDLE

You have a transport handle at your disposal. It makes it easier for you to move the heater when you are done working and the device cools down.

🔻 TWO TYPES OF FUEL

You can use diesel or light fuel oil. You choose fuel from two approved types.

🔴 HEATING POWER 30 kW FOR WORKSPACES

When heating, you use power 30 kW. You can use the device in a workshop, warehouse or hall, where you need to raise the air temperature.

The condition for use is ensuring proper ventilation. Before choosing a workplace, take into account both the need for heating and the conditions of use of the combustion heater.

🔴 BLOWING 850 m³/h HEAT DISTRIBUTION

The 5-blade fan is responsible for moving the heated air. The flow rate of 850 m³/h supports heat distribution in the environment of the device.

The air leaves the heater through a outlet with a diameter of 20,5 cm. You gain forced blowing, which transfers heat outside the heater housing.

⚫ TAKE CARE OF THE CONDITIONS FOR YOUR WORK

Prepare your workshop for cooler days with blowing heating. Select the temperature you need using the thermostat with display.

🔴 TECHNICAL DATA

• Heating power: 30 kW
• Fan power: 200 W
• Power supply: 230 V / 50 Hz
• Airflow: 850 m³/h
• Number of fan blades: 5
• Fuel tank capacity: 12 l
• Average fuel consumption — declared value: 1,6 l/h
• Type of fuel: Diesel or light fuel oil
• Thermostat setting range: 5 –55°C
• Degree of protection of the regulator: IP44
• Warm air outlet diameter: 20,5 cm
• Dimensions: 690 × 260 × 410 mm
• Weight of the device: 11,15 kg
• Weight with unit packaging: 12,5 kg

🔴 CONTENTS OF THE SET

• Oil heater RED Technic RTNGO0125
• User manual
• Original packaging

⚫ CHOOSE HEATING FOR YOUR WORKSHOP

Choose 30 kW of heating power and blowing 850 m³/h for heating the working space. Ensure proper ventilation and access to 230 V power supply.

🔴 USE IN WORKSHOPS, HALLS AND WAREHOUSES

You can use the oil heater to heat workshops, production halls and warehouses. It will also work well in economic buildings and during renovation and construction works when you need to raise the temperature in the workspace.

The power of 30 kW and the 850 m³/h blower allow you to supply and distribute warm air. At the place of use, provide correct ventilation and access to 230 V power supply.

🔴 12 L TANK WITH LEVEL INDICATOR

You replenish the fuel in a built-in tank with a capacity of 12 l. You check its level using the external indicator.

Reading helps you schedule fuel replenishment before the next startup. In this way, you control the fill state of the tank, without treating the indication as a guarantee of uninterrupted operation.

🔴 THERMOSTAT WITH DIGITAL DISPLAY

Using the controller, you select the set ambient temperature. The available setting range is 5 – 55°C.

Reading the value is facilitated by the digital display placed on the device panel. The indicated range is for the setting of the thermostat, not the temperature of the air leaving the outlet.

🔴 TRANSPORT HANDLE AND COMPACT DIMENSIONS

The 690 × 260 × 410 mm enclosure allows you to plan the storage space of the device. The transport handle is used to carry it.

When organizing transport, you take into account the weight of the heater 11,15 kg. You change the place after turning off and cooling the device.

⚫ KNOW WHAT YOU NEED FOR WORK

▪ You choose oil heating with temperature control and built-in tank.

▪ You provide adequate fuel, 230 V power supply and proper ventilation.

⚫ FAQ

▪ DOES THE OIL HEATER NEED TO BE CONNECTED TO ELECTRICITY?

Yes. The device requires a power supply of 230 V / 50 Hz and appropriate fuel. Simply filling the tank is not enough to start it.

▪ WHAT FUEL CAN BE USED?

Diesel or light fuel oil is intended for this model. The tank has a capacity of 12 l.

▪ CAN I USE THE HEATER IN A WORKSHOP OR WAREHOUSE?

Yes, provided that proper ventilation is ensured. The device is designed, among others, for heating workshops, warehouses and halls.

▪ WHAT TEMPERATURE CONTROL RANGE DOES THE THERMOSTAT OFFER?

You can set the set temperature in the range of 5 to 55 ° C. This is the thermostat setting range, not the air temperature at the heater outlet.

▪ WHAT DO I GET IN THE SET?

The kit includes an oil heater RED TECHNIC RTNGO0125, user manual and original packaging.
