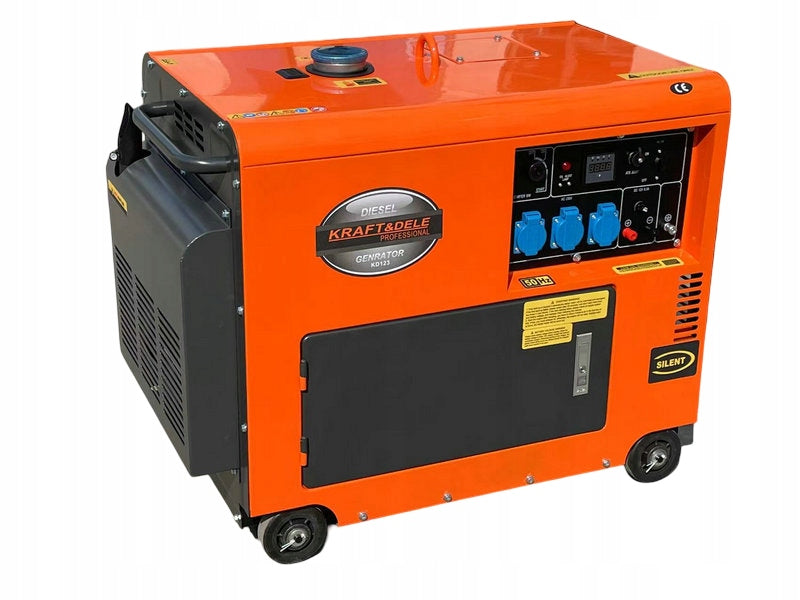

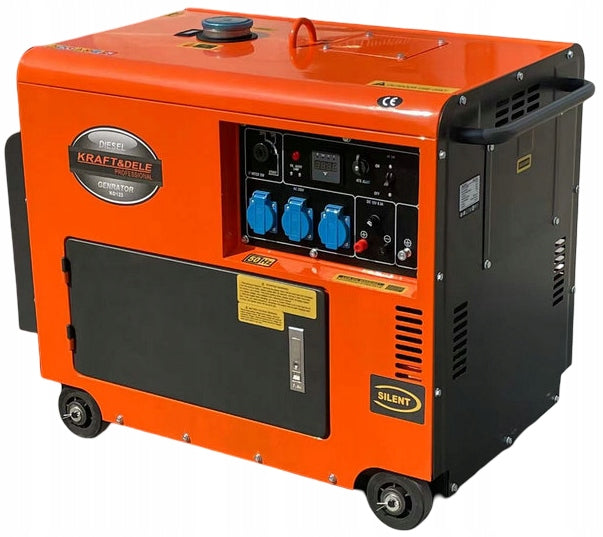

Dyzelinis generatorius 7 kW, 230V, 10 AG, su ATS, vienfazis

Trumpai apie prekę

Prekė: Dyzelinis generatorius 7 kW, 230V, 10 AG, su ATS, vienfazis. Kategorija: Elektros generatoriai.

• Gamintojas: Kraft&Dele
• Modelis: KD123
• Įtampa: 230 V

Efficient generator set KRAFT&DELE brand, designed for reliable power supply of single-phase installations and devices requiring a stable energy source.

The built-in, quiet design effectively reduces noise levels and protects key components, making the unit perfect for industrial, construction and emergency power applications.

The model offers a power of 7 kW . It is equipped with 3 sockets 230V, and additional output DC 12V 8,3A. The unit has an electric start, voltmeter, safety switch and ATS socket.

The Automatic Power Switch (ATS) is included and comes in a separate package, allowing for convenient integration into your electrical system.

AUTOMATIC SYSTEM - ATS

This system enables automatic start of the unit in the event of a power outage in the network, after the power returns, the unit automatically turns off.

TECHNICAL DATA

• Model: KD123
• ⚙ Phases: 1
• ⚙ Voltage: 12/230 V 50/60 Hz
• ⚙ Engine: Air cooled diesel, power 7500 W
• ⚙ Generator power: 7000 W
• ⚙ Fuel consumption: 0,98 l/h
• ⚙ Fuel tank capacity: 10 L
• ⚙ Outputs: 3x 230V, 1x 12V 8,3A
• ⚙ Start: Mechanical and Electrical (ATS)
• ⚙ Additional Features: Voltmeter, fuel level indicator, 12V 8,3A rectifier
• ⚙ Dimensions: 920x550x680 mm
• ⚙ Weight: 165 kg

PRODUCT FEATURES:

✅ 1 phase generator set – 230V power supply

✅ Maximum power 7 kW

✅ Built-in, quiet design – reduced noise level

✅ Electric start – quick and convenient start-up

✅ 3x socket 230V and 1x socket 12v

✅ DC connector 12V 8,3A – additional auxiliary power supply

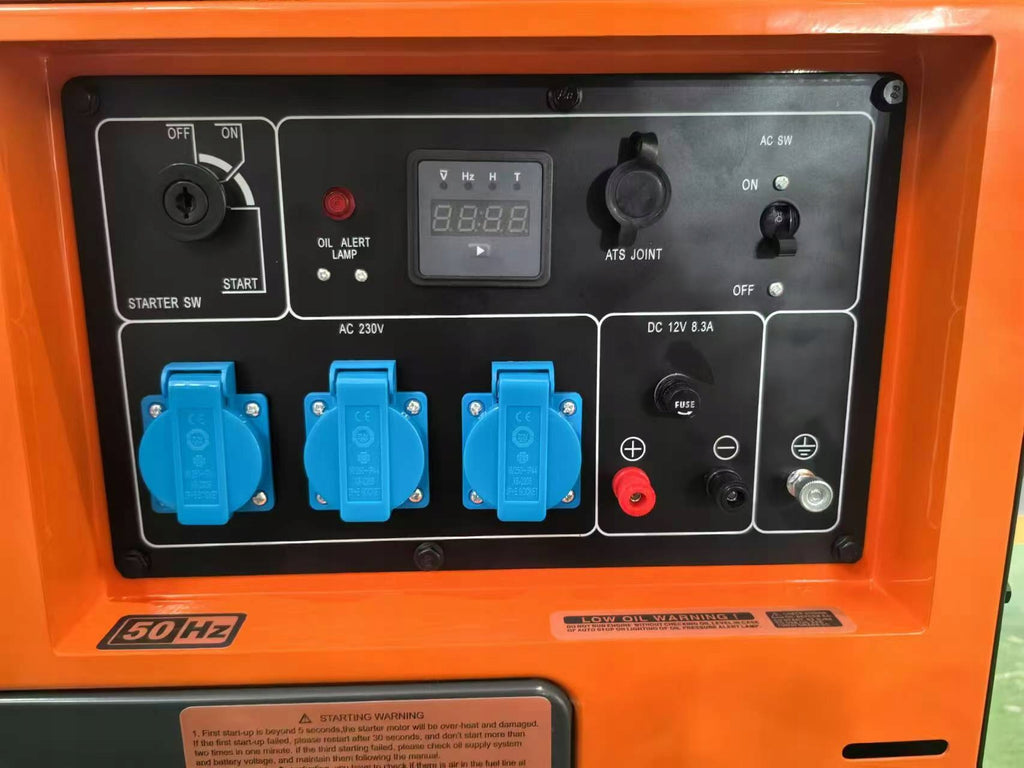

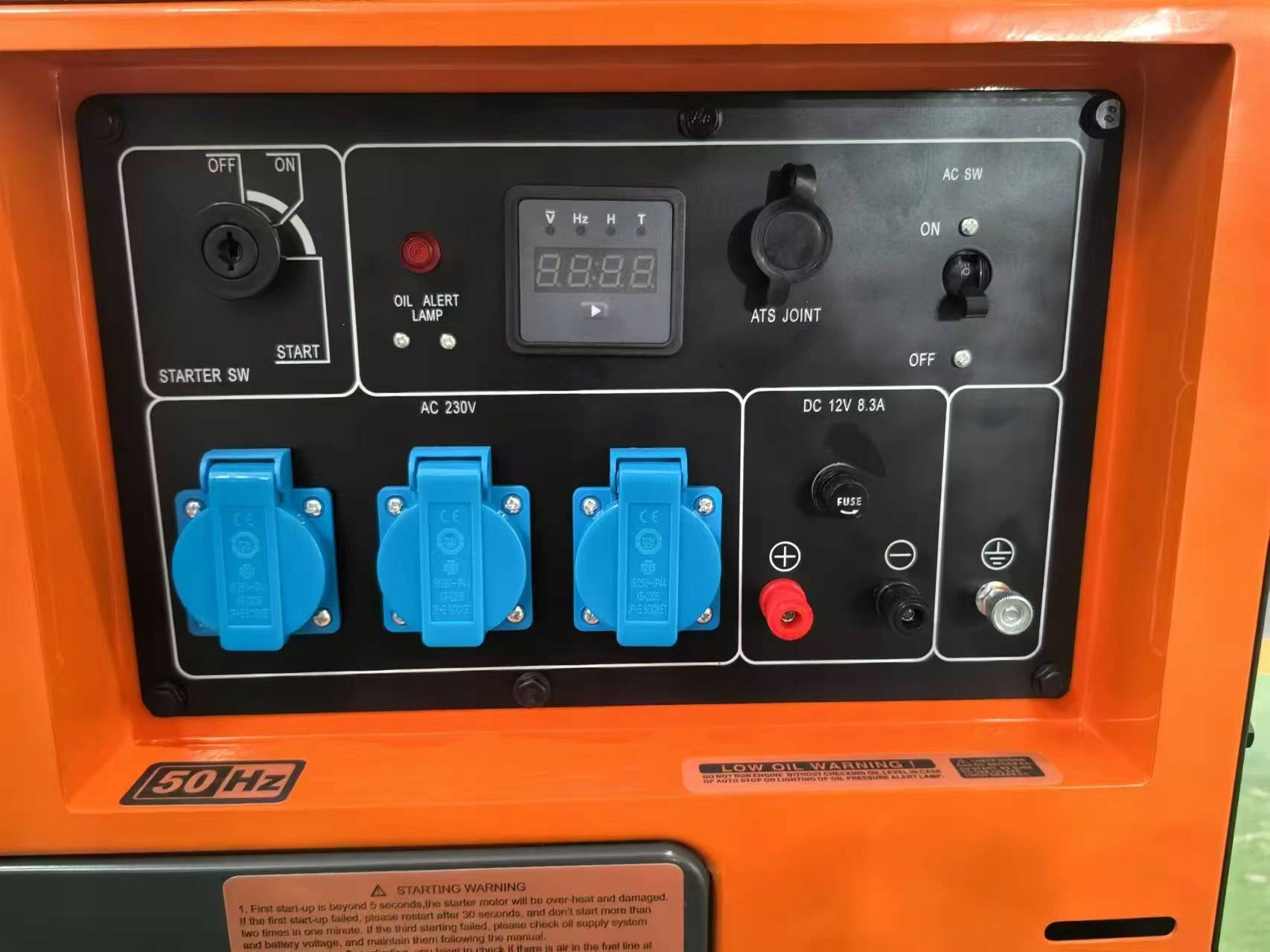

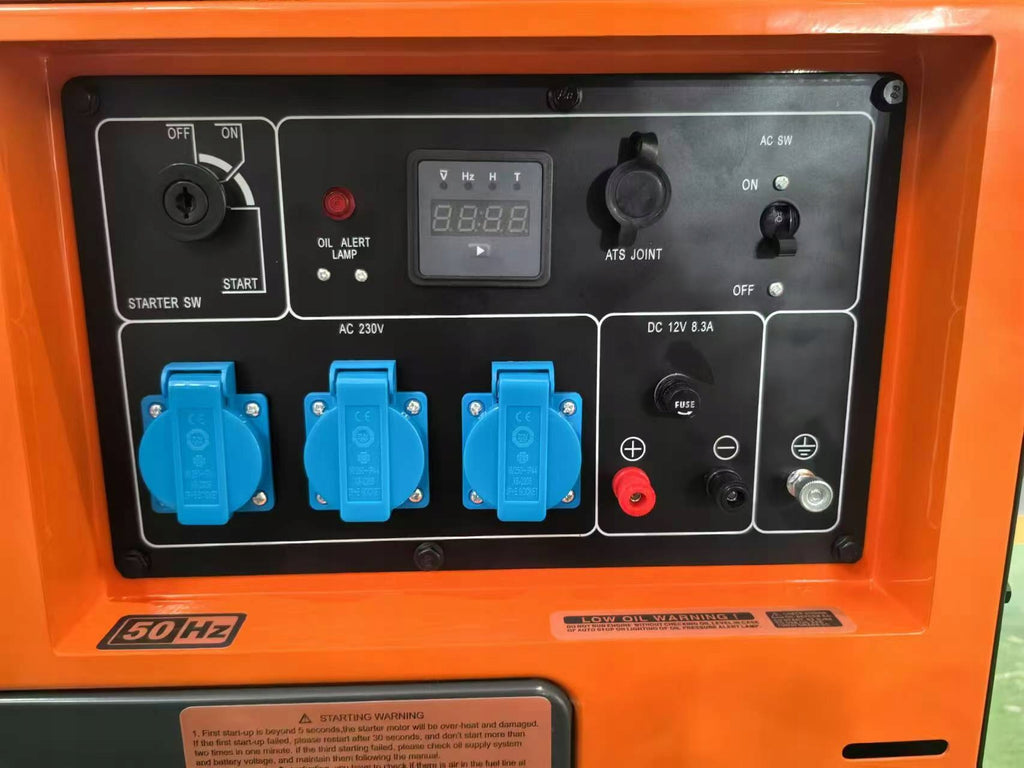

✅ Built-in voltmeter – current voltage control

✅ Safety switch – increased user protection

✅ ATS socket – possibility of automatic switching of power supply

Professional power generator powered by high-end high-power disel motor. It is a reliable solution that will protect your home, farm, or business with energy, perfect for construction sites. It will easily power tools, construction machinery (betony machine, welding machine), lighting, many types of electrical equipment.

A big advantage is the mobility of the generator, which has castors. It is worth emphasizing the great comfort of the device. Steel generator housing

Solid, Powerful Engine

The robust 1-cylinder, 4-stroke diesel engine delivers a high power output of 10 HP and features an electric start, guaranteeing reliable performance!

Copper Wound Engine!

The generator - stator and rotor - are made from the highest quality copper with excellent electrical conductivity.

This results in improved working efficiency and reliability, significantly extending the service life of the device.

Startup: E-Start from the ignition

The generator is started by automatic start, using a key. A starter power battery is included.

• ✔ High operating efficiency – power of 7 kW allow you to power multiple devices at the same time
• ✔ Stable voltage – the voltage stabilization system used enables safe power supply to sensitive electronics
• ✔ Diesel engine – economical operation, high durability and adaptation for long-term use
• ✔ Electric start-up – convenient and fast start-up of the device
• ✔ Automatic Power Switch (ATS) is included in the kit and comes in a separate package, allowing for convenient integration into the electrical system.
• ✔ Built-in housing – noise reduction and protection of internal components

ADVANTAGES:

✅ The highest quality of workmanship, meeting strict quality standards

✅ Short-circuit protection C25

✅ Amperemeter indicating current consumption

✅ DC socket 12V 8,3A

✅ Suitable for SZR automation system (ATS)

✅ Digital display of parameters: frequency, voltage, operating time

✅ Quiet and even engine operation

✅ Cast iron and hardened piston

✅ Full voltage stabilizer AVR

✅ ATS system and electrostart

✅ Meets TUV, CE, GS safety standards

✅ Four rubber bearing wheels for easy transport
