Pristatymo terminas kiekvienai prekei nurodomas prie kainos bloko.
Pristatymas visoje Lietuvoje: nemokamas.
Trumpai apie prekę

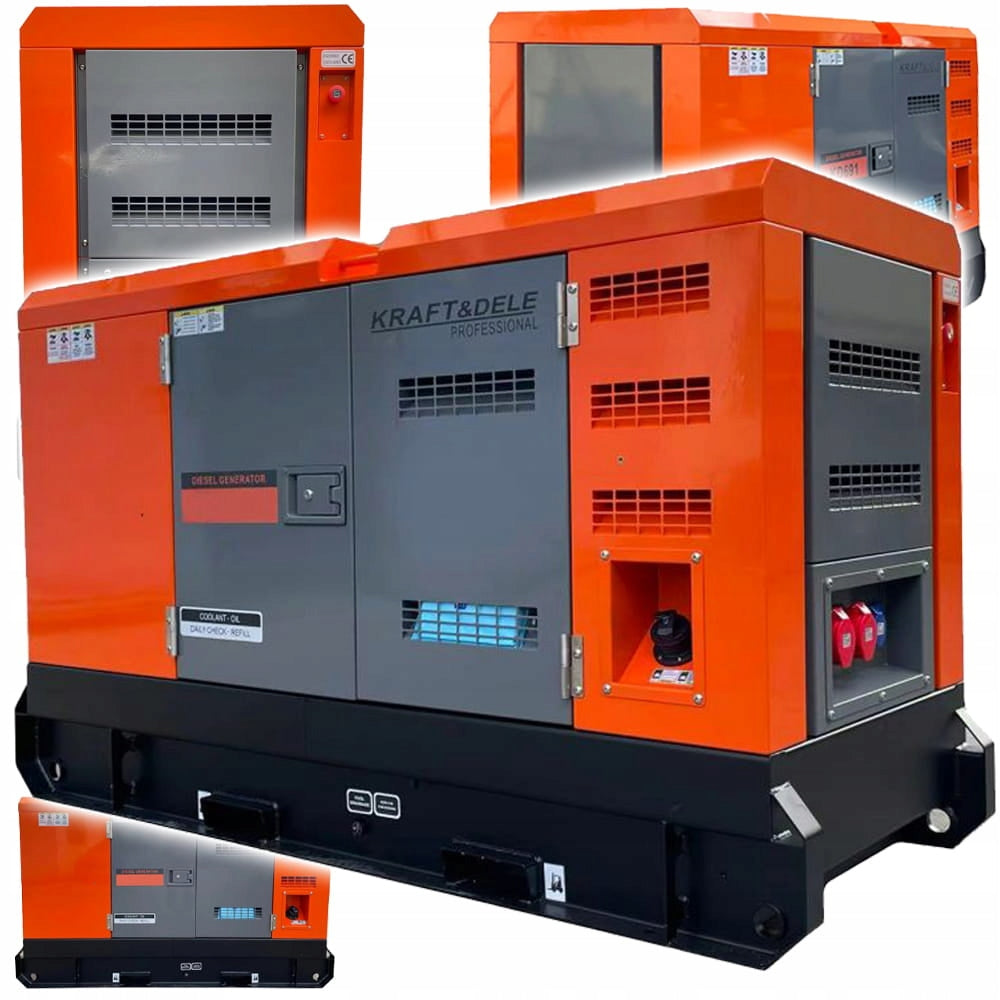

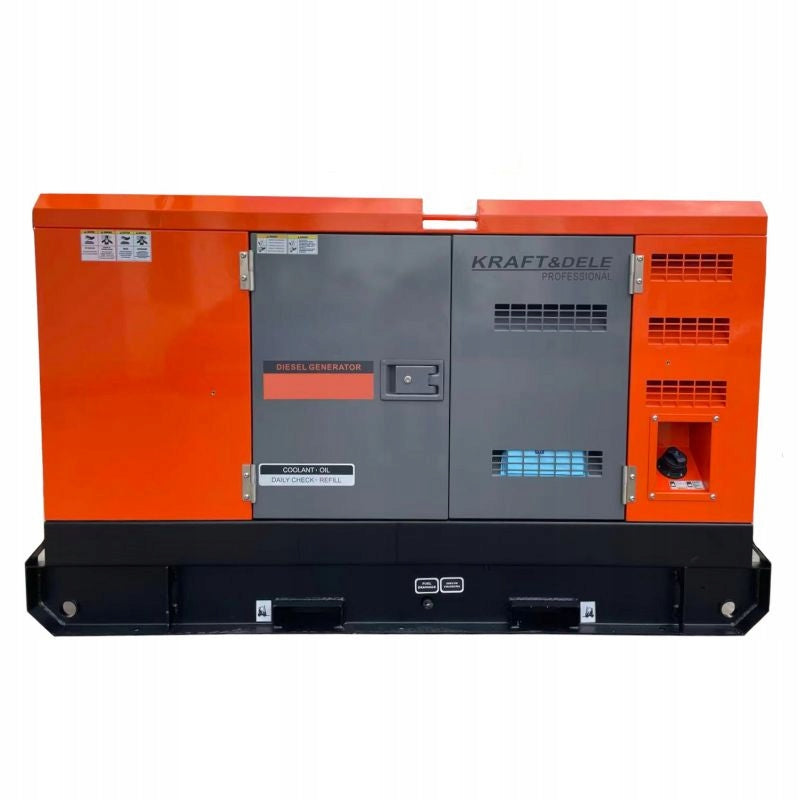

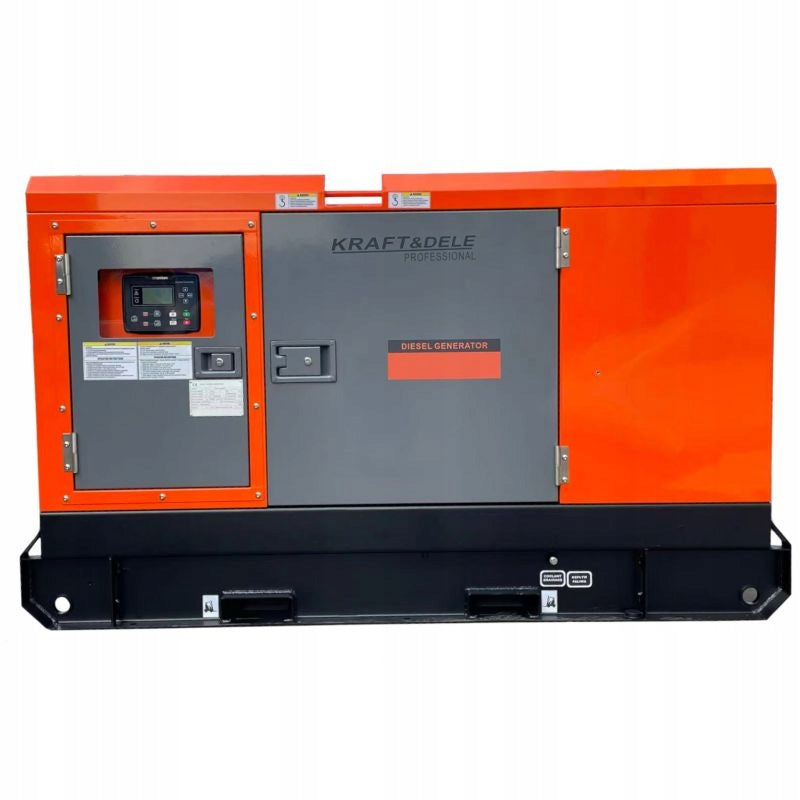

Prekė: Dyzelinis generatorius 25 kW, 4 cilindrai, vandeniu aušinamas, trifazis. Kategorija: Elektros generatoriai.
- Gamintojas: Kraft&Dele
- Modelis: KD690
- Įtampa: 400 V
POSSIBILITY OF FIRING THE INSTALLATION
- Model: KD690
- Manufacturer: KRAFT&DELE
✅High quality KRAFT&DELE generator set. It is designed to generate 220/380V current using a HEAVY DUTY four-cylinder internal combustion engine with a power of 23/25,3 kW.
✅Device for professional, industrial applications; ideally suited for use in the company, farm, construction site, catering establishment, single-family house and many others.
✅Aggregate made of the highest quality materials, with great attention to detail and safety.
- Frequency: 50 Hz
- Rated output power (kW): 23/25,3 kW
- Rated Output Power (kVA): 28,75/31,63 kVA
- Voltage: 220/380 V
- Shift speed: 1500 r/min.
- Number of phases: 3
- Power factor (φ): 0,8
- Insulation class: IP23
- Socket: 16Ax2, 32Ax2
- Contact socket: YES
- Voltage Stabilizer: YES
- Fuel tank capacity: 50 L
- Operating time at full tank: 8h
- Noise level: 66 dB
- Startup: electric
- Engine model: HEAVY DUTY, 4-stroke
- Number of cylinders: 4
- Diameter of stroke (mm): 90x100 mm
- Cooling: water and air
- Lubrication: Oil 8l
- Type of oil: 15W-40
- Cooling water tank capacity: 2,5L
- Fuel consumption: 230 g/kWh
- Weight: approx. 840 kg
- Dimensions: 2100x850x1200mm
✔ The device uses an air or water cooling system.
✔ The air-cooled system consists of a high-efficiency fan that pulls cool air through the engine to cool it.
✔ The water-cooled system consists of a heater, fan, pusher and thermostat.
The alternator has its own internal fan for cooling alternator components. The capacity of the cooling water tank is 2,5L.
✔ The unit has a very efficient and powerful 4-stroke HEAVY DUTY engine designed for industrial applications, with a power of 23-25,3kW with compression ignition.
✔ The use of this type of diesel engine with 4 cylinders, guarantees high efficiency in generating electric current and reliability and safety.
The unit is three-phase, has overload protection and electric start.
The speed change function used in the generator provides many advantages:
- ✔ increases the life of the device by reducing engine wear,
- ✔ efficiently manages fuel and is economical in operation,
- ✔ is environmentally friendly
- ✔ protected against possible failures and damage.
- ✔ has a switch for economical operation
- ✔ produces electric current with clean, smoothed sine wave
✔ The Super Quiet generator housing is designed to provide a high degree of sound attenuation.
✔ It is made of sheet metal with a thickness of 12 or 14, ensuring maximum rigidity.
It has 4 lockable hinged doors that allow easy access to routine operation and to the components of the unit.
1. ✔ Emergency power supply
- For single-family houses, farms and small businesses in case of power outage.
- In facilities such as hospitals, offices or data centers, where continuity of power supply is crucial.
2. ✔ Power supply for commercial buildings
- Workshops, warehouses or production halls requiring high power to operate electrical equipment.
- Temporary power supply at construction sites (e.g. for heavy equipment, lighting or tools).
3. ✔ Supporting production systems
- Power supply for industrial machinery and production lines where 3-phase power (380 V) is required.
4. ✔ Field power
- Organization of outdoor events (e.g. concerts, festivals) requiring lighting, sound system or catering equipment.
- Field use by emergency services, military, fire brigade or other services in rescue operations.
5. ✔ Farm work
- Powering agricultural equipment such as grain dryers, irrigation systems or cold stores.
6. ✔ Refrigeration systems
- Maintenance of cold stores or freezers in the food and transport industry.
7. ✔ Mobile use
- Mounted on a trailer, it can be transported to places where there is no access to the power grid.
8. ✔ Energy independence
- As part of a power system in facilities that do not have access to the electrical grid (e.g. remote farms, cottages).
9. ✔ Technical work
- Powering tools and electrical appliances during repairs or repairs in places without access to energy.
10. ✔ Emergency power for large systems
- Temporary power supply to the grid in industrial plants or critical installations when servicing the main power source.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Kraft&Dele |
| Parametry | Model | KD690 |
| Parametry | Kind | stationary |
| Parametry | Generator type | three-phase |
| Parametry | Engine | 4-stroke |
| Parametry | Startup | electric |
| Parametry | Maximum power | 25300 W |
| Parametry | Nominal power of the alternator | 23000 W |
| Parametry | Gasoline tank capacity | 93 l |
| Parametry | Device weight | 840 kg |
| Parametry | Fuel type | diesel fuel |
| Parametry | Frequency | 50 Hz |
| Parametry | Operating time on the tank | 8 h |
| Parametry | Lc IEC noise level | 66 dB |
| Parametry | Product height | 120 cm |
| Parametry | Product width | 210 cm |
| Parametry | Product depth | 85 cm |
| Parametry | Supply voltage | 400 V |
| Parametry | Manufacturer code | KD690 |
| Parametry | Product weight with unit packaging | 840 kg |
