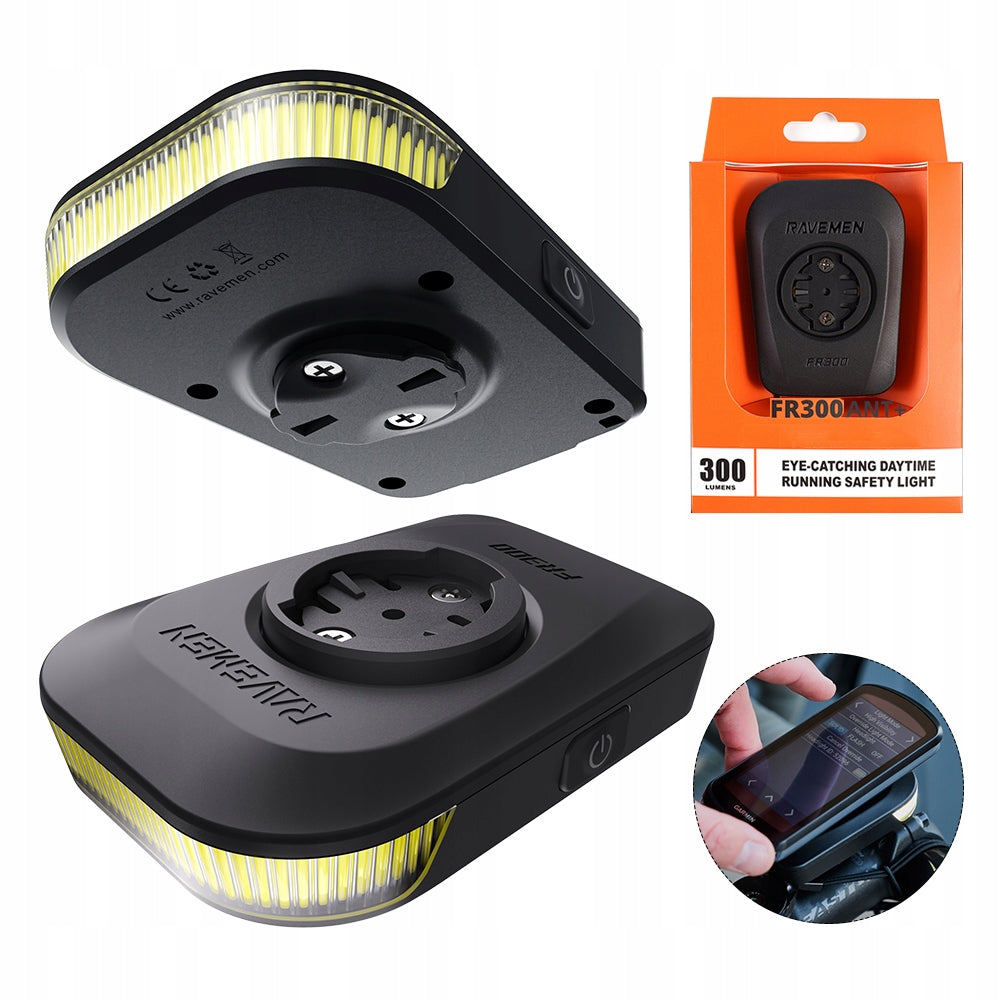

Dviratinė priekinė lempa Ravemen FR300ANT+ COB, USB-C, IPX6, 300 lm

Trumpai apie prekę

Prekė: Dviratinė priekinė lempa Ravemen FR300ANT+ COB, USB-C, IPX6, 300 lm. Kategorija: Apšvietimas.

• Gamintojas: Ravemen
• Modelis: FR300ANT+
• Svoris: 75 g
• Spalva: black

✅ Target users: Riders who mainly ride in daytime, need no lighting function and only want to improve their visibility

✅ Applicable weather: All-day & all-weather — daytime, dusk, night, rain, fog, snow

✅ Applicable scenarios: Full coverage of urban roads, rural roads and suburban roads

⚠️ Important note: This product is a daytime running warning light with NO road lighting function, cannot be used to illuminate the road ahead at night❌

• Warning light: Passive visibility, designed to be seen by others, light is more diffused to ensure detectability in all environments

• Lighting light: Active visibility, designed to see for yourself, light is more concentrated for better observation of road conditions ahead

⚠️ Important note: The light must be used with a bike computer mount with Garmin standard. Before purchase, please confirm you have a usable mount for installation

⚠️ Important note: The light requires a touchscreen Garmin bike computer to realize ANT+ wireless control function

➡️ Product Specifications

Product name: RAVEMEN FR300 ANT+

Light source type: COB LED

Maximum brightness: 300 lm

Battery capacity: 1200 mAh

Charging time: 1.8 h

Charging interface: USB‑C

Waterproof rating: IPX6

Product dimensions: 82 mm * 60 mm * 25.5 mm

Product weight: 75 g

Product certifications: CE, RoHS

Special functions: Stackable bike computer mount, 270° wide viewing angle, auto on/off, power bank function, ANT+ connection to bike computer

Mode / Lumen / Runtime

• High: 200 lm | 4 h

• Medium: 100 lm | 7.5 h

• Low: 50 lm | 14.5 h

• Warning flash: 300 lm | 9 h

• Quick flash: 100 lm | 12.5 h

• Slow flash: 100 lm | 24 h

➡️ Why use a warning light?

Insufficient visibility is the main cause of accidents

Core safety values of FR300 ANT+:

• All-day visibility improvement: Be detected early in sunny / cloudy / rainy / foggy weather

• Reduce intersection risks: Most collisions happen at intersections, light greatly improves recognition rate

• Reduce side collisions: 270° wide viewing angle, greatly improves side warning effect

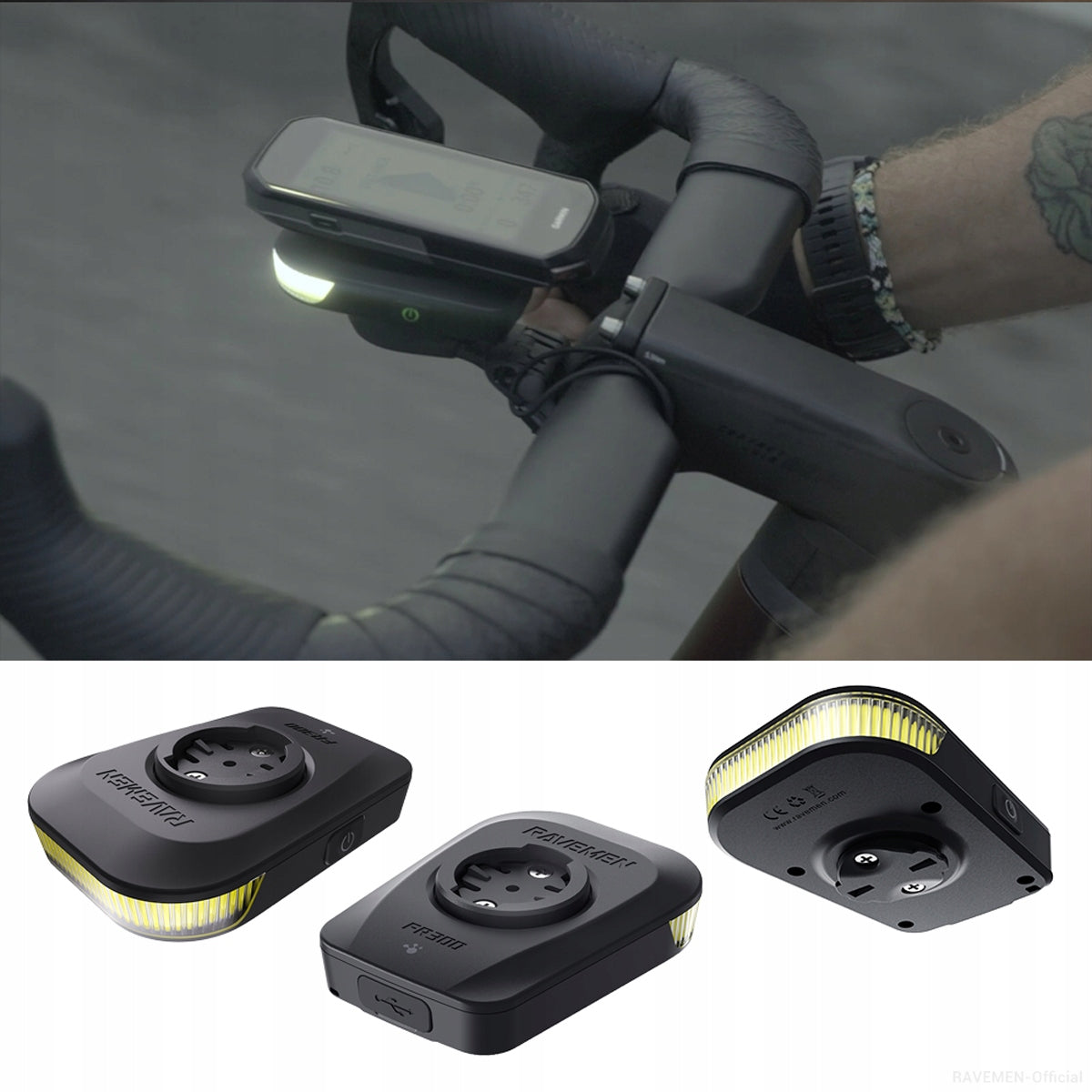

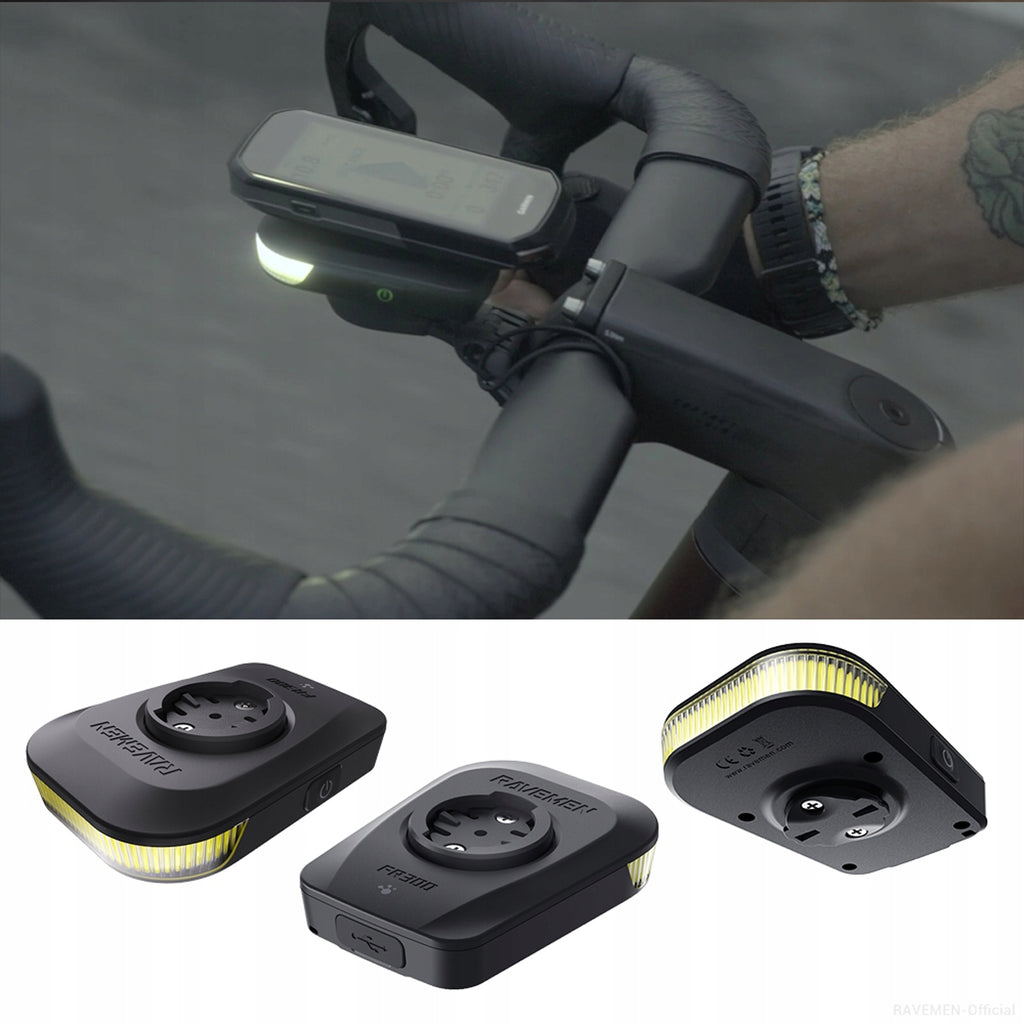

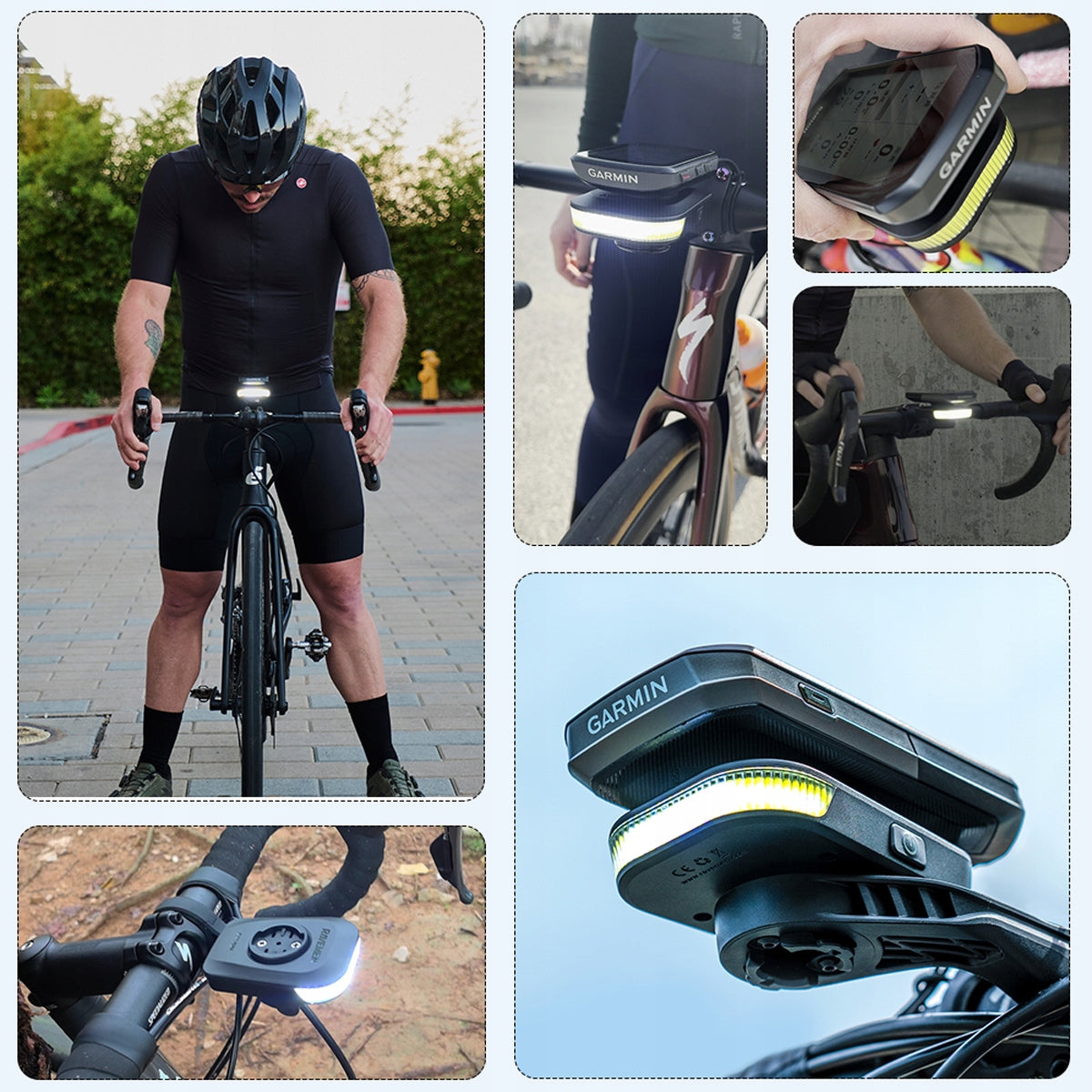

➡️ Stackable Bike Computer Design

The light features standard Garmin mounts on top and bottom, supporting direct stacking of bike computers with the same mount for a clean, space-saving setup

✅ The following bike computer brands support direct installation on the light:

Garmin, iGPSPORT, Magene, CYCPLUS, Coospo, XOSS, NAVIHOOD, other bike computers with Garmin mount

✅ The following bike computer brands support installation after replacing the top and bottom mounts of the light:

Wahoo: Compatible mount included, no extra purchase needed

Bryton: Compatible mount QTM03 must be purchased separately

❌ The following bike computer brands DO NOT support stacking with this light:

SIGMA, Cateye, VDO, other bike computers with non-Garmin mounts

➡️ ANT+ Connection to Garmin Bike Computer

After connecting to the bike computer via ANT+, you can control the light to stay on/flash on the bike computer

Supported Garmin bike computer models: 830 / 840 / 850 / 1030 / 1040 / 1050 / Explore 2

➡️ 270° Ultra-Wide Viewing Angle

Strip COB LEDs arranged evenly, light emits from front + sides simultaneously

Eliminates blind spots of traditional narrow-angle lights, improves all-round visibility chance

➡️ Auto On/Off Mode

The light automatically switches to standby after 2 minutes of inactivity

Turns on quickly when vibration is detected

➡️ Power Bank Function

The light can charge mobile phones or bike computers for emergency use

⚠️ Note: For temporary emergency charging of phones and bike computers only, no professional power bank supply capability

➡️ IPX6 Heavy Rain Waterproof

Suitable for riding in rain, no extra protection needed for daily use

⚠️ Critical note: The charging port is not waterproof; always close the charging port cap tightly before use in rain

➡️ Package List

1 * FR300 ANT+

1 * C-C Charging Cable

1 * C-Micro Charging Cable

1 * Anti-lost Lanyard

1 * Wahoo Bike Computer Compatible Mount

1 * User Manual

➡️ FAQ

1、I am not sure if my bike computer is compatible?

A: Check the bike computer installation instructions above. For unlisted models, contact customer service via internal message with the bike computer brand and model

2、Can it be used for lighting at night?

A: ❌ No! This product is a warning light with no lighting function, only used to improve visibility, cannot illuminate the road ahead, and can only be used as a front warning light at night

3、How to choose between FR160, FR300, FR300 ANT+ and FR500?

• FR160, FR300, FR300 ANT+: Pure daytime running warning lights with no lighting function, cannot illuminate the road ahead. All adopt COB LED with excellent warning performance and similar runtime, fully sufficient as warning lights

• FR160: Maximum brightness 160 lm, weight 55 g, ultra-light and portable, ideal for users pursuing lightweight design

• FR300, FR300 ANT+: Maximum brightness 300 lm, weight 75 g, brighter, with auto on/off + power bank function, suitable for users valuing brightness and functions

• FR500: Dual-function bike light (lighting + warning), provides both warning effect and road illumination, maximum brightness 500 lm, weight 100 g

• Final selection guide:

• Only warning needed, lightweight & portable → Choose FR160

• Only warning needed, higher brightness, auto on/off, power bank function → Choose FR300

• Only warning needed, higher brightness, auto on/off, power bank function, bike computer connection function → Choose FR300 ANT+

• Road lighting needed at night + warning light function → Choose FR500

➡️ Product Description

Product name: RAVEMEN FR300 ANT+

Light source type: COB LED

Maximum brightness: 300 lm

Battery capacity: 1200 mAh

Charging time: 1.8 h

Charging interface: USB‑C

Waterproof rating: IPX6

Product dimensions: 82 mm * 60 mm * 25.5 mm

Product weight: 75 g

Product certifications: CE, RoHS

Special functions: Stackable bike computer mount, 270° wide viewing angle, auto on/off, power bank function, ANT+ connection to bike computer

Mode / Lumen / Runtime

• High: 200 lm | 4 h

• Medium: 100 lm | 7.5 h

• Low: 50 lm | 14.5 h

• Warning flash: 300 lm | 9 h

• Quick flash: 100 lm | 12.5 h

• Slow flash: 100 lm | 24 h

Note: All parameters are tested under standard laboratory conditions; actual data may vary depending on the usage environment

【Quick Start Guide】

1、Press and hold the power button for 1 s to turn the light on/off; single press to switch light modes

2、Battery indicator:

Power button green steady on: 40%~100%

Power button red steady on: 5%~40%

Power button red flashing: ＜ 5%

When the light is off, single press the power button to activate the battery indicator and check the power level

3、USB-C charging

Input: 5 V, DC/800 mA, charging time approx. 1.8 hours, built-in overcharge protection

Note: Some chargers may fail to charge the light due to different charging protocols; replace the charger or charging cable

4、Charging indicator:

Red flashing: Charging in progress

Green steady on: Fully charged

5、Pairing with bike computer

01、With the light off, press and hold the light power button for 2.5 seconds until the light flashes slowly, then the light enters pairing mode. After successful pairing, the light returns to the previous mode

02、Bring the touchscreen Garmin bike computer close to the light for pairing

03、Select "Add sensor" or "Search sensor" on the bike computer settings page (operations vary by device, refer to the device manual).

04、Select "Light" in the search results to connect. If the light is not found, turn off the light and repeat the first step.

Note: After successful pairing with Garmin bike computer, the light will first enter sleep mode: press the "Start" button on the bike computer to turn it on again. On the "Sensors" settings page, you can choose to turn on the light when the bike computer is turned on or when the "Start" button is pressed.

05、After successful pairing, you can click on the bike computer light interface to switch the light's steady on/flashing mode

6、Synchronized sleep and wake-up of bike computer

When paired with Garmin Edge bike computer, the bike computer will control the front light to sleep or turn on at the same time without manual operation. If not, turn on the light manually. If synchronization still fails, remove the sensor from the bike computer and pair again. The response time for the light to enter sleep mode depends on different Edge models.

【Usage Notes】

1、Before first use, it is recommended to fully charge the light

2、Do not disassemble or modify the light body privately, otherwise the warranty will be void

3、Always close the charging port cap tightly before use in rain; splash-proof only, not immersion-proof

4、Built-in rechargeable battery: Do not heat or incinerate to avoid safety risks

5、Do not allow children to freely touch or disassemble the light and built-in battery to avoid swallowing or electric shock risks;

6、Place the light in a ventilated and cool place during charging, away from high-temperature, flammable and explosive items to prevent overheating during charging

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Ravemen
Parametry	Kind	front-facing
Parametry	Color	black
Parametry	Set contents	rechargeable battery
Parametry	Power supply	rechargeable battery
Parametry	Light source	LED
Parametry	Number of light modes	3
Parametry	Operating time	24 h
Parametry	Light beam	300 lm
Parametry	Weight	75 g
Parametry	Product weight with unit packaging	200 kg
Parametry	EAN (GTIN)	6970232531327
Parametry	Certificates of conformity	CE
Parametry	Model	FR300ANT+
