Dviračio žibintų rinkinys priekinis, galinis, dinaminis, dešinysis, plastikinis

Trumpai apie prekę

Prekė: Dviračio žibintų rinkinys priekinis, galinis, dinaminis, dešinysis, plastikinis. Kategorija: Apšvietimas.

• Gamintojas: STEEL
• Modelis: YG-CD 601 BOX
• Svoris: 250 g
• Spalva: black

set of lamps for bike front+back+dynamo+handles -

• dynamo RIGHT

YG-CD 601

6V 3W

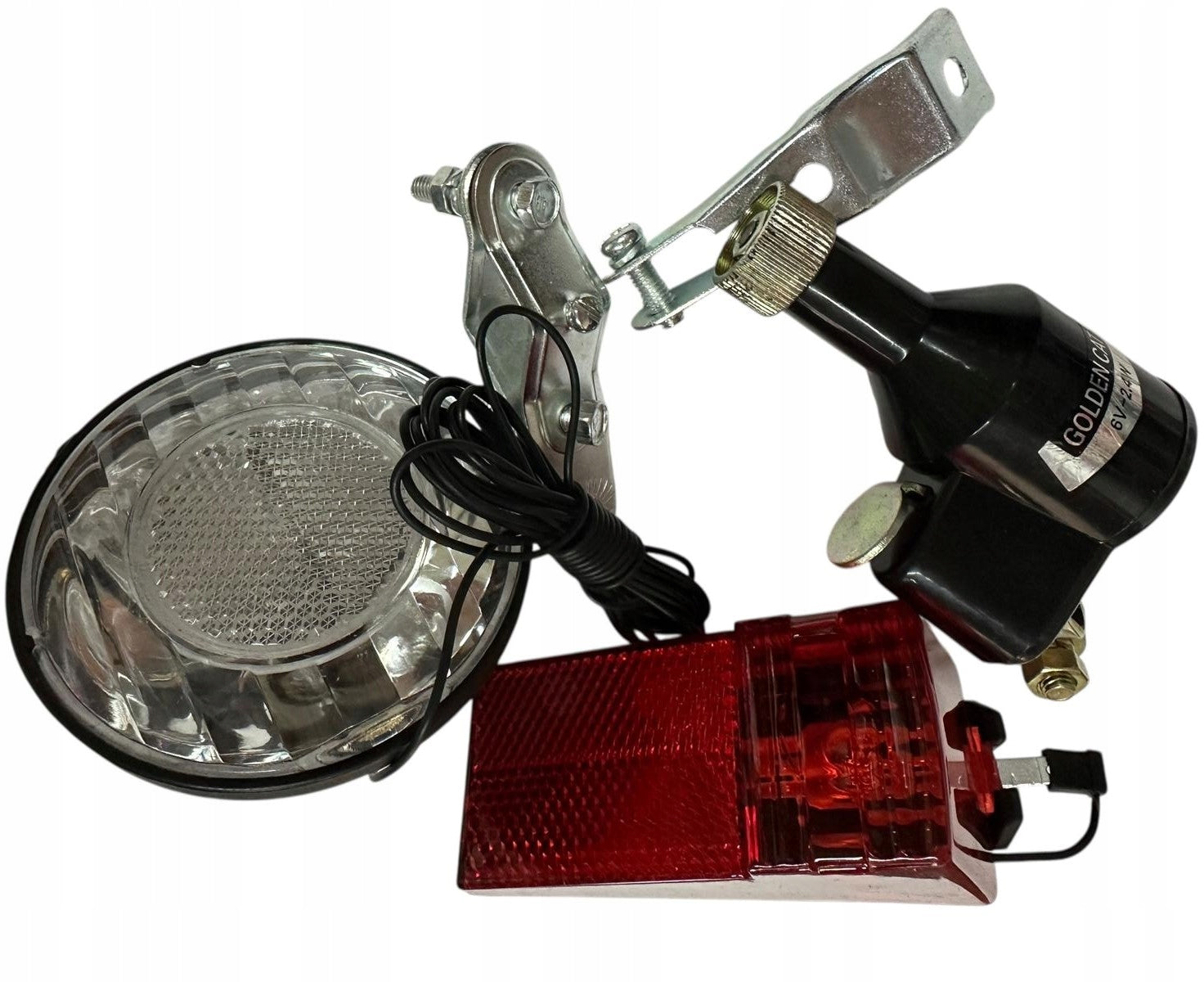

Included:

• front lamp
• rear lamp mounted on the mudguard
• dynamo RIGHT plastic
• lamp mounting bracket front

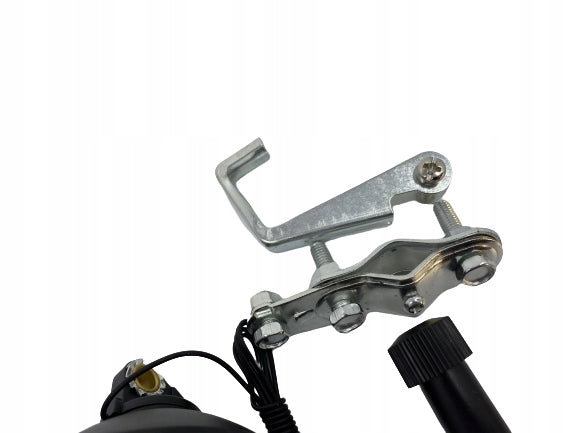

• dynamo mounting bracket
• front and rear bulbs
• connection cables for front and rear lamps

Left or right dynamo for my bike?

It is about the way of mounting and turning on the dynamo - simplifying: if we sit on the saddle of the bike and look at the front wheel, on the right side we mount the right dynamo, and on the left hand the left dynamo.

Installation:

1. cable from dynamo to front lamp ( + ) after armor, after frame, etc. as aesthetically as possible, cable ( - ) from the front lamp e.g. for the lamp holder or screw fixing the holder with frame/fork.

2. Rear light cable for dynamo, and you need to make mass. If it is the type screwed on the trunk, the screws/nuts that attach the lamp must touch the trunk (e.g. Peel off the excess paint from under one of the nuts ) If it is a fender - then the connection of the screw/nut of the lamp on the fender with the fender rods and frame must also conduct electricity. (if there is excess paint somewhere - remove )

If it doesn't work, you'll have to look for a smarter mass. The problem will generally be mass.

Specifications
