Dviračio pavarų sistema SHIMANO 105 Di2 2x12 R7100

Trumpai apie prekę

Prekė: Dviračio pavarų sistema SHIMANO 105 Di2 2x12 R7100. Kategorija: Pilni įrangos komplektai.

• Gamintojas: Shimano
• Modelis: 105 Di2

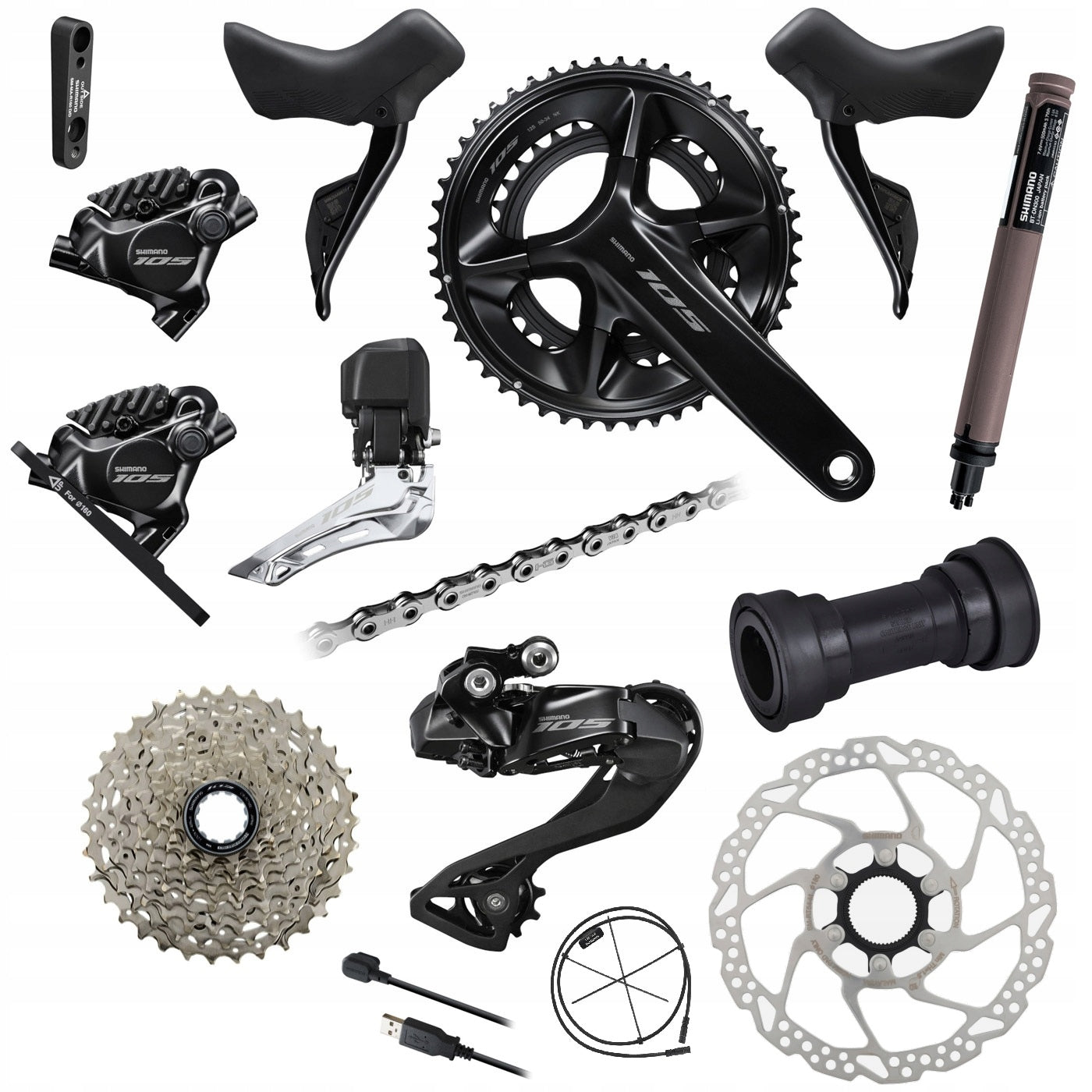

SHIMANO complete road group 105 Di2 2x12 R7100

Shimano

The new SHIMANO 105 group gives access to the Di2 shifting system to a new group of cyclists. For those who have so far dealt only with mechanical shifting and its ergonomics, the SHIMANO 105 Di2 represents a breakthrough in road riding.

The 12-row drive of the Shimano 105 R7100 group includes m.in. cassette 11-34 and crank mechanism 50-34. Working together, these elements allow you to achieve low (even below 1:1) gear combinations, thanks to which the cyclist can overcome even steeper climbs and better control the effort. Tighter graduation of the cassette allows the cyclist to choose a comfortable cadence for himself in any situation. In addition, the new system is compatible with earlier components, making the existing 11-row hub wheels compatible with the new Shimano 105 Di2 drive.

The Shimano 105 Di2 group uses a hybrid system: the cockpit is free of wires, while a single battery placed in the seat tube is connected by wires to the front and rear derailleurs, which ensures absolute reliability in all conditions. Like DURA-ACE and ULTEGRA, the Shimano 105 Di2 system can be easily adapted to individual needs using the intuitive Shimano E-TUBE PROJECT app on your smartphone.

With the E-TUBE PROJECT, you can adjust the drive to your preference by adjusting the shifting speed, changing the number of gears to a single button press, and using synchronous and semi-synchronous modes.

In addition, the system works with most bicycle computers manufactured by external companies, including m.in. Garmin or Wahoo, which gives you the ability to control the choice of gear ratio or battery level.

◼ KFCR7100DX04/KFCR7100CX04 Crank Mechanism FC-R7100, 12-row, HOLLOWTECH 2, 50-34T. Arm length: 172.5 (PLN 3,999)/170 mm (PLN 4,299)

◼ KFDR7150F Front derailleur FD-R7150, electronic (Di2), 12-row, hook mounting (brazed-on), for 50-52T discs.

◼ KR7170DLF6SX100E Front set: Handlebar ST-R7170(L) Di2 + Clamp BR-R7170(F) + disc 160mm+ resin blocks + cable 1000mm.

◼ KR7170DRRESX170E Rear set: Handlebar ST-R7170(R) Di2 + Clamp BR-R7170(R) + adapter 30mm + resin blocks + cable 1700mm.

◼ KRDR7150E Rear derailleur RD-R7150

◼ ABBRS500PB Support Cartridge BB-RS500-PB, Press Fit Type

◼ ASMRT54S13 2pcs Brake Disc SM-RT54, 160 mm, Center Lock. Only for resin blocks.

◼ KBTDN3001K BT-DN300 battery, 3 sockets, internal type, EU specification.

◼ KCNM7100114Q Bicycle Chain CN-M7100, 114 links, for HG 12-row drives, with QUICK-LINK quick coupler.

◼ KCSR710112134 CS-R7101 Sprocket Cassette, 12-row, 11-12-13-14-15-17-19-21-24-27-30-34T.

◼ KEWEC300A Charging Cable EW-EC300, 1500mm.

◼ KEWSD300IL065 Di2 cable EW-SD300-I length 650mm.

◼ KEWSD300IL120 Di2 cable EW-SD300-I length 1200mm.

◼ KSMMAR160DDB Adapter for mounting road disc brakes, model SM-MA-R160D/D.

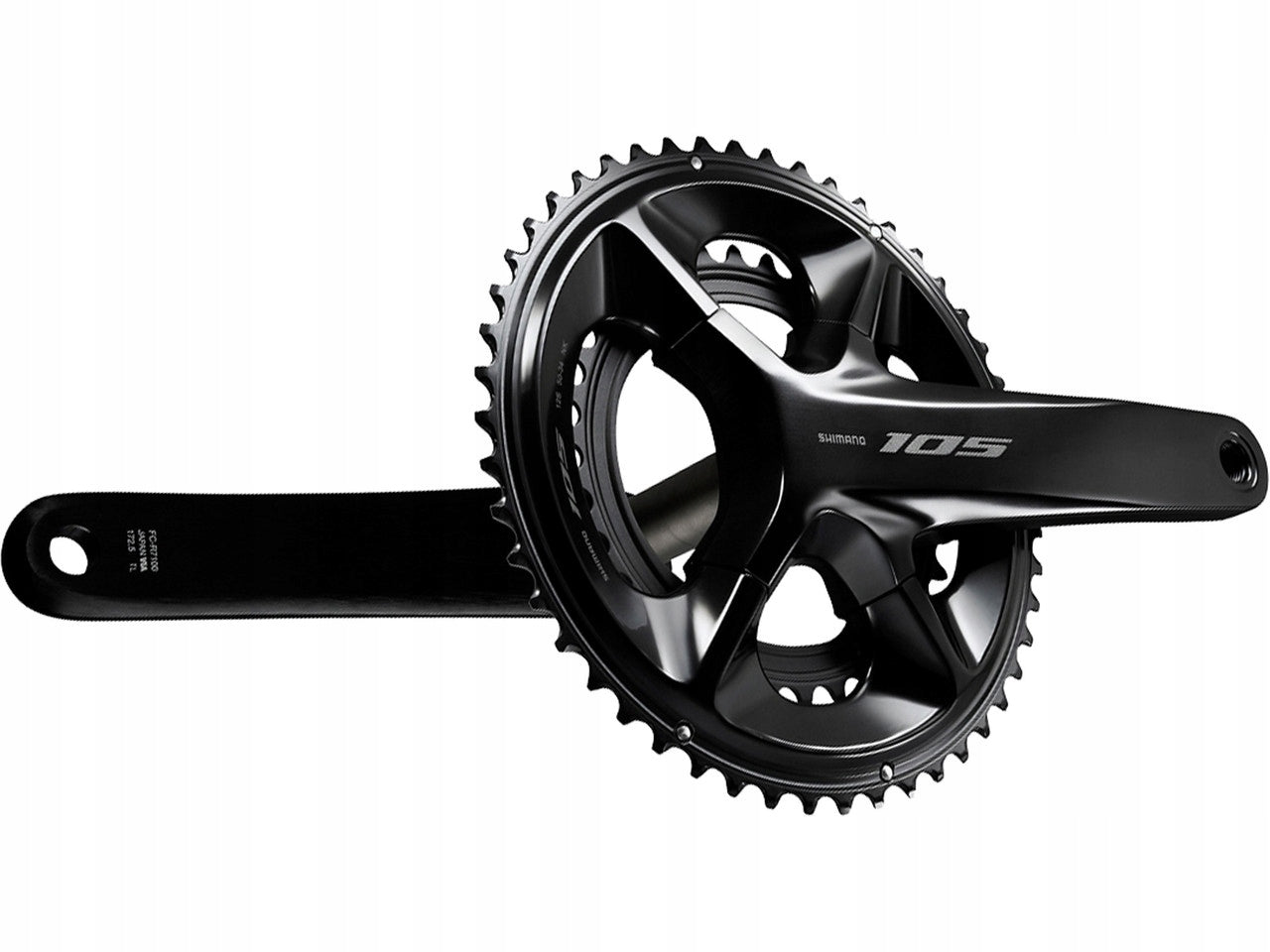

1. Crank mechanism Shimano 105 FC-R7100 50-34T 172,5

The Shimano R7100 crank from the 105 road group is the first 12-speed proposal that combines the features of the best Ultegra and Dura-Ace models. The 105 offers low weight, very good workmanship and high precision in all conditions and thus a lot of driving fun and the opportunity to focus fully on training.

The crank is not inferior to the performance of top accessories used by professional riders, in the same way it transfers power due to high rigidity and is almost identical in terms of construction.

• Manufacturer: Shimano
• Group: 105 Di2
• Model: FC-R7100
• Number of teeth: 34-50T
• Arm length: 172,5 mm
• Disc bolt spacing (P.C.D.): 110 mm
• Hollowtech II 2-row crank mechanism
• Designed for drives: 12 rows
• Color: Black
• Chain Line: 44,5 mm
• Coefficient Q: 148 mm

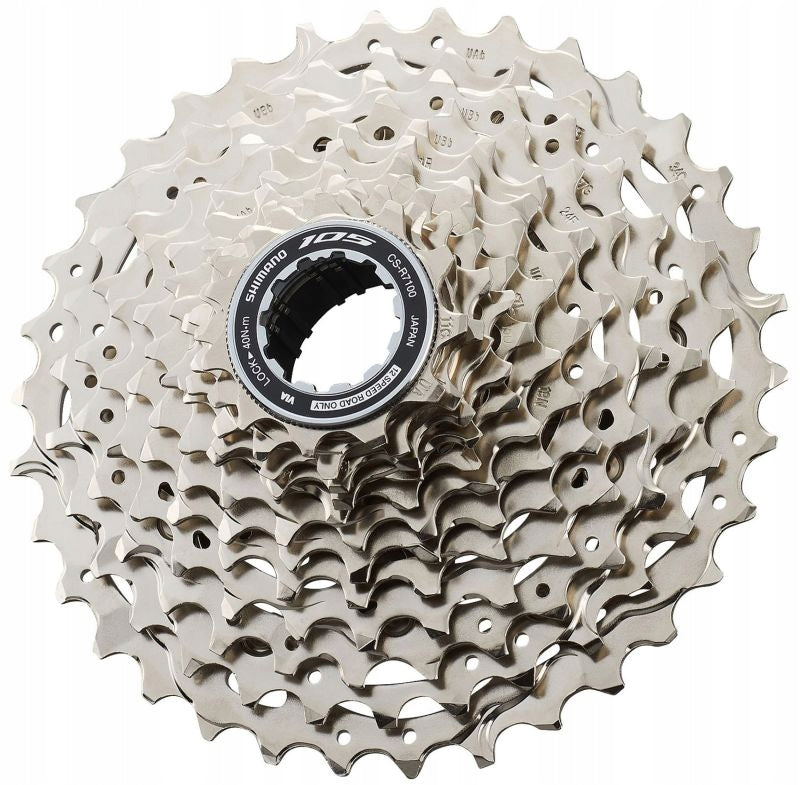

2. Cassette Shimano 105 CS-R7100 12s 11-34T

• Manufacturer: Shimano
• Group: 105
• Model: CS-R7100
• Number of Rows: 12
• Freehub: Shimano HG
• Graduation: 11 to 12 to 13 to 14 to 15 to 17 to 19 to 21 to 24 to 27 to 30 to 34T
• Weight: 361g

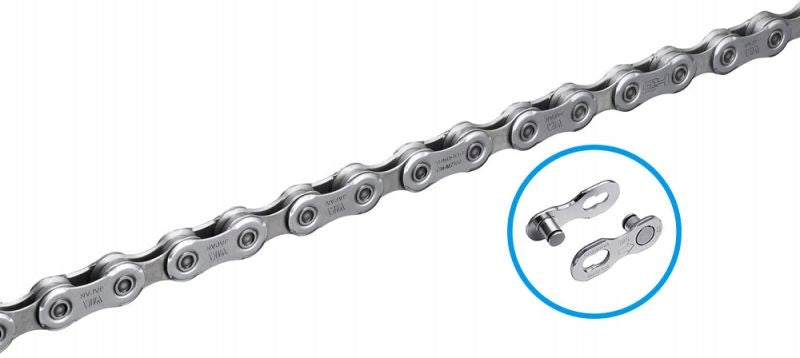

3. Chain Shimano CN-M7100 12rz

• Manufacturer: Shimano
• Model: CN-M7100
• Designed for drives: 1x12, 2x12
• Number of cells: 126
• External cell plate: Sil-Tec
• Internal Link Board: Sil-Tec
• Incompatible with road drives
• Weight: about 252g (126 cells)
• Chain includes clip

4. Suport Shimano SM-BBR60 HOLLOWTECH II

• Manufacturer: Shimano
• Group: Ultegra / 105
• Model: BB-RS500-PB, Press Fit
• Support bearing set for integrated cranks
• Double sealed to prevent dirt and water from entering
• Designed for Sora Tiagra, 105, Ultegra, Dura Ace cranks with integrated support insert
• Price includes 2 bearings, (left and right) and connecting sleeves
• Catalog weight: 77g

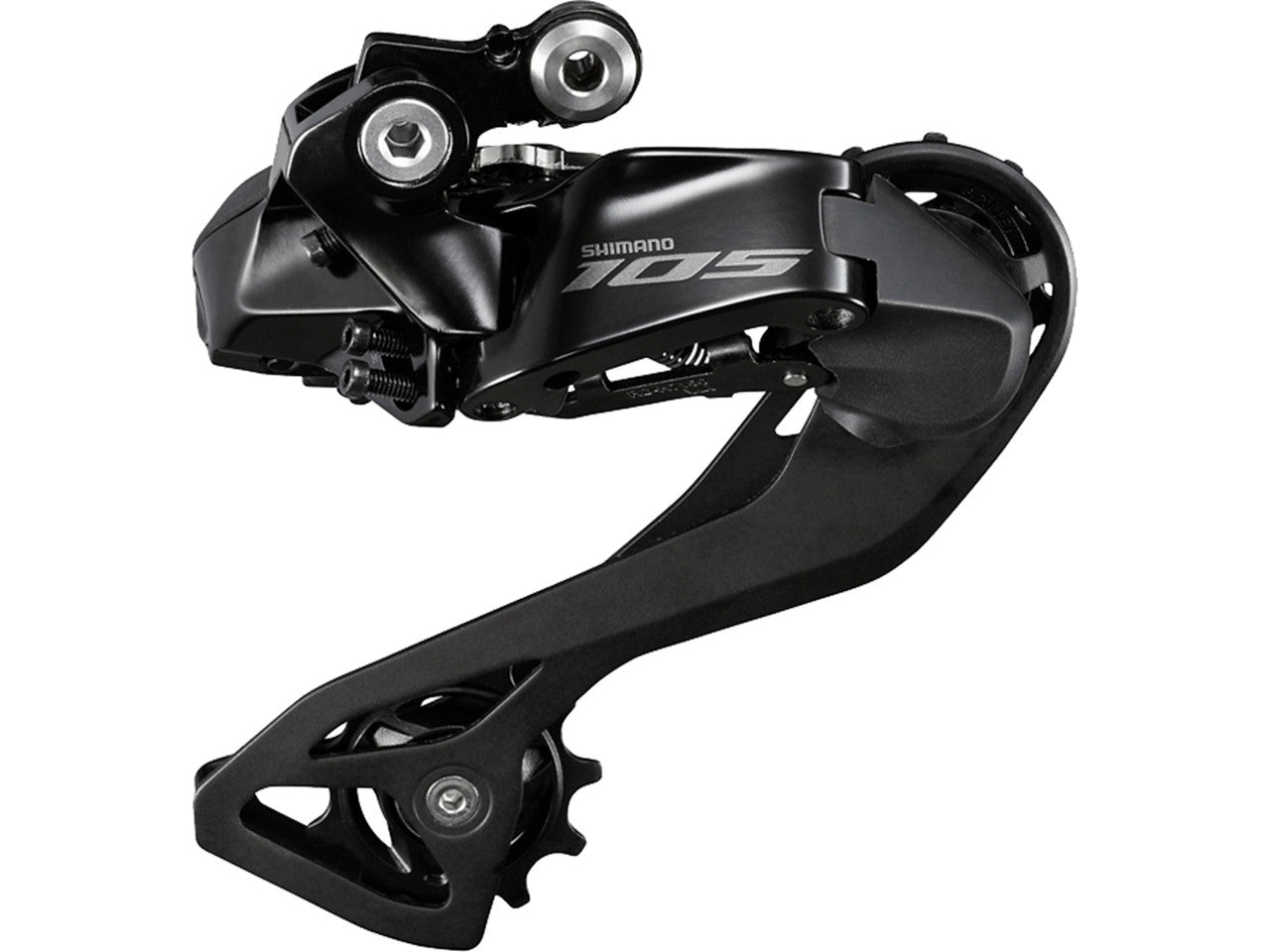

5. Rear derailleur Shimano 105 RD-R7150 12s Di2

The rear derailleur Shimano 105 RD-R7150 Di2 is a completely new level of performance and speed. The 12-speed change is lightning-fast and quiet, while the wide range of up to 36 teeth allows you to tackle hills with ease. The electronic derailleur is made of durable materials in SHADOW RD technology with a strong spring and low-profile design. Immediate gear changes will be appreciated by demanding cyclists and amateurs who like modern technologies. The LED indicator allows you to check the battery level and communication status. The derailleur integrates a charging port, a wireless module and a switch.

• Producer: Shimano
• Model: 105 RD-R7150
• Shift Type: Electronic Di2
• Number of Rows: 12
• Shift Capacity: 41T
• Largest cassette sprocket: 36T
• Compatible with 2x12 drives
• Weight: 300g
• Color: Black
• SD300 socket
• Operation via the E-TUBE application

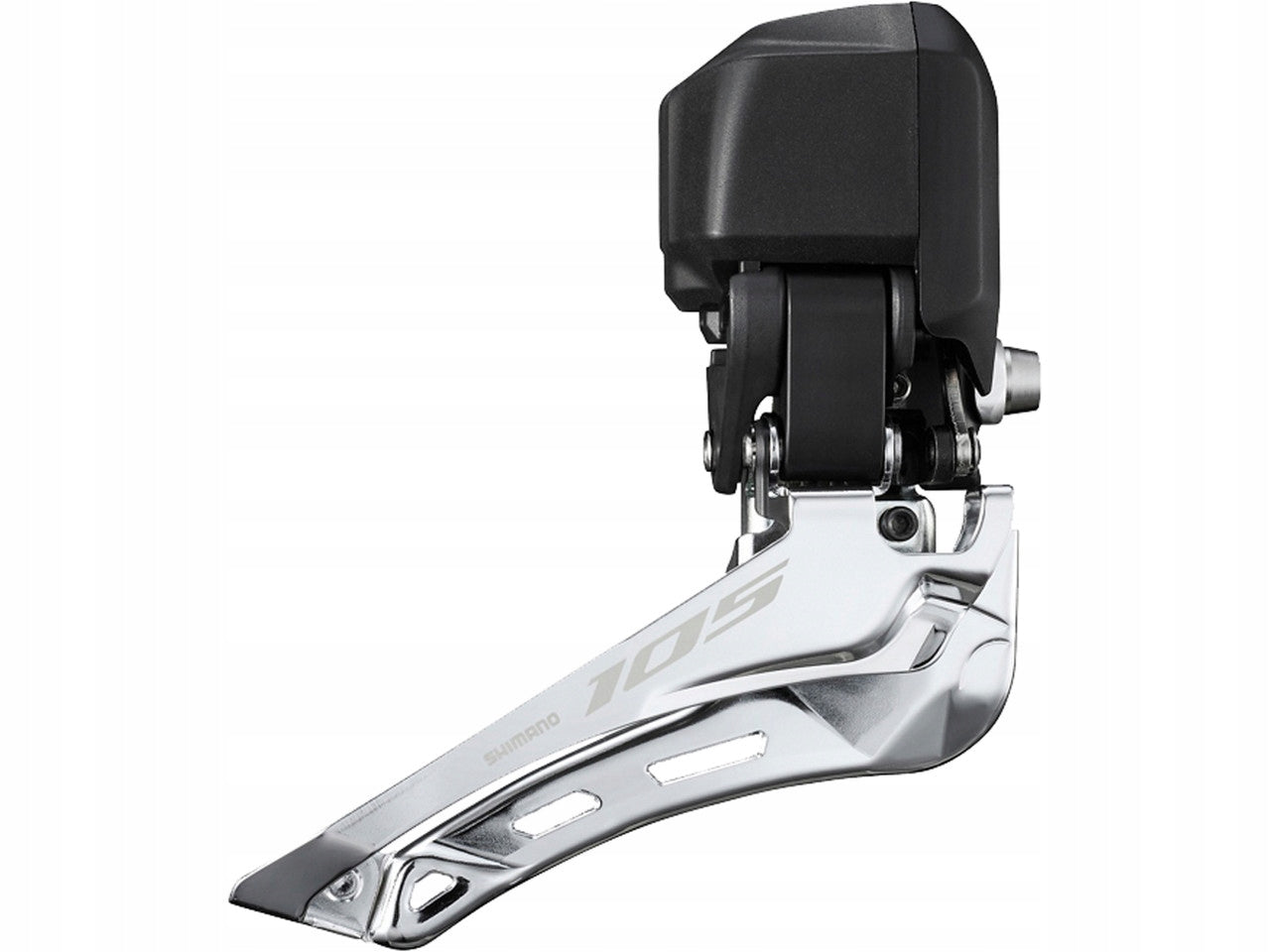

6. Front derailleur Shimano 105 FD-R7150 2rz Di2

The front derailleur Shimano 105 RD-R7150 Di2 is a completely new level of performance and speed. The compact design and materials used allowed to achieve low weight and high strength. Compatible with 12 row drives. The latest generation of Shimano Di2 features lightning-fast shifting, and thanks to Synchronized Shift technology and automatic trim, you don’t have to worry about the position of the chain and its crossing. Shimano 105 R7150 is a sensational accessory for both demanding cyclists and amateurs who like order on the cockpit.

• Producer: Shimano
• Model: 105 Di2 FD-R7150
• Shift Type: Electronic Di2
• Number of Rows: 2
• Shift Capacity: 16T
• Largest crank sprocket: 50-52T
• Compatible with 2x12 drives
• Weight: 138g
• Color: Black
• SD300 socket
• Operation via the E-TUBE application

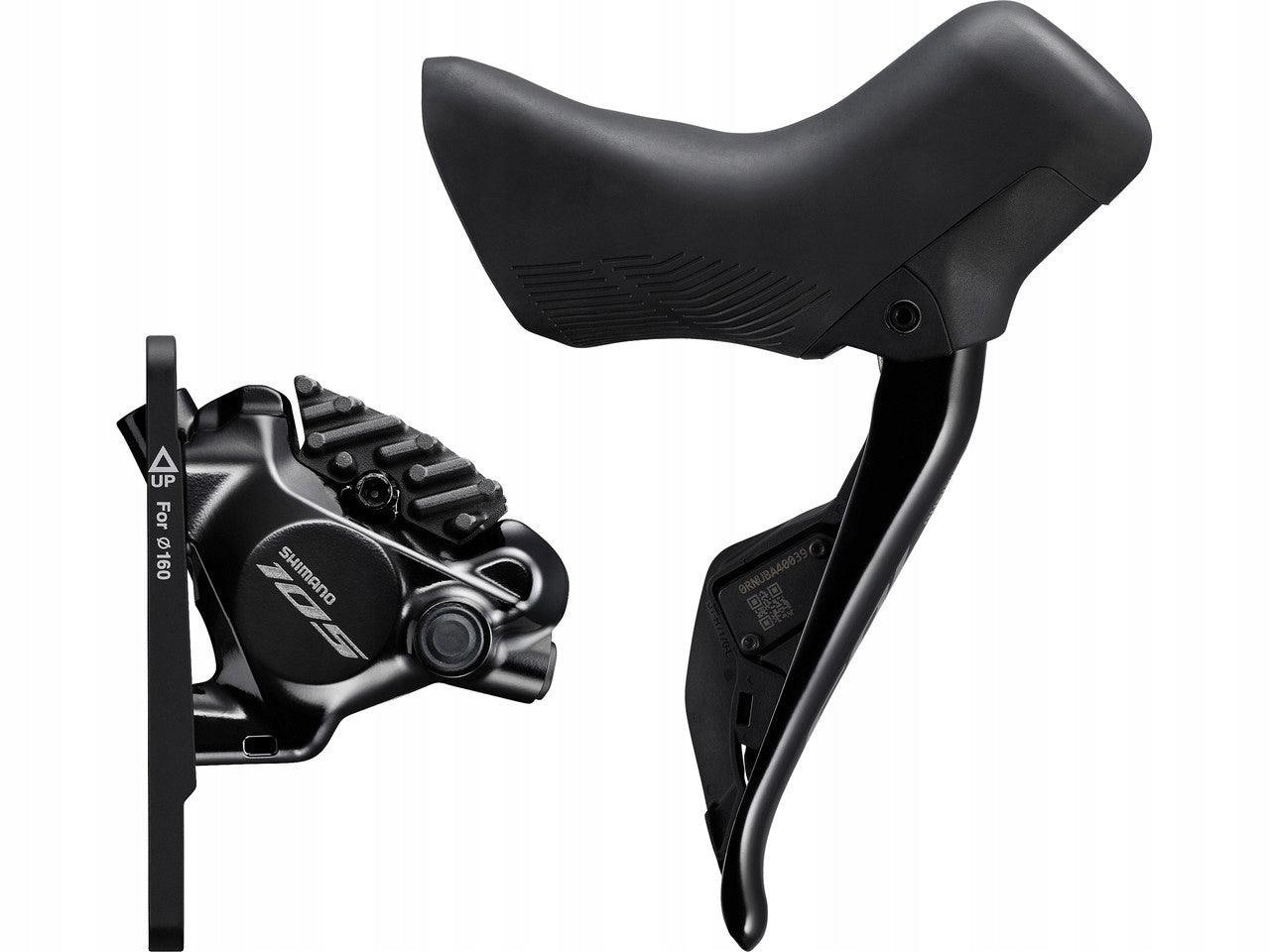

7. Hydraulic brake kit Shimano 105 ST-R7170 17000mm (Rear) + resin lining

The Shimano 105 Di2 rear brake is nothing more than a set of proven Dual Control Lever handle, which guarantees reliable operation of hydraulic disc brakes in all conditions, and thanks to better ergonomics they provide fast and intuitive shifting. Replacing the internal mechanical elements of the door handles with electronics allowed to reduce weight. It is worth noting that two CR1632 batteries, thanks to the optimization of energy consumption, last for a period of 3.5 to 4 years, and the level of their charging is informed by a small color-changing diode.

The BR-R7170 caliper equipped with resin pads with heat sinks dissipates the resulting heat well, thus providing better modulation and greater braking power, which translates primarily into increased safety, but also the possibility of delaying braking during races.

• Manufacturer: Shimano
• Group: 105 Di2
• Model: ST-BR-R7170
• Assembly: Rear - right side
• Purpose: Road
• Number of Gears: 12
• Mounting: 23.8 - 24.2 mm clamp
• Shift Lever Type: Dual Control Lever
• SD300 socket
• Compatible only with Shimano mineral oil
• Batteries: 2x CR1632

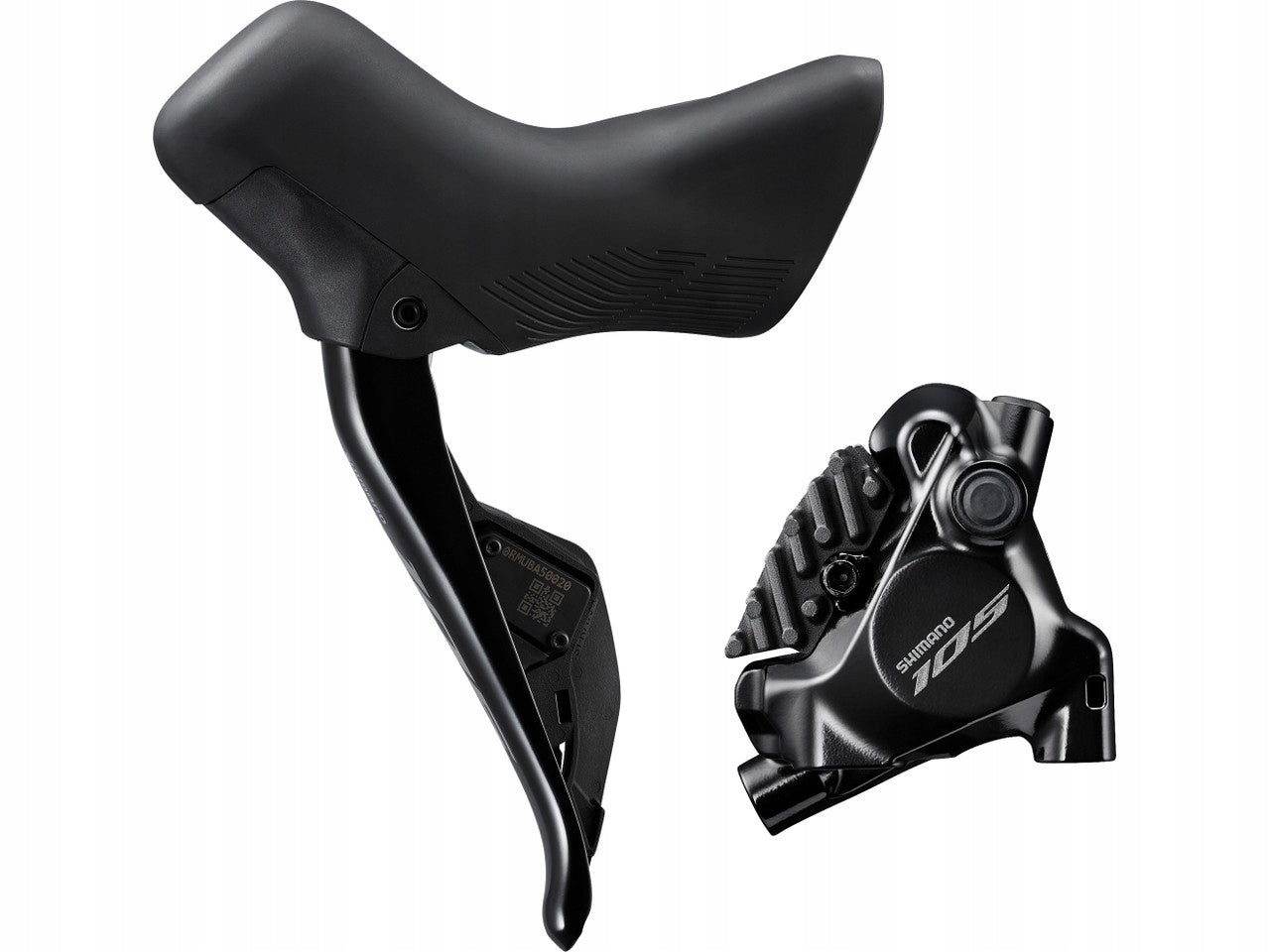

8. Hydraulic brake kit Shimano 105 ST-R7170 10000mm (Front) + resin lining

The Shimano 105 Di2 rear brake is nothing more than a set of proven Dual Control Lever handle, which guarantees reliable operation of hydraulic disc brakes in all conditions, and thanks to better ergonomics they provide fast and intuitive shifting. Replacing the internal mechanical elements of the door handles with electronics allowed to reduce weight. It is worth noting that two CR1632 batteries, thanks to the optimization of energy consumption, last for a period of 3.5 to 4 years, and the level of their charging is informed by a small color-changing diode.

The BR-R7170 caliper equipped with resin pads with heat sinks dissipates the resulting heat well, thus providing better modulation and greater braking power, which translates primarily into increased safety, but also the possibility of delaying braking during races.

• Manufacturer: Shimano
• Group: 105 Di2
• Model: ST-BR-R7170
• Assembly: Front - Left side
• Purpose: Road
• Number of Gears: 2
• Mounting: 23.8 - 24.2 mm clamp
• Shift Lever Type: Dual Control Lever
• SD300 socket
• Compatible only with Shimano mineral oil
• Batteries: 2x CR1632
• o with mineral oil Shimano
• Batteries: 2x CR1632

9. Brake disc Shimano 105 SM-RT54 x2pcs

• Manufacturer: Shimano
• Model: SM-RT54
• Size: 160mm
• Material: Steel/ Aluminum/ Steel
• Compatible linings: metal, resin
• Mount: CenterLock

10. Internal battery Shimano BT-DN300 Di2

Shimano BT-DN300 battery for Shimano Di2 electronic systems. Compatible with SD300 cables. The slim waterproof design allows you to mount inside your bike and keep your entire system looking neat. The cell with a capacity of 500mAh allows you to work for many hours while maintaining low weight.

• Manufacturer: Shimano
• Model: BT-DN300
• Number of Ports: 3
• Cable Type: SD300
• Cell Type: Li-Ion
• Capacity: 500mAh / 3.7Wh
• Voltage: 7.4V
• Weight: 52g

11. Charging cable EW-EC300 1500mm

EW-EC300 charger cable specially designed for Di2 12-row road drives.

• Manufacturer: Shimano
• Model: EW-EC300 Di2
• Cable length: 1.5 m

The set includes Shimano W-SD300-I Di2 electrical wires 650mm (front) and 1200mm (rear) length.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Shimano
Parametry	Equipment group	Shimano 105
Parametry	Model	105 Di2
Parametry	Manufacturer code	105 Di2
Parametry	Product weight with unit packaging	1 kg
Parametry	Dedicated for	road bikes
