Trumpai apie prekę

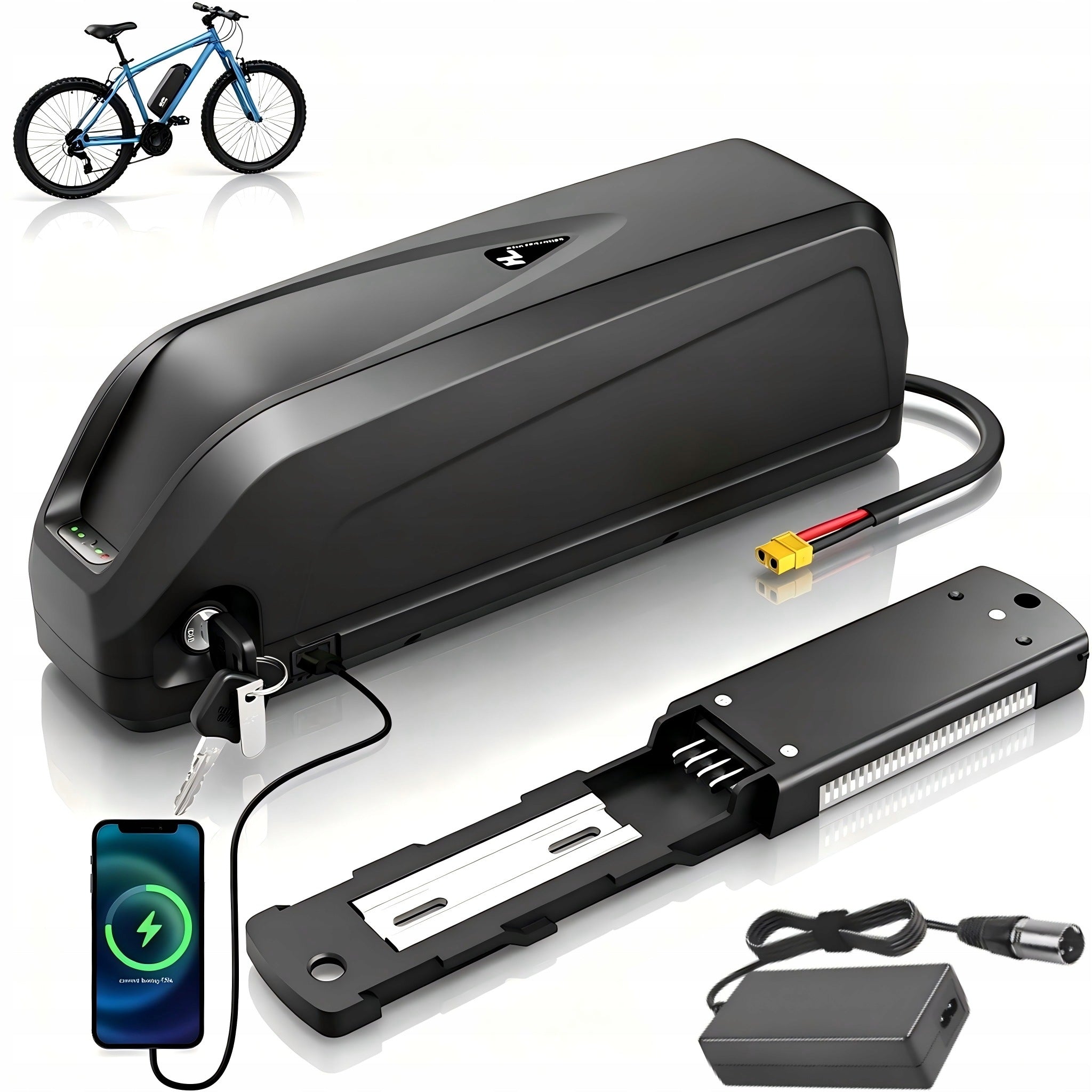

Prekė: Dviračio baterija Hailong 48V 20Ah 720Wh su įkrovikliu. Kategorija: Dviračių baterijos ir įkraunamos baterijos.
- Gamintojas: no brand
- Modelis: Hailong 48V 20Ah
- Įtampa: 48 V
- Ilgis: 37 cm
- Aukštis: 11 cm
- Talpa: 20 Ah
- Svoris: 3.2 kg
Inside the housing there is a multifunctional BMS battery management module, which provides comprehensive protection at every stage of use:
- Protection against lithium cell overcharging
- Over-discharge lock that prevents damage to cells
- Prevention of electrical short circuits while driving or connecting
- Temperature control with operation lock in case of overheating
- Stabilization of voltage during long routes and intensive acceleration
Thanks to the BMS system, the battery achieves more than 1000 full charging cycles without a significant decrease in capacity, which translates into many years of trouble-free operation.
Durable housing construction
Housing made of hard plastic resistant to impact, scratches and changing weather conditions. The model features a built-in two-key lock that locks the battery onto the bike frame and protects against theft when leaving the vehicle outside. The shape of the housing fits perfectly into standard Hailong trunk handles, assembly takes a few minutes without specialized tools.
Universal compatibility
The battery works with most electric bike motors from 350W to 1000W. Fits universal drive sets not assigned to specific brands such as Bafang, Bosch or Shimano. Stable power delivery works well both during quiet driving around the city, as well as driveways through the hills and long off-road trips.
Basic technical parameters
- Nominal voltage: 48 V
- Capacity: 20 Ah
- Total energy: 720 Wh
- Cell Type: 18650 Li-ion
- Maximum discharge current: 20 A
- Charging Current: 2 A
- Charging Voltage: 54,6 V

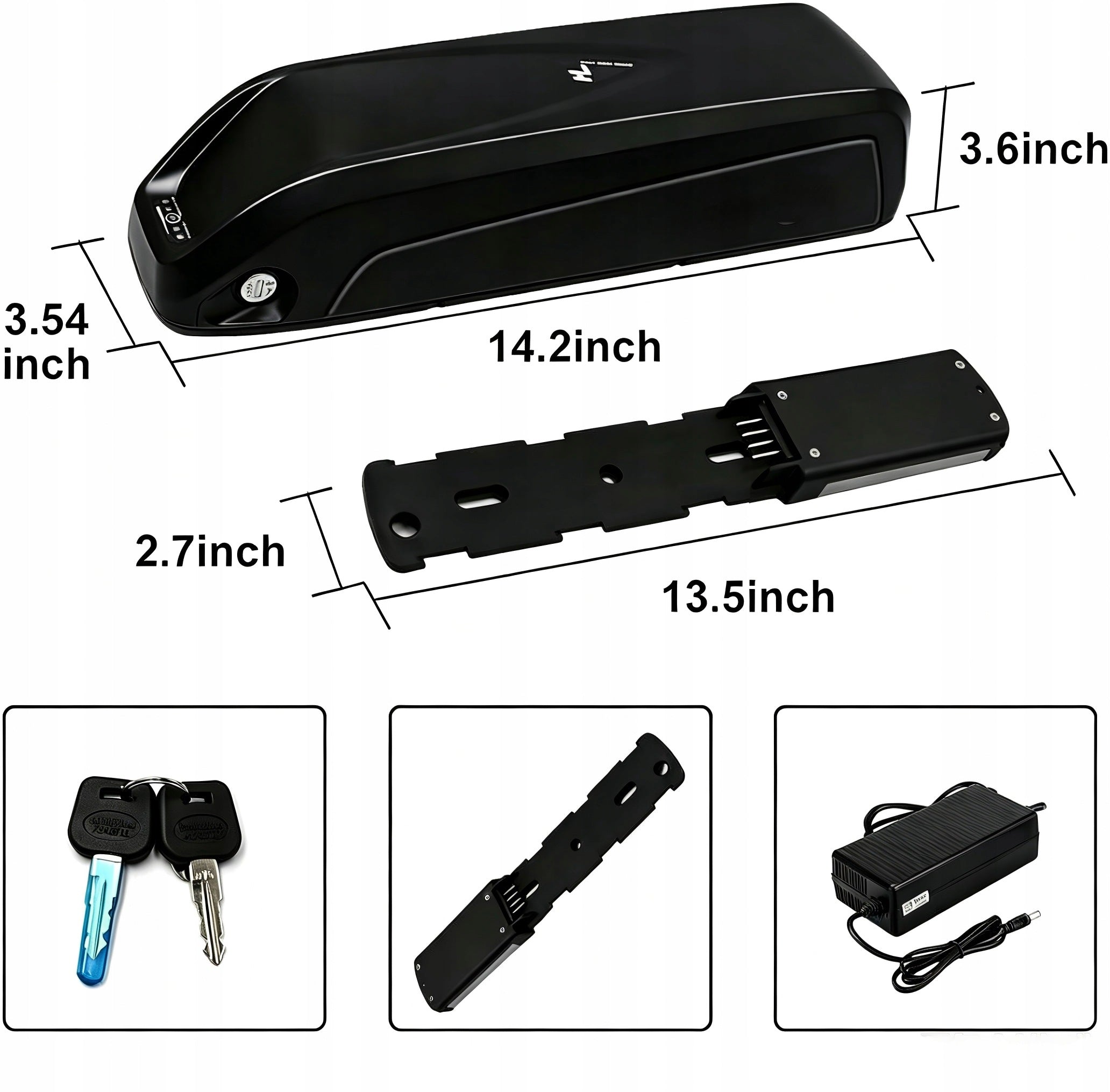

- Dimensions: 370 × 90 × 110 mm
- Total weight: approx. 4,5 kg
- Number of charge cycles: min. 800 cycles
- Degree of protection of housing: IP54
- Housing material: ABS + PC resistant to damage
- Certifications: CE, ROHS, UN38.3, MSDS
- Charging temperature range: 0 ~ 45 ℃
- Discharge temperature range: -20~60℃
List of compatible bicycle frame models:
- Hailong 1
- Hailong 2
- Hailong Max
- Hailong Pro
- Hailong MTB (mountain)
- Hailong Folding (foldable)
- Hailong City (city)
- Hailong Lite
Basic fit features:
- It fits perfectly on all electric bikes with 48V installation and standard Hailong battery holder.
- It guarantees a stable electrical connection and mechanical attachment with a key lock.
- The BMS system ensures safe operation and protection of the entire drive system.
- The large capacity provides more power and longer range for every ride.
EASY INSTALLATION IN A FEW SIMPLE STEPS Quick installation, bike ready to ride in just a few minutes. Mounting features: safe, simple, fast.

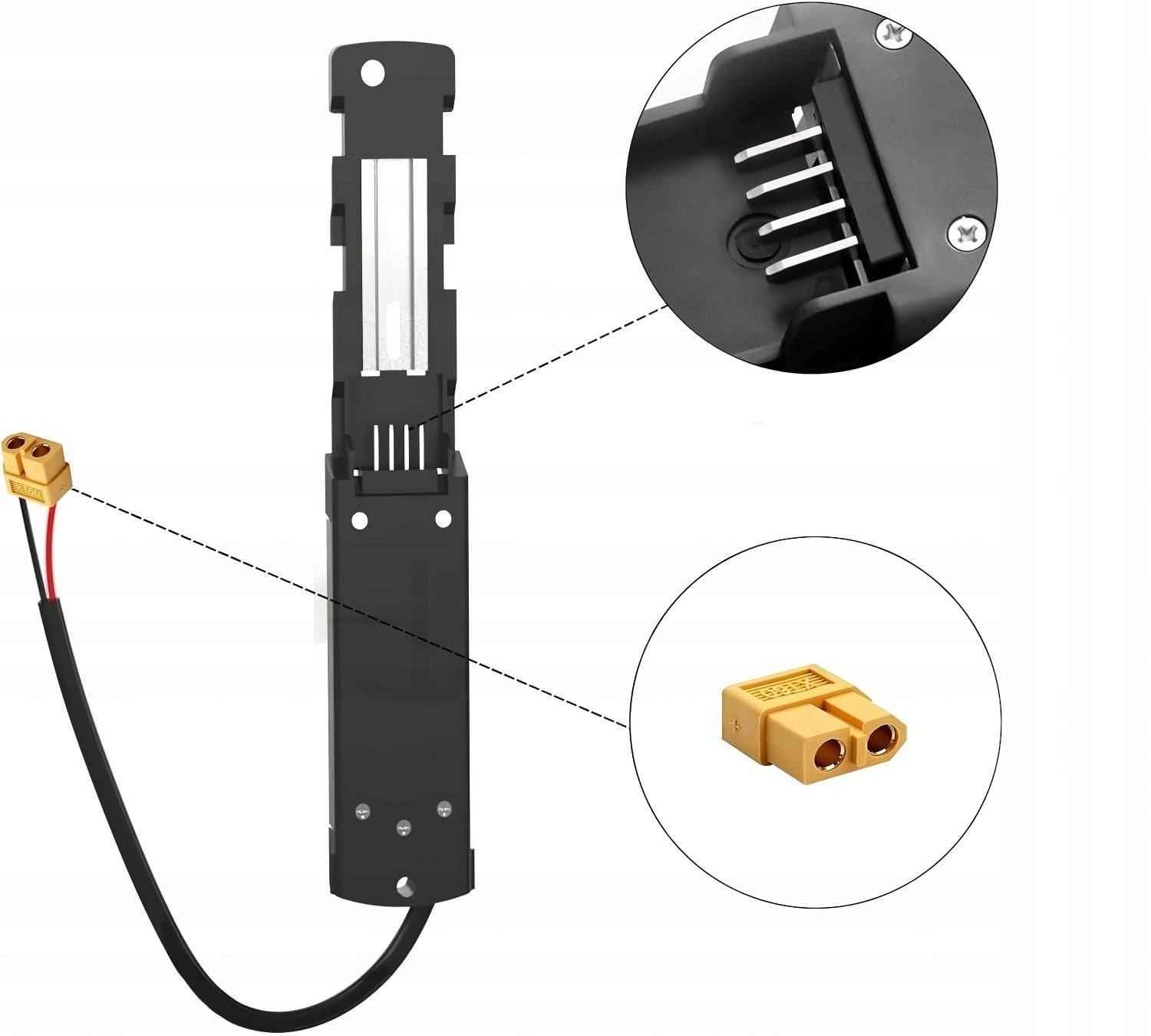

- Unlock the battery holder Insert the key and turn left to unlock the mounting socket on the bike frame.
- Put the battery into the clipboard Adjust the shape of the battery and gently slide it into the frame holder.
- Lock the battery with a key Press the battery to the base, turn the key to the right to permanently close the lock.
- Connect the power cord Plug the cable plug from the bike into the battery output port.
- Check connection stability Make sure the plug is well plugged in and the battery is not moving.
- Ready to drive Turn on the control panel on the steering wheel – the battery works properly, you can go on the road.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | Without VAT invoice |
| Parametry | Rechargeable battery | lithium-ion |
| Parametry | Manufacturer code | HL-48V-30Ah-1 |
| Parametry | Brand | no brand |
| Parametry | Installation | frame |
| Parametry | Model | Hailong 48V 20Ah |
| Parametry | Engine compatible | other |
| Parametry | Range | 20 km |
| Parametry | Weight | 3.2 kg |
| Parametry | Capacity | 20 Ah |
| Parametry | Voltage | 48 V |
| Parametry | Product width | 18 cm |
| Parametry | Height | 11 cm |
| Parametry | Length | 37 cm |
| Parametry | Product weight with unit packaging | 3.2 kg |
| Parametry | EAN (GTIN) | 18581741631269 |
| Parametry | Batteries included | yes |
| Parametry | Kind | bicycle rechargeable batteries |
| Parametry | Set contents | battery,charger |
