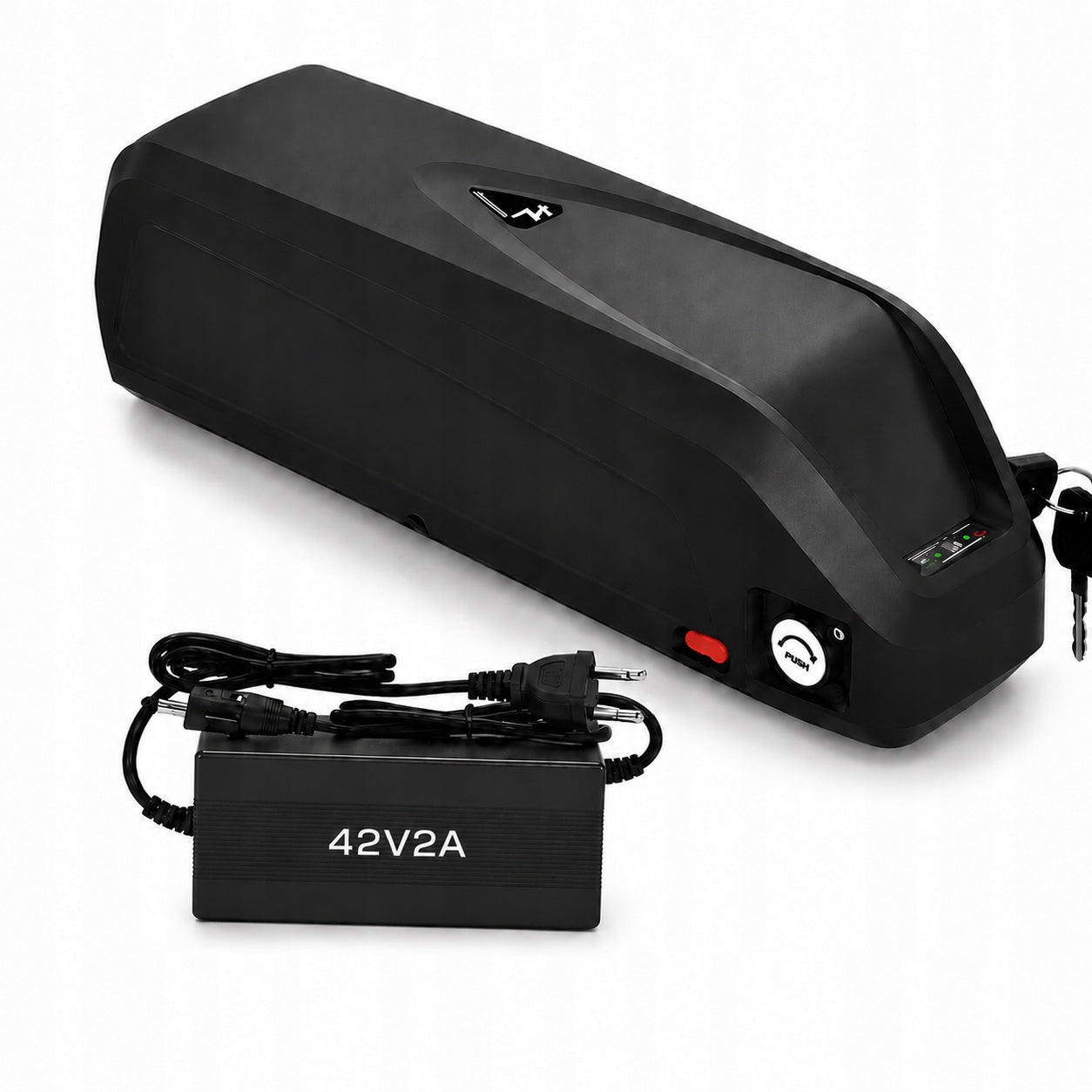

Dviračio baterija Hailong 36V 20Ah su įkrovikliu, tinkama Haibike Easybike

Trumpai apie prekę

Prekė: Dviračio baterija Hailong 36V 20Ah su įkrovikliu, tinkama Haibike Easybike. Kategorija: Dviračių baterijos ir įkraunamos baterijos.

• Gamintojas: no brand
• Modelis: HL-36V20Ah-Hailong
• Įtampa: 36 V
• Ilgis: 38 cm
• Aukštis: 15 cm
• Talpa: 20 Ah
• Svoris: 3.8 kg

When you buy this battery, you get a charger FREE!36V 20Ah BATTERY – Reliable power source for your electric bike

Basic technical parameters

1. Rated voltage: 36 V
2. Lithium-ion cell capacity: 20 Ah
3. Built-in intelligent battery management system BMS
4. Design in a bottle box type housing, designed to be mounted on the frame of an electric bike

The main advantages of the product

✅ Large capacity 20Ah Provides a much greater riding range on a single full charge, extends the distance covered by an electric bike.

✅ Safe and reliable operation Built-in BMS board protects the package from overcharging, over-discharge, circuit short circuit, current overload and overheating, eliminates the risk of failure and safety hazards.

✅ Wide compatibility Dedicated to most electric bicycles and conversion kits of motors with 36V operating voltage, fits frames with mounting space for bottle battery.

✅ High efficiency and durability Cells with long cyclic life, stable power delivery when driving uphill and under heavy load, resistant to changes in ambient temperature.

Use characteristics

• On a single charge, it offers a clearly extended driving range compared to standard smaller batteries.
• The key lock locks the battery in the frame, protecting against theft and unwanted removal while driving.
• Compact housing with ergonomic shape, fits perfectly in a typical electric bike frame socket.

• Rated capacity: 20 Ah
• Nominal voltage: 36 V
• Total energy: 720 Wh
• Cell type: 18650 Li-ion
• Maximum discharge current: 30 A
• Maximum charging current: 5 A

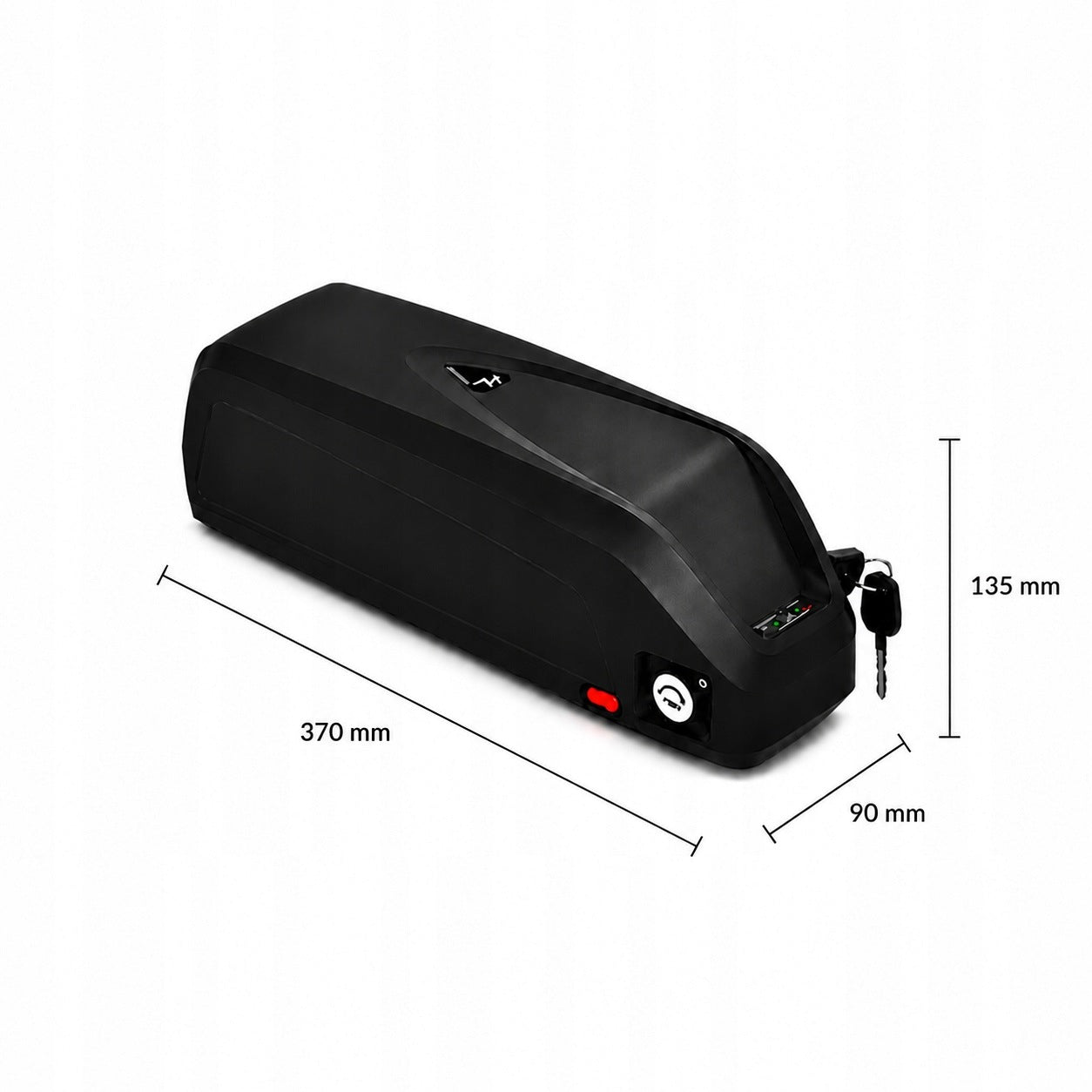

• External dimensions: 370 × 135 × 90 mm
• Total weight: approx. 4,2 kg
• Operating temperature range: -10 ℃ ~ 45 ℃

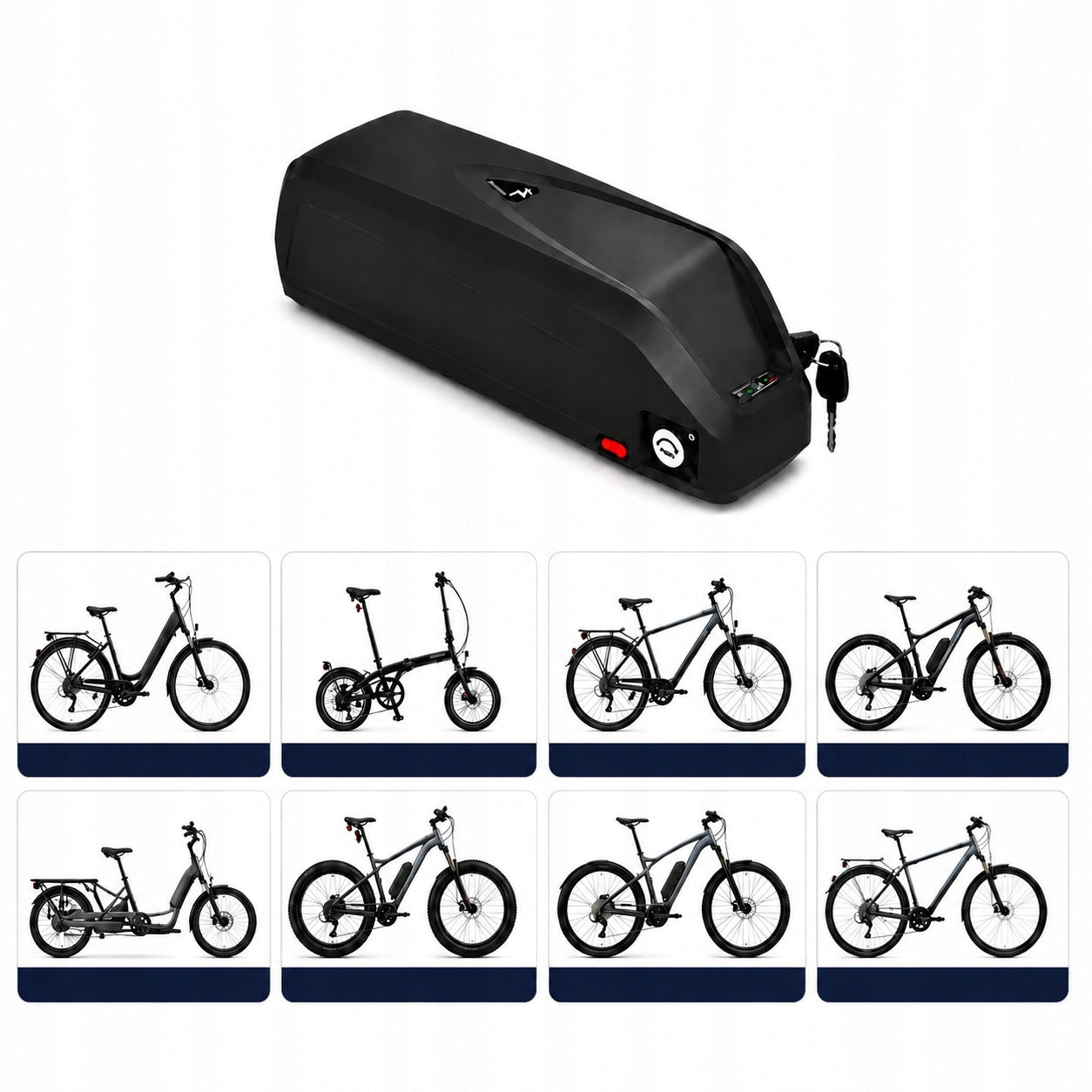

36V 20Ah BATTERY – compatible with various models of electric bikes

List of bike types matching the battery

1. Electric city bikes – models for everyday driving around the city
2. Electric folding bikes – compact, foldable versions for transport
3. Trekking bikes – long-distance touring bikes
4. Monk bikes MTB – standard mountain bikes for riding on uneven terrain
5. Transport bikes – bicycles with luggage compartment for transporting goods
6. Fat Bike electric – bikes with wide tires for sand, snow and rough surfaces
7. Universal electric bicycles – general purpose 36V electric bikes
8. Cross bikes – bikes combining urban and off-road features

Compliance summary

The battery works with most electric bicycles equipped with a 36V motor. Before buying, you should check whether the dimensions of the battery housing fit into the mounting space in the frame of a particular bike.

Easy installation of 36V 20Ah batteries

A few simple steps to power your electric bike

1. Turn off the electric bike Before starting assembly, make sure that the entire bike system is turned off.
2. Unlock the battery holder Insert the key and turn it to the left to unlock the mounting socket.
3. Place the battery in the guide Slide the battery pack into the holder along the bike frame rail.
4. Lock the battery permanently Turn the key to the right to close the lock and protect the battery from slipping out.
5. Connect the power cord Insert the battery output plug into the electric bike driver socket.
6. Ready to drive Turn on the control panel, check the battery level and start driving.

Additional guidance

• Before the first use, charge the battery to full capacity.

Battery for electric bike 36V 20Ah with 18650 cells. Equipped with an intelligent BMS system to protect against overcharging and overheating. ABS plastic housing with key lock, mounting on bicycle rack, XT60 connector, LED indicator of charge status.
