Dvipusis keltuvas 4T su rankiniu užraktu INVENTO EL S40M 230V

Trumpai apie prekę

Prekė: Dvipusis keltuvas 4T su rankiniu užraktu INVENTO EL S40M 230V. Kategorija: Kolonų keltuvai.

• Gamintojas: Invento
• Modelis: INVELS40M_230V

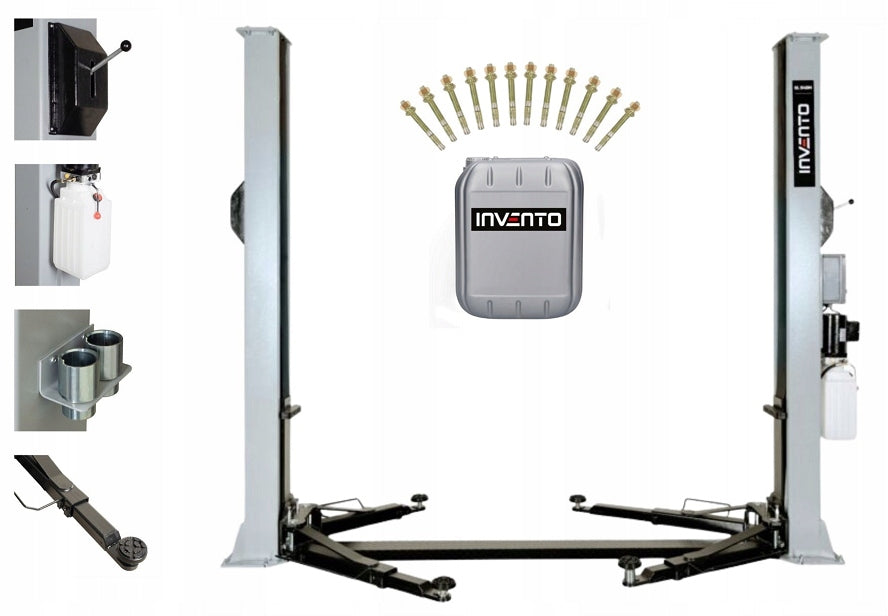

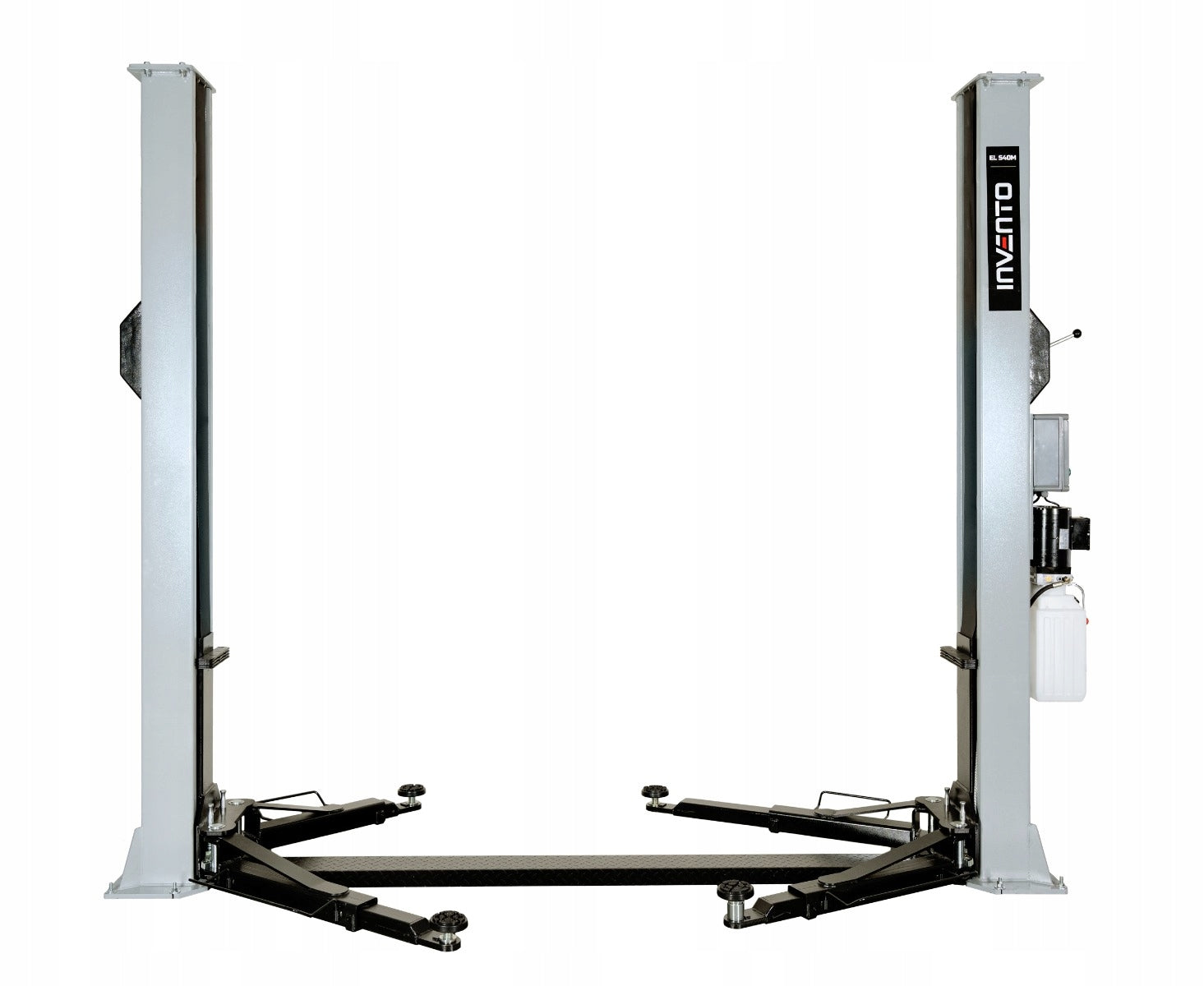

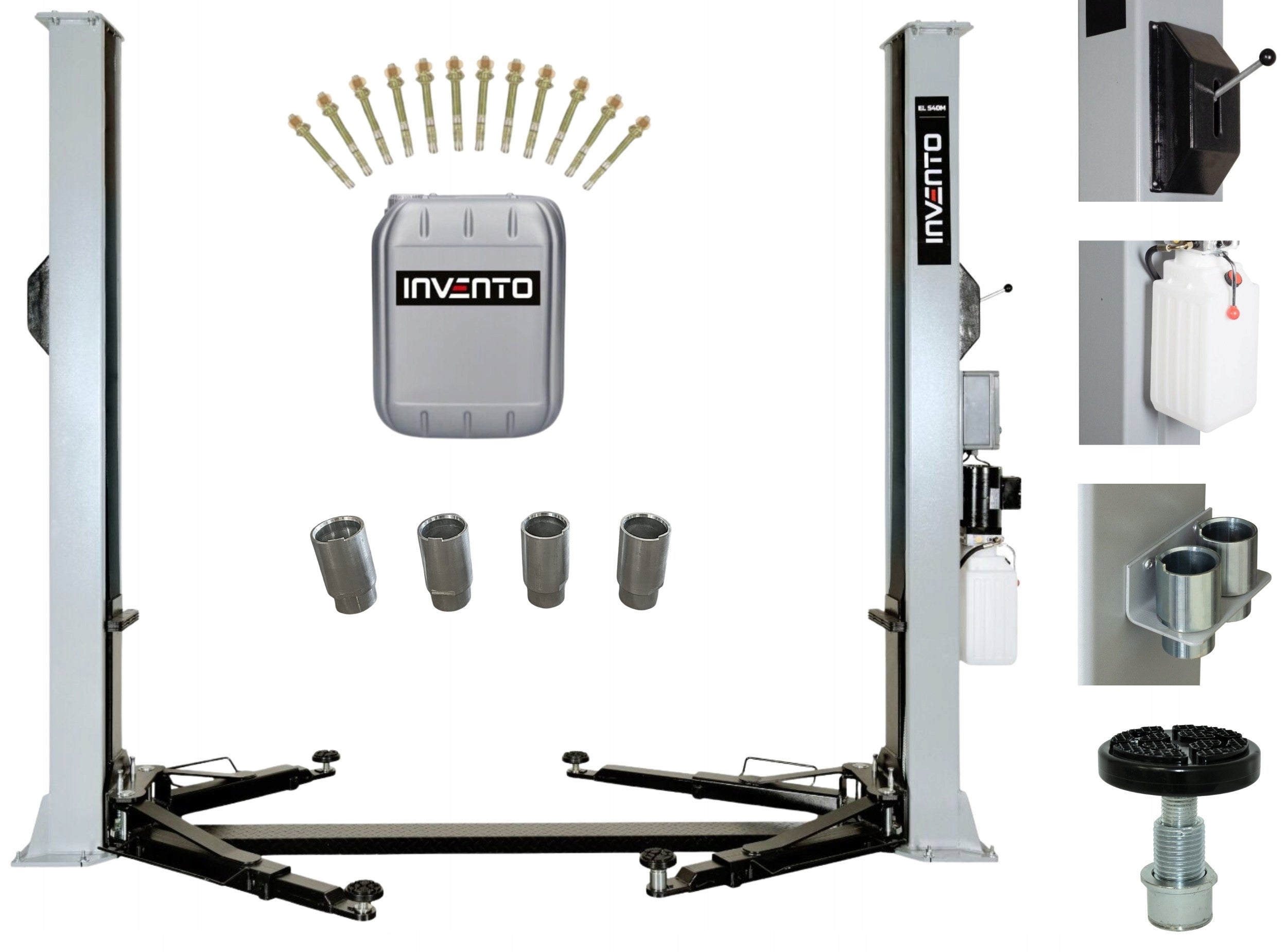

INVENTO EL S40M 230V is a professional electrohydraulic lift with manual locking, designed to handle passenger cars, SUVs and smaller commercial vehicles. 🚗

With a lifting capacity of 4 tons, a long arm reach and a sturdy construction, it is perfect for mechanical workshops and car services.

🎁 Hydraulic oil 10L FREE!

⭐ The most important advantages

✔ Lifting capacity 4000 kg / 4T

✔ Power supply 230V

✔ Manual height lock

✔ Long, 2-step adjustable arms

✔ Low threshold between columns

✔ Arm locking system

✔ 2-step adjustable support points

✔ 85 mm extensions included

✔ Vehicle door protection on columns

✔ Hydraulic oil 10L FREE 🎁

🚐 Ideal for SUVs and vans

The lift is equipped with a set of extensions / adapters 85 mm and adjustable support points 100 – 145 mm, which significantly increases the possibilities of operating vehicles with higher clearance or unusual chassis design.

Thanks to this:

✔ safely lift SUVs and vans

✔ easily adjust the support points

✔ you will maintain adequate clearance

✔ increase the stability of the vehicle during operation

🔒 Occupational safety

The INVENTO EL S40M lift is equipped with safety features in accordance with the CE documentation, guaranteeing safe and stable operation in the workshop.

The device is designed for installation in closed rooms, at temperatures from -10°C to 40°C.

📋 Preparation of the substrate

Option 1

☑ Concrete minimum C20/25

☑ Minimum floor thickness: 150 mm

☑ Mounting area: 1,5 m from anchorage

Option 2

☑ Concrete minimum C20/25

☑ Floor thickness: 250 mm

☑ Foundation plate: 4000 × 2000 mm

📊 Technical data

☑ Leverage: 4 000 kg

☑ Lifting height: 1 900 mm

☑ Minimum height: 95 mm

☑ Shoulder length: 735 – 1150 mm / 820 – 1320 mm

☑ Column height: 2 856 mm

☑ Width between columns: 2 815 mm

☑ Total width: 3 540 mm

☑ Lifting time: 50 s

☑ Power supply: 230V / 50 Hz

☑ Power: 2,2 kW
