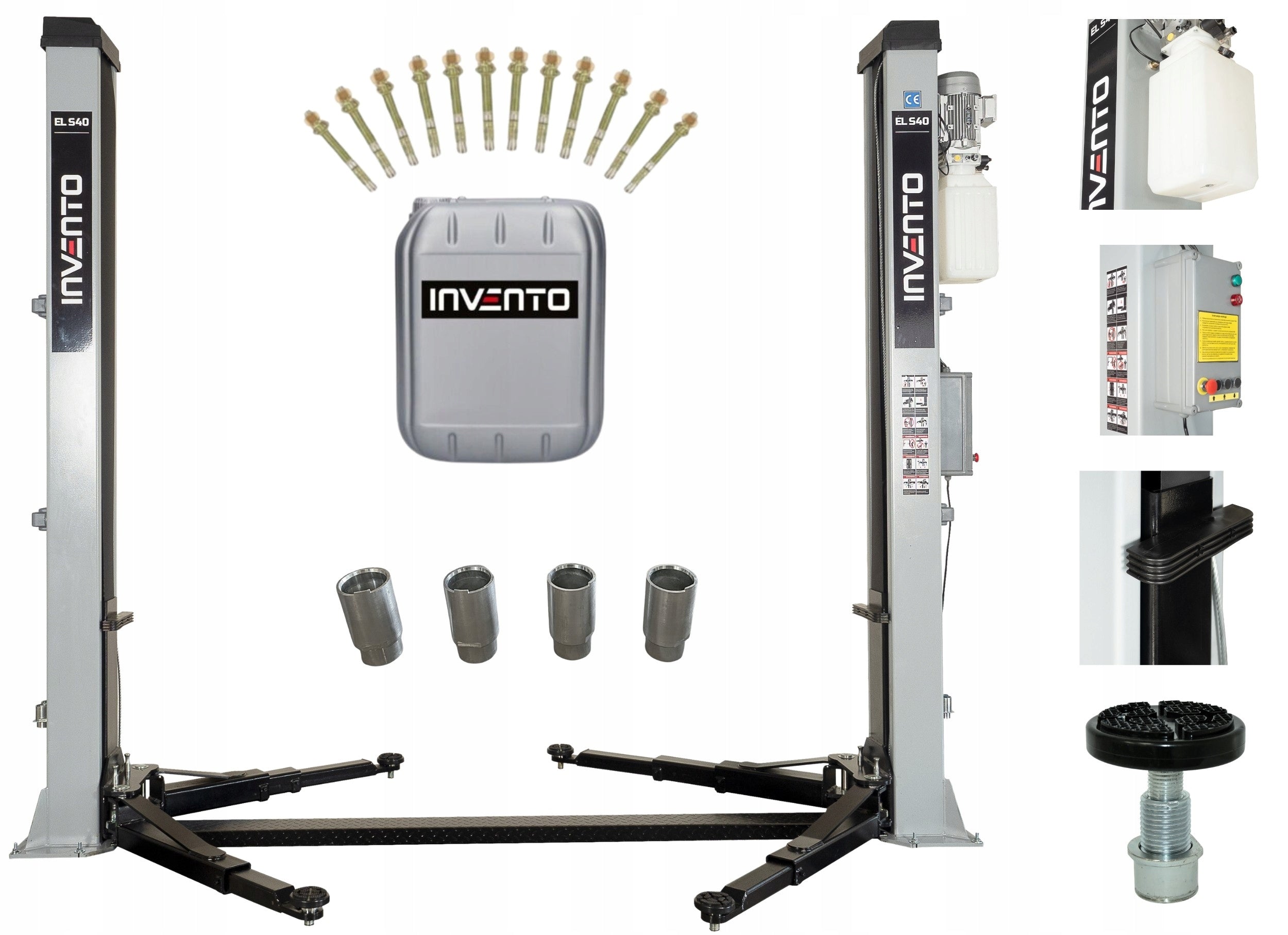

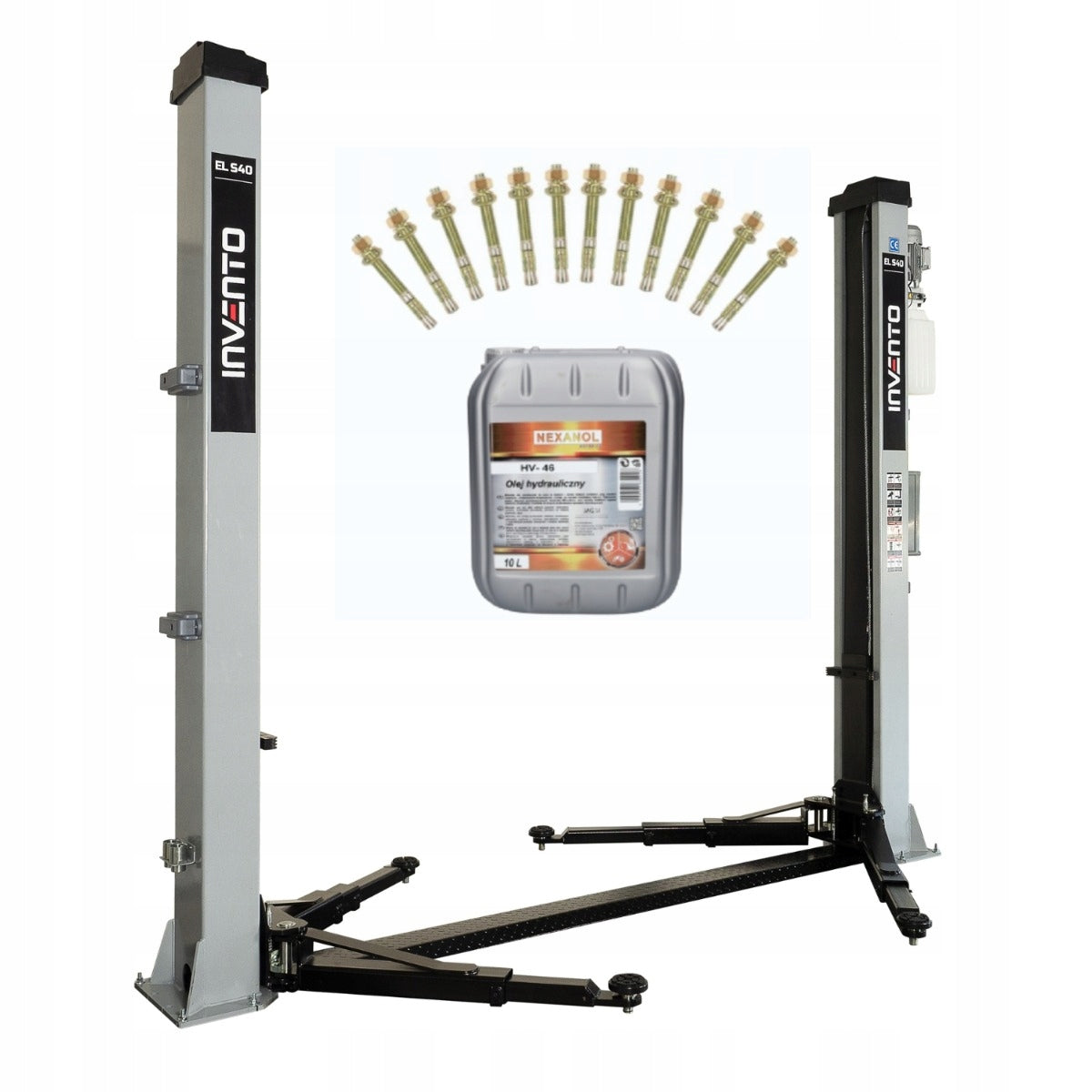

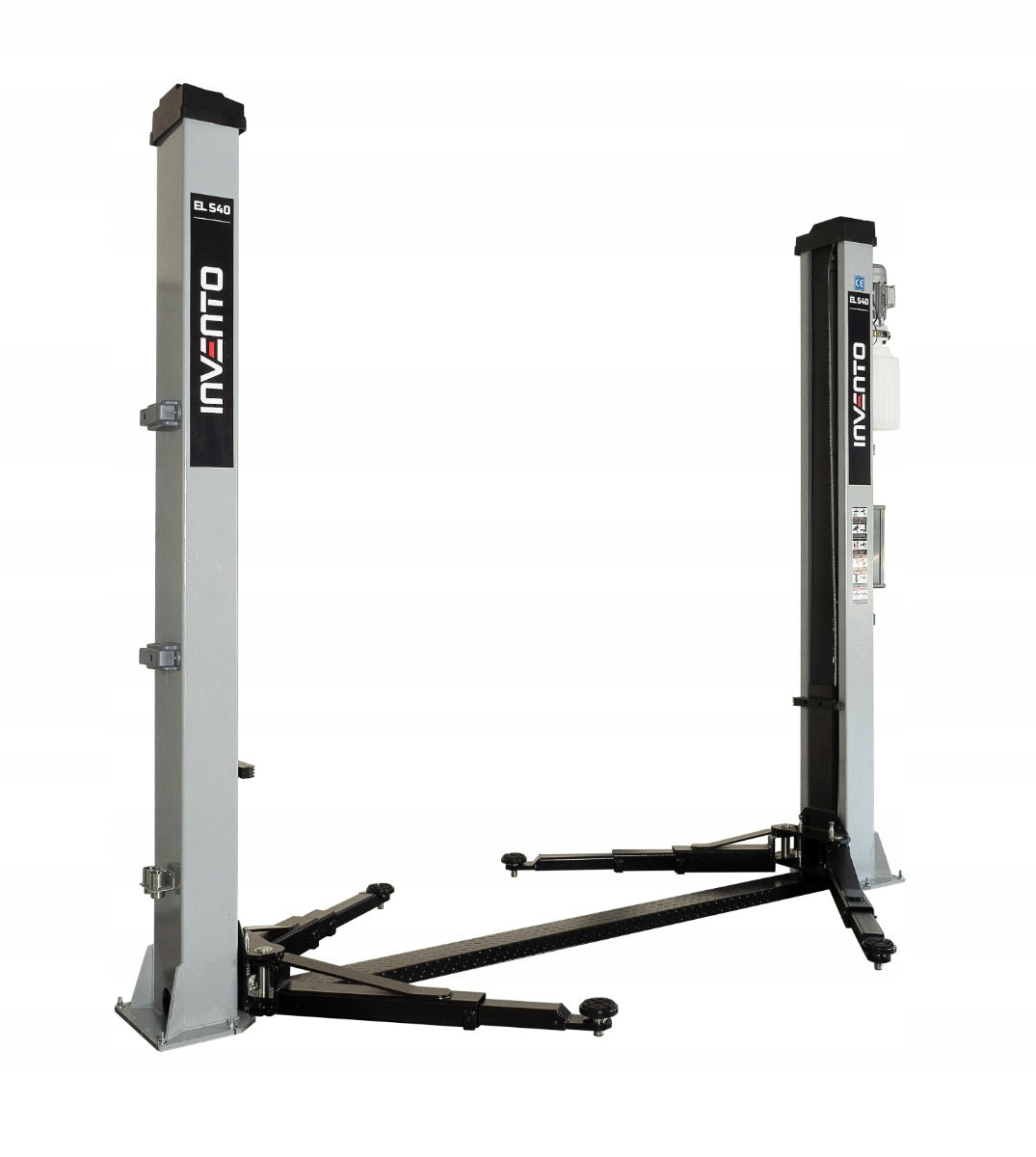

Dvikolonnis automobilių keltuvas INVENTO EL S 40 4T 230V su 10 l alyvos

Trumpai apie prekę

Prekė: Dvikolonnis automobilių keltuvas INVENTO EL S 40 4T 230V su 10 l alyvos. Kategorija: Kolonų keltuvai.

• Gamintojas: Invento
• Modelis: INVELS40_230V

INVENTO EL S40 230V is a professional electrohydraulic lift with a lifting capacity of 4 tons, equipped with a single-phase 230V power supply. Thanks to its long arm reach and automatic height lock, it is perfect for car workshops, mechanical services and vulcanization points. 🚗

The lift allows for convenient lifting of passenger cars, SUVs and light commercial vehicles, providing free access to the chassis and wheels.

🎁 Hydraulic oil 10L FREE!

⭐ The most important advantages

✔ Lifting capacity 4000 kg

✔ 230V power supply

✔ Automatic height lock

✔ Long arm reach

✔ Low threshold between columns

✔ Arm locking system

✔ Adjustable support points

✔ 85 mm extensions included

✔ Vehicle door protection

✔ Hydraulic oil FREE 🎁

🚙 Universal application

The lift is equipped with long, 3-stage adjustable front arms that allow convenient operation of various types of vehicles:

✔ passenger cars

✔ SUVs

✔ light commercial vehicles

Ideally suited for:

🔧 mechanical repairs

🔧 brake replacements

🔧 suspension service

🔧 tyre handling

🔧 diagnostic work

🔩 Extensions and adjustable support points

The set includes extensions / adapters with a height of 85 mm and 2-step adjustable support points 100 – 145 mm.

Thanks to this solution, it is possible to:

✔ safe lifting of higher vehicles

✔ easy fit for SUVs and vans

✔ protection of thresholds and chassis

✔ stable vehicle support during operation

🔒 Occupational safety

The INVENTO EL S40 230V lift is equipped with safety features in accordance with CE standards, guaranteeing safe and stable operation.

✔ automatic height lock

✔ shoulder locking system

✔ synchronization of work through a steel cable

✔ protection to protect the vehicle door

The device is designed to work in closed rooms at temperatures from -10°C to 40°C.

🏗 Ground Requirements

The substrate shall meet the following requirements:

✔ unscratched and leveled concrete

✔ minimum floor thickness: 200 mm

✔ concrete class minimum C25/30

✔ possibility of mounting anchors M16 or larger

📊 Technical data

Leverage: 4 000 kg

Lifting height: 1 900 mm

Minimum height: 95 mm

Shoulder length: 690 – 1290 mm / 820 – 1320 mm

Column height: 2 856 mm

Width between columns: 2 815 mm

Total width: 3 540 mm

Lifting time: 50 s

Power supply: 230V

Engine power: 2,2 kW
