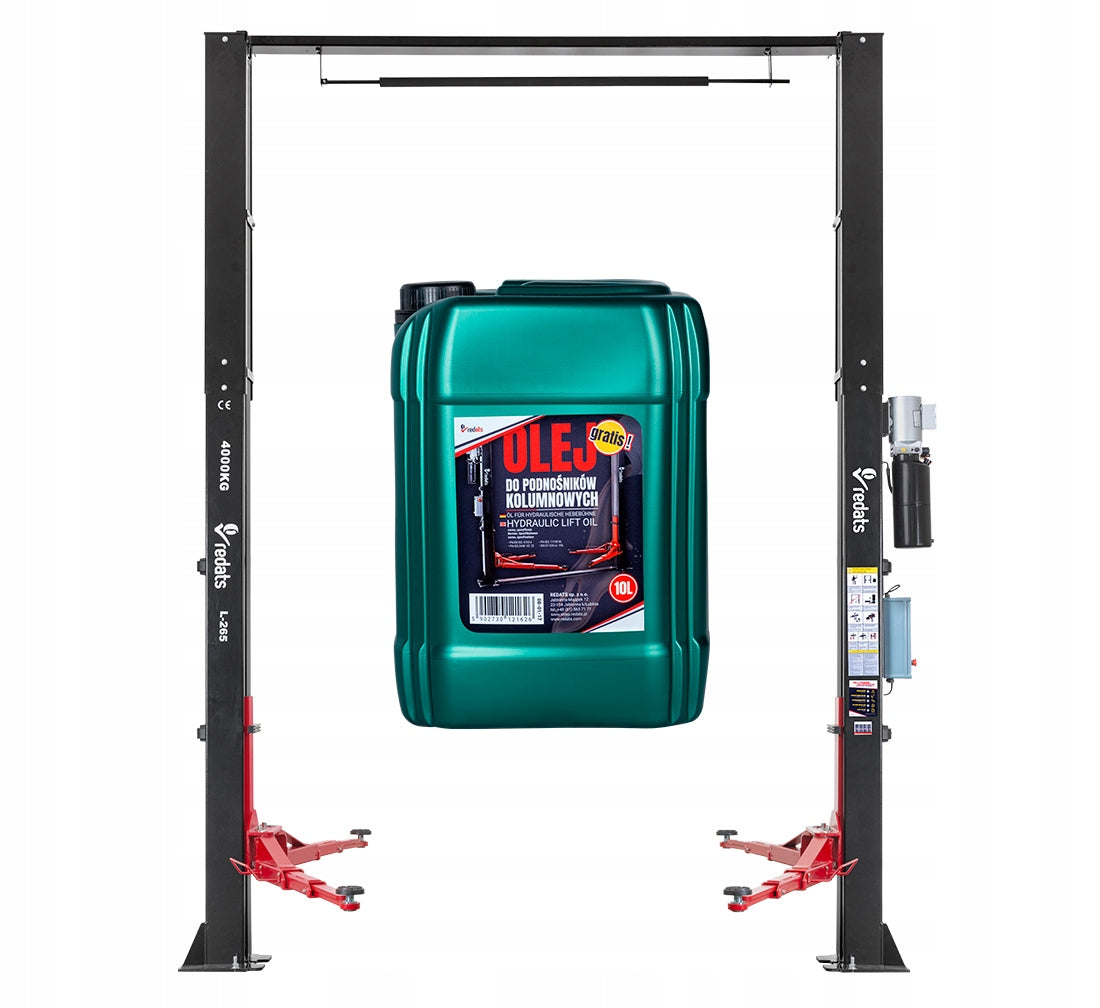

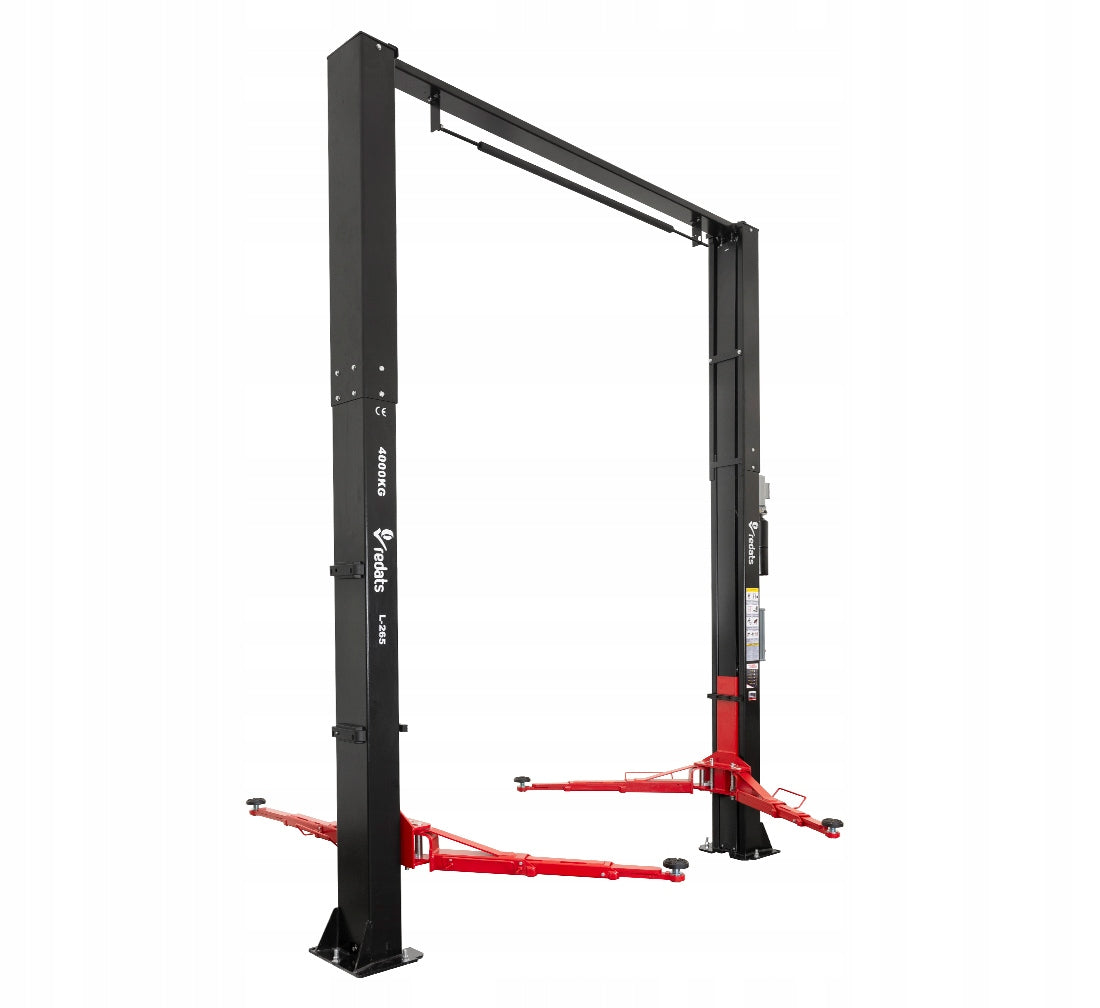

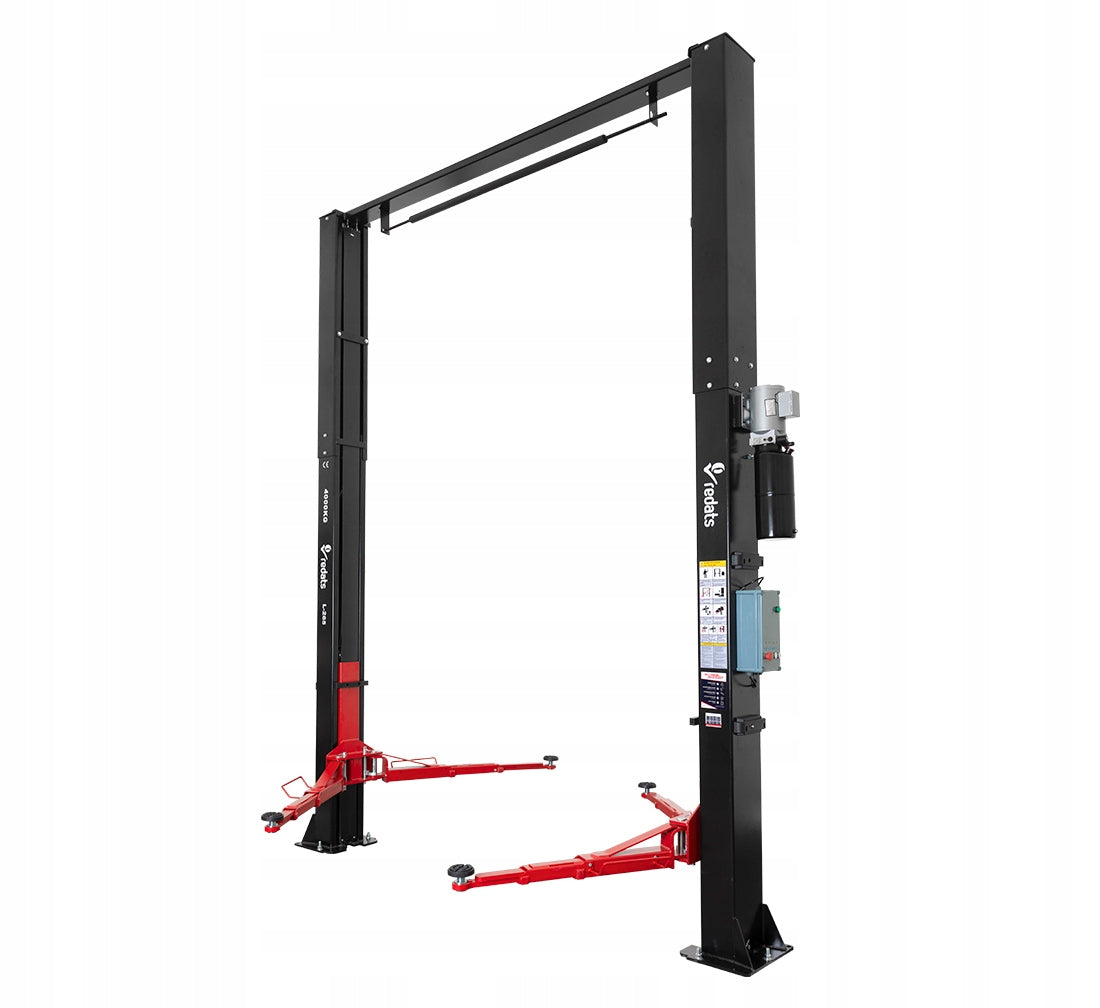

Dvikolonis keltuvas REDATS L-265 4T su viršutine sija ir alyva

Trumpai apie prekę

Prekė: Dvikolonis keltuvas REDATS L-265 4T su viršutine sija ir alyva. Kategorija: Kolonų keltuvai.

• Gamintojas: Redats
• Modelis: 30-09-96

Two-column lift 4 Tony Redats Upper Beam L-265 400V + Oil

• Producer: REDATS
• Maximum lifting capacity: 4 tons
• Type: automatic
• Beam: Upper
• Power supply: 400 V
• Lifting time: 50 seconds
• Lifting height: 1945 mm
• Column base dimensions: 380 x 450 mm
• Floor thickness: 30 cm
• Limit switch: yes
• Engine power: 2,2 kW
• Telescopic Lift Arms: Yes
• Arm Length Range: 700-1330
• Reinforcement frame: no
• Additional Features: -
• Anchors Included: Untested
• Meets UDT certification requirements: Yes
• Hydraulic oil 10L: free
• Weight: 685 kg
• Dimensions (W x H): 3560 x 4350 mm

What has changed from the previous model (L-260)?

First of all, the L-265 lift has a much higher design – 4350 mm, which is over 4 meters! This at maximum lift (1945 mm) gives up to 2405 mm of clearance. Thanks to this, it allows comfortable work also with higher vehicles.

On the one hand - the lack of a lower beam allows you to enter with low cars.

On the other hand - such a high placed upper beam does not limit you with high vehicles.

It will serve not only passenger cars and SUVs, but also some delivery vans.

This is the main difference from the L-260.

Choose it if you are looking for a lift that:

• It does not have a bottom connection – you can easily move, e.g. tool trolley and you will have it on hand even when lifting the vehicle,
• lifts 4 tons - will allow you to work on passenger cars and SUVs or vans,
• It will provide you with convenient access to the chassis and suspension of any car,
• enables the operation of high vehicles.

What else is worth knowing about him?

• Type: automatic
• Dimensions (W x H): 3560 x 4350 mm
• Lifting time: approx. 50 seconds
• Lifting capacity: 4000 kg (4 tons)
• Lifting height: 1945 mm
• Arm length range: 700 – 1330 mm
• Engine power: 2,2 kW
• Telescopic Arms: YES
• Power Supply: 400V
• Beam: Upper
• Floor thickness: min. 30 cm
• Limit switch: YES
• Weight: 685 kg
• Hydraulic oil: 10L included
• Meets UDT certification requirements

Childishly easy to use

Setting this lift in the desired position will take you less than a minute. To lift the car, press the (lift) button. To leave them, press the lower button.

Simple, isn't it? You can see that you will quickly learn how to use this device.

Long-term durability

The perfect quality of components (durable chain and controls) and careful workmanship ensure reliable use for many years. In addition, we have all standardized parts for this lift, such as rubber, hydraulic or electronic components.

Important

The user is obliged to bring the power cord to the device on his own.

Preparation of the substrate

Basic requirements for the preparation of the substrate for the installation of a two-column lift:

• substrate area 1,5 m x 4 m x 30 cm,
• maximum flat surface,
• minimum floor thickness: 30 cm,
• concrete of class B25,
• 28 days – waiting time for the floor to dry and harden (in the case of a fresh spout).

The floor must be in the form of a homogeneous concrete slab, with the above-mentioned parameters.

UDT – to report or not?

You often ask whether you need to report the lift to the UDT (Office of Technical Inspection). According to Polish law, this must be done. Few sellers talk about it, but in light of the regulations, it does not matter whether you use the lift for your business or privately. Whether you work alone or hire people - the lift is worth registering in UDT.

Want to report a lift to UDT?

If you want UDT to collect and allow your new lift to be put into operation, it is worth outsourcing its installation to a team with appropriate permissions. We can help you with that. Contact us and we will prepare a quote for you for the assembly made by a qualified company!

Quality REDATS!

By choosing REDATS you buy from the official distributor of devices of this brand in Poland and Europe. REDATS devices are manufactured in leading factories of this type of equipment, so you do not have to worry about the standards of workmanship or used parts.

Distributor of tools and machines REDATS is a company operating successfully on the Polish and international market since 2006. It is a recognized entity that has already gained the trust of over 500 000 recipients. When buying REDATS machines, you can count on professional and comprehensive support at every stage of the purchase or use of equipment.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Redats
Parametry	Manufacturer code	30-09-96
Parametry	EAN (GTIN)	5902730171751
Parametry	Number of columns	2
Parametry	Drive	electrohydraulic
Parametry	Column connection	Top
Parametry	Overall width	3560 mm
Parametry	Overall height	4350 mm
Parametry	Power supply	400 V
Parametry	Engine power	2.2 kW
Parametry	Lifting capacity	4000 kg
Parametry	Maximum lifting height	1945 mm
