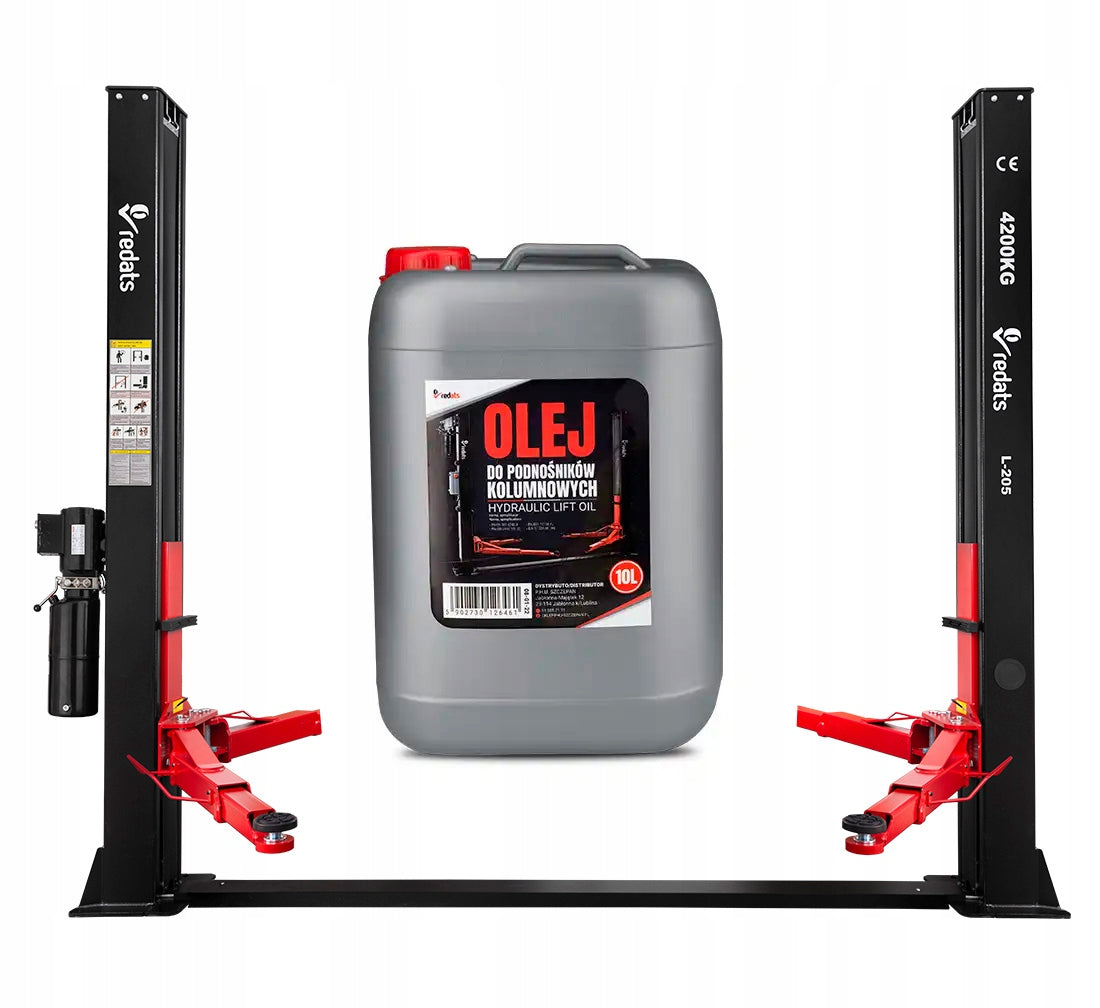

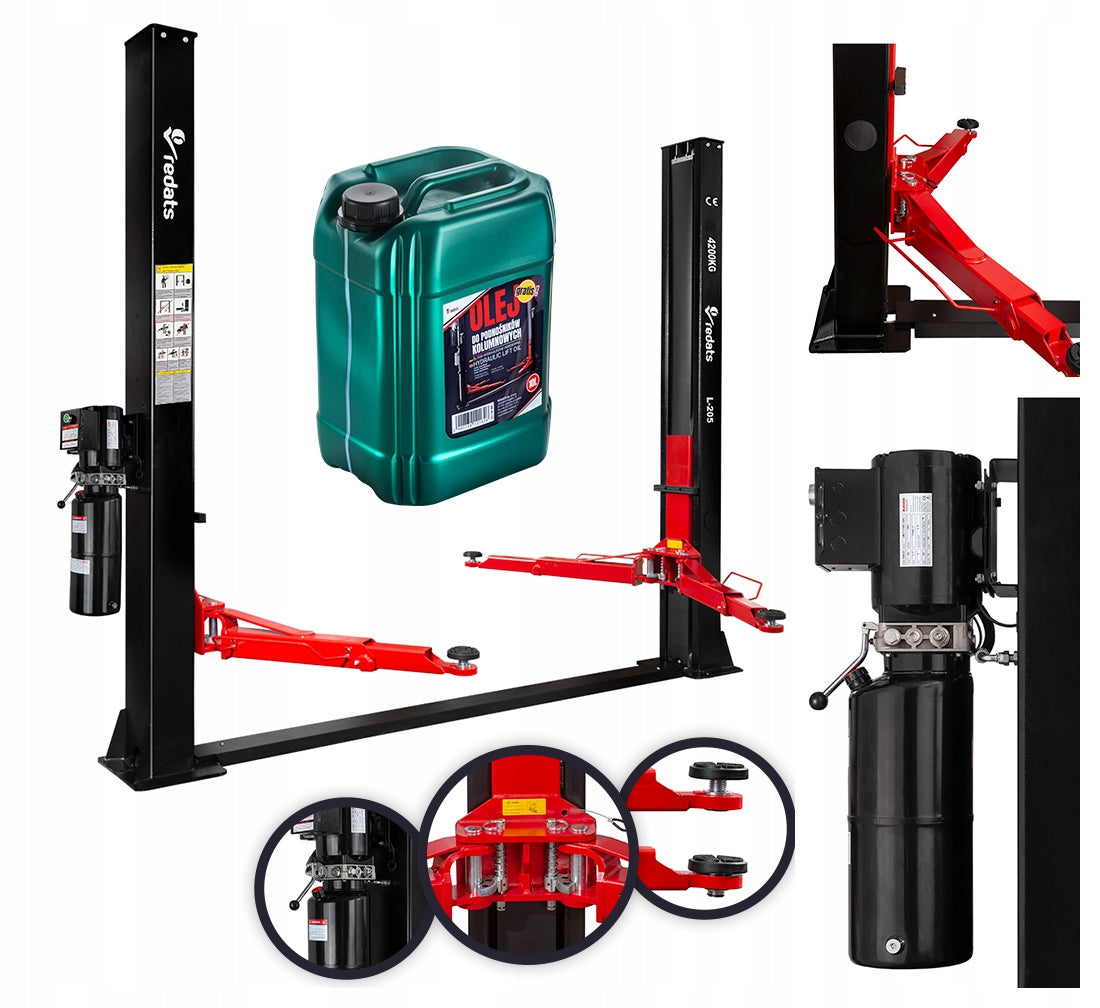

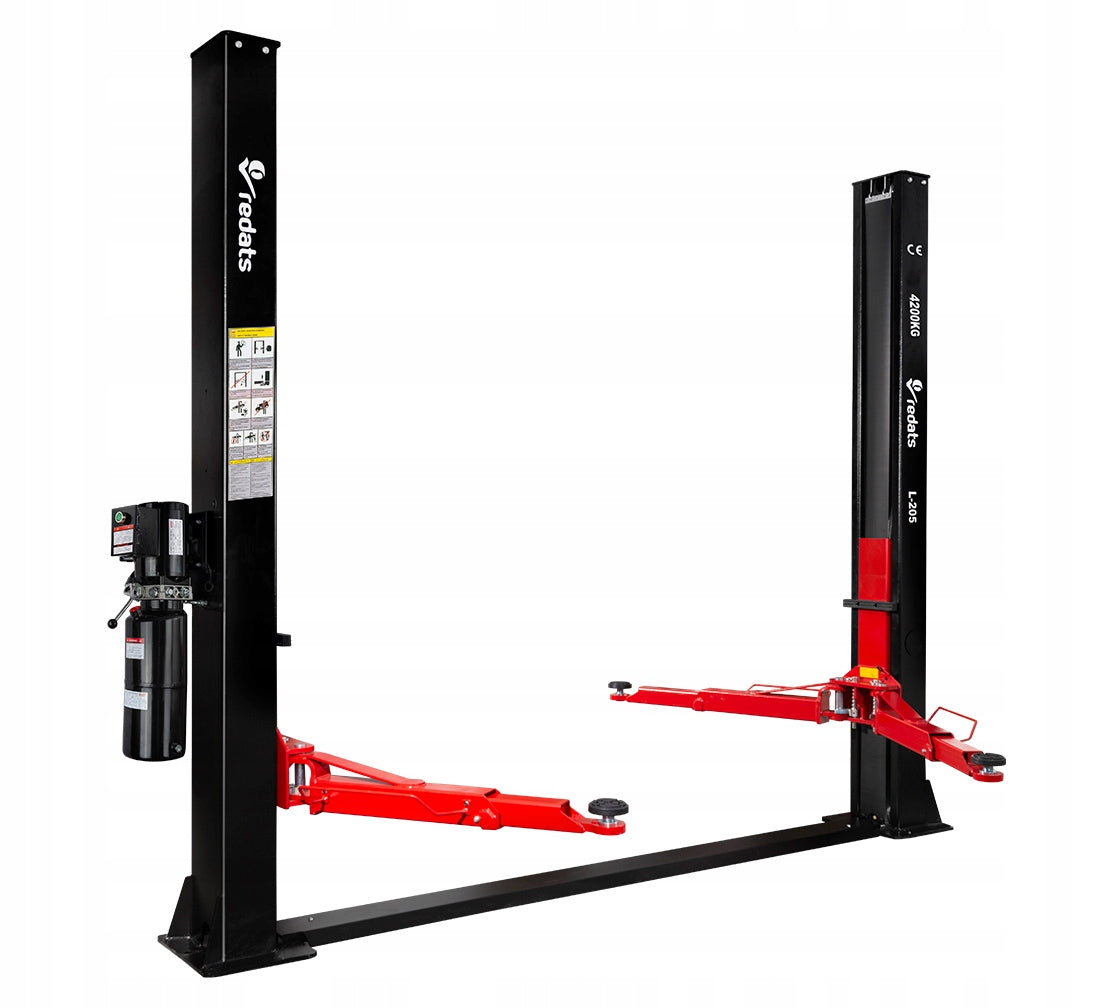

Dvikolė keltuvas Redats L-205 4200 kg 400 V pusiau automatinis

Trumpai apie prekę

Prekė: Dvikolė keltuvas Redats L-205 4200 kg 400 V pusiau automatinis. Kategorija: Stulpeliniai keltuvai.

• Gamintojas: Redats
• Modelis: 30-08-28

• Brand: REDATS
• Symbol: 30-08-28
• Maximum lifting capacity: 4,2 tons
• Type: semi-automatic
• Reinforcement frame: no
• Arm length range: 800 - 1220 mm
• Floor thickness: 30 cm
• Beam: Lower
• Power supply: 400 V
• Lowering time: 25 seconds
• Lifting time: 45 seconds
• Maximum width of the car: 2616 mm
• Lifting height: 110 - 1910 mm
• Limit switch: yes
• Engine power: 2.2 kW
• Telescopic lift arms: YES
• Anchors included: yes
• Meets UDT certification requirements: YES
• Weight: 590 kg
• Dimensions (W x H): 3648 x 2850 mm

What kind of lift is that?

It is a semi-automatic lift, with a lifting capacity of 4,2 tons. If you operate passenger cars and light commercial vehicles, then it will be perfect for you! It will work well both in suspension and engine extraction work.

How is it different from the L-200?

We have made some important changes that will make your work more efficient. What exactly has changed?

“We have increased the lifting capacity by 200 kg (now 4,2 tons), so you can handle an even greater range of vehicles without worrying about overloading.

- You will be able to lift the car 10 seconds faster (now it is only 45 seconds), which means more time for repair and more work efficiency.

- With this lift you can handle cars with a width of 261,6 cm (i.e. 11,6 cm wider than on the previous model) expanding the possibilities of your workshop.

- Symmetrical arms ensure precise positioning of the vehicle, making it easier to carry out repairs.

The dimensions of the machine and the lifting height have also changed. You can check all the details below.

Choose it if you are looking for a lift that:

• Ideal for suspension and chassis repairs
• lifts passenger cars and light commercial vehicles (lift capacity 4,2 tons)
• It can handle even large cars: we remind you that the maximum width of the vehicle is 2616 mm
• It will give you the comfort of work, even if you are tall and tired of bending under the car - this equipment raises to 191 cm

What else is worth knowing about him?

• Type: semi-automatic
• Dimensions (W x H): 3648 x 2850 mm
• Lowering time: 25 seconds
• Lifting time: 45 seconds
• Lifting capacity: 4200 kg (4,2 tons)
• Lifting height: 110 - 1910 mm
• Maximum width of the car: 2616 mm
• Engine power: 2,2 kW
• Telescopic Arms: YES
• Power Supply: 400V
• Beam: Lower
• Spout: 30 cm

Symmetrical arms - better stability of every car!

This lift (unlike its predecessor) is equipped with symmetrical arms. Here are their dimensions:

Arm length range: 800 - 1220 mm

Preparation of the substrate

Basic requirements for the preparation of the substrate for the installation of a two-column lift:

• substrate surface 1,5m x 4m x 30cm
• maximum flat surface
• minimum floor thickness: 30 cm
• Class B25 concrete
• 28 days, waiting time for the floor to dry and harden (in the case of a fresh spout)
• The floor must be in the form of a homogeneous concrete slab, with the above-mentioned parameters.

Important!

Before buying, be sure to check the location of the support points in the cars you want to service.

The user is obliged to bring the power cord to the device on his own.

Long-term durability

Perfect quality of components (durable chain and controls) and careful workmanship guarantee reliable use for many years. In addition, we have all standardized parts for this lift, such as rubber, hydraulic or electronic components.

Full security

The lift trolley is equipped with a rubber protection that protects the rim of the car door when opening on the lift.

UDT - to report or not?

You often ask whether you need to report the lift to the UDT (Office of Technical Inspection). According to Polish law, this must be done. Few sellers talk about it, but in light of the regulations, it does not matter whether you use the lift for your business or privately. Whether you work alone or hire people - the lift is worth registering in UDT.

Do you want to report the lift to UDT?

If you want UDT to collect and allow your new lift to be put into operation, it is worth outsourcing its installation to a team with appropriate permissions.

Specifications
