Dviejų varčių kiemo vartų pavara su WIFI, 2x2 m, 400 kg, 4 pulteliai, LED lempa

Trumpai apie prekę

Prekė: Dviejų varčių kiemo vartų pavara su WIFI, 2x2 m, 400 kg, 4 pulteliai, LED lempa. Kategorija: Kietieji diskai.

• Gamintojas: tech globe
• Modelis: V-D-400-WIFI
• Įtampa: 230 V

Comfort and convenience all year round

Automatic gate is a guarantee of convenience and safety. Rain, snow, frost or heat – just one press of the button on the remote control to open the gate itself, and you without getting out of the car safely entered the property.

VELTRIX V-D-400 WIFI:

✅ For gates two-wing with a maximum length of 2 m per wing and a total weight of up to 400 kg.

✅ Activators adapted to difficult assembly conditions (e.g. narrow metal or other posts, where the hinges are moved away from the edge of the post up to 10 cm).

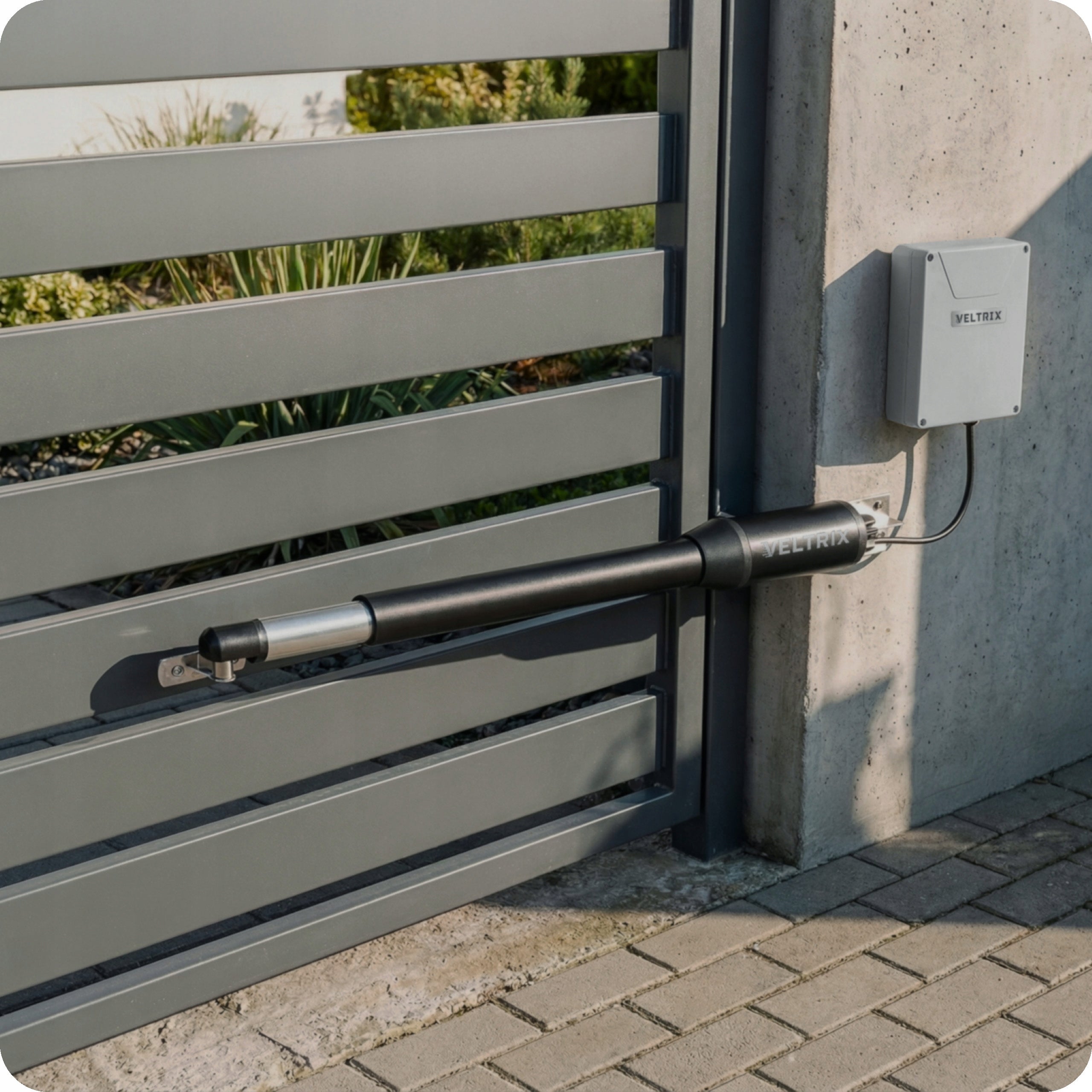

VELTRIX V-D-400 WIFI - universal set for swing gates

✅ Ideal for all types of swing gates - both domestic and light industrial.

✅ Simplicity of installation - designed for ease of installation, while maintaining reliable operation and comfort of use.

✅ Activators with appropriate power - for wings up to 2m in size and weighing 200kg.

✅ Maximum gate size - total length up to 4m and total weight up to 400kg.

Quiet, fast and reliable

✅ Smooth operation – precise transmission made of high quality metal alloys, quiet operation, without and unnecessary vibrations.

✅ Quick opening of the gate – the high-power motor used allows efficient opening of the wings in 12 seconds.

✅ Durability for years – transmissions and external housing resistant to all weather conditions.

✅ Compact and versatile – ideal for mounting with narrow posts or limited space.

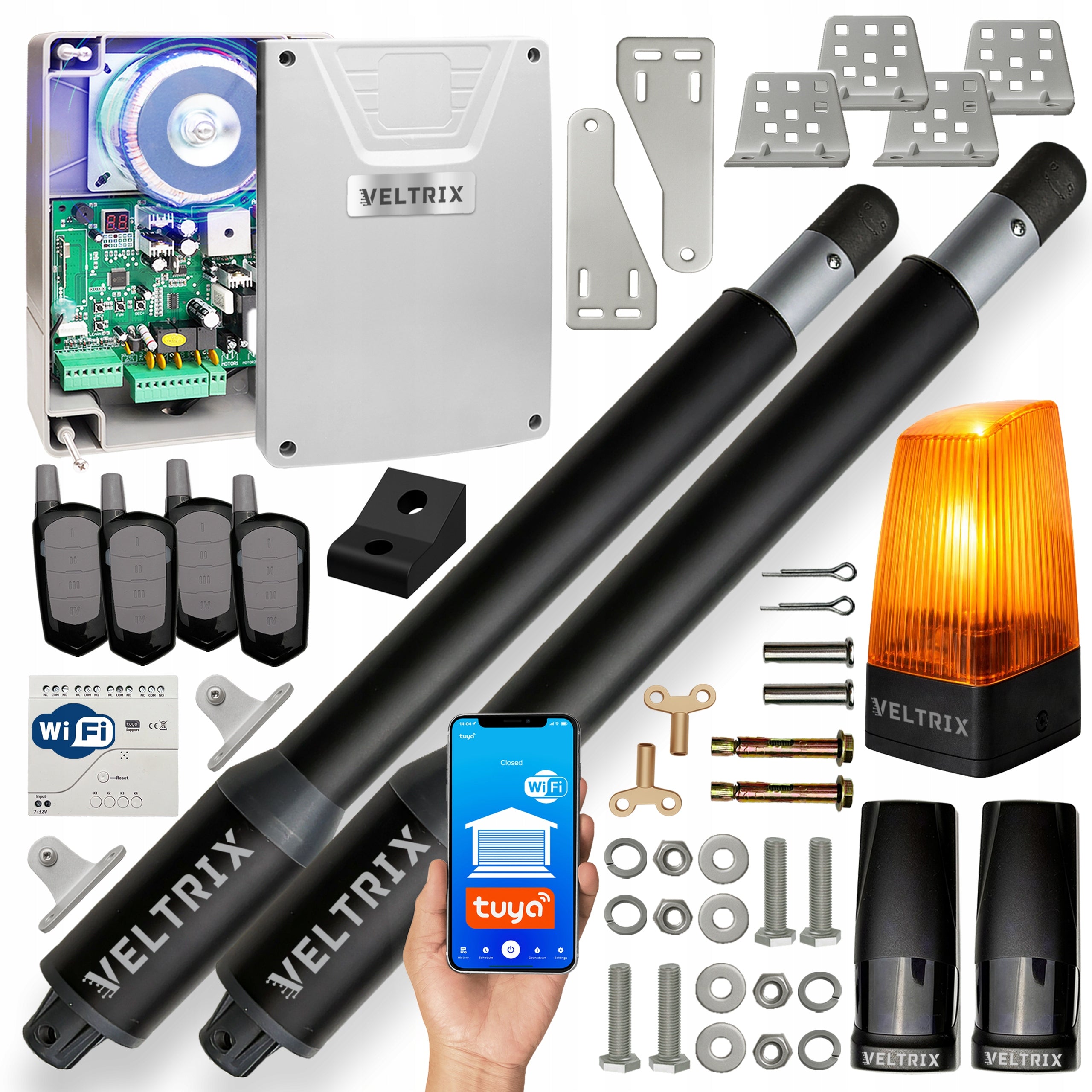

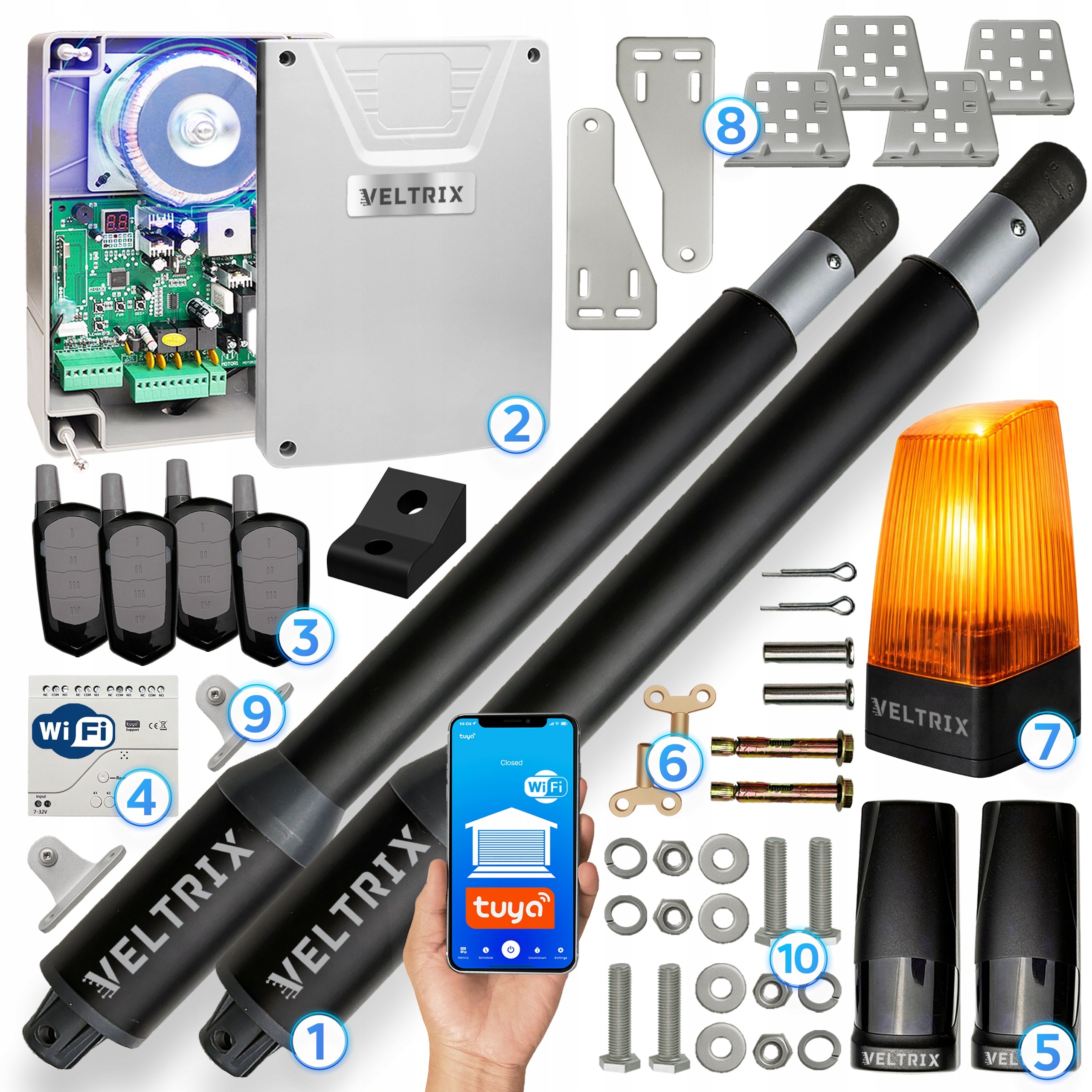

Set Contents:

1. 2 pcs. telescopic cylinder (max. 2m/200kg per wing)
2. Control panel with intuitive programming
3. 4 remote controls with additional REINFORCEMENT RANGE antenna!
4. WiFi module
5. 2 pcs. Photocell (180° angle)
6. 2 pcs. keys for emergency opening of the gate
7. Warning lamp LED with antenna extending the operation of the remote control
8. Mounting brackets for posts
9. Mounting brackets for gate wings
10. All necessary mounting accessories

Detailed instruction in Polish included.

Actuators for the gate - technical parameters:

• Power Supply: 24V DC
• Engine power: 40W
• Maximum wing length: up to 2 meters
• Maximum wing weight: up to 200 kg
• Maximum opening angle: 110°
• Plunger extension (arm): 300 mm
• Extension speed: 16 mm/s
• Transmission: made of high quality metal alloy.
• Housing: metal, powder coated, corrosion resistant.
• Application: ideal for narrow posts (hinge weaning up to 10 cm).

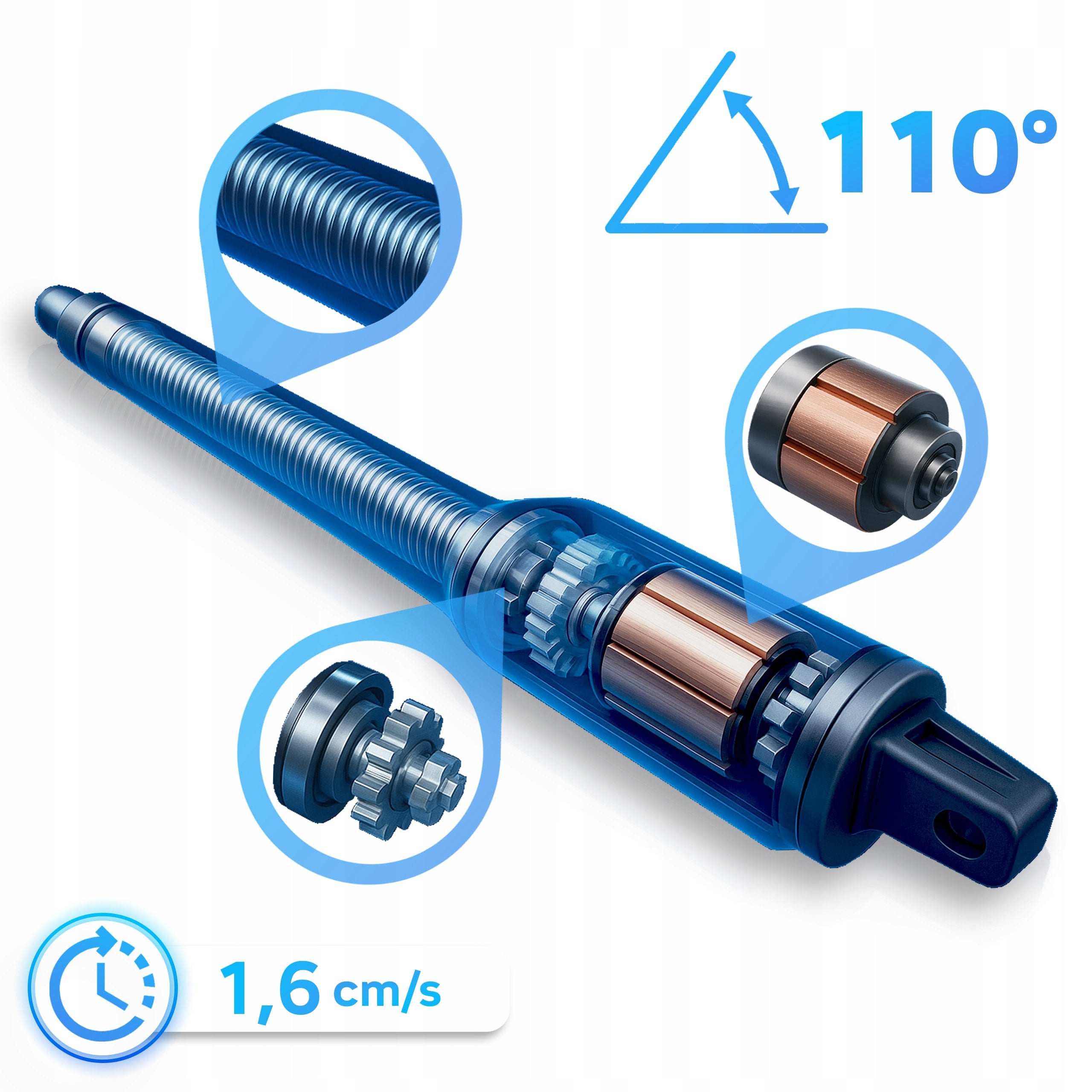

SOFT-GEAR technology – durable transmission with high working culture:

✅ Maxial durability - even under intensive use.

✅ Oresistance to abrasion and loads - transmission made of brass and hardened steel.

✅ Ctheir smooth operation without jams and slacks - without the risk of cracks, noise and vibrations.

TORQ-DRIVE technology – powerful 24VDC motor:

✅ Wysoki torque - work even under heavy loads.

✅ Nlow power consumption - energy-efficient engine.

✅ Sstable and quiet operation - without losing precision.

✅ Oresistance - for overheating and low temperatures.

In addition:

✅ The actuators are designed for intensive work – they are suitable for both light gates (e.g. aluminum), as well as heavier steel structures.

✅ Compatible with a control panel equipped with Soft Start / Stop functions - wing delay.

Control panel - technical parameters:

• Power supply for control panel: 230V ±15%
• Power supply for actuators: 24VDC
• Minimum Gym Dimension: 700mm
• Maximum actuator dimension: 1000mm
• Range of pilots: up to 220 m (in open space)
• Radio frequency: 433,92 MHz
• Emergency battery connection option: 24V 5Ah
• Control inputs: WiFi, Bluetooth, GSM, intercom, code keyboard
• Emergency power supply can be connected: 24V / 5Ah
• Housing protection class: IP55 – resistant to dust and rain
• Working temperature range: from –25°C to +65°C

Multi-functionality and wide possibilities:

✅ Soft Start & Soft Stop - actuators start and finish work gently, which translates into smooth and quiet closing of the gate.

✅ Automatic closing - the ability to set the time after which the gate closes automatically.

✅ The possibility of delaying one wing relative to another - allows the gates to work properly, in which one wing overlaps the other.

✅ LED display - facilitates configuration and diagnostics of errors.

✅ Emergency power supply 24V - the possibility of connecting an emergency battery that will ensure uninterrupted operation of the system even in the event of a power outage.

✅ Transformer 230V - toroidal transformer eliminates voltage spikes and protects electronic components.

The control panel allows you to connect devices such as:

• intercom
• videophone
• code keyboard
• internal button
• WiFi module – remote gate control from anywhere in the world
• universal radio receiver – compatibility with remote controls of other brands

Safety first and foremost:

✅ Obstacle protection – in case of encountering an obstacle (e.g. car) the gate stops automatically.

✅ Optical protection (photocells) - infrared beam interruption between photocells causes immediate gate stop, even before physical contact.

✅ Auto-lock actuator after closing - the gate after closing is mechanically locked, which eliminates the need for additional locks and increases resistance to forced attempts.

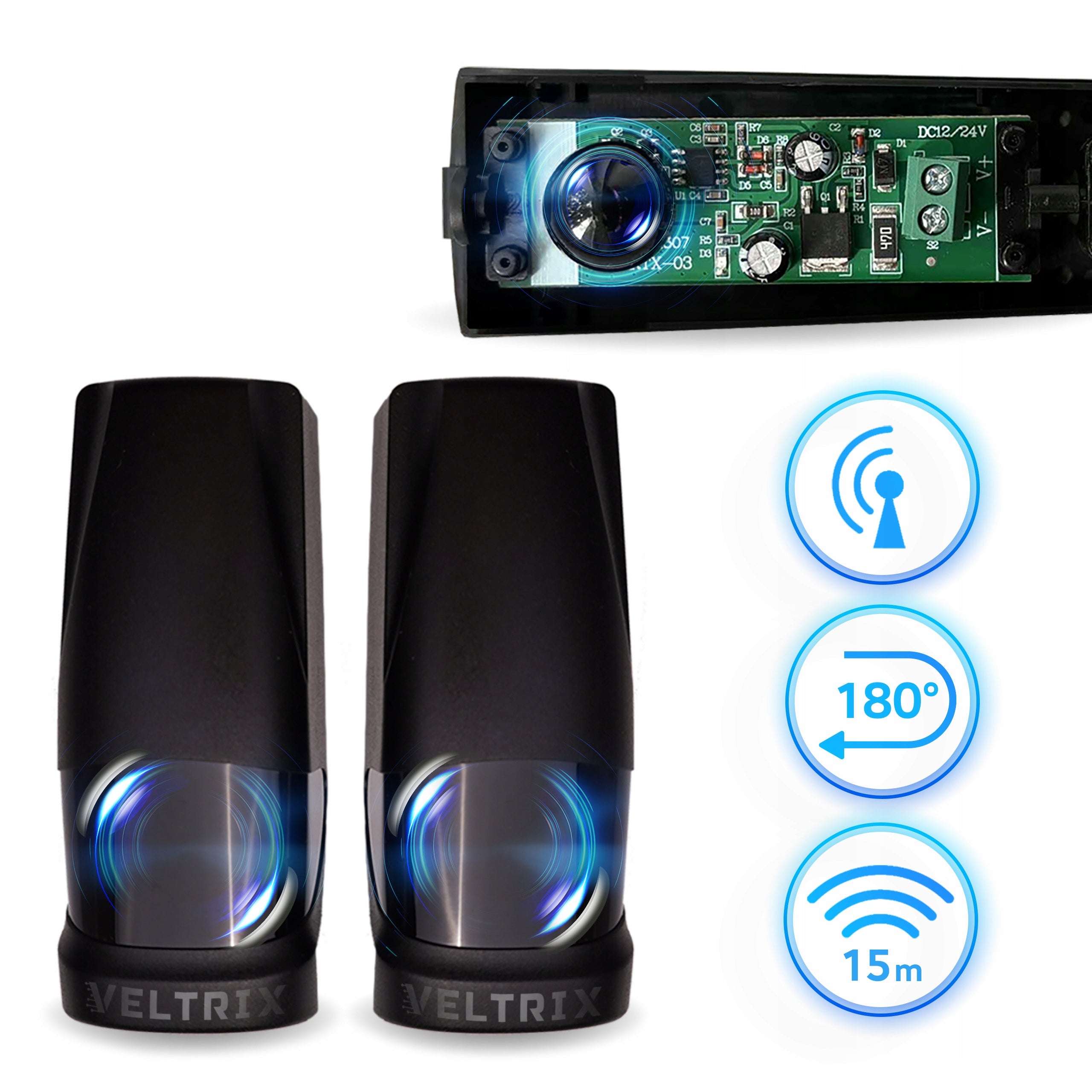

Photocells - technical parameters:

• Dimensions: 108 mm x 35 mm x 30 mm
• Power supply: 12 – 24V AC/DC
• Range of operation: up to 15 meters
• Power consumption: RX – 15 mA / TX – 30 mA
• Relay: 1A / max 36V
• Working frequency: 1,92 kHz
• Infrared wavelength: 940 nm
• Working temperature: from –20°C to +55°C
• Weight: 105 g
• Angle of view: 180 degrees
• Rotating head
• Wide detection angle

Rotary photocells – compact design, wide detection angle and freedom of installation:

✅ Rotating photocell head – allows precise positioning of the optical path regardless of the position of the housing.

✅ 180° viewing angle (adjustable) – provides installation flexibility and accurate adjustment to local conditions.

✅ Action from all angles – possible installation vertically or horizontally, without loss of functionality.

✅ Convenient installation on narrow posts – photocells can be fixed on the outer plane of the post (from the road side), and then rotate the optical element by 90° for an optimal line of view.

✅ Assembly pins included – ready for immediate assembly without the need to buy additional components.

Remote control for the gate - with an additional antenna extending the operating range

✅ Constructively durable - solid and handy.

✅ 4-channel - with dynamically variable code (rolling code) with a frequency of 433,92 MHz.

✅ Unique identification code - allows you to copy it to another remote control of the same type (pilot-pilot function).

✅ Additionally built-in antenna - significantly increases the range and signal strength of the remote control.

✅ Opening the gate from greater distances - even despite terrain obstacles.

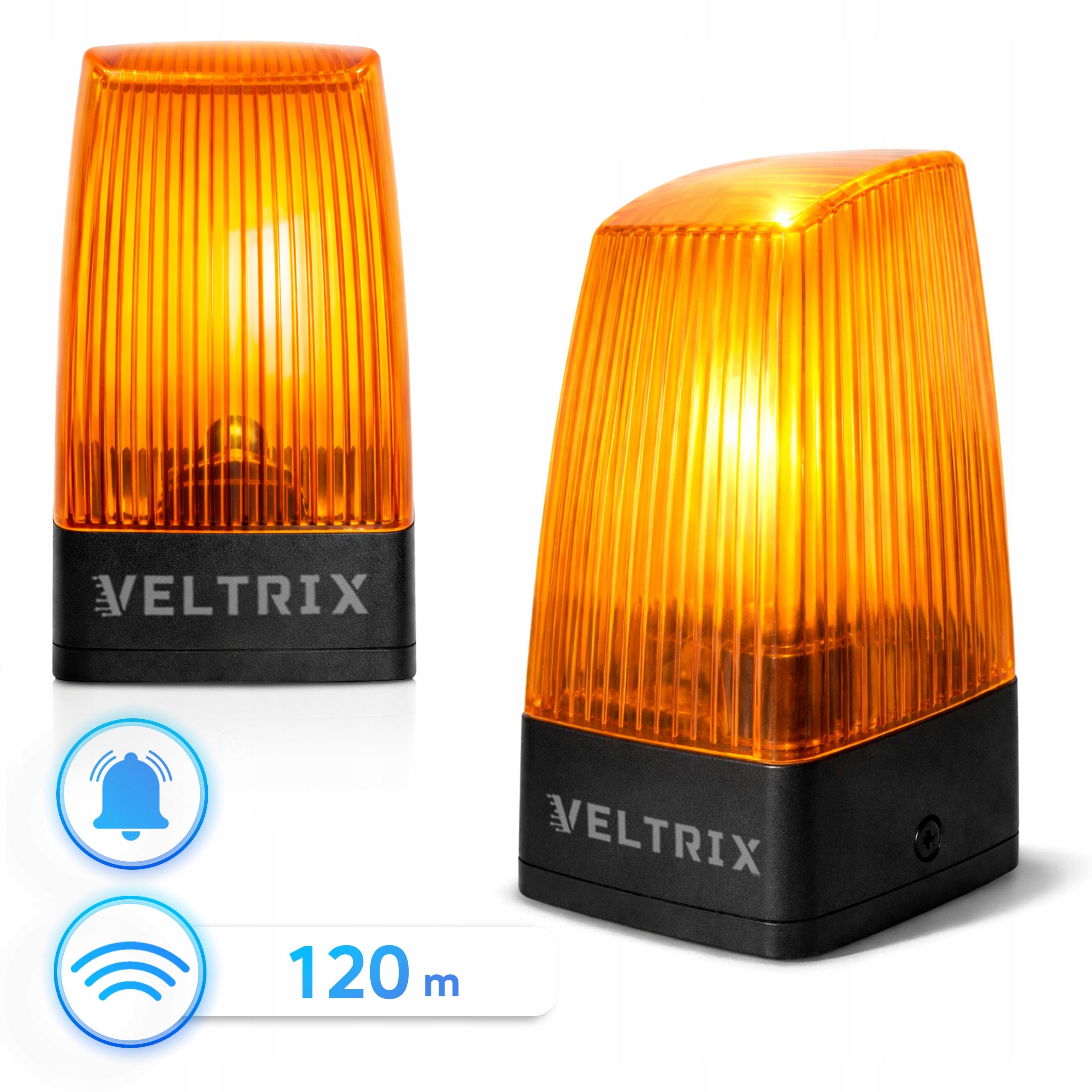

Signal lamp with additional antenna

✅ Enhances the signal of pilots thanks to the antenna - increasing their range and reliability.

✅ Direction of illumination 360° – light visible from all sides.

✅ Universal mounting base – vertical and horizontal installation possible.

✅ Low power consumption – only 2,5 W with continuous illumination.

✅ Light pulsing frequency - 1 Hz/0 Hz (60 flashes per minute/continuous light).

✅ Lamp made of durable materials - resistant to weather conditions.

Manual unlocking and emergency power supply – operation even in the event of a power outage

✅ Operation of the set in all conditions - even in unusual situations.

✅ Full safety and independence - in the event of a power failure.

✅ Two emergency keys - for quick and easy manual unlocking of actuators.

✅ Opening the gate manually, without the use of electricity - this possibility is very useful in the event of a power outage.

Mounting brackets for actuators – factory, multi-position, galvanized

✅ Suitable for various installation configurations - adjusting the angle and position of the actuator relative to the gate leaf and post.

✅ A set of anchors and mounting screws - made of stainless steel.

✅ Keys for manually unlocking the drive - in case of power outage.

✅ Restrictor - mounted to the ground to stop the gate in the closed position.

Assembly? You'll do it yourself!

✅ Created so that everyone can mount it themselves - without having to call a professional.

✅ Simplicity – thanks to the multi-position mounting brackets, the installation of the actuator is simple, fast and adapted to different gate configurations.

✅ Transparent instruction - will guide you step by step through the entire installation process, even if you are doing it for the first time.

✅ Questions in assembly? – Our technical team is at your disposal, ready to provide assistance by phone and dispel any doubts.

Service - Our support!

✅ We have our own technical service - which is available to help at every stage, from assembly to configuration. Our specialists are available to answer all your questions and provide professional support.

❌ Beware of sellers who do not offer service support - lack of technical support may result in installation problems, difficulties with configuration and the inability to effectively complain in the event of a failure.

✅ Buy from reliable suppliers with experience and service facilities.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	tech globe
Parametry	Product weight with unit packaging	20 kg
Parametry	Drive type	for swing gates
Parametry	Maximum wing weight	200 kg
Parametry	Maximum wing length	2 m
Parametry	Maximum number of cycles per day	100
Parametry	Supply voltage	230 V
Parametry	Maximum opening angle	110°
Parametry	Engine power	100 W
Parametry	Opening time	12 s
Parametry	Manufacturer code	V-D-400-WIFI
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Set contents	control unit,photocells,unlock key,mounting elements,drive,remote control,warning light,mounting kit with plate
Parametry	Certificates of conformity	CE,WEEE
