Dviejų kolonų keltuvas CTX, 4T, 4000 kg, automatinis, 230V, UDT

Trumpai apie prekę

Prekė: Dviejų kolonų keltuvas CTX, 4T, 4000 kg, automatinis, 230V, UDT. Kategorija: Keltuvai stulpams.

• Gamintojas: CTX Werkzeuge
• Modelis: CTX.07.1A01 230V

Manufacturer: CTX Werkzeuge GmbH

Intended Use:

✔️ Passenger cars

✔️ Vans

Product Description:

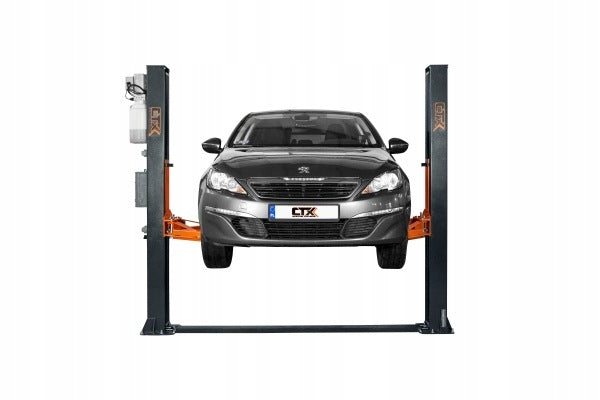

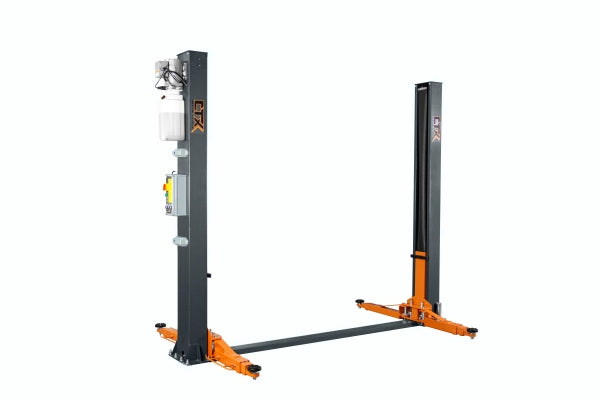

Versatility and safety in one device – the CTX 07.1A01 lift

🟠 Looking for a lift that works well for daily tasks with various vehicle types? The CTX 07.1A01 is the ideal solution – its 4000 kg lifting capacity allows you to easily handle both passenger cars and many models of vans. This is one device that can replace several others.

🟠 Safety first – thanks to automatic safety locks, you can work with peace of mind, without worrying about the vehicle accidentally lowering. The automatic lock release system, operated by a button on the control panel, gives you full control – quickly, conveniently, and without risk.

🟠 Operational Flexibility – specially designed lift arms adapt to vehicles of different sizes, from city compacts to vans. No matter what comes into your workshop today – this lift will be ready.

🟠 By choosing the CTX 07.1A01, you are investing in reliability, safety, and comfort for your daily work.

Technical parameters:

✔ lifting capacity: 4000kg

✔ lifting height: 1800mm

✔ minimum lifting height: 115mm

✔ lifting time: 50sec

✔ power supply: 230V

✔ weight: 580kg

✔ width between columns (internal): 2820mm

✔ width between columns (external): 3310mm

✔ total height: 2814mm

✔ double locking system, electro-magnetic

☑ The lift has asymmetrical arms:

✔ front three-segment 700mm – 1400mm

✔ rear two-segment 900mm – 1400mm

☑ Height adapters with smooth adjustment 60mm (unscrewable) + adapters for buses FREE !

WHAT SETS OUR LIFT APART?

☑ A simple, intuitive control box consists of just 4 buttons:

✔ POWER SUPPLY

✔ TOP – LIFTING

✔ DOWN – LOWERING

✔ BLOCKADE

On the box there is also a short instruction manual in Polish.

☑ Automatic safety locks - LOCK - ratchets turn on automatically, spontaneously - that is, you do not have to remember about it!!

The lock can also be controlled from the control box – with one convenient button. The lift also has an emergency lowering valve, necessary in the absence of power.

The lift is also equipped with rubber covers to protect the door from upholstery and grilles (curtains) to protect the lift ropes.

☑ Technologically new “type C” trolley. What does this mean?

The new “type C” trolley used in the lift means above all greater durability.

Which in turn translates into less failure rate and greater security.

☑ Remember! The old-style trucks offered by the competition are outdated technologies that are not worth investing in.

Excellent, constantly controlled quality.

Careful welds, high-quality varnish and powder coating are the standard in the production of our lifts. Each of them undergoes quality control.

Additional information:

☑ What floor do you need?

For the lift, a concrete floor type C20/25 (former class B25) with a minimum thickness of 300 mm and dimensions of 1000 mm x 4000 mm and an electrical connection are required.

☑ Office of Technical Inspection

The lift has all the necessary documents for UDT to register the lift and allow it to be operated.

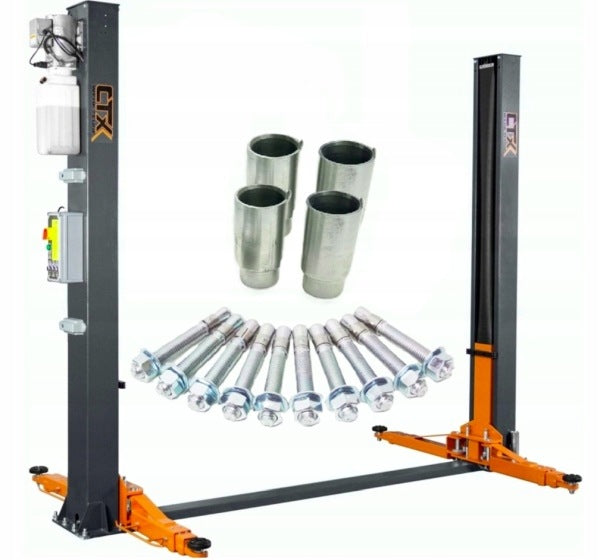

☑ What do you get in the set?

✔ documents allowing to report the lift to UDT

✔ instruction manual in Polish and English

✔ mounting anchors

✔ support of the service

❗ Lift shipped WITHOUT OIL - recommended HL46/32 ❗

German standard.

CTX WERKZEUGE is German quality!

❗ The price does not include the installation of the lift - installation on the side of the Buyer ❗

One of the foundations of the success of CTX Werkzeuge GmbH is the exceptional quality of its products. We guarantee the best prices, development and satisfaction. Our development and satisfaction of our customers strengthen us in the philosophy of our company as a company from the automotive industry. We are happy to welcome you as a new customer and would like to thank everyone else who has shown us their loyalty with their long-term business relationships.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	CTX Werkzeuge
Parametry	Manufacturer code	CTX.07.1A01 230V
Parametry	EAN (GTIN)	4262443360028
Parametry	Number of columns	2
Parametry	Drive	electrohydraulic
Parametry	Column connection	bottom
Parametry	Overall width	3340 mm
Parametry	Overall height	2814 mm
Parametry	Power supply	230 V
Parametry	Lifting capacity	4000 kg
Parametry	Minimum lifting height	115 mm
Parametry	Maximum lifting height	1900 mm
