Trumpai apie prekę
Prekė: Dviejų kolonų elektrohidraulinis keltuvas 5T INVENTO EL 250L. Kategorija: Keltuvai stulpams.
- Gamintojas: Invento
- Modelis: INVEL250L

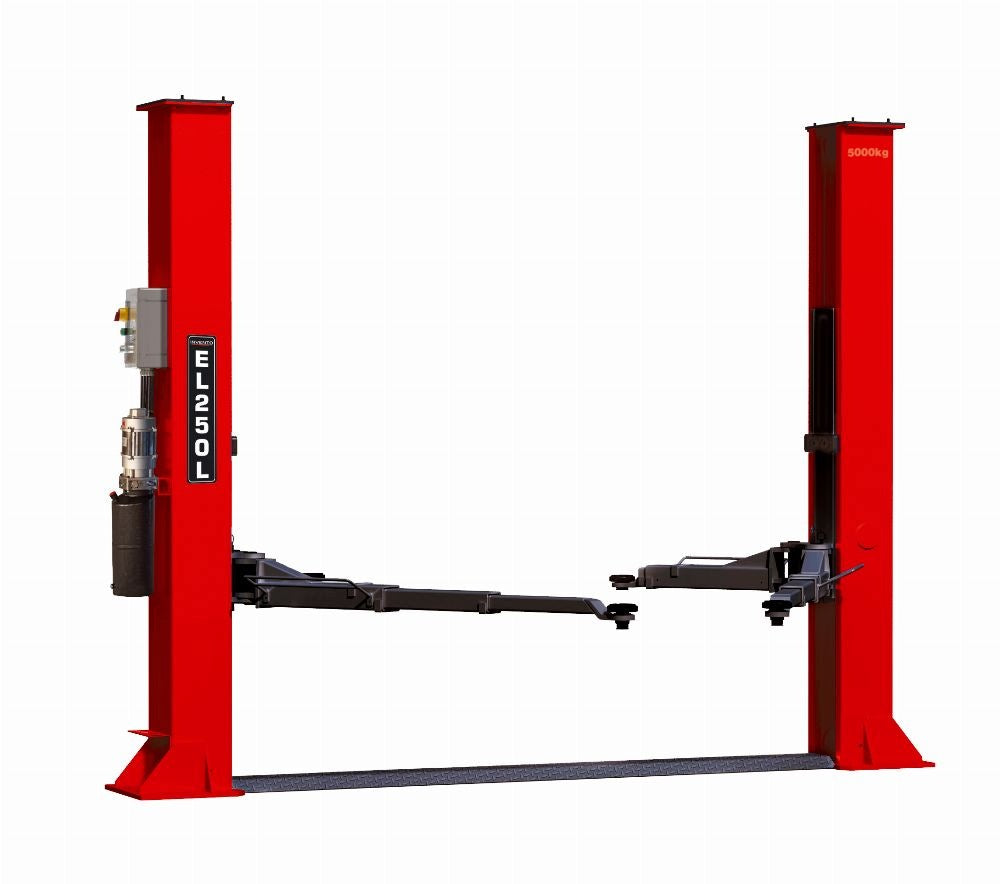

INVENTO EL 250L is an electrohydraulic two-column lift with a lifting capacity of 5000 kg. Arms with adjustable length from 820 to 1700 mm allow you to operate passenger cars, SUVs and commercial vehicles.
The design provides free access to wheels and chassis, while 80 and 120 mm extension adapters make it easy to adjust the support points to higher-hanging vehicles.
🛡 Security and CE Compliance
The lift is equipped with the protection required in the CE documentation. The automatic height locks are electromagnetically controlled, making it easy to secure and release the mechanism during operation.
The movement of the cylinders is synchronized by means of a steel cable guided through the lower cover with a height of 30 mm.
⚙️ Key Information
- Lifting Capacity: 5000 kg
- Maximum Lifting Height: 1900 mm
- Adjustable Arm Length: 820–1700 mm
- Automatic Electromagnetic Locks
- Cylinder Synchronization via Steel Cable
- 30 mm Low Profile Base Plate
- 80 mm and 120 mm Extension Adapters Included
- Electro-Hydraulic Drive
- Free Shipping
🚐 Workshop Application
INVENTO EL 250L is designed for lifting:
- Passenger cars,
- SUVs,
- Off-road vehicles,
- Vans.
The maximum vehicle width it can handle is 2500 mm, and the distance between columns is 2805 mm.
🔧 Long, adjustable arms

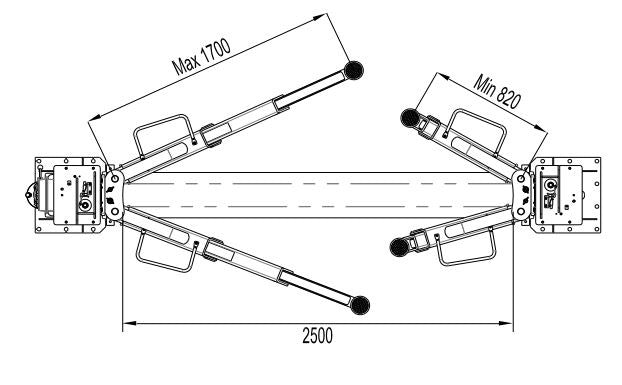

The arms can be adjusted from 820 to 1700 mm. The long range makes it easy to correctly position the support points under vehicles with different wheelbases and chassis designs.
⬆ Adapters for higher vehicles
The standard equipment includes extension adapters with a height of:
- 80 mm,
- 120 mm.
Adapters make it easy to lift vans, off-road vehicles and SUVs with higher support points.
🏢 Working and assembly conditions
The lift is designed for installation in indoor, enclosed rooms free from obstacles. The permissible operating temperature is from -10°C to 40°C.
The price does not include the installation of the device.

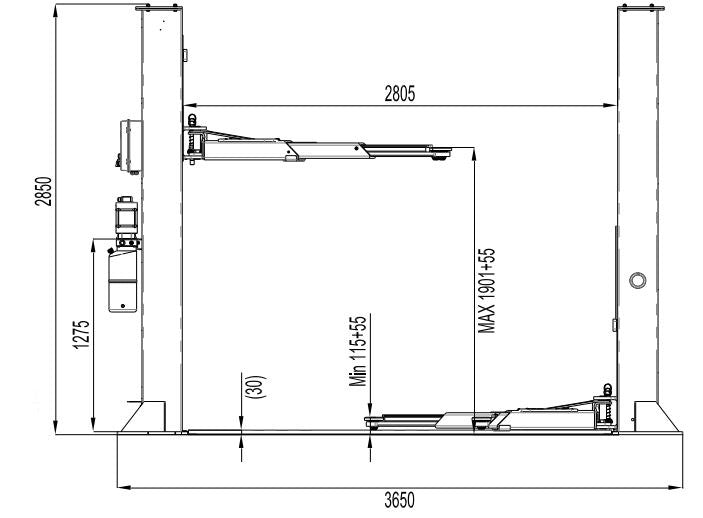

📊 Technical data
- Model: INVENTO EL 250L
- Type: electrohydraulic two-column lift
- Lifting capacity: 5000 kg
- Maximum lifting height: 1900 mm
- Minimum height: 120 mm
- Arm length: 820 – 1700 mm
- Column height: 2850 mm
- Width between columns: 2805 mm
- Maximum width of the vehicle: 2500 mm
- Overall width: 3650 mm
- Lower cover height: 30 mm
- Lifting time: 60 s
- Power supply: 400 V, 50 Hz
- Power: 2,6 kW
- Operating temperature: -10°C to 40°C
- Adapters included: 80 and 120 mm
The INVENTO EL 250L combines a lifting capacity of 5 tons, long arms and a compact column height. It is a solution for workshops servicing a variety of vehicles, including SUVs and vans.
🧱 Preparation of the substrate
Installation of the lift requires a substrate of appropriate strength and thickness. Two options for preparing the position are foreseen.
Option 1
- Concrete class: minimum C20/25
- Minimum substrate thickness: 150 mm
- Required mounting area: 1,5 m from anchorage
Option 2
- Concrete class: minimum C20/25
- Minimum substrate thickness: 300 mm
- Foundation plate: 4500 × 2000 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Invento |
| Parametry | Manufacturer code | INVEL250L |
| Parametry | EAN (GTIN) | 5904533333756 |
| Parametry | Number of columns | 2 |
| Parametry | Drive | electrohydraulic |
| Parametry | Overall width | 3650 mm |
| Parametry | Overall height | 2850 mm |
| Parametry | Total length | 3650 mm |
| Parametry | Power supply | 400 V |
| Parametry | Lifting capacity | 5000 kg |
| Parametry | Minimum lifting height | 120 mm |
| Parametry | Maximum lifting height | 1900 mm |
