Dujinis šildytuvas MASTER BLP 73 M

Trumpai apie prekę

Prekė: Dujinis šildytuvas MASTER BLP 73 M. Kategorija: Oro šildytuvai.

• Gamintojas: Master
• Modelis: NAGRZEWNICA MASTER BLP73M NAGRZEWNICA

______________________________________________

We guarantee:

• European performance standard
• highest quality components
• unsurpassed failure-free

MASTER is an Italian brand, No. 1 in the industry for 50 years.

______________________________________________

MASTER from the Authorized Distributor -MASTER-SHOP- are:

• Original product
• Poland distribution
• Polish manual, documents, certificates
• Authorized Service with original parts

______________________________________________

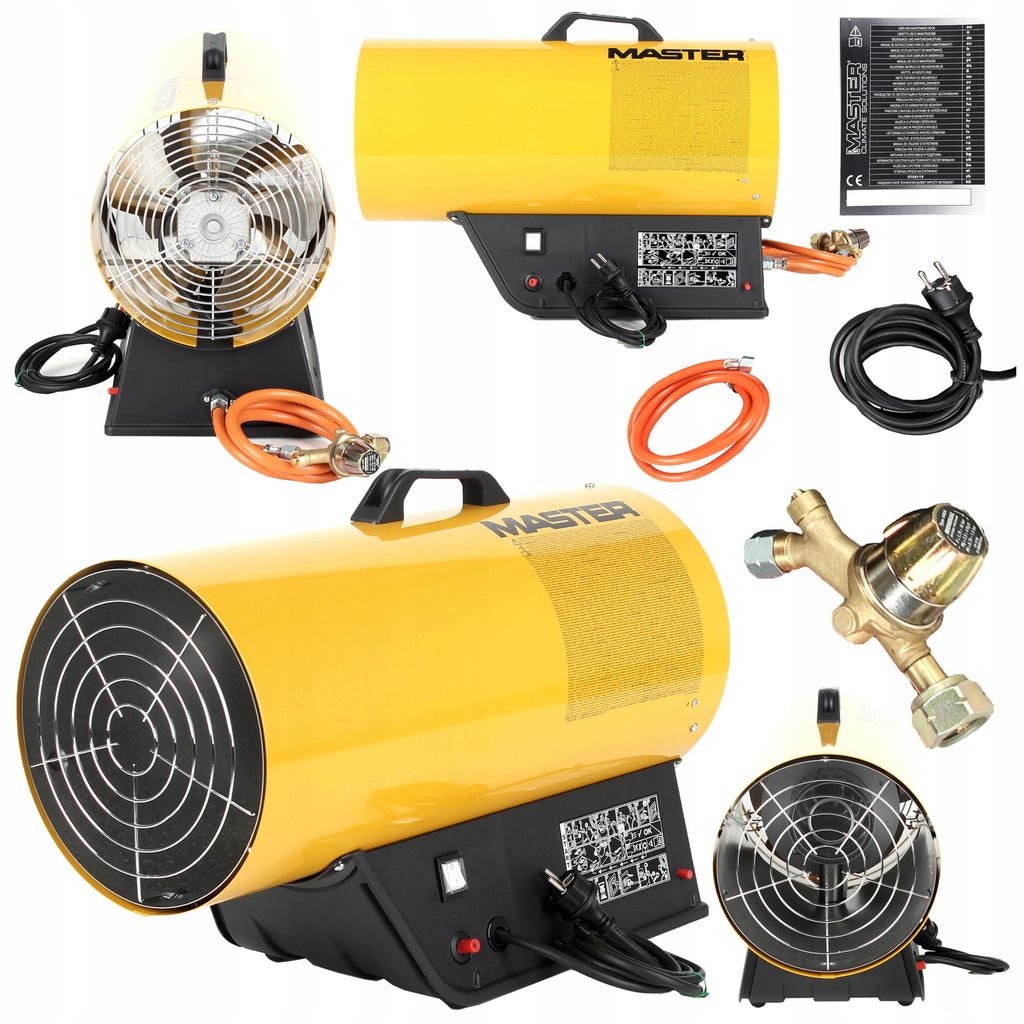

Contents of the set

• 1x Master BLP 73 M gas heater
• 1x power cord
• 1x gas pressure reducer
• 1x gas line
• 1x invoice - in electronic form
• 1x paper instruction manual in Polish

______________________________________________

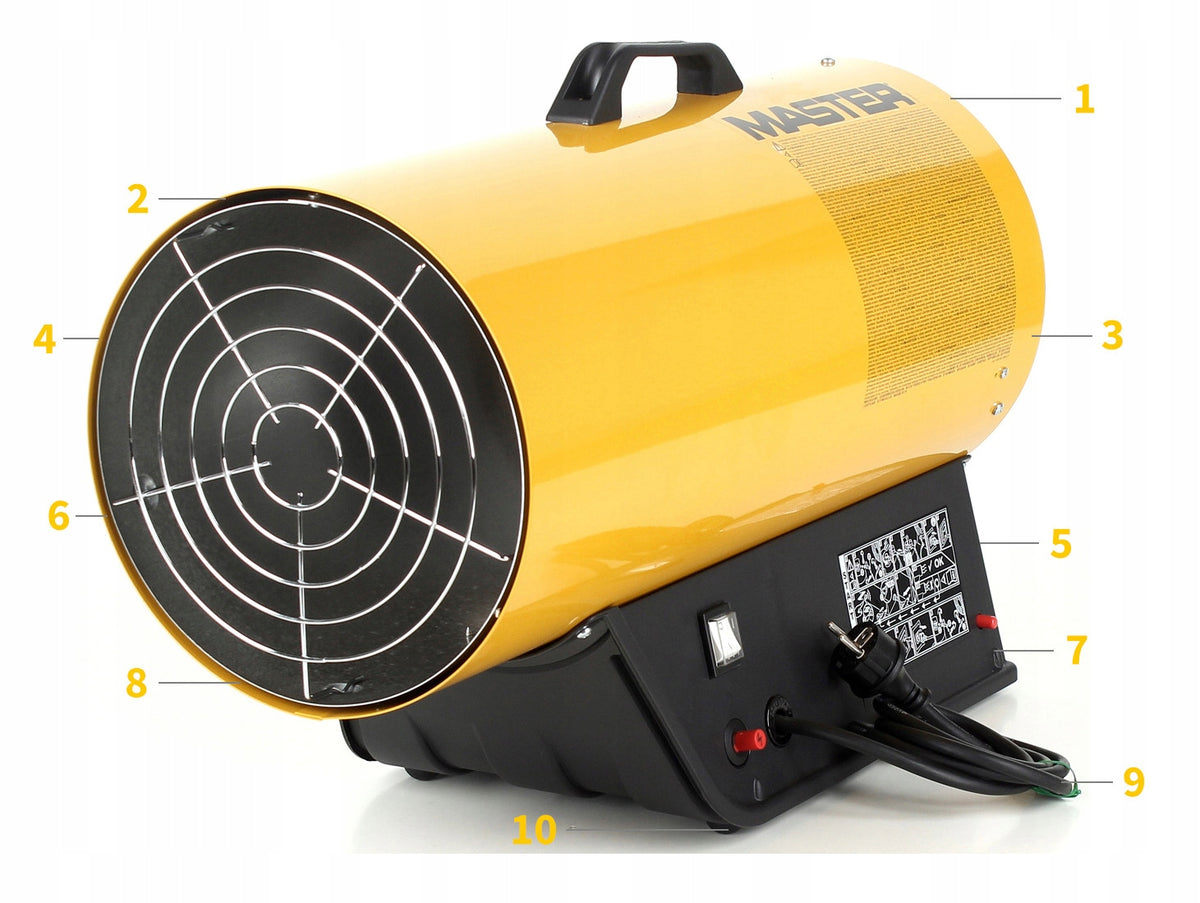

1. motor with thermal switch

2. Gas line included

3. overheating thermostat

4. power regulation

5. reducer with safety valve

6. clean combustion

7. solenoid valve

8. manual ignition

9. non-heating housing

10. safety valve with thermocouple

______________________________________________

GAS HEATERS MASTER are high-performance devices that provide clean, economical and fast heating. They do not consume oxygen and do not require fuel supplies, making them safe. They are made of the highest quality components, have appropriate certificates, thus ensuring high performance and reliability. MASTER heaters are mainly used in well-ventilated rooms, they perfectly fulfill their function in many places, e.g. livestock buildings, greenhouses.

• manual ignition
• reducer with safety valve
• reducer and gas line as standard
• motor with thermal switch
• overheating thermostat
• ability to adjust the power
• strong and durable construction
• easy operation

The main advantage of gas heaters is 100% efficiency. Used both in small rooms and warehouses - wherever there is a need for quick and economical air heating. The MASTER BLP73M heater quickly and effectively creates comfortable thermal conditions in the rooms where it is used. It is also easy to use and maintain. The standard equipment with heater includes LPG pressure reducer with safety valve and 1,5 meter gas line ready for connection.

The MASTER gas heaters are very effective when it comes to heating living rooms, workshops, shops, cottages, warehouses, catering establishments, commercial and service premises, public facilities, single-family houses, greenhouses, sports halls, factory buildings. For the latter applications, more heaters can be used to be able to heat the rooms sufficiently.

______________________________________________

heater

• Type: portable
• line: BLP
• Heating power: 49 - 73kW / 167100 - 249300Btu/h / 42100 - 62800kcal/h
• power regulation: liquid
• airflow: 2300m3/h
• room thermostat: none
• fuel: propane-butane / propane (only propane is recommended - G31)
• fuel consumption: 5,02kg/h

gas heater

• Version: standard
• Pressure: 0,75 - 1,5bar
• Ignition: manual / piezoelectric

equipment

• standard equipment: solenoid valve / gas safety valve with thermocouple / gas line / power cord / gas reducer with safety valve / power regulation / motor with thermal protection / overheating thermostat / handle

electric

• Voltage: 220-240V
• frequency: 50Hz
• rated current: 0,95A
• Electric power: 0,218kW

physical

• Width: 30cm
• depth / length: 75cm
• Height: 51cm
• Package width: 30cm
• package depth: 75cm
• package height: 51cm
• Weight: 15kg
• Package weight: 17kg
• quantity on pallet: 12pcs.

additional

• degree of protection: IP 44
• country of manufacture: Italy

______________________________________________

• MASTER heaters work immediately after switching on: installation is not required

• Choose the cheapest or cleanest energy source according to your needs: gas, oil, electricity

• MASTER heaters are portable

• Highly efficient combustion process MASTER allows to minimize impurities

• MASTER heaters can heat small and large areas

• It is always possible to use additional MASTER heaters

• MASTER heaters heat very quickly

• MASTER heaters work for many years, and can be easily repaired thanks to the availability of spare parts for 10 years

• MASTER heaters can be controlled by thermostat

______________________________________________

______________________________________________

To calculate the required heat output, use the following formula:

power [kW] = room volume [m3] * temperature increase [oC] * insulation factor / 860

• room volume => length * width * height - in meters
• temperature increase => required temperature increase in degrees Celsius (in the absence of data we assume 30 oC)
• insulation coefficient => thermal insulation coefficient (0,5 to 3,5), where:

• insulation coefficient = 0,5 - well insulated rooms (houses and offices)
• insulation coefficient = 1,5 - medium insulated buildings (garages)
• insulation coefficient = 2,5 - poorly insulated rooms (old houses and cellars)
• insulation coefficient = 3,5 - non-insulated rooms (wood or metal sheet buildings, greenhouses)
