Dronas DJI Matrice 4TD C2 Combo, šiluminis, LiDAR, 47 min, DJI Care Plus 1 metai

Trumpai apie prekę

Prekė: Dronas DJI Matrice 4TD C2 Combo, šiluminis, LiDAR, 47 min, DJI Care Plus 1 metai. Kategorija: Dronai ir multikopteriai.

• Gamintojas: DJI
• Modelis: Matrice 4TD C2

Authorized Seller | Need a B2B offer? Send inquiry

⭐ Key Features ⭐

✔ Created to work with DJI Dock 3 and DJI RC Plus 2 Enterprise controller

✔ Resistance to extreme weather conditions – operates at temperatures from -30°C to 50°C, IP55 resistance.

✔ Flight time up to 47 minutes – operating range at 15 m/s to 18 minutes within a radius of 10 km.

✔ Advanced obstacle avoidance system – the LiDAR module with millimeter waves detects obstacles with a diameter of 12 mm at speeds up to 15 m/s.

✔ UHR thermal imaging camera – resolution up to 1280×1024, High-Res mode and IR-Cut filter for night vision in black and white.

✔ Built-in auxiliary light NIR – lighting range up to 100 m, ideal in dark conditions.

✔ Multifocal camera system – wide-angle, medium-tele, telephoto lens and laser rangefinder (range up to 1800 m).

✔ Image stabilization at high zoom – readability of details from a distance of up to 250 m.

✔ Night mode and high sensitivity visible light cameras – provide full-color images in low light conditions.

✔ Precise terrain mapping – orthogonal and diagonal images, intelligent route planning, Smart 3D Capture.

✔ Relaying (relay in the air) – the possibility of extending the transmission range thanks to a relay drone in mountainous terrain.

✔ Support for double dock and drone – alternating operation of two units increases efficiency and safety.

✔ Silent, anti-icing propellers – ensure stable flight even in frost and rain with snow.

☄ DJI Matrice 4TD

Professional DJI Matrice 4TD is an advanced enterprise-class drone, designed to work in demanding conditions and ready to perform specialized tasks. This model was developed to work with the DJI Dock 3, but can also be used alone with the DJI RC Plus 2 Enterprise. It offers IP55 resistance, extended flight time, an extensive set of cameras, thermal imaging, support for night operations and functions that are perfect for infrastructure inspections, rescue operations and field operations

☄ Designed for special missions and field work

DJI Matrice 4TD is a construction prepared for professional applications, where reliability, safety and readiness to operate regardless of conditions count. Thanks to its compatibility with DJI, Dock 3 can work as part of an automated operating system, and when paired with DJI RC Plus 2 Enterprise, it will also work as a standalone platform for mobile tasks. The IP55 resistance and extended runtime make it a very powerful tool for services, inspectors and infrastructure operators.

☄ Advanced day, night and thermal image

On board the DJI Matrice 4TD there is an extensive set of sensors that allows you to work during the day, after dark and in situations requiring thermal analysis. The drone offers a 48 MP wide-angle camera, a medium-angle camera, a telephoto lens, a thermal imaging camera, a NIR auxiliary light and a laser rangefinder. This combination makes the model great for activities in areas such as public safety, emergency response or technical inspections.

☄ Effectiveness even after dark

The Matrice 4TD is designed for night work and harsh lighting conditions. It offers Night Scene Mode, full-color night vision, and in addition, the 4TD model is distinguished by the IR-Cut Filter function, which allows black and white night vision. Support during work is also NIR Auxiliary Light, which illuminates the area up to 100 meters, which significantly improves the effectiveness of field activities after dark.

☄ Thermal imaging for anomaly detection and operational work

The thermal imaging camera used in the DJI Matrice 4TD is based on the Uncooled VOx Microbolometer sensor with a resolution of 640 × 512, and in the UHR Infrared Image mode allows you to get an image up to 1280 × 1024. Such a set enables effective detection of heat sources, analysis of temperature anomalies and conducting missions where a standard optical image is not enough. This solution is particularly useful during search and rescue operations, diagnostics of installations and monitoring of facilities.

☄ Safe Navigation in a Complex Environment

For an even higher level of safety, the drone can work with an optional obstacle detection module. This accessory combines the rotational LiDAR with the millimeter radar, increasing the precision of object detection and improving flight safety in harsh environments. DJI states that this solution supports bypassing wires with a diameter of 12 mm, which is why it is perfect for inspections of power grids, power stations and other complex installations.

☄ Stable connectivity even in demanding terrain

One of the strong advantages of the DJI Matrice 4TD is the Airborne Relay function, available using the DJI RC Plus 2 Enterprise apparatus. One drone can act as a relay for another, extending the real operating range in places where the signal is hindered by terrain or obstacles. This is a very practical solution during flights in the mountains, exploration activities and inspections carried out away from infrastructure.

☄ Inspection, measurement and documentation tool

DJI Matrice 4TD also supports tasks that require careful observation and data collection. From the DJI Pilot 2 level, m.in is possible. point markings based on laser rangefinder, detection of vehicles and vessels, as well as implementation of linear and area tasks. Thanks to this, the model will work not only in public safety and industry, but also in broadly understood documentation and field activities.

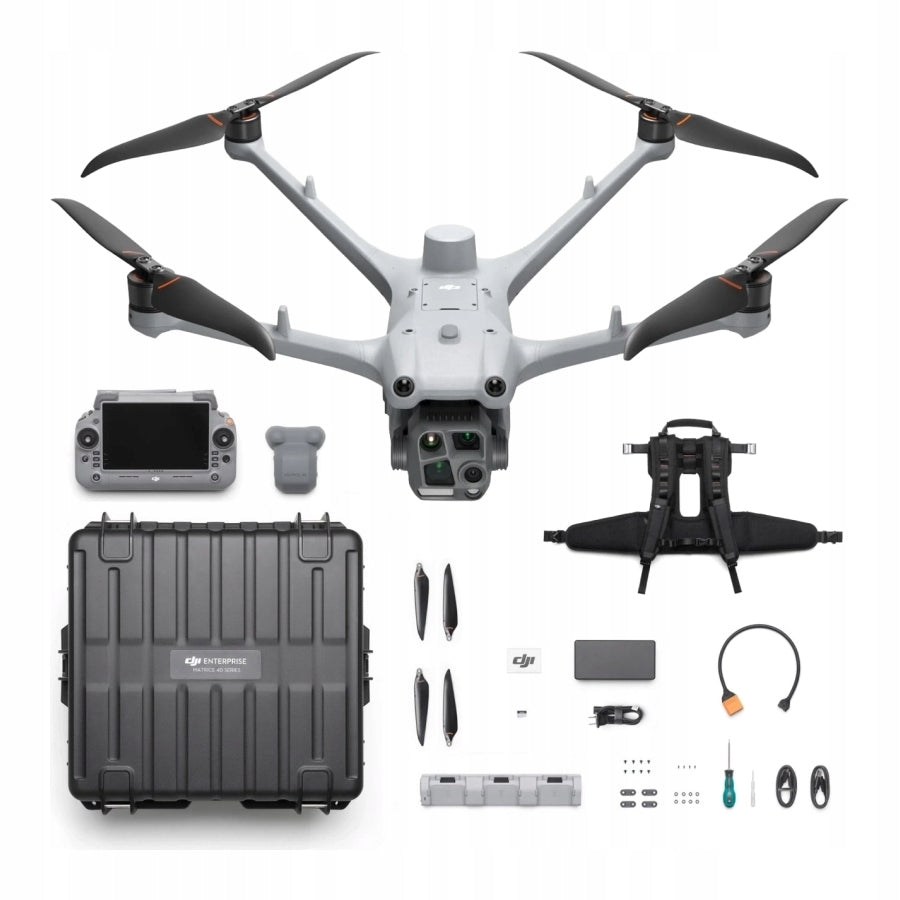

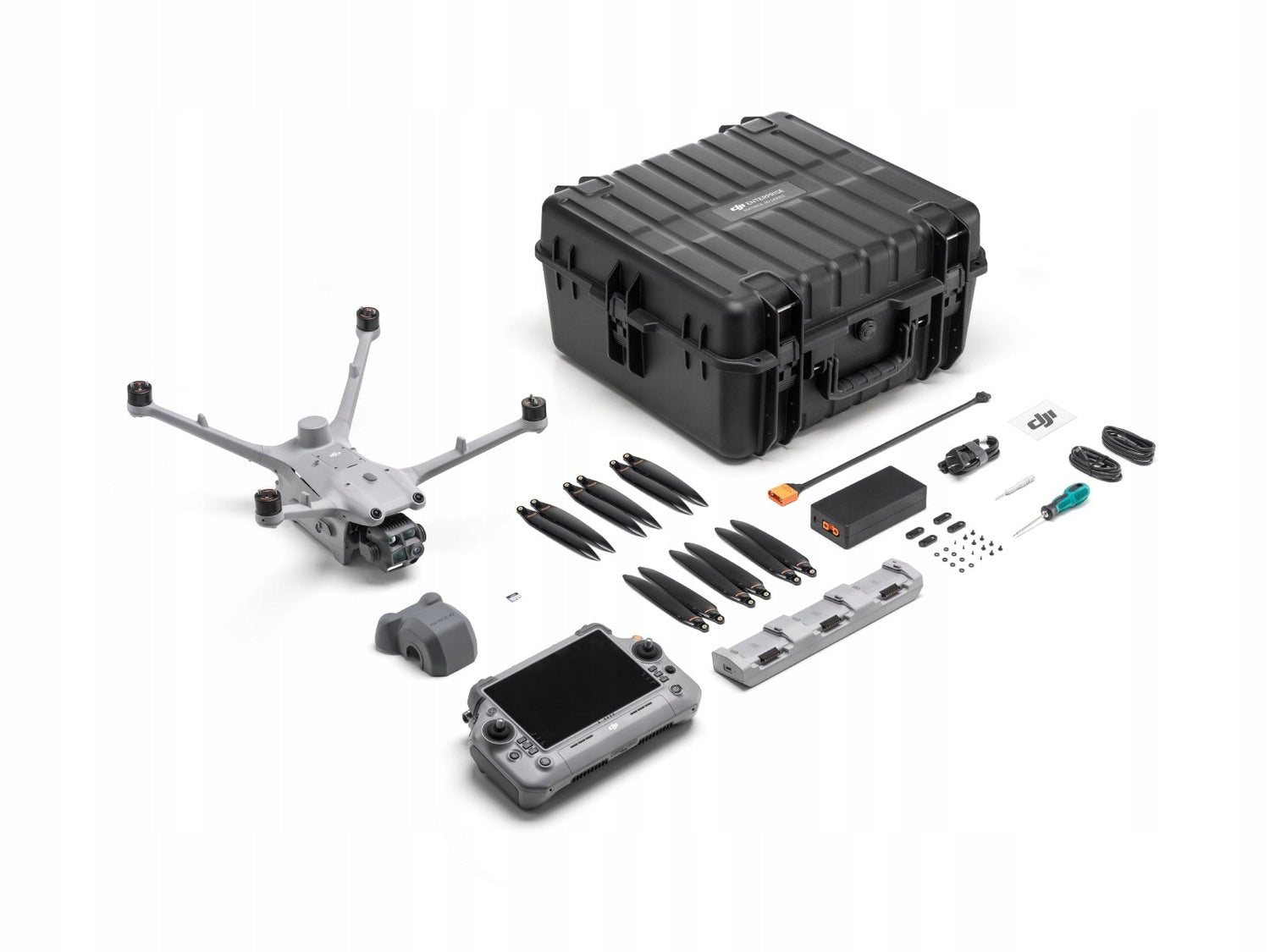

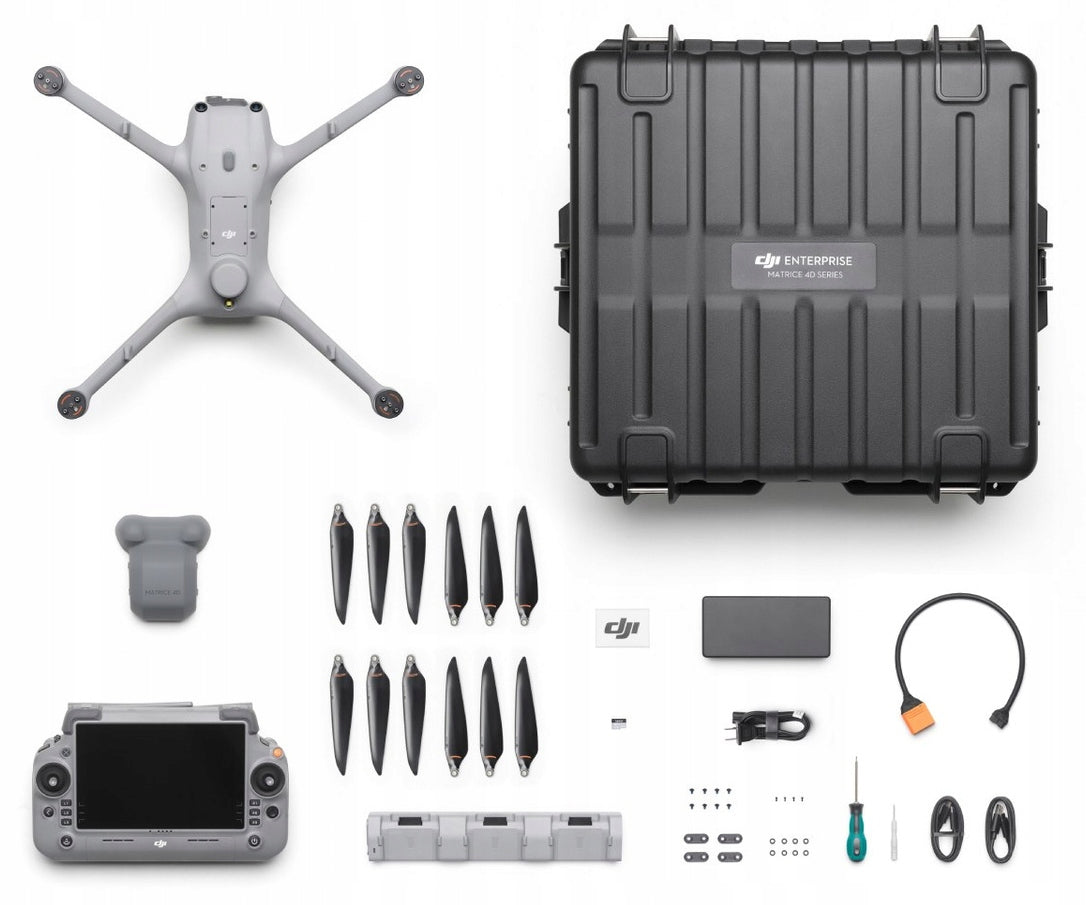

☄ Contents of the set

• 1x Drone DJI Matrice 4TD
• 1x DJI Care Enterprise Plus for 1 year (automatic activation)
• 1x Control apparatus DJI RC Plus 2 Enterprise
• 1x DJI Cellular Dongle 2
• 1x FTS module
• 1x Charging Hub
• 1x Charging adapter 240 W + power cord
• 1x USB-C to USB-C cable
• 1x USB-A to USB-C cable
• 1x Gimbal cover
• 3x propellers
• 1x Memory card 64 GB
• 1x Screwdriver + set of screws
• 1x Transport case
• 1x Harness for suitcase DJI Matrice 4D Series

⚙ Specification

GENERAL

• Model: DJI Matrice 4TD
• Total weight: 1850 g
• Maximum take-off weight: 2090 g
• Dimensions: 377,7 × 416,2 × 212,5 mm (L. × W. × H, without propellers)
• Axle spacing diagonally: 498,5 mm
• Front left-right engine axle spacing: 383,0 mm
• Rear engine axle spacing left-right: 343,0 mm
• Front-rear axle spacing: 341,6 mm
• Maximum climb speed: 6 m/s (normal mode), 10 m/s (sports mode)
• Maximum descent speed: 6 m/s (normal mode), 8 m/s (sports mode)
• Maximum horizontal flight speed: 15 m/s forward, 12 m/s backward, 10 m/s sideways in normal mode with active obstacle detection; 21 m/s forward, 19 m/s backward, 15 m/s sideways in sports mode
• Maximum wind resistance: 12 m/s
• Maximum take-off height: 6500 m
• Maximum flight time: up to 54 minutes
• Maximum hover time: up to 47 minutes
• Maximum radius of action: up to 10 km
• Maximum flight distance: up to 43 km
• Maximum Pitch Axis Angle: 25° (normal mode), 30° (sports mode)
• Maximum angular velocity: 200°/s
• Satellite navigation systems: GPS + BeiDou + Galileo + QZSS + GLONASS
• Hover accuracy vertically: ±0,1 m (visually), ±0,5 m (GNSS), ±0,1 m (RTK)
• Hover accuracy horizontally: ±0,3 m (visually), ±0,5 m (GNSS), ±0,1 m (RTK)
• Working temperature: from -20°C to 50°C
• Degree of protection: IP55
• Engine model: 2611
• Propeller model: 1364F folding low-noise or anti-ice propellers
• RTK module: built-in
• Beacon signal light: built-in

CAMERA

• Wide-angle camera: 1/1,3" CMOS, 48 MP
• Medium telephoto camera: 1/1,3" CMOS, 48 MP
• Camera with telephoto lens: 1/1,5" CMOS, 48 MP
• Wide-angle camera lens: FOV 82°, equivalent 24 mm, aperture f/1.7, focus from 1 m to ∞
• Medium telephoto lens: FOV 35°, equivalent to 70 mm, aperture f/2.8, focus from 3 m to ∞
• Telephoto lens: FOV 15°, equivalent to 168 mm, aperture f/2.8, focus from 3 m to ∞
• Lens demisting: yes
• ISO range in normal mode: 100-25600
• ISO range in night mode: wide-angle 100-409600, medium telephoto lens 100-409600, telephoto lens 100-819200
• Shutter speed: 2-1/8000 s
• Maximum image size of wide-angle camera: 8064 × 6048
• Maximum image size of medium telephoto lens: 8064 × 6048
• Maximum image size of telephoto lens: 8192 × 6144
• Minimum photo interval: 0,7 s
• Wide-angle camera photo modes: single 12 MP / 48 MP, time 12 MP / 48 MP, Smart Capture 12 MP, panorama 12 MP / 100 MP
• Medium telephoto lens photo modes: single 12 MP / 48 MP, time 12 MP / 48 MP, Smart Capture 12 MP
• Telephoto lens shooting modes: single 12 MP / 48 MP, time 12 MP / 48 MP, Smart Capture 12 MP
• Video codec: H.264, H.265
• Coding technology: CBR, VBR
• Video resolution: 4K 3840 × 2160 at 30 fps, FHD 1920 × 1080 at 30 fps
• H.264 video bitrate: 60 Mbps
• H.265 video bitrate: 40 Mbps
• Supported file system: exFAT
• Photo format: JPEG
• Video format: MP4
• Digital telephoto lens: 16x
• Hybrid Zoo: 112x

NIR AUXILIARY LIGHT

• Infrared lighting: FOV 5,7° ± 0,3°

LASER MODULE

• Laser rangefinder – normal range: 1800 m
• Laser rangefinder – diagonal range: 600 m
• Invisible zone: 1 m
• Measurement accuracy from 1 m to 3 m: system error < 0,3 m, random error < 0,1 m
• Measurement accuracy at other distances: ±(0,2 + 0,0015D)

THERMAL IMAGING CAMERA

• Sensor: uncooled VOx microbolometer
• Thermal resolution: 640 × 512
• Pixel spacing: 12 μm
• Thermal imaging lens: DFOV 45°, equivalent 53 mm, f/1.0, focus from 5 m to ∞
• Sensitivity: ≤ 50 mK at F1.0
• Temperature measurement method: point and surface
• Temperature measurement range: from -20°C to 150°C in high gain mode, 0°C to 500°C in low gain mode
• Color palettes: White Hot, Black Hot, Tint, Iron Red, Hot Iron, Arctic, Medical, Fulgurite, Rainbow 1, Rainbow 2
• Thermal imaging format: JPEG (8-bit), R-JPEG (16-bit)
• Thermal video resolution: 1280 × 1024 at 30 fps in UHR mode, 640 × 512 at 30 fps under other conditions
• Bitrate H.264 640 × 512: 6.5 Mbps
• Bitrate H.265 640 × 512: 5 Mbps
• Bitrate H.264 1280 × 1024: 12 Mbps
• Bitrate H.265 1280 × 1024: 8 Mbps
• Thermal video format: MP4
• Thermographic shooting modes: single and time
• Digital thermal imaging zoom: 28x
• Infrared wavelength: 8-14 μm
• High gain temperature measurement accuracy: ±2°C or ±2%
• Low gain temperature measurement accuracy: ±5°C or ±3%

GIMBAL

• Stabilization: 3-axis mechanical gimbal
• Mechanical tilt range: from -140° to +113°
• Mechanical range roll: from -52° to +52°
• Mechanical range pan: from -65° to +65°
• Controlled tilt range: from -90° to +90°
• Maximum tilt axis control speed: 100°/s
• Angle vibration range: ±0.005°

OBSTACLE DETECTION SENSORS

• Sensor type: multi-directional binocular vision system + lower 3D infrared sensor
• Forward measuring range: 0,5-20 m
• Forward detection range: 0,5-200 m
• Effective forward detection speed: up to 15 m/s
• Field of forward vision: 95° horizontally, 90° vertically
• Reverse measuring range: 0,5-20 m
• Effective backward detection speed: up to 12 m/s
• Reverse field of view: 95° horizontally, 90° vertically
• Side measurement range: 0,5-16 m
• Effective lateral detection speed: up to 10 m/s
• Side vision field: 90° horizontally, 90° vertically
• Measurement range up: 0,5-20 m
• Effective up detection speed: up to 6 m/s
• Upward field of view: front and rear 95°, left and right 90°
• Downward measurement range: 0,5-16 m
• Effective down detection speed: up to 6 m/s
• Downward field of view: front and rear 90°, left and right 95°
• Operating environment: surfaces with visible patterns and appropriate lighting

VIDEO TRANSMISSION

• Transmission system: DJI O4+ Enterprise
• Live view quality with DJI RC Plus 2 Enterprise: 720p/30fps, 1080p/30fps
• Live view quality with DJI Dock 3 and FlightHub 2: 540p/30fps, 720p/30fps, 1080p/30fps
• Working frequency: 2.400-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz
• Maximum transmission distance without interference: FCC 25 km, CE 12 km, SRRC 12 km, MIC 12 km
• Maximum transmission distance with strong interference: 1,5-5 km
• Maximum transmission distance with average interference: 5-15 km
• Maximum transmission distance with weak interference: 15-25 km
• Maximum download speed: 20 MB/s
• Lowest delay: about 100 ms to docking station
• Antenna: 8 antennas, 2T4R
• 2.4 GHz transmitter power: < 33 dBm FCC, < 20 dBm CE/SRRC/MIC
• 5.1 GHz transmitter power: < 23 dBm FCC/CE
• 5.8 GHz transmitter power: < 33 dBm FCC/SRRC, < 14 dBm CE
• Compatibility: DJI Cellular Dongle 2

MEMORY

• Supported memory cards: microSD U3/Class 10/V30 or higher
• Recommended memory cards: Lexar 1066x 64GB, 128GB, 256GB, 512GB and Kingston Canvas Go! Plus 64GB, 128GB, 256GB, 512GB

DRONE BATTERY

• Capacity: 6768 mAh
• Voltage: 22.14 V
• Maximum charging voltage: 25.5 V
• Cell type: Li-ion 6S
• Chemical system: LiNiMnCoO2
• Energy: 149.9 Wh
• Mass: 640 g
• Number of cycles: 400
• Charging temperature: from 5°C to 45°C
• Discharge factor: 4C
• Maximum charging power: 1.8C
• Low temperature charging: yes, with self-heating function

CHARGING ADAPTER

• Input voltage: 100-240 V AC, 50/60 Hz, 3 A
• Output power: 240 W
• Output voltage: 240 W total, USB-C up to 65 W

HUB CHARGING

• Input voltage: SDC 16.8 V to 25.5 V, 12.1 A
• Rated power: 240 W
• Charging type: sequential charging of 3 batteries
• Supported modes: standard 100% SOC and 90% SOC readiness
• Compatible batteries: DJI Matrice 4D Series
• Charging temperature: from 5°C to 40°C
