Dronas Axisflying Cineon C35 V3 DJI O4 be ELRS ir GPS modulio

Trumpai apie prekę

Prekė: Dronas Axisflying Cineon C35 V3 DJI O4 be ELRS ir GPS modulio. Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: C35 V3 No RX

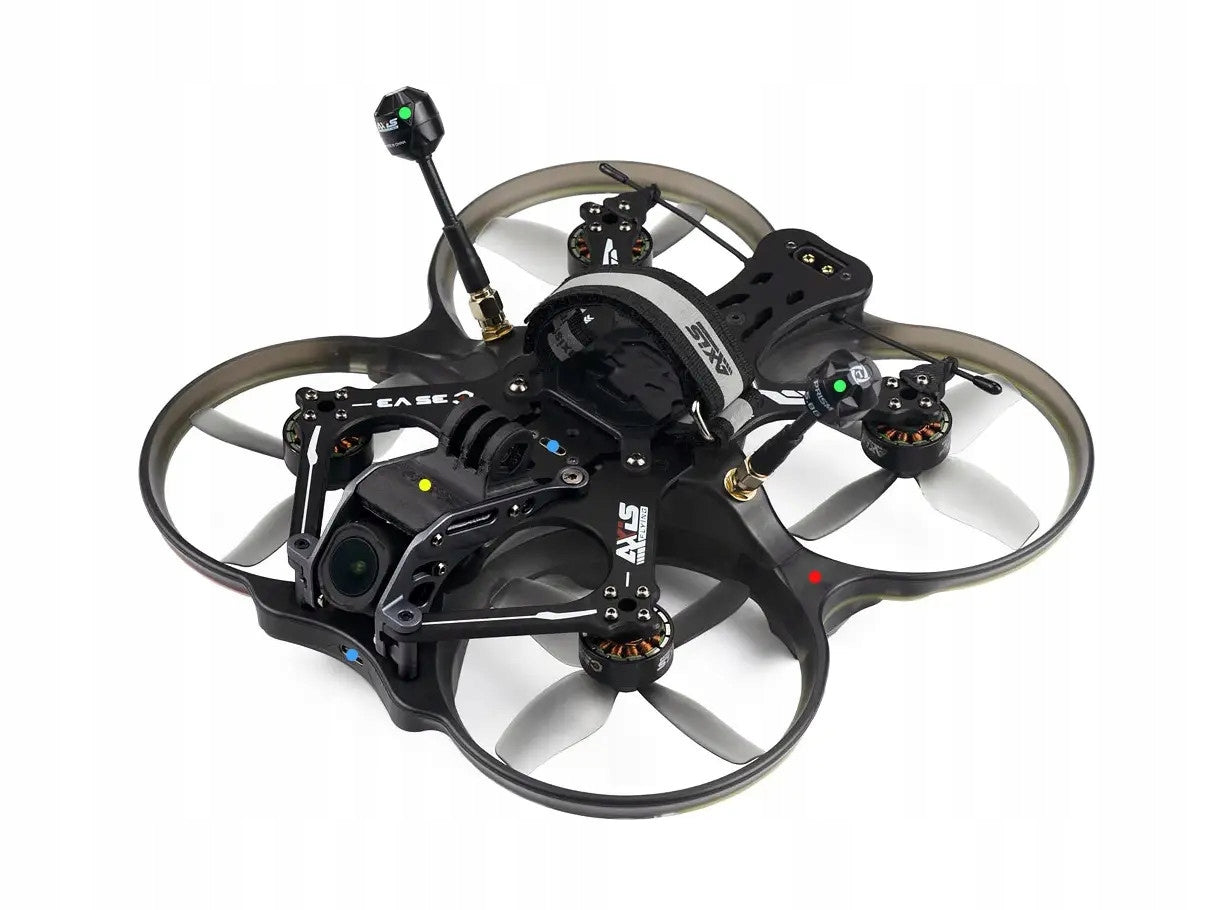

Axisflying C35 V3 – FPV 3.5″ Kit: Frame + Stack + Engines + Propellers

Version without receiver (No RX) or with ELRS 2.4 GHz – compatible with DJI O4 Lite

Axisflying C35 V3 is a complete set for building a FPV class 3.5″ cinewhoop drone. Includes frame, flight controller with ESC, 4 engines and a set of propellers. Designed for cinematic and freestyle flights. It comes in two variants: without receiver (for own configuration) or with built-in ELRS 2.4 GHz (BNF).

Options available

• No RX – without radio receiver (for own configuration)
• ELRS 2.4 GHz – with built-in ExpressLRS receiver (BNF)

Product Features

• ● Complete 3.5″ drone building kit (without DJI Air Unit)
• ● No RX version – possibility of mounting your own receiver
• ● ELRS version – integrated ExpressLRS 2.4 GHz receiver
• ● Compatible with DJI O4 Lite (not included)
• ● T700 Carbon Cineon C35 V3 Frame – Inky Black
• ● Stack F7 FC + 45A ESC BLHeli_32 + 2004 2900KV engines

Technical specification

• ● Wheelbase: 160 mm (3.5″)
• ● Frame: carbon T700, colour Inky Black
• ● FC: F722 (MPU6000) + 4in1 ESC 45A (BLHeli_32)
• ● Engines: 2004 2900KV (6S)
• ● Receiver: none (No RX) / ELRS 2.4 GHz (in BNF)
• ● Video: Compatible with DJI O4 Lite (No Camera or Transmitter Included)

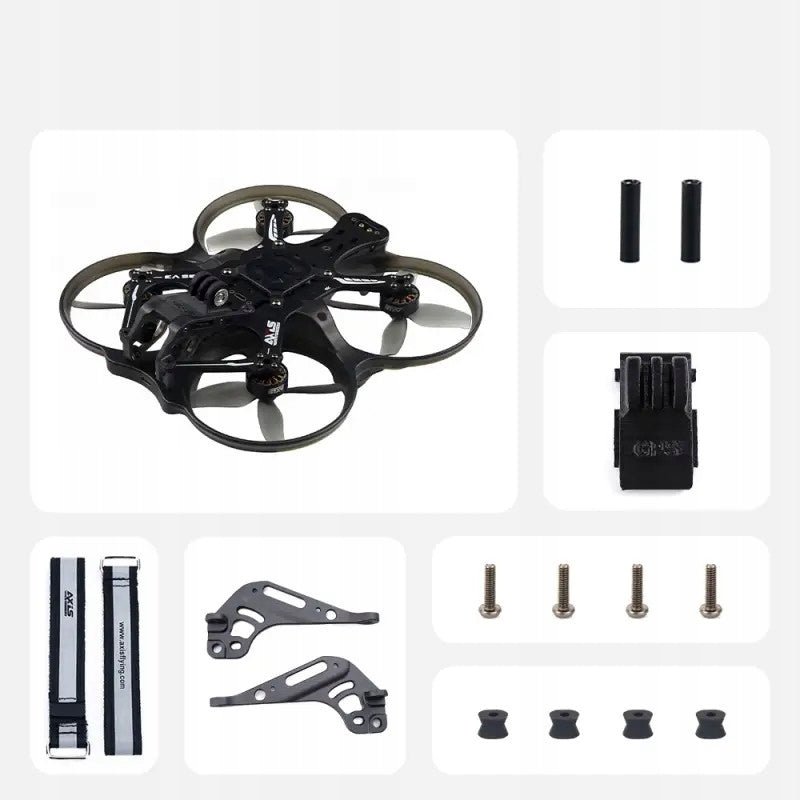

Contents of the pack

• 1× Axisflying Cineon C35 V3 (Inky Black)
• 1× FC F7 + ESC 4in1 45A
• 4× 2004 2900KV motor
• 1× Set of propellers 3.5″
• 1× 2.4 GHz ELRS receiver (ELRS version only)
• 1× Mounting kit and wires
• Note: The kit does not include a FPV camera or DJI transmitter.
